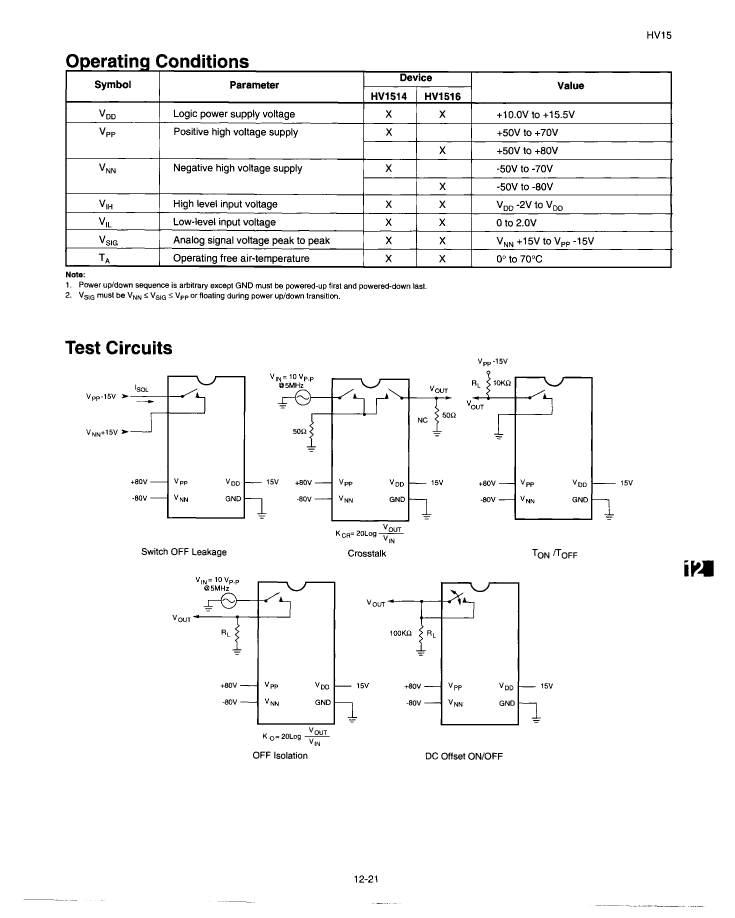

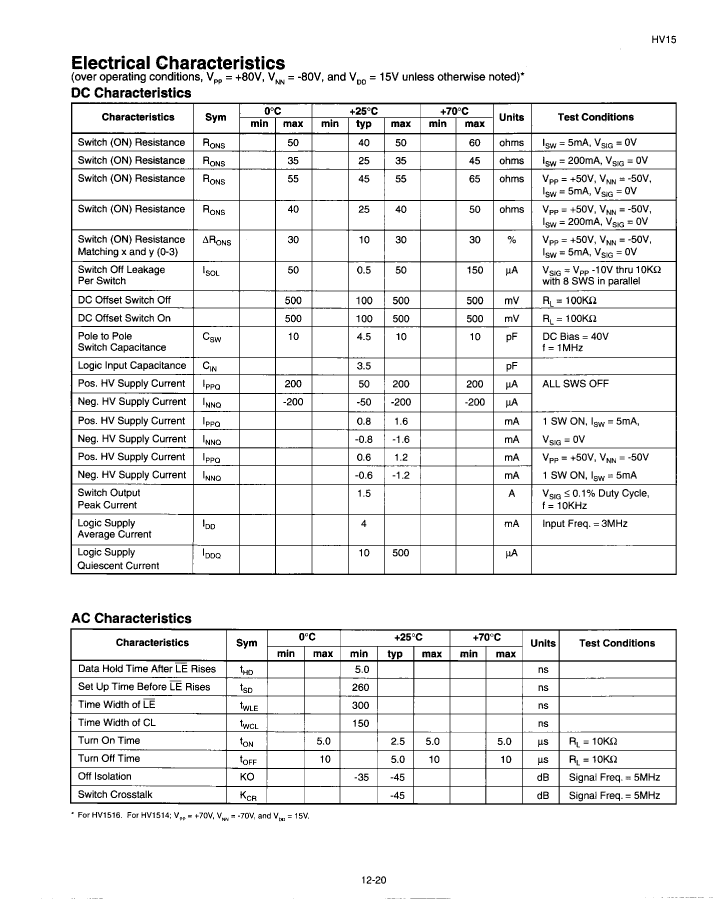

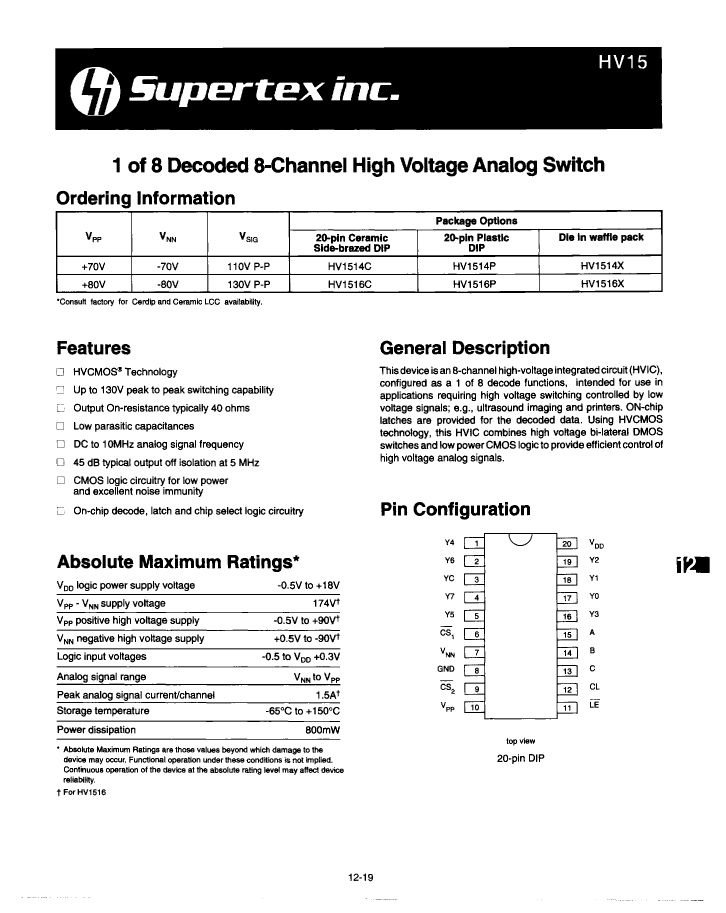

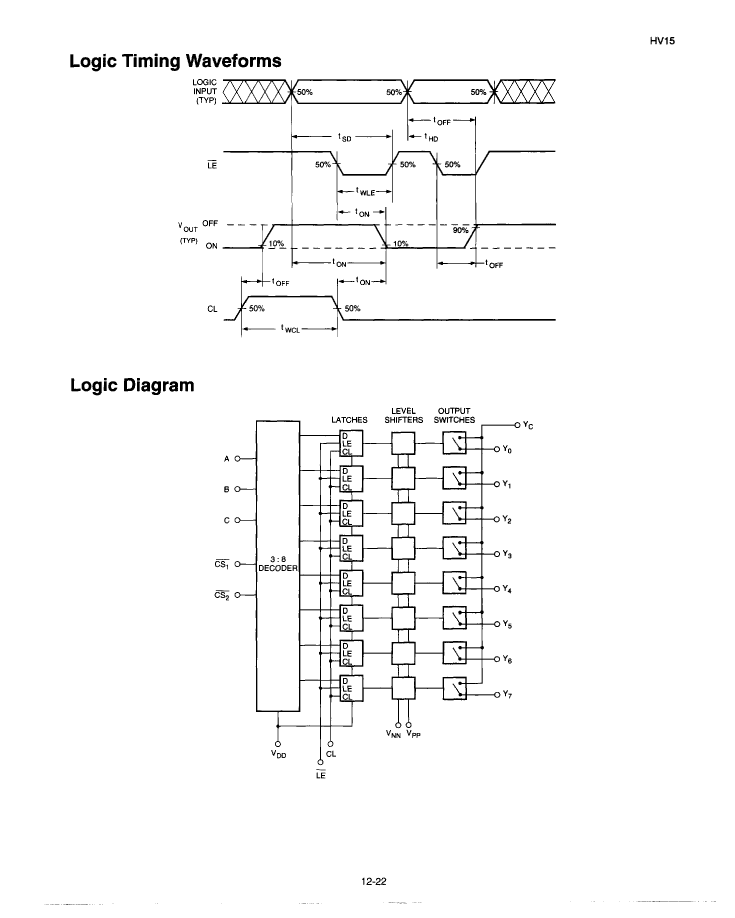

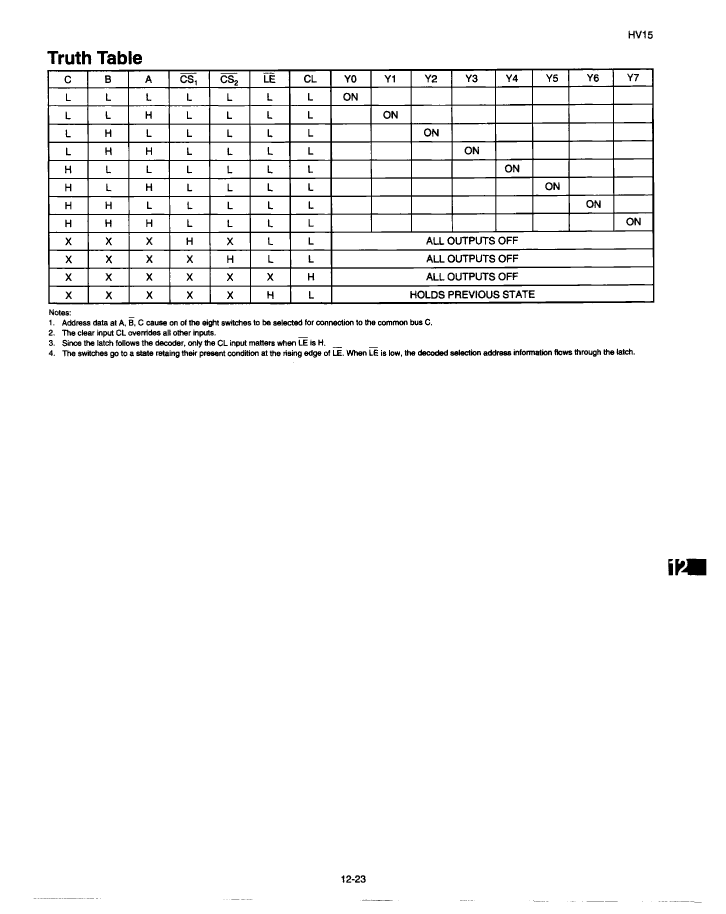

Single-Ended Multiplexer, 1 Func, 8 Channel, NMOS, PDIP20, PLASTIC, DIP-20
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Supertex |
| Parts packaging code | DIP |
| package instruction | DIP, |
| Contacts | 20 |
| Reach Compliance Code | unknown |
| Is Samacsys | N |
| Analog Integrated Circuits - Other Types | SINGLE-ENDED MULTIPLEXER |
| JESD-30 code | R-PDIP-T20 |
| length | 26.162 mm |
| Humidity sensitivity level | 1 |
| Nominal Negative Supply Voltage (Vsup) | -70 V |
| Number of channels | 8 |
| Number of functions | 1 |
| Number of terminals | 20 |
| Nominal off-state isolation | 45 dB |
| On-state resistance matching specifications | 4 Ω |
| Maximum on-state resistance (Ron) | 50 Ω |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | DIP |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Peak Reflow Temperature (Celsius) | 225 |
| Certification status | Not Qualified |
| Maximum seat height | 4.445 mm |
| Maximum supply current (Isup) | 1.6 mA |
| Nominal supply voltage (Vsup) | 70 V |
| surface mount | NO |
| Maximum disconnect time | 10000 ns |
| Maximum connection time | 5000 ns |
| technology | NMOS |
| Temperature level | COMMERCIAL |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| width | 7.62 mm |
| Base Number Matches | 1 |
| HV1514P | HV1514X | HV1514C | HV1516C | |
|---|---|---|---|---|
| Description | Single-Ended Multiplexer, 1 Func, 8 Channel, NMOS, PDIP20, PLASTIC, DIP-20 | Single-Ended Multiplexer, 1 Func, 8 Channel, NMOS, DIE | Single-Ended Multiplexer, 1 Func, 8 Channel, NMOS, CDIP20, SIDE BRAZED, CERAMIC, DIP-20 | Single-Ended Multiplexer, 1 Func, 8 Channel, NMOS, CDIP20, SIDE BRAZED, CERAMIC, DIP-20 |
| Maker | Supertex | Supertex | Supertex | Supertex |
| Parts packaging code | DIP | DIE | DIP | DIP |
| package instruction | DIP, | DIE, | DIP, | DIP, |
| Contacts | 20 | 30 | 20 | 20 |
| Reach Compliance Code | unknown | unknown | unknown | unknown |
| Analog Integrated Circuits - Other Types | SINGLE-ENDED MULTIPLEXER | SINGLE-ENDED MULTIPLEXER | SINGLE-ENDED MULTIPLEXER | SINGLE-ENDED MULTIPLEXER |
| JESD-30 code | R-PDIP-T20 | R-XUUC-N30 | R-CDIP-T20 | R-CDIP-T20 |
| Nominal Negative Supply Voltage (Vsup) | -70 V | -70 V | -70 V | -80 V |
| Number of channels | 8 | 8 | 8 | 8 |
| Number of functions | 1 | 1 | 1 | 1 |
| Number of terminals | 20 | 30 | 20 | 20 |
| Nominal off-state isolation | 45 dB | 45 dB | 45 dB | 45 dB |
| On-state resistance matching specifications | 4 Ω | 4 Ω | 4 Ω | 4 Ω |
| Maximum on-state resistance (Ron) | 50 Ω | 50 Ω | 50 Ω | 50 Ω |
| Maximum operating temperature | 70 °C | 70 °C | 70 °C | 70 °C |
| Package body material | PLASTIC/EPOXY | UNSPECIFIED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | DIP | DIE | DIP | DIP |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | UNCASED CHIP | IN-LINE | IN-LINE |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum supply current (Isup) | 1.6 mA | 1.6 mA | 1.6 mA | 1.6 mA |
| Nominal supply voltage (Vsup) | 70 V | 70 V | 70 V | 80 V |
| surface mount | NO | YES | NO | NO |
| Maximum disconnect time | 10000 ns | 10000 ns | 10000 ns | 10000 ns |
| Maximum connection time | 5000 ns | 5000 ns | 5000 ns | 5000 ns |
| technology | NMOS | NMOS | NMOS | NMOS |
| Temperature level | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal form | THROUGH-HOLE | NO LEAD | THROUGH-HOLE | THROUGH-HOLE |
| Terminal location | DUAL | UPPER | DUAL | DUAL |
| Is it Rohs certified? | incompatible | - | incompatible | incompatible |
| length | 26.162 mm | - | 25.4 mm | 25.4 mm |
| Humidity sensitivity level | 1 | - | 1 | 1 |
| Peak Reflow Temperature (Celsius) | 225 | - | 225 | 225 |
| Maximum seat height | 4.445 mm | - | 3.556 mm | 3.556 mm |
| Terminal pitch | 2.54 mm | - | 2.54 mm | 2.54 mm |
| Maximum time at peak reflow temperature | NOT SPECIFIED | - | NOT SPECIFIED | NOT SPECIFIED |
| width | 7.62 mm | - | 7.62 mm | 7.62 mm |
