HC-49/4H-FREQ5 datasheet, PDF - EEWORLD Datasheet

HC-49/4H-FREQ5: DescriptionParallel - Fundamental Quartz Crystal, 4.9MHz Min, 5.999MHz Max, ROHS COMPLIANT PACKAGE-2; CategoryCrystal/resonator; File Size93KB，1 Pages; ManufacturerConnor-Winfield; Websitehttp://www.conwin.com/

Download Datasheet Parametric View All

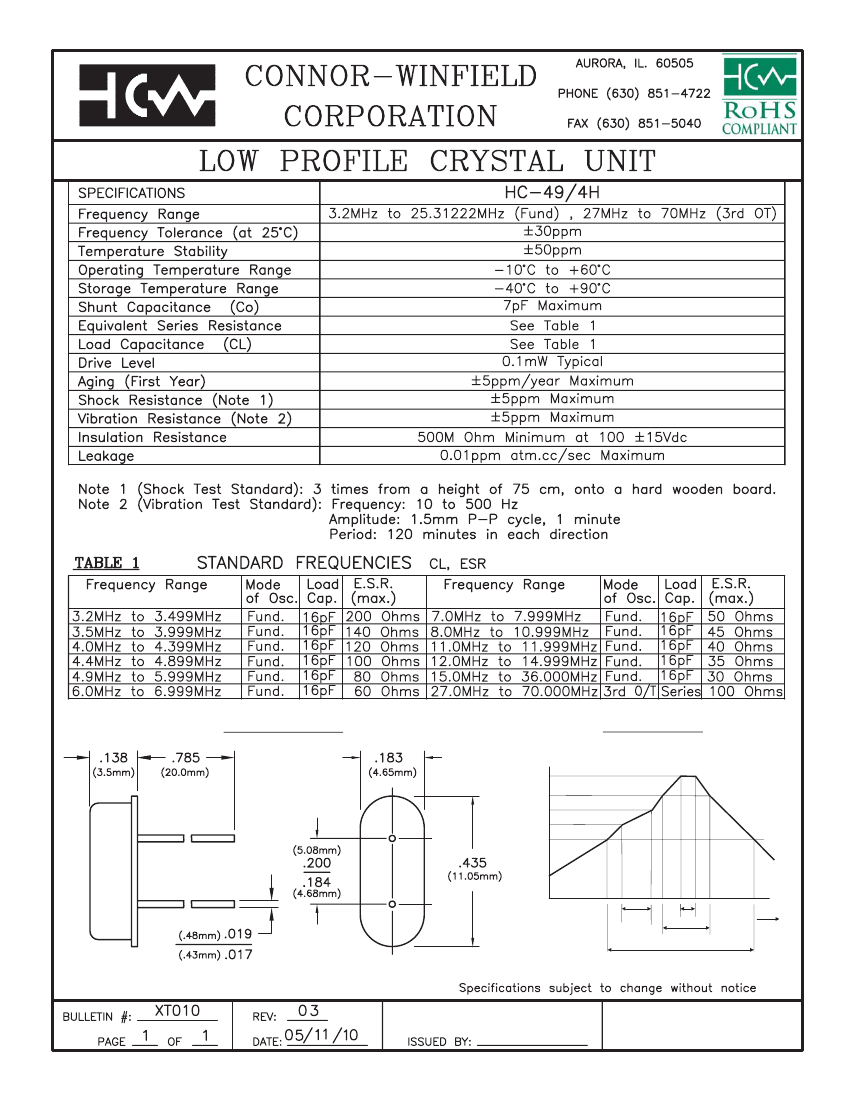

HC-49/4H-FREQ5 Overview

Parallel - Fundamental Quartz Crystal, 4.9MHz Min, 5.999MHz Max, ROHS COMPLIANT PACKAGE-2

Parameter Name	Attribute value
Maker	Connor-Winfield
package instruction	ROHS COMPLIANT PACKAGE-2
Reach Compliance Code	unknown
Is Samacsys	N
Ageing	5 PPM/FIRST YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.005%
frequency tolerance	30 ppm
load capacitance	16 pF
Manufacturer's serial number	HC-49/4H
Installation features	THROUGH HOLE MOUNT
Maximum operating frequency	5.999 MHz
Minimum operating frequency	4.9 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
physical size	L11.05XB4.65XH3.5 (mm)/L0.435XB0.183XH0.138 (inch)
Series resistance	80 Ω
surface mount	NO
Base Number Matches	1

Package Layout

Temperature

260°C

220°C

180°C

150°C

120°C

Solder Profile

260°C

0

120 S

Max.

Time

10 S

60 S

Max.

360 Sec. Max.

RoHS Compliant / Pb Free

G Deck
