IBM025160LG5D-70 datasheet, PDF

IBM025160LG5D-70: DescriptionVideo DRAM, 256KX16, 70ns, CMOS, PDSO64, 0.472 INCH, SSOG-64; Categorystorage; File Size2MB，65 Pages; ManufacturerIBM; Websitehttp://www.ibm.com

Download Datasheet Parametric View All

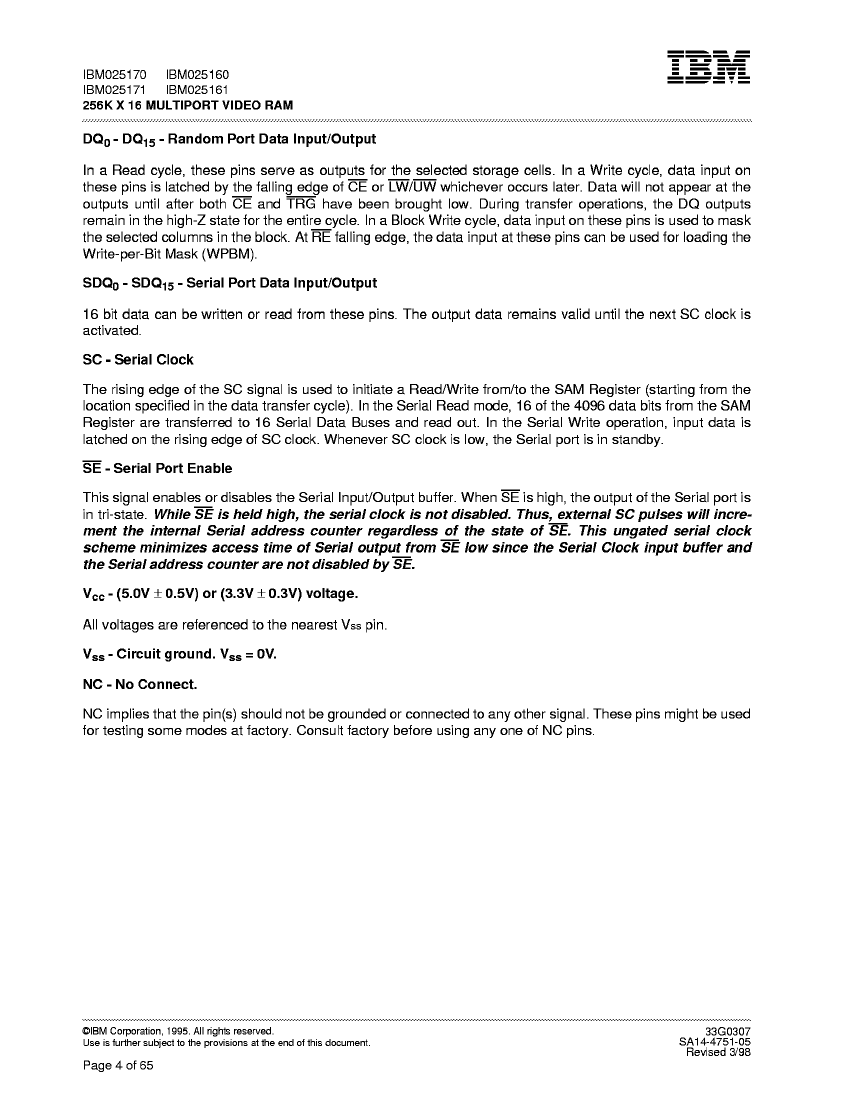

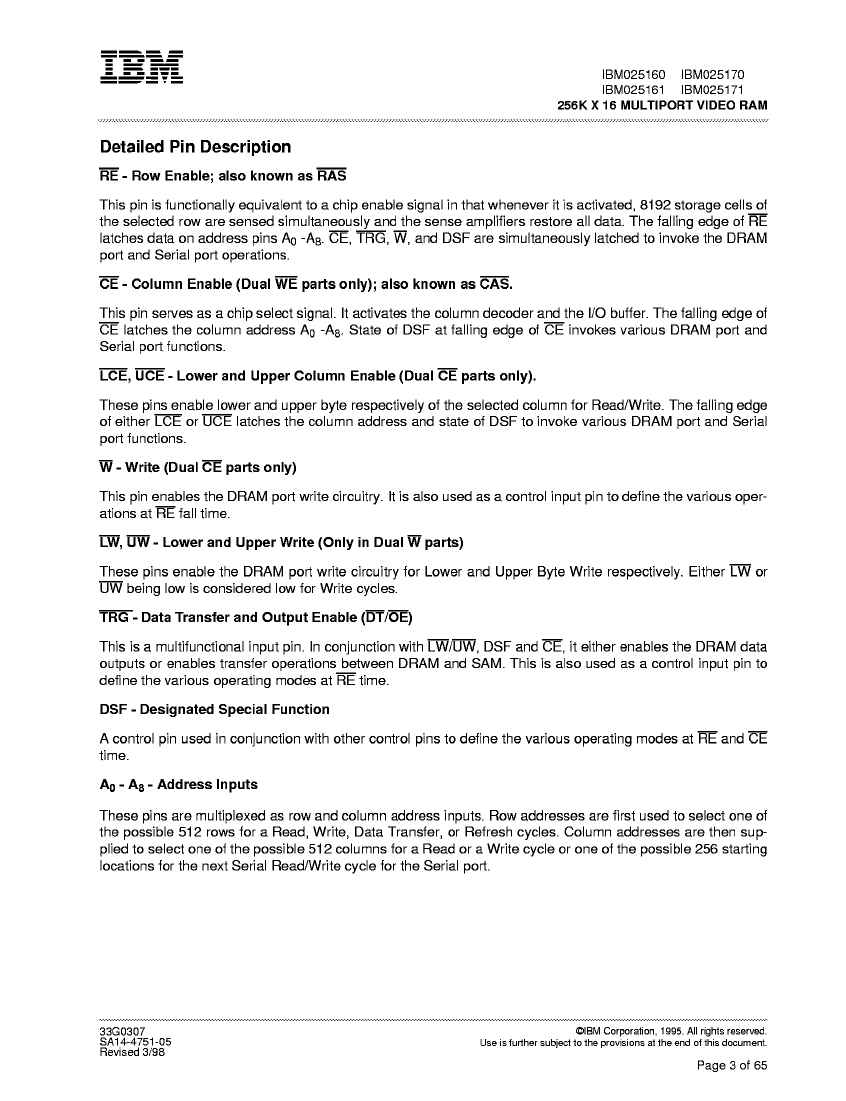

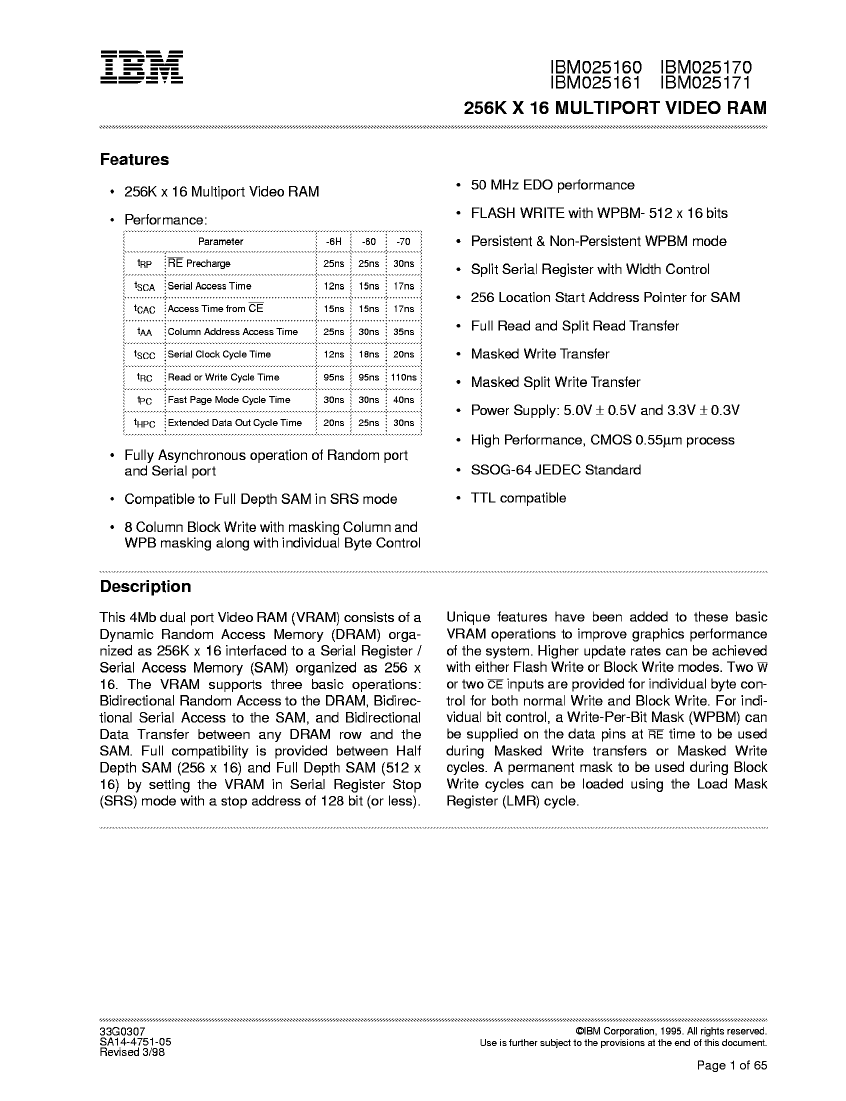

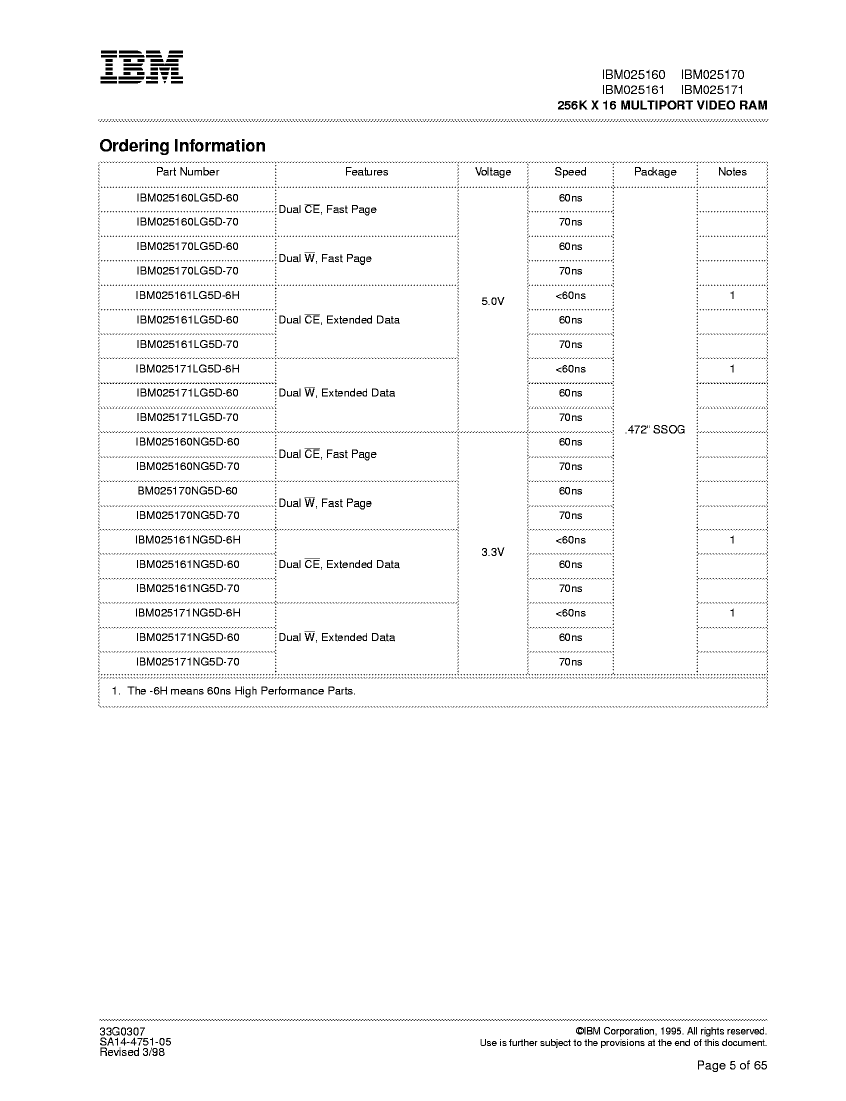

IBM025160LG5D-70 Overview

Video DRAM, 256KX16, 70ns, CMOS, PDSO64, 0.472 INCH, SSOG-64

Parameter Name	Attribute value
Maker	IBM
Parts packaging code	SOIC
package instruction	SSOP, SOP64,.54,32

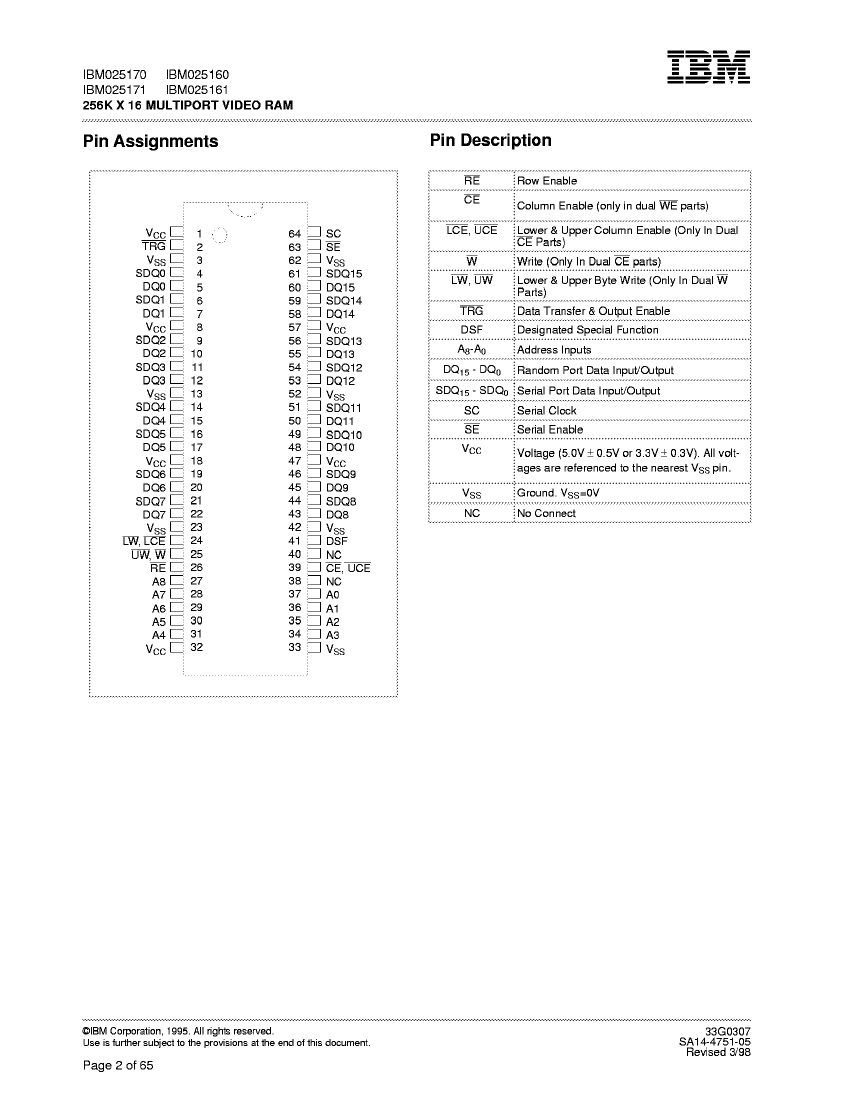

Contacts	64
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
access mode	FAST PAGE
Maximum access time	70 ns
Other features	RAS ONLY/CAS BEFORE RAS REFRESH
JESD-30 code	R-PDSO-G64
length	26.3 mm
memory density	4194304 bit
Memory IC Type	VIDEO DRAM
memory width	16
Number of functions	1
Number of ports	2
Number of terminals	64
word count	262144 words
character code	256000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	256KX16
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Encapsulate equivalent code	SOP64,.54,32
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
power supply	5 V
Certification status	Not Qualified
refresh cycle	512
Maximum seat height	2.38 mm
Maximum standby current	0.005 A
Maximum slew rate	0.15 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	DUAL
width	12 mm
Base Number Matches	1
