Note: Unbalanced is measured between ground-signal-ground conductors with shield grounded. Balanced is measured between signal conductors within a pair with the shield floating.
Environmental
Temperature Rating:
Flammability Rating:
USA: CL2: 75°C
USA: N.E.C. 725, CL2
Canada: 80°C
Canada: FT1
UL File No.: E118773, Power Limited Circuit Cable: CL2
3
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™

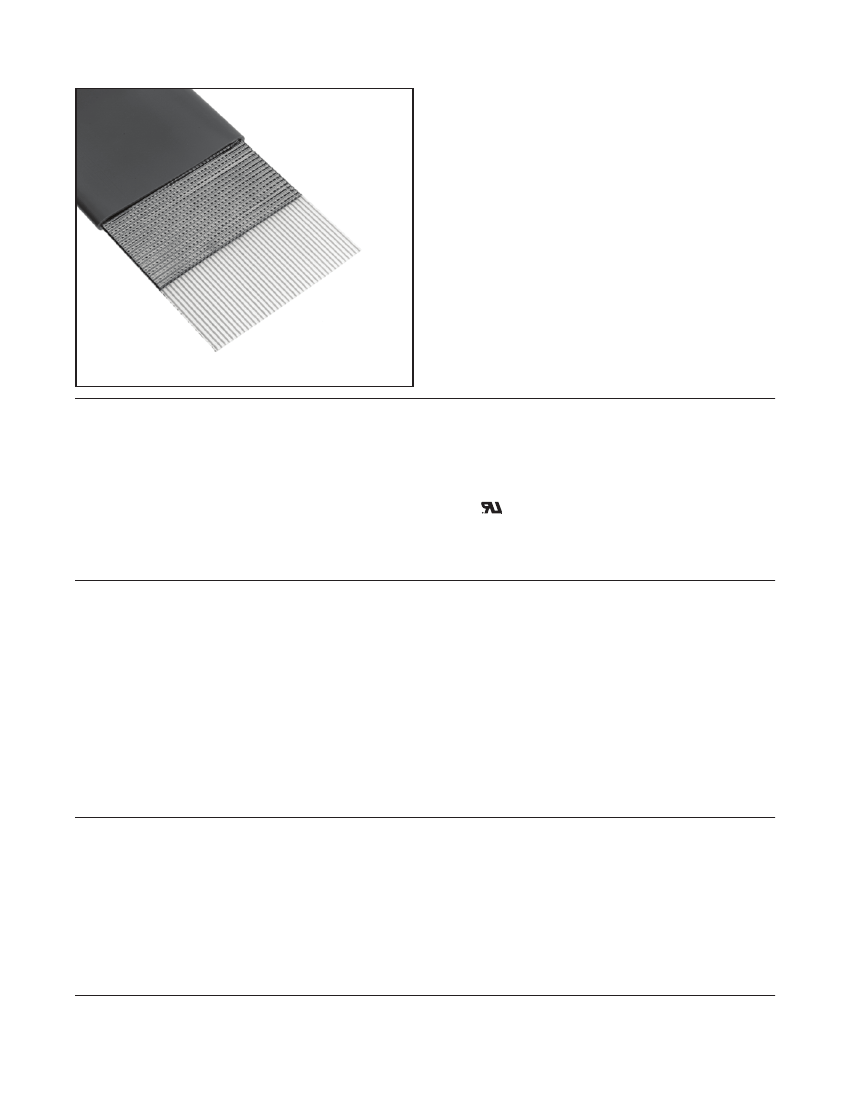

Pleated Foil Shielded Cable
.050" 28 AWG Stranded, TPE Primary, PVC Jacket
Number of
Conductors
15
20
25
26
30
34
36
37
40
50
60
64
3M Part Number
90104/15
90104/20
90104/25
90104/26
90104/30
90104/34
90104/36
90104/37
90104/40
90104/50
90104/60
90104/64
Dimension A
86 [ 21.8 ]
1.11 [ 28.2 ]
1.34 [ 34.0 ]
1.40 [ 35.6 ]
1.60 [ 40.6 ]
1.80 [ 45.7 ]
1.90 [ 48.3 ]
1.95 [ 49.5 ]
2.10 [ 53.4 ]
2.60 [ 66.0 ]
3.10 [ 78.7 ]
3.32 [ 84.3 ]
90104 Series
Dimension B
0.700 ± .007 [ 17.78 ]
0.950 ± .011 [ 24.13 ]
1.200 ± .011 [ 30.48 ]
1.250 ± .011 [ 31.75 ]
1.450 ± .011 [ 36.83 ]
1.650 ± .015 [ 41.91 ]
1.750 ± .015 [ 44.45 ]
1.800 ± .015 [ 45.72 ]
1.950 ± .015 [ 49.53 ]
2.450 ± .015 [ 62.23 ]
2.950 ± .015 [ 74.93 ]
3.150 ± .015 [ 80.01 ]
A
B
.050
±
.002 Typ
[ 1.27 ]
.11
±
.03
[ 2.8 ]
28 AWG 7 X 36 AWG
[ 7 X ø 0.127 ] Tinned
Stranded Copper
Conductors
Paper (Mfgr. Option)
TPE Primary
Insulation
.005 [ 0.13 ] Pleated Foil Shield
with Adhesive Backing Using
Solid Copper Foil .001 [ 0.03 ] Thick
.026 [ 0.66 ] Min
PVC Jacket
Inch
[mm]
Tolerance Unless Noted
.0
Inch
±.1
.00
±.05
.000
±.010
Note: Blue marking on one edge of primary cable designates wire #1.
[ ] Dimensions for Reference Only
Ordering Information
90104/XX XX
Blank = Standard
C = Canadian Certified Version
Number of Conductors
(See Table)
Blank = Standard
SF = Splice Free
Note: Available in standard 100 ft rolls. Contact 3M for availability of
additional conductor counts and/or custom roll lengths.
TS-0288-D
Sheet 2 of 2
