AD-A3N8-18 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> Rf adapter> AD-A3N8-18

AD-A3N8-18: DescriptionRF Connector Adapter, N-SMA, Jack-plug; CategoryThe connector Rf adapter; File Size124KB，1 Pages; ManufacturerJYEBAO Co., Ltd.

Download Datasheet Parametric View All

AD-A3N8-18 Overview

RF Connector Adapter, N-SMA, Jack-plug

AD-A3N8-18 Parametric

Parameter Name	Attribute value
Maker	JYEBAO Co., Ltd.
Reach Compliance Code	unknown
Is Samacsys	N
Adapter type	N-SMA
Other features	ROHS COMPLIANT
Body/casing type	JACK-PLUG
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR ADAPTER
Contact to complete cooperation	AU ON NI,AU ON NI
Contact material	BERYLLIUM COPPER, BERYLLIUM COPPER
Contact style	COAX
insulator material	TEFLON
Manufacturer's serial number	AD
Installation method	STRAIGHT
Maximum operating frequency	18 GHz
reliability	COMMERCIAL
voltage standing wave ratio	1.18
Base Number Matches	1

Preview

Download Datasheet

View All

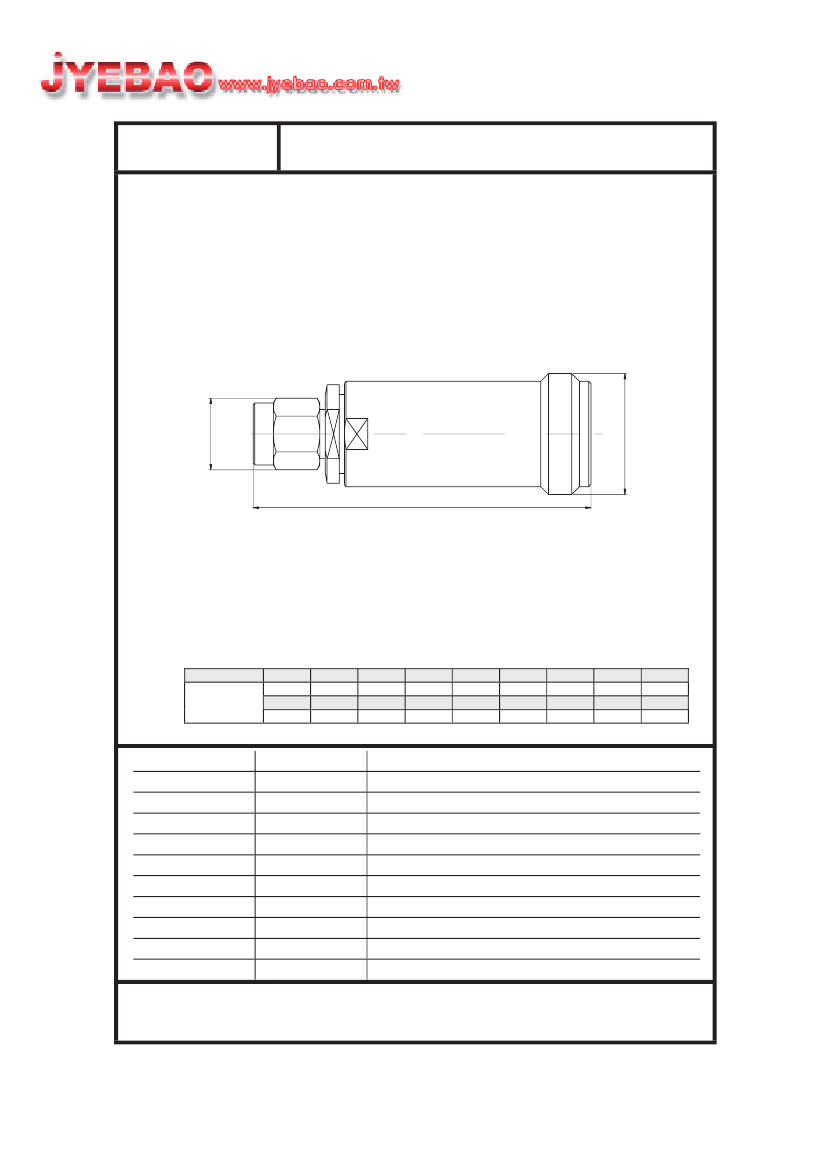

AD-A3N8-18

SMA PLUG TO N JACK FOR 18 GHz

50Ω

43.6

(1.717)

Typical VSWR

Part Number

AD-A3N8-18

1 GHz

1.03

10 GHz

1.16

2 GHz

1.05

11 GHz

1.18

3 GHz

1.05

12 GHz

1.18

4 GHz

1.05

13 GHz

1.18

5 GHz

1.1

14 GHz

1.18

6 GHz

1.11

15 GHz

1.18

7 GHz

1.11

16 GHz

1.18

8 GHz

1.16

17 GHz

1.18

9 GHz

1.16

18 GHz

1.18

Parts

Retainer Ring

Ferrule

Gasket

Contact Pin

Holder

Insulator

Body(SMA)

Body (N)

Coupling Nut

Material

Beryllium Copper

Brass

Silicon

Beryllium Copper

Copper

P.P.

PTFE

Brass

Plating (Micro-inch)

Tin-Zinc-Copper-Alloy 200 Over Copper 50

Gold 5 Over Nickel 50 Over Copper 50

Gold 20 Over Nickel 50 Over Copper 50

Gold 5 Over Nickel 50 Over Copper 50

Tin-Zinc-Copper-Alloy 200 Over Copper 50

Gold 5 Over Nickel 50 Over Copper 50

Weight: 34.28 g

This part number complies with RoHS.

Notice: JYEBAO reserves the right to make modiﬁcations deemed appropriate.

5/8-24UNEF-2A

(.315 HEX)

8 HEX
