NJU4051BD datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The signal circuit> NJU4051BD

Preview

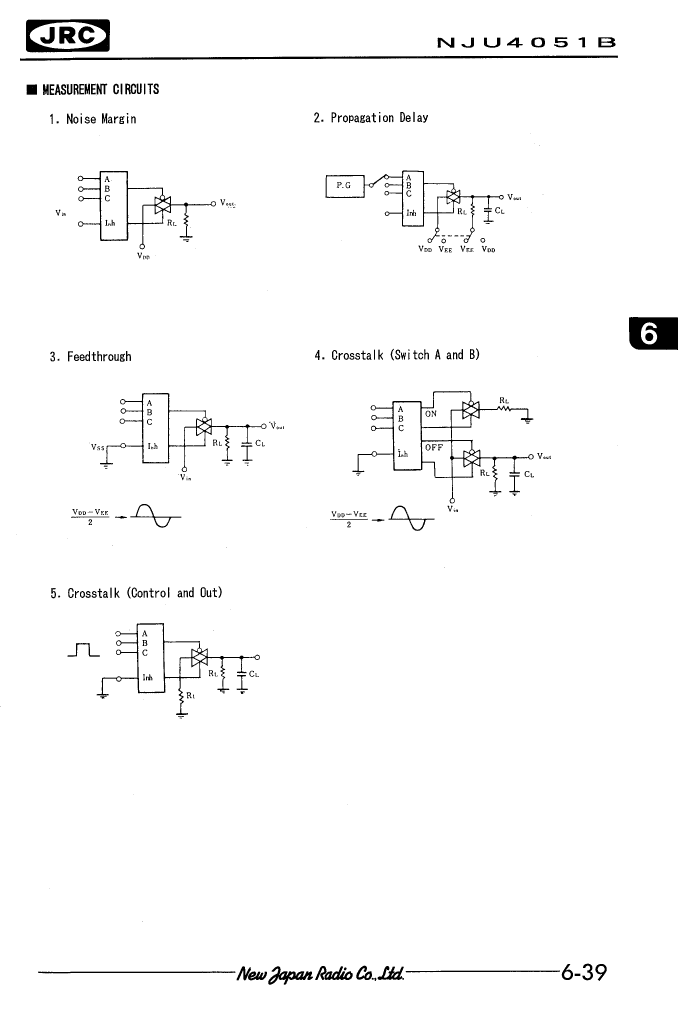

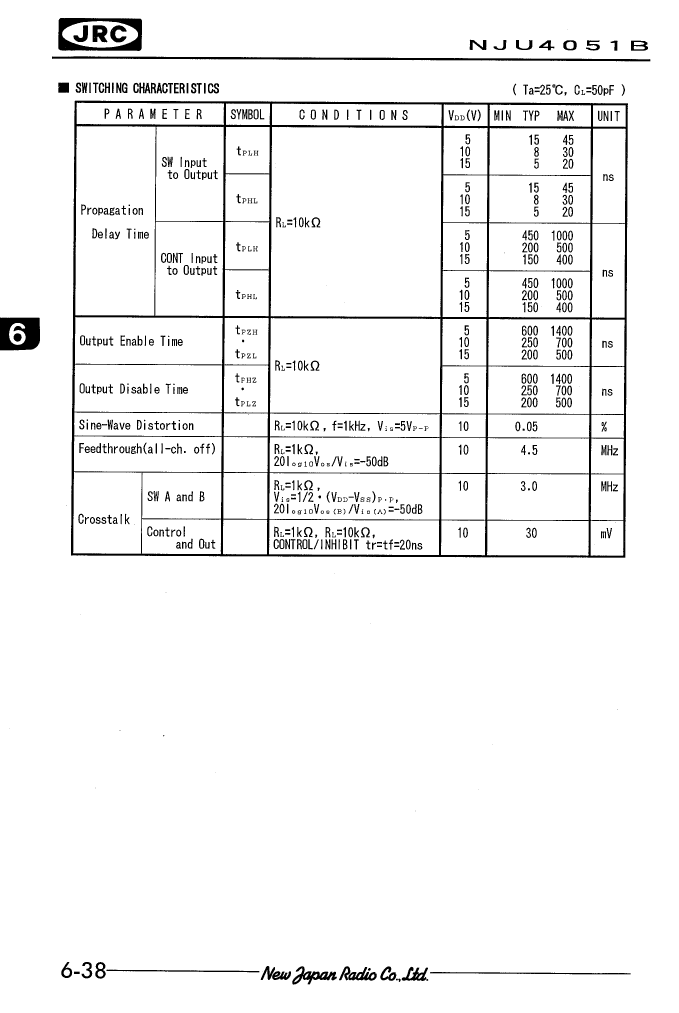

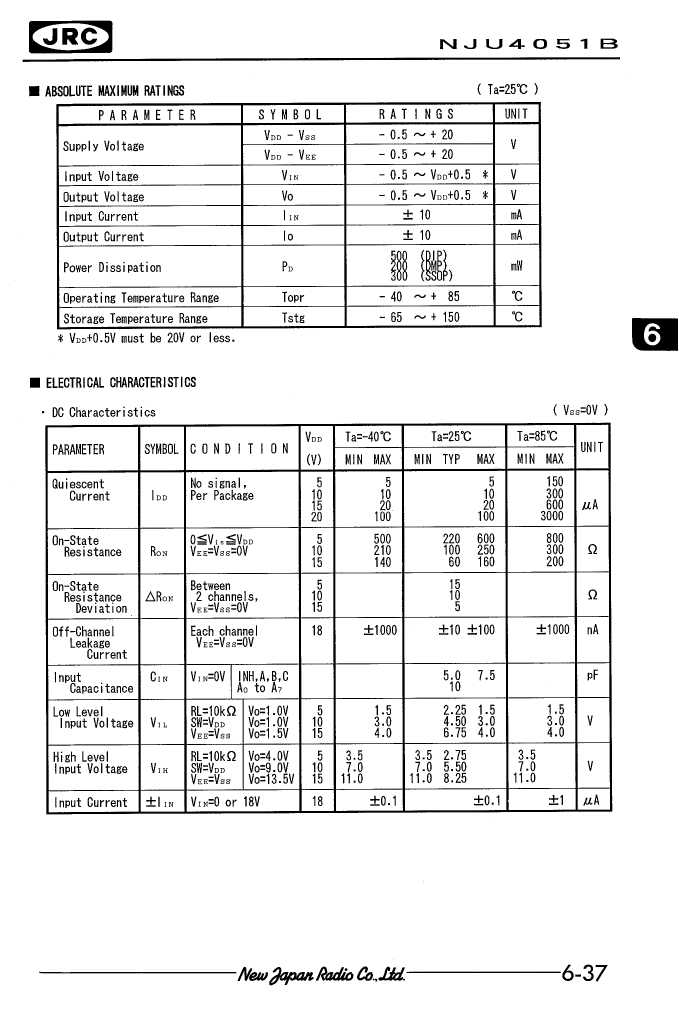

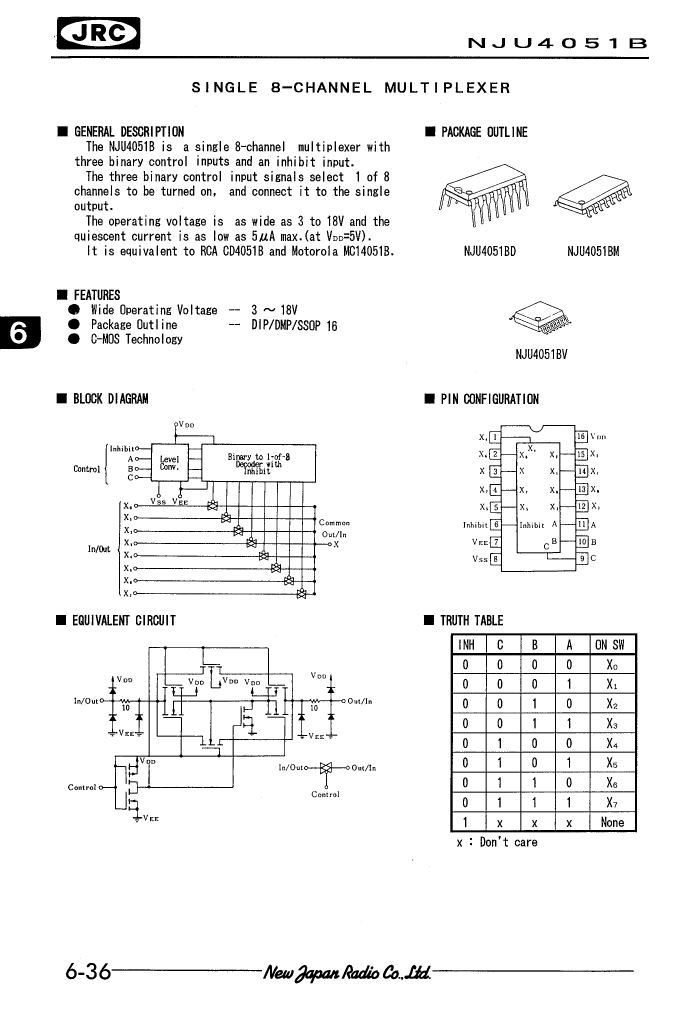

NJU4051BD: DescriptionSingle-Ended Multiplexer, 1 Func, 8 Channel, CMOS, PDIP16, DIP-16; CategoryThe signal circuit; File Size177KB，5 Pages; ManufacturerNew Japan Radio Co., Ltd..; Environmental Compliance

Download Datasheet Parametric Compare View All

NJU4051BD Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	NJU4051BD	-	-	View	Buy Now

NJU4051BD Overview

Single-Ended Multiplexer, 1 Func, 8 Channel, CMOS, PDIP16, DIP-16

NJU4051BD Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	New Japan Radio Co., Ltd..
Parts packaging code	DIP
package instruction	DIP-16
Contacts	16
Reach Compliance Code	compliant
Is Samacsys	N
Analog Integrated Circuits - Other Types	SINGLE-ENDED MULTIPLEXER
JESD-30 code	R-PDIP-T16
JESD-609 code	e6
length	19 mm
Nominal Negative Supply Voltage (Vsup)
Number of channels	8
Number of functions	1
Number of terminals	16
Nominal off-state isolation	50 dB
On-state resistance matching specifications	5 Ω
Maximum on-state resistance (Ron)	160 Ω
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5/15 V
Certification status	Not Qualified
Maximum seat height	4.7 mm
Maximum signal current	0.01 A
Maximum supply current (Isup)	5 mA
Nominal supply voltage (Vsup)	15 V
surface mount	NO
Maximum disconnect time	20 ns
Maximum connection time	20 ns
switch	BREAK-BEFORE-MAKE
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	TIN BISMUTH
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
Base Number Matches	1
