NJU4051BM-(TE2) datasheet, PDF

NJU4051BM-(TE2): DescriptionSingle-Ended Multiplexer, 1 Func, 8 Channel, CMOS, PDSO16, MINI, GULLWING, PLASTIC, DIP-16; CategoryThe signal circuit; File Size85KB，4 Pages; ManufacturerNew Japan Radio Co., Ltd..

Download Datasheet Parametric Compare View All

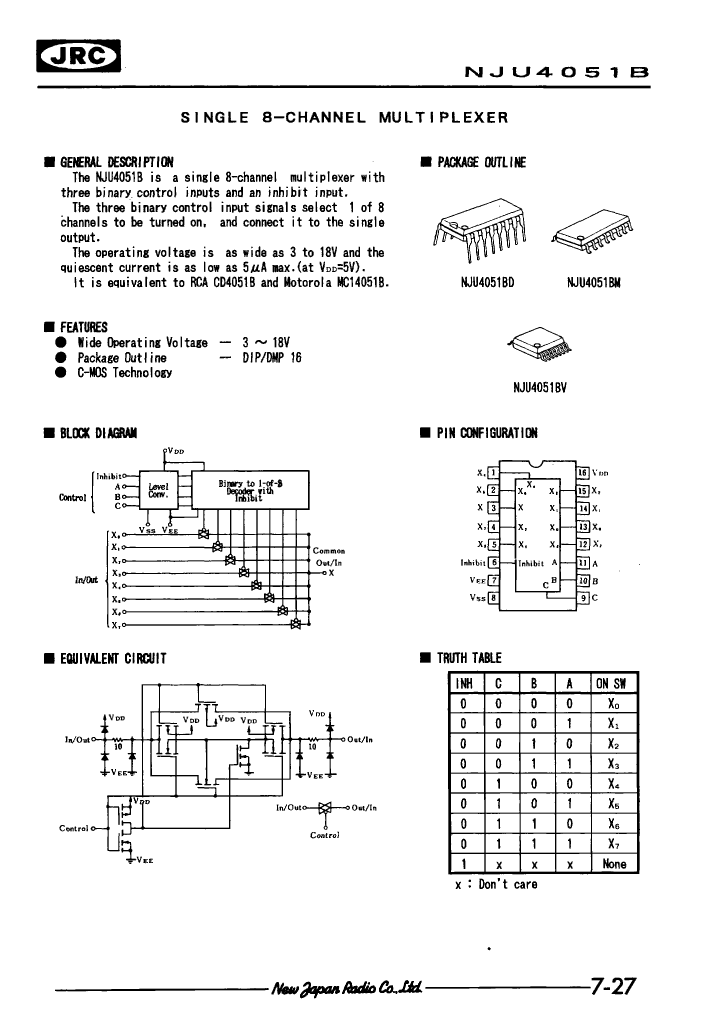

NJU4051BM-(TE2) Overview

Single-Ended Multiplexer, 1 Func, 8 Channel, CMOS, PDSO16, MINI, GULLWING, PLASTIC, DIP-16

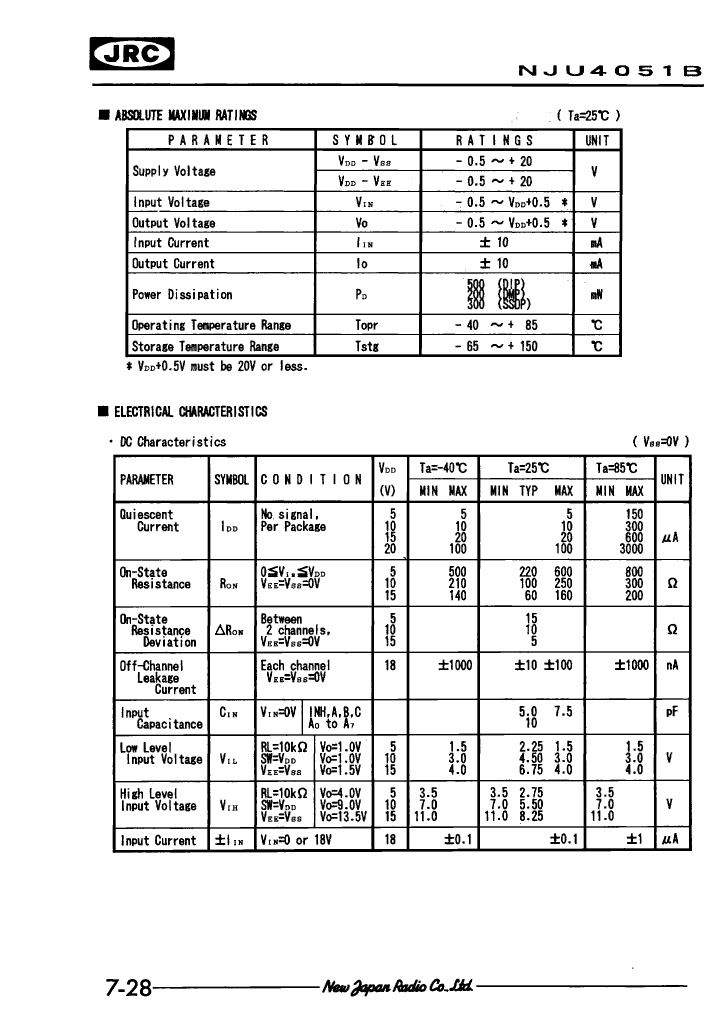

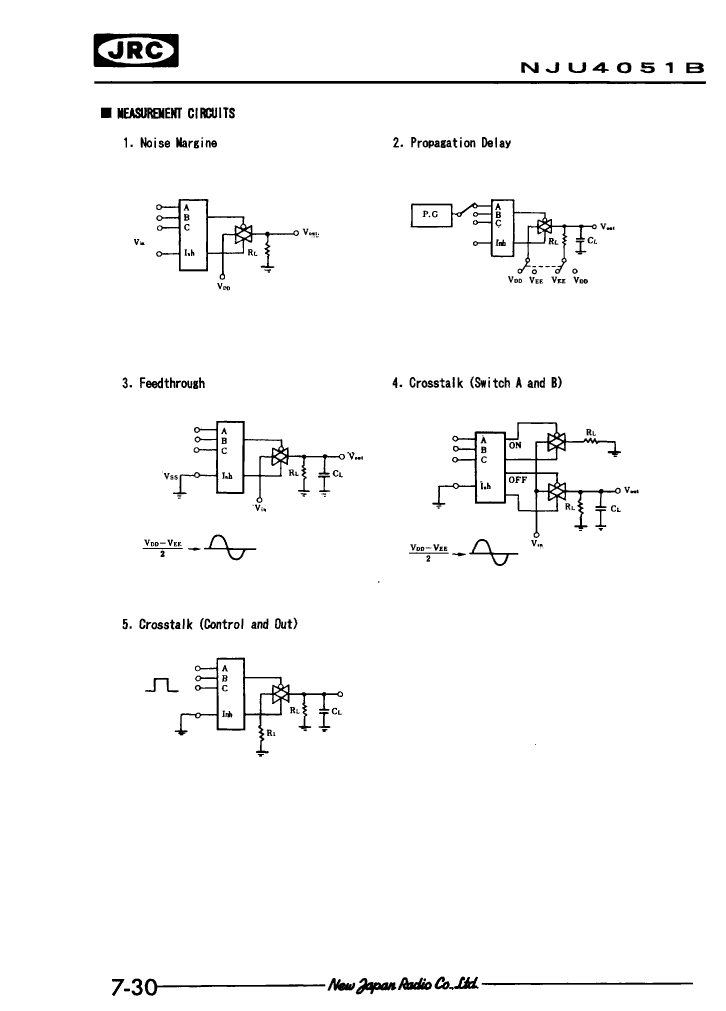

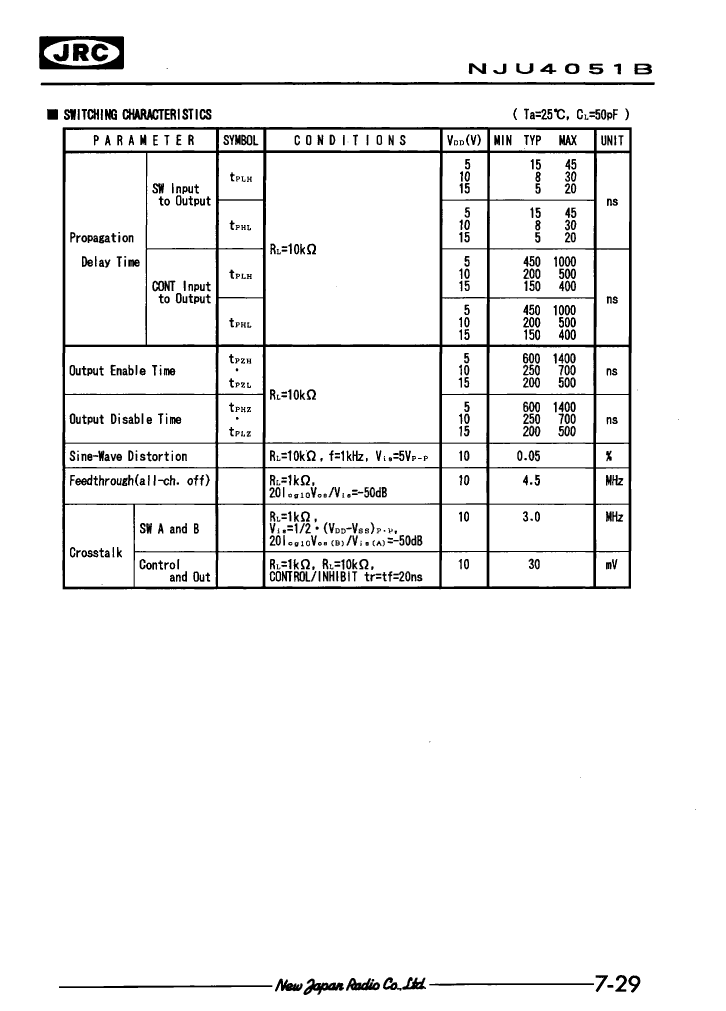

Parameter Name	Attribute value
Maker	New Japan Radio Co., Ltd..
Parts packaging code	SOIC
package instruction	SOP,
Contacts	16
Reach Compliance Code	compliant
Is Samacsys	N
Analog Integrated Circuits - Other Types	SINGLE-ENDED MULTIPLEXER
JESD-30 code	R-PDSO-G16
length	10 mm
Number of channels	8
Number of functions	1
Number of terminals	16
On-state resistance matching specifications	5 Ω
Maximum on-state resistance (Ron)	160 Ω
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum seat height	2 mm
Maximum supply current (Isup)	0.6 mA
Nominal supply voltage (Vsup)	15 V
surface mount	YES
Maximum disconnect time	20 ns
Maximum connection time	20 ns
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	5 mm
Base Number Matches	1

	NJU4051BM-(TE2)	NJU4051BM-(TE1)	QFN30900FKANHWS	QFN30900FKGNKWS
Description	Single-Ended Multiplexer, 1 Func, 8 Channel, CMOS, PDSO16, MINI, GULLWING, PLASTIC, DIP-16	Single-Ended Multiplexer, 1 Func, 8 Channel, CMOS, PDSO16, MINI, GULLWING, PLASTIC, DIP-16	Fixed Resistor, Thin Film, 0.025W, 3090ohm, 100V, 1% +/-Tol, -100,100ppm/Cel, 0202,	Fixed Resistor, Thin Film, 0.025W, 3090ohm, 100V, 1% +/-Tol, -100,100ppm/Cel, 0202,
Reach Compliance Code	compliant	compliant	unknown	unknown
Number of terminals	16	16	2	2
Maximum operating temperature	85 °C	85 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-55 °C	-55 °C
Package form	SMALL OUTLINE	SMALL OUTLINE	SMT	SMT
technology	CMOS	CMOS	THIN FILM	THIN FILM
