HSDXS2-6B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > relay> HSDXS2-6B

HSDXS2-6B: DescriptionPOWER/SIGNAL RELAY, DPDT, MOMENTARY, 0.03A (COIL), 6VDC (COIL), 180mW (COIL), 1A (CONTACT), 28VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT; Categoryrelay; File Size79KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

HSDXS2-6B Overview

POWER/SIGNAL RELAY, DPDT, MOMENTARY, 0.03A (COIL), 6VDC (COIL), 180mW (COIL), 1A (CONTACT), 28VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT

HSDXS2-6B Parametric

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
body height	9.78 mm
Body length or diameter	9.4 mm
Maximum coil current (DC)	0.03 A
Coil operating voltage (DC)	4.5 V
Coil power	180 mW
Coil resistance	200 Ω
Maximum coil voltage (DC)	6 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	.1A@115VAC
Maximum contact current (AC)	0.1 A
Maximum contact current (DC)	1 A
Contact (DC) maximum rated R load	1A@28VDC
Maximum contact voltage (AC)	115 V
Maximum contact voltage (DC)	28 V
Contact/Output Power Type	AC/DC
Electrical life	100000 Cycle(s)
Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	6 ms
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Relay action	MOMENTARY
Relay function	DPDT
Relay type	POWER/SIGNAL RELAY
release time	3 ms
seal	HERMETICALLY SEALED
surface mount	NO
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

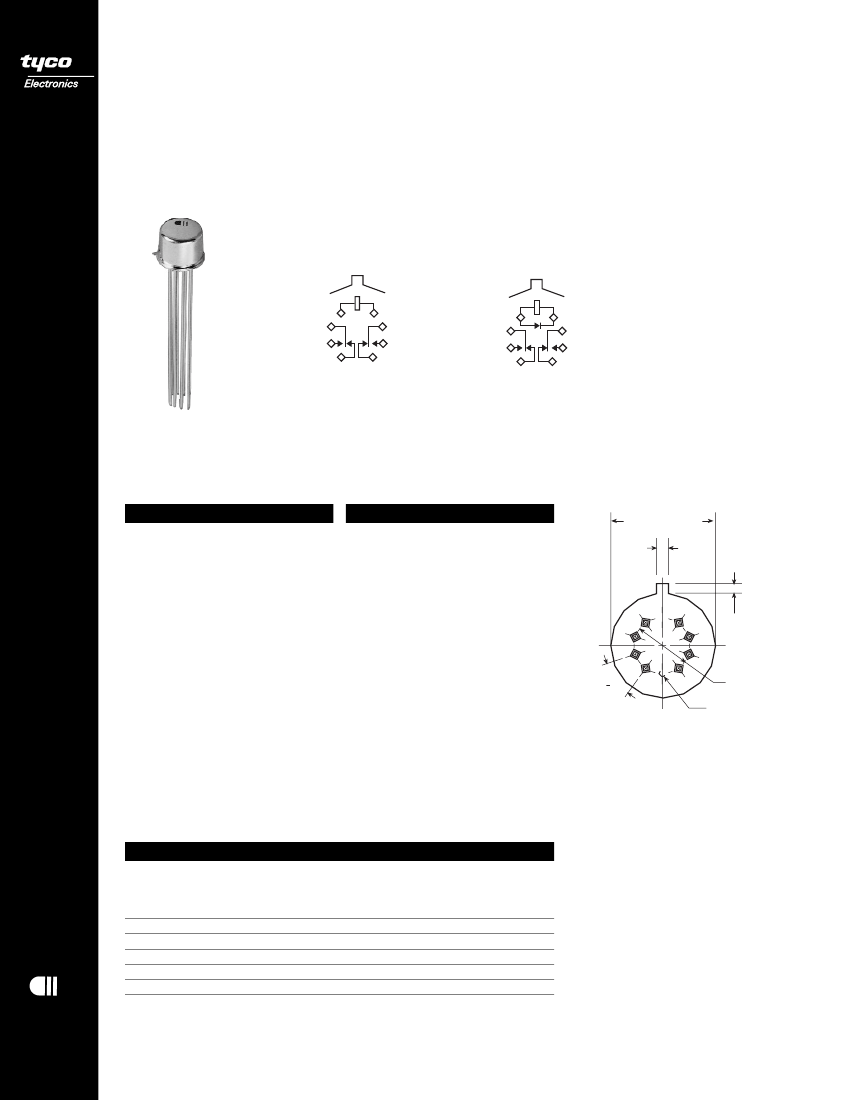

HM HMD HS HSD

■

TO-5 COMMERCIAL/INDUSTRIAL RELAYS

HM HS

■

HMD HSD

■

STANDARD • SENSITIVE TO-5

COMMERCIAL RELAY

STANDARD • SENSITIVE TO-5

DIODE SUPPRESSED

COMMERCIAL RELAY

–

TERMINAL VIEW

FEATURES

■

FEATURES

■

Hermetically sealed

Spreader Pads

Excellent RF switching

Suppression Diode

Hermetically sealed

Spreader Pads

Excellent RF switching

ELECTRICAL CHARACTERISTICS

CONTACT ARRANGEMENT

ELECTRICAL CHARACTERISTICS

COIL VOLTAGE

2 Form C (DPDT)

CONTACT MATERIAL

5 to 30 Vdc (HM/HMD)

5 to 48 Vdc (HS/HSD)

COIL POWER

.370 (9.40)DIA MAX

.031

.003

(0.79)

.035

.010

(0.89)

Stationary:

Gold/platinum/palladium/silver alloy

(gold plated)

Moveable:

Gold/platinum/palladium/silver alloy

(gold plated)

CONTACT RESISTANCE

HM/HMD:

675 mW max. @ 25°C

HS/HSD:

565 mW max. @ 25°C

DUTY CYCLE

Continuous

PICK-UP VOLTAGE

36º + 3º

Before Life:

100 milliohms max.

(measured @ 10 mA @ 6 Vdc)

After Life:

200 milliohms max.

(measured @ 1 A @ 28 Vdc)

MECHANICAL LIFE EXPECTANCY

Approximately 70% of

nominal coil voltage

PICK-UP SENSITIVITY

.200 DIA

(5.08)

GROUND PIN

(OPTIONAL)

HEADER

1 million operations

HM/HMD:

180 mW max. @ 25°C

HS/HSD:

90 mW max. @ 25°C

CONTACT RATINGS

CONTACT

LOAD

TYPE

OPERATIONS

MIN.

1.0 A @ 28 Vdc

250 mA @ 115 Vac, 60 Hz & 400 Hz

100 mA @ 115 Vac, 60 Hz & 400 Hz

0.2 A @ 28 Vdc

0.1 A @ 28 Vdc

30 µA @ 50 mVdc

Resistive

100,000

Resistive (Case not grounded) 100,000

Resistive

100,000

Inductive (0.32 Henry)

100,000

Lamp

100,000

Low Level

1,000,000
