PS-40DR-TBA datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> PS-40DR-TBA

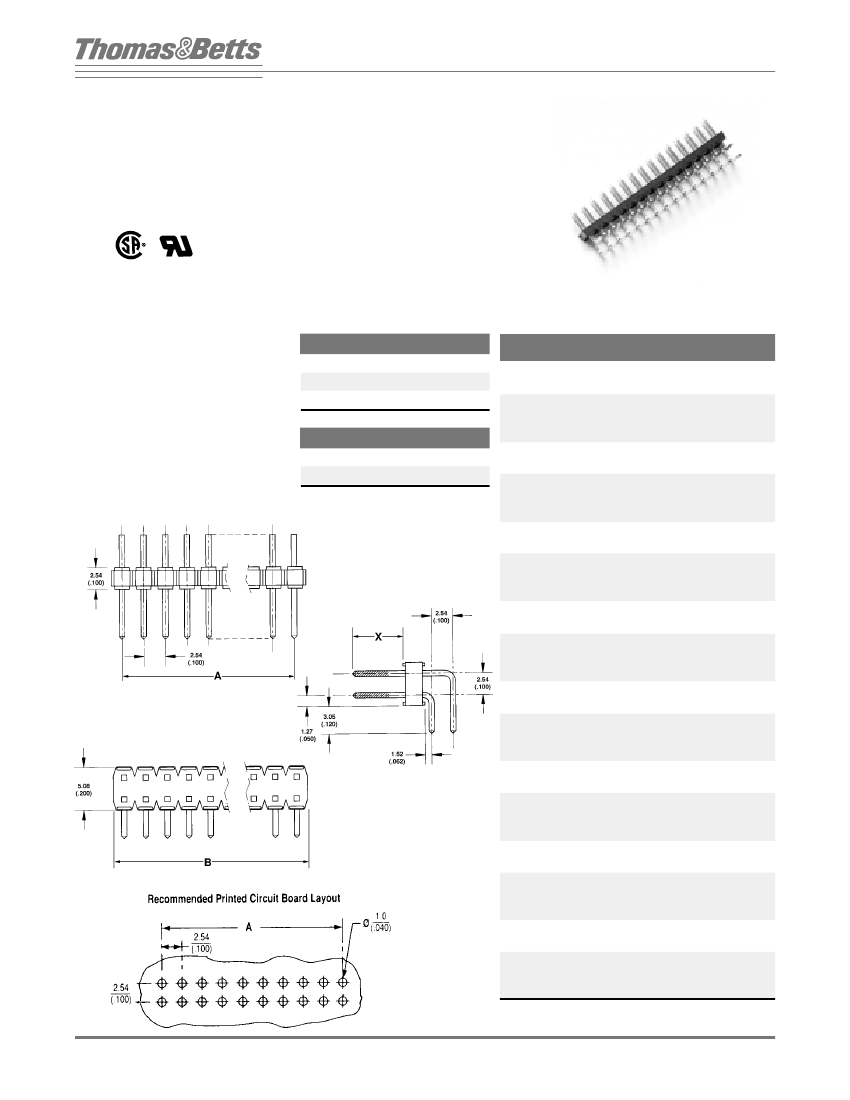

Preview

PS-40DR-TBA: DescriptionBoard Connector, 40 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle; CategoryThe connector; File Size59KB，1 Pages; ManufacturerThomas & Betts Corporation; Websitehttp://www.tnb.com/

Download Datasheet Parametric View All

PS-40DR-TBA Overview

Board Connector, 40 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle

PS-40DR-TBA Parametric

Parameter Name	Attribute value
Maker	Thomas & Betts Corporation
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Other features	MATING LENGTH=0.230 INCHES
body width	0.2 inch
subject depth	0.262 inch
body length	4 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED THERMOPLASTIC
MIL compliance	NO
Manufacturer's serial number	PS
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	100u inch
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.12 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	40
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

IDC Systems

Headers

DUAL ROW

PIN STRIP HEADERS

RIGHT ANGLE

.100" x .100" CENTERS

LR49571

E60980

P

HYSICAL

P

ROPERTIES

I

NSULATION

M

ATERIAL

:

Glass reinforced thermo-

plastic, rated 94V-0

C

OLOR

:

Black

O

XYGEN

I

NDEX

:

32

C

ONTACT

M

ATERIAL

:

Copper alloy, gold or tin/lead

plating over nickel

Ordering Information

W

G

H

INTERFACE PLATING

10 µ" gold over nickel

30µ" gold over nickel

NUMBER OF CATALOG NO.

POSITIONS SPECIFY W, & X

2

4

6

8

10

12

14

16

18

20

22

24

26

28

30

32

34

36

38

40

42

44

46

48

50

52

54

56

58

60

62

64

66

68

70

72

74

76

78

80

PS-02DR-WXA

PS-04DR-WXA

PS-06DR-WXA

PS-08DR-WXA

PS-10DR-WXA

PS-12DR-WXA

PS-14DR-WXA

PS-16DR-WXA

PS-18DR-WXA

PS-20DR-WXA

PS-22DR-WXA

PS-24DR-WXA

PS-26DR-WXA

PS-28DR-WXA

PS-30DR-WXA

PS-32DR-WXA

PS-34DR-WXA

PS-36DR-WXA

PS-38DR-WXA

PS-40DR-WXA

PS-42DR-WXA

PS-44DR-WXA

PS-46DR-WXA

PS-48DR-WXA

PS-50DR-WXA

PS-52DR-WXA

PS-54DR-WXA

PS-56DR-WXA

PS-58DR-WXA

PS-60DR-WXA

PS-62DR-WXA

PS-64DR-WXA

PS-66DR-WXA

PS-68DR-WXA

PS-70DR-WXA

PS-72DR-WXA

PS-74DR-WXA

PS-76DR-WXA

PS-78DR-WXA

PS-80DR-WXA

eg. PS-80DR-TBA

A

2.54 (1.00)

7.62 (.300)

12.70 (.500)

17.78 (.700)

22.86 (.900)

27.94 (1.100)

33.02 (1.300)

38.10 (1.500)

43.18 (1.700)

48.26 (1.900)

53.34 (2.100)

58.42 (2.300)

63.50 (2.500)

68.58 (2.700)

73.66 (2.900)

78.74 (3.100)

83.82 (3.300)

88.90 (3.500)

93.98 (3.700)

99.06 (3.900)

B

5.08 (.200)

10.16 (.400)

15.24 (600)

20.32 (.800)

25.40 (1.000)

30.48 (1.200)

35.56 (1.400)

40.64 (1.600)

45.72 (1.800)

50.80 (2.000)

55.88 (2.200)

60.96 (2.400)

66.04 (2.600)

71.12 (2.800)

76.20 i3.000)

81.28 (3.200)

86.36 (3.400)

91.44 (3.600)

96.52 (3.800)

101.60 (4.000)

E

LECTRICAL

P

ROPERTIES

C

URRENT

R

ATING

:

3 Amps/pin

I

NSULATION

R

ESISTANCE

:>

1 x 10

9

Ohms

D

IELECTRIC

S

TRENGTH

:>

1000 VAC

T 100µ" tin/lead over nickel

X

A

B

MATING LENGTH

8.1 (.318)

5.8 (.230)

E

NVIRONMENTAL

P

ROPERTIES

T

EMPERATURE

R

ATING

:

–55˚C to 125˚C

104.14 (4.100) 106.68 (4.200)

109.22 (4.300) 111.76 (4.400)

114.30 (4.500) 116.84 (4.600)

119.38 (4.700) 121.92 (4.800)

124.46 (4.900) 127.00 (5.000)

129.54 (5.100) 132.08 (5.200)

134.62 (5.300) 137.16 (5.400)

139.70 (5.500) 142.24 (5.600)

144.78 (5.700) 147.32 (5.800)

149.86 (5.900) 152.40 (6.000)

154.94 (6.100) 157.48 (6.200)

160.02 (6.300) 162.56 (6.400)

165.10 (6.500) 167.64 (6.600)

170.18 (6.700) 172.72 (6.800)

175.26 (6.900) 177.80 (7.000)

180.34 (7.100) 182.88 (7.200)

185.42 (7.300) 187.96 (7.400)

190 50 (7.500) 193.04 (7.600)

195.58 (7.700) 198.12 (7.800)

200.66 (7.900) 203.20 (8.000)

Thomas & Betts Electronics/OEM Division Tel: 901-252-5000 Fax: 901-252-1312
