• 1N5819UR-1 AND 1N6761UR-1 AVAILABLE IN
JAN, JANTX, JANTXV
AND JANS
PER MIL-PRF-19500/586
• 1 AMP SCHOTTKY BARRIER RECTIFIERS
• HERMETICALLY SEALED
• LEADLESS PACKAGE FOR SURFACE MOUNT
• METALLURGICALLY BONDED
1N5819UR
and
CDLL5817 thru CDLL5819
and
CDLL6759 thru CDLL6761
and
CDLL1A20 thru CDLL1A100
MAXIMUM RATINGS
Operating Temperature: -55°C to +125°C
Storage Temperature: -55°C to +150°C
Average Rectified Forward Current: 1.0 AMP @TEC = +55°C
Derating: 14 mA / °C above TEC = +55°C
ELECTRICAL CHARACTERISTICS
@ 25°C, unless otherwise specified.
MILLIMETERS
DIM MIN MAX
D
2.39
2.66
F
0.41
0.55
G
4.80
5.20
G1
4.11 REF.
S
0.03 MIN.
INCHES
MIN MAX
.094 .105
.016 .022
.189 .205
.159 REF.
.001 MIN.
CDI
TYPE
NUMBER
WORKING PEAK
REVERSE
VOLTAGE
VRWM
VOLTS
MAXIMUM FORWARD VOLTAGE
VF @ 0.1A
VOLTS
0.36
0.36
0.36
0.34
0.38
0.38
0.38
0.38
0.36
0.36
0.36
0.36
0.38
0.38
0.38
VF @ 1.0A
VOLTS
0.60
0.60
0.60
0.49
0.69
0.69
0.69
0.69
0.60
0.60
0.60
0.60
0.69
0.69
0.69
VF @ 3.1A
VOLTS
0.9
0.9
0.9
0.8
N/A
N/A
N/A
N/A
0.9
0.9
0.9
0.9
N/A
N/A
N/A
MAXIMUM REVERSE
LEAKAGE CURRENT
AT RATED VOLTAGE
IR @ +25°C
mA
0.1
0.1
0.1
0.05
0.1
0.1
0.1
0.10
0.1
0.1
0.1
0.1
0.1
0.1
0.1
IR @ +100°C
mA
5.0
5.0
5.0
5.0
6.0
6.0
6.0
12.0
5.0
5.0
5.0
5.0
12.0
12.0
12.0
FIGURE 1
DESIGN DATA
CASE:
DO-213AB, Hermetically sealed
glass case. (MELF, LL41)
LEAD FINISH:
Tin / Lead
THERMAL RESISTANCE: (R
OJEC):
40 ˚C/W maximum at L = 0 inch
THERMAL IMPEDANCE: (Z
OJX): 12
˚C/W maximum
POLARITY:
Cathode end is banded.
MOUNTING SURFACE SELECTION:
The Axial Coefficient of Expansion
(COE) Of this Device is Approximately
+6PPM/°C. The COE of the Mounting
Surface System Should Be Selected To
Provide A Suitable Match With This
Device.
CDLL5817
CDLL5818
CDLL5819
J,JX,JV & JS
5819UR-1
CDLL6759
CDLL6760
CDLL6761
J,JX,JV & JS
6761UR-1
CDLL1A20
CDLL1A30
CDLL1A40
CDLL1A50
CDLL1A60
CDLL1A80
CDLL1A100
20
30
40
45
60
80
100
100
20
30
40
50
60
80
100
22 COREY STREET, MELROSE, MASSACHUSETTS 02176
PHONE (781) 665-1071
FAX (781) 665-7379
WEBSITE: http://www.cdi-diodes.com
E-mail: mail@cdi-diodes.com
thru
CDLL5819
and
CDLL6759
thru
CDLL6761
and
CDLL1A20
thru
CDLL1A100

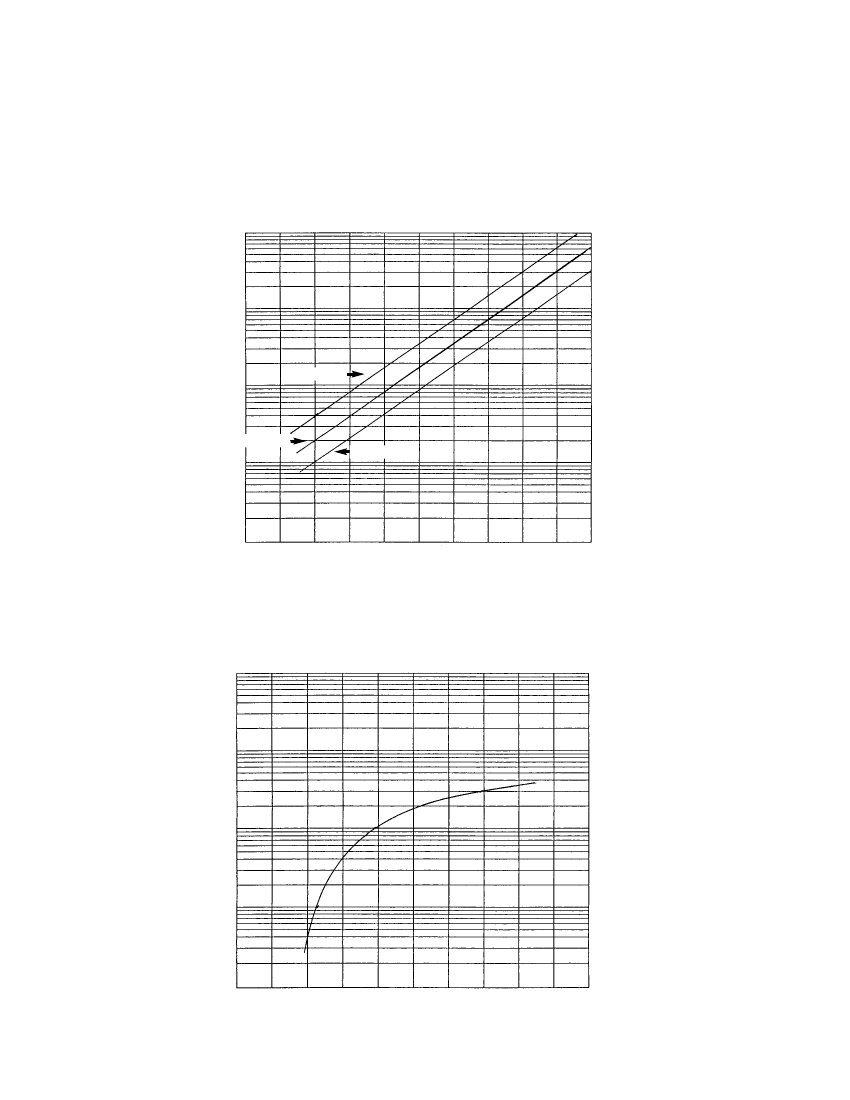

TYPICAL REVERSE LEAKAGE CURRENT AT RATED PIV (PULSED)
10.0
CDLL5817
IR, REVERSE CURRENT (mA)
1.0
CDLL5819
0.1
CDLL5818
CDLL5817
0.01
0.001
+25
+50
+75
+100
+125
TJ , JUNCTION TEMPERATURE (°C)
FIGURE 1
TYPICAL FORWARD VOLTAGE
100.0
IF, FORWARD CURRENT, INSTANTANEOUS (AMPS)
10.0
1.0
0.1
0.01
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
1.1
VF, FORWARD VOLTAGE, INSTANTANEOUS (VOLTS)
FIGURE 2
