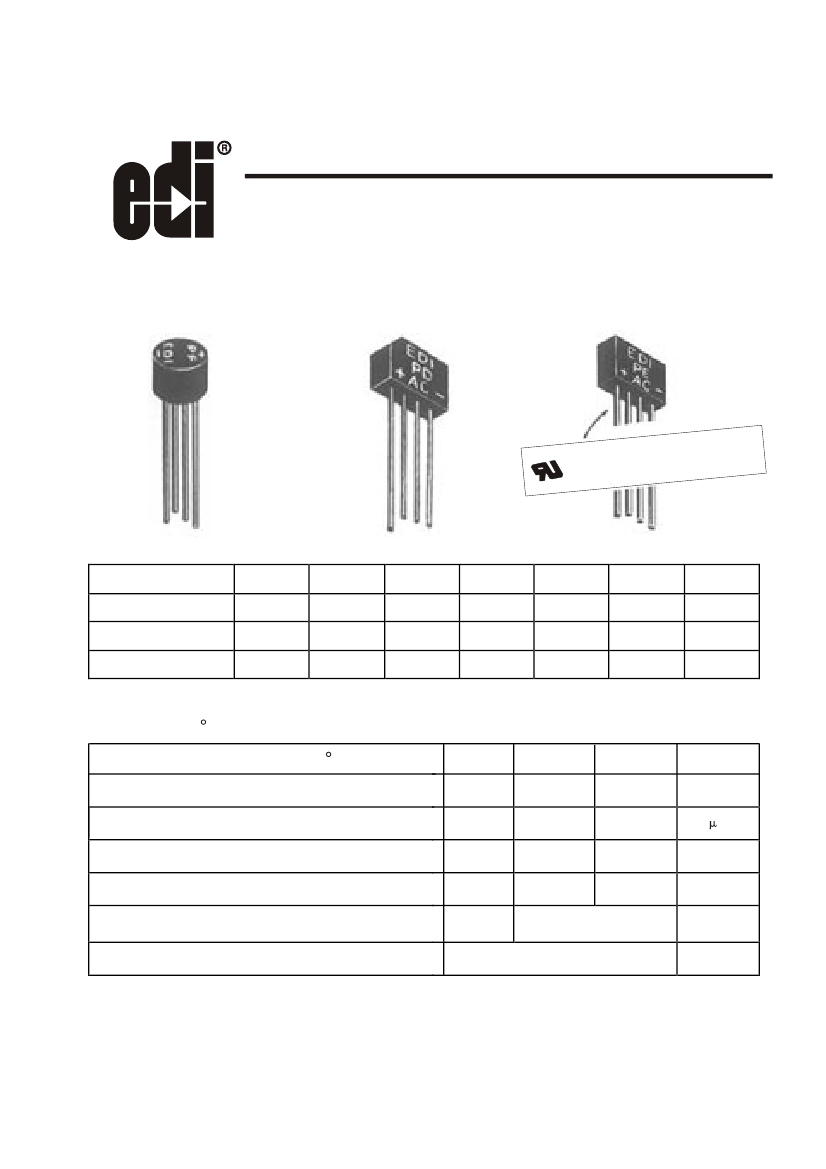

PF PD PE
SINGLE-PHASE FULL WAVE BRIDGE
1.5AMPERES THROUGH 5.0 AMPERES
FOR P.C. BOARD AND POWER TERMINAL MOUNTING
PF SERIES
PD SERIES
PE SERIES
recognition
ark indicates program of
This m
mponent
under the co aboratories, inc.
L
Underwriters
PRV/Leg
1.5 Amp SERIES
2.0 Amp SERIES
5.0 Amp SERIES
50V
PF05
PD05
PE05
100V
PF10
PD10
PE10
200V
PF20
PD20
PE20
400V
PF40
PD40
PE40
600V
PF60
PD60
PE60
800V
PF80
PD80
PE80
1000V
PF100
PD100
PE100
ELECTRICAL CHARACTERISTICS PER
LEG (at T
A
= 25 C Unless Otherwise Specified)
Average Output Current, Io @ 25 C Tc (Fig.1)
Max. Forward Voltage Drop V
F
=1.2 V @ I
F
=
Max. DC Reverse Current
o
@ PRV and 25 C, I
R
PF
1.5
1.0
5.0
50
4.5
- 55 to
+125
FD
2
1.0
5.0
50
6.0
PE
5
2.5
5.0
150
15
Amp
Amp
A
Max. Peak Surge Current,I
FSM
(8.3
ms)
Forward Current, Repetitive Peak, I
FRM
Ambient Operating Temperature Range, T
A
Storage Temperature Range, T
STG
Amp
Amp
o
-55 to + 150
-55 to +150
C
C
o
NOTES:
Maxinum lead and terminal temperature for soldering, 3/8 inch from case,5 seconds at 250
O
C
EDI reserves the right to change these specifications at any time without notice.

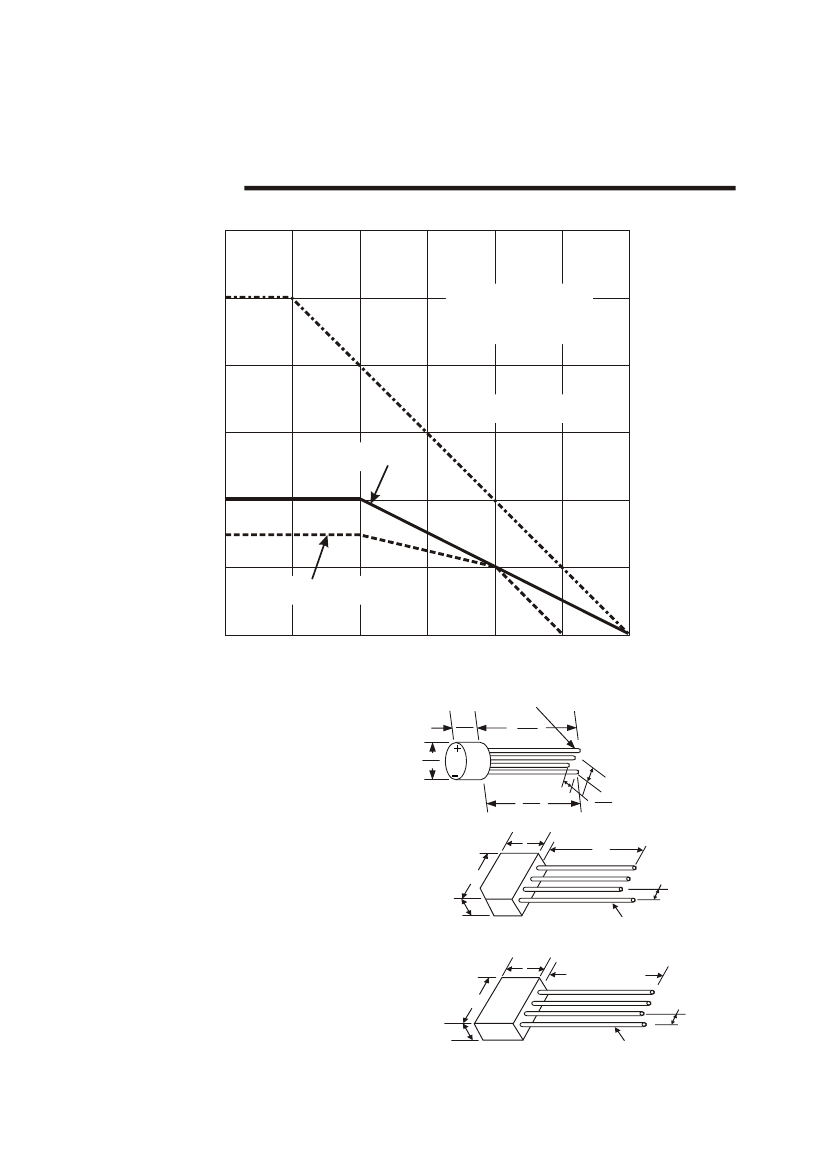

PF PD PE
CURRENT DERATING
I
F(AV)
. AVERAGE FORWARD CURRENT (AMP)
5.0
BRIDGE OUTPUT
RES.-IND. LOADS
4.0
PE SERIES
3.0
PD SERIES
2.0
1.0
PF SERIES
0
0
25
50
75
100
(
O
C)
125
150
T
A
= AMBIENT TEMPERATURE
.210
.140
PF
_
LEAD DIA.032+ .001
SILVER PLATED COPPER
1.28
1.33
POS LEAD.
+
CASE STYLE FOR PF
.395
.320
EDI
_
1.17
1.23
.180
.220
.58
MAX
0.5 minimum lead length
ED
I
+
PD
AC
CASE STYLE FOR PD
.250 MAX.
.71
MAX.
-
_
. 1 5 0 + 0 . 0 1 0 T Y P.
.032 DIA.LEADS
All dimensions in inches
.52
MAX.
1.0MIN.
CASE STYLE
FOR PE
_
.250 +.015
.69
MAX.
ED
I
+
PE
AC
-
_
.150 + .010 TYP .
.051 DIA.LEADS
ELECTRONIC DEVICES, INC.
DESIGNERS AND MANUFACTURERS OF SOLID STATE DEVICES SINCE 1951.
21 GRAY OAKS AVENUE
* YONKERS. NEW YORK 10710 914-965-4400
* FAX 914-965-5531
* 1-800-678-0828
