SAB80C32-16-N datasheet, PDF - EEWORLD Datasheet

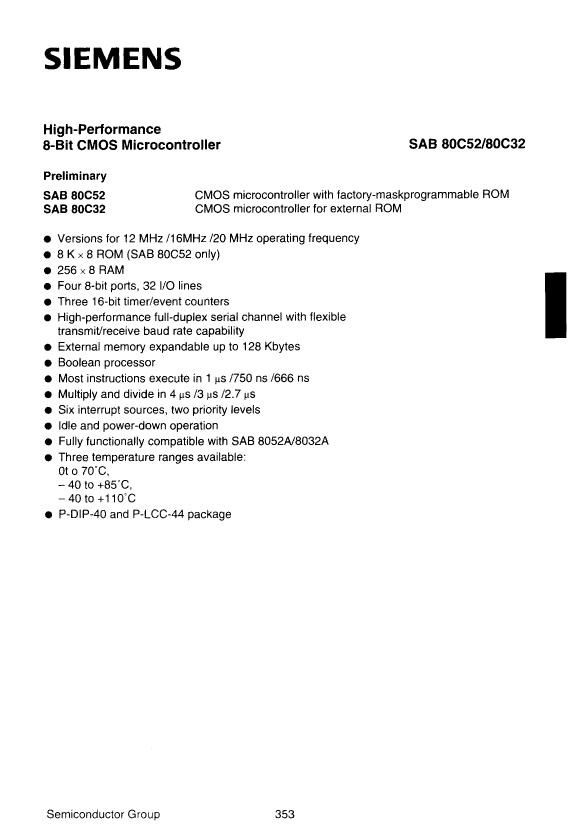

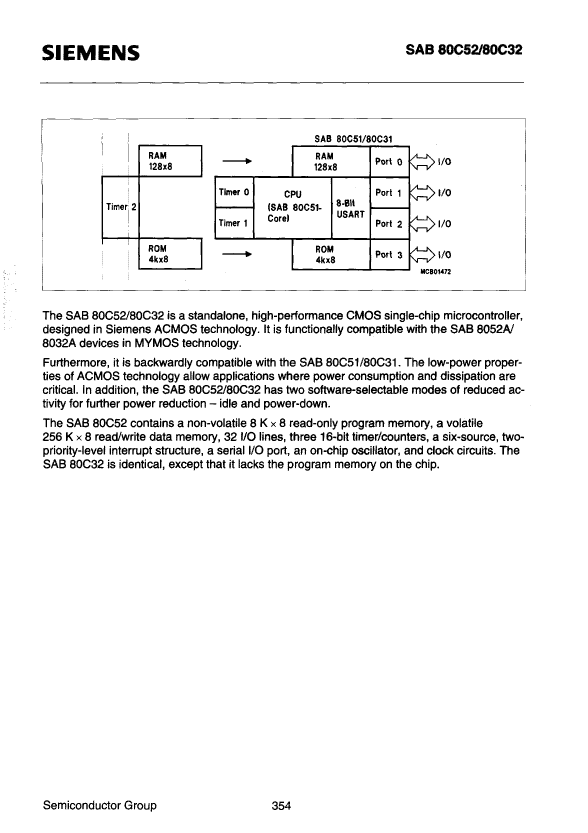

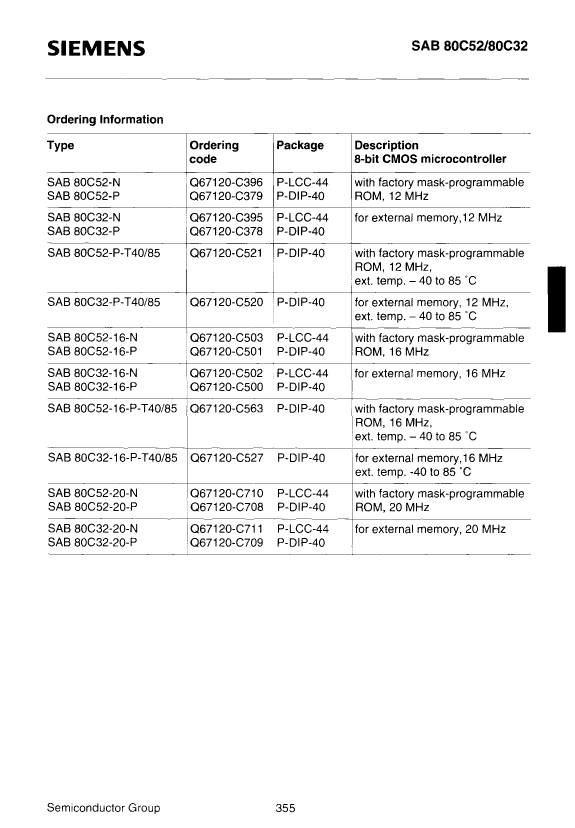

SAB80C32-16-N: DescriptionMicrocontroller, 8-Bit, 8051 CPU, 16MHz, CMOS, PQCC44, PLASTIC, LCC-44; CategoryThe embedded processor and controller Microcontrollers and processors; File Size591KB，32 Pages; ManufacturerInfineon; Websitehttp://www.infineon.com/

Download Datasheet Parametric View All

SAB80C32-16-N Overview

Microcontroller, 8-Bit, 8051 CPU, 16MHz, CMOS, PQCC44, PLASTIC, LCC-44

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Infineon
Parts packaging code	LCC
package instruction	PLASTIC, LCC-44
Contacts	44
Reach Compliance Code	unknown
Is Samacsys	N
Has ADC	NO
Address bus width	16
bit size	8
CPU series	8051
maximum clock frequency	16 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
JESD-30 code	S-PQCC-J44
JESD-609 code	e0
length	16.6 mm
Number of I/O lines	32
Number of terminals	44
Maximum operating temperature	70 °C
Minimum operating temperature
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Encapsulate equivalent code	LDCC44,.7SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
RAM (bytes)	256
rom(word)	0
Maximum seat height	4.57 mm
speed	16 MHz
Maximum slew rate	26 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	16.6 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
