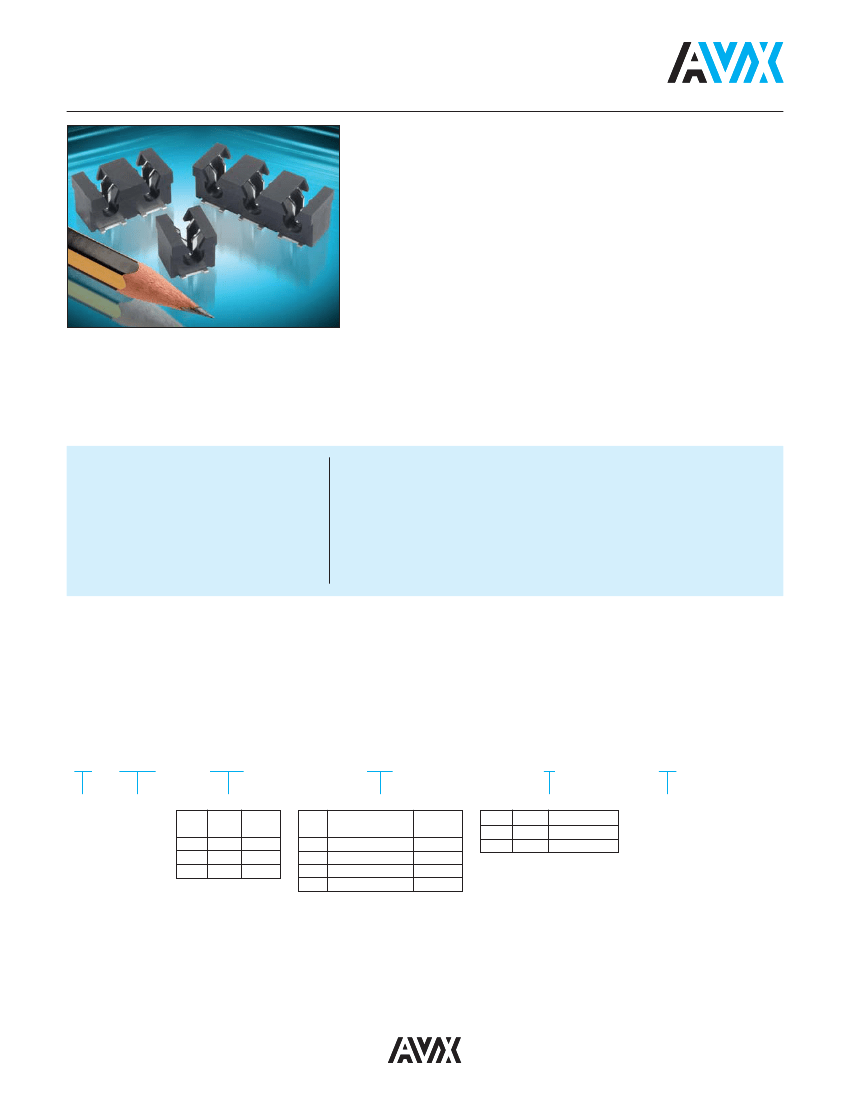

SSL - Discrete Wire IDC
Series 9177
The 917X series of surface mount Insulation Displacement Connectors (IDC)
were developed to meet the harsh automotive and industrial market
applications for connecting individual wires directly to a PCB ranging from 14
AWG to 28 AWG. This industry proven contact system has been tested to
automotive levels of shock, vibration, and temperature cycling to prove their
reliability and robustness. The simplicity of inserting a wire into the connector
with a small tool allows a wide range of devices to be connected to the PCB
without soldering. In SSL applications specifically, these connectors are used to
bring power and signal onto the PCB or are used to daisy chain multiple boards
together in a long string. While the IDC contact provides a gas-tight connection
to conductor of the wire, the housing has been designed to grab the insulation
of the wire to provide a positive strain relief even in the harshest conditions. In
case of repair, the wires can be removed and replace up to three times.
The 9177 series accepts 14 AWG to 20 AWG wires with an insulation diameter
ranging from 2.75mm to 4.25mm. These dual contact connectors support a
15 amp current rating with two large SMT solder tails per wire to provide
maximum stability on the PCB. Available in 1p-3p configuration, these
connectors can be end stackable for higher pin counts.
APPLICATIONS
• Connecting discrete wire components
directly to the PCB
• Bringing power and signals onto a PCB
• Daisy chaining PCB’s together to create
a continuous string of boards
• Application Notes: refer to 201-01-124
FEATURES AND BENEFITS
• IDC contact provides a gas-tight connection to the PCB for long term reliability
• Connector housing captures the wire insulation for positive strain relief
• Tested to automotive levels on shock, vibration and temperature cycling for
reliability
• Low and high volume assembly tools to match production volumes
• Reduced total applied cost versus solder or crimp processes
• High temperature insulator capable to 260ºC reflow soldering processes
ELECTRICAL
• Current Rating: 15 Amp / Contact
• Voltage Rating: 600 VAC
ENVIRONMENTAL
• Operating Temperature:
-40ºC to +125ºC
MECHANICAL
•
•
•
•
Insulator Material: Nylon 46: UL94V0
Contact Material: Phosphor Bronze
Plating: Tin over Nickel
Durability: 3 Cycles
HOW TO ORDER
00
Prefix
9177
Series
00X
Number of Ways
Code
001
002
003
No of
Ways
1
2
3
Details
Page 62
Page 63
Page 64
Code
001
012
022
033
00X
Wire Gauge Size
Accepted
Wire Gauge
14 AWG
16 AWG
18 AWG
20 AWG
Wire
Insulation
Ø 4.25
Ø 3.50
Ø 3.50
Ø 2.75
X
Insulator Color
Code Color
0
Black
1
White
Application
Industrial
Lighting
06
Plating
Option
06 = Pure Tin
all over
Certification: UL File #E320991
61
SSL - Discrete Wire IDC
Series 9177

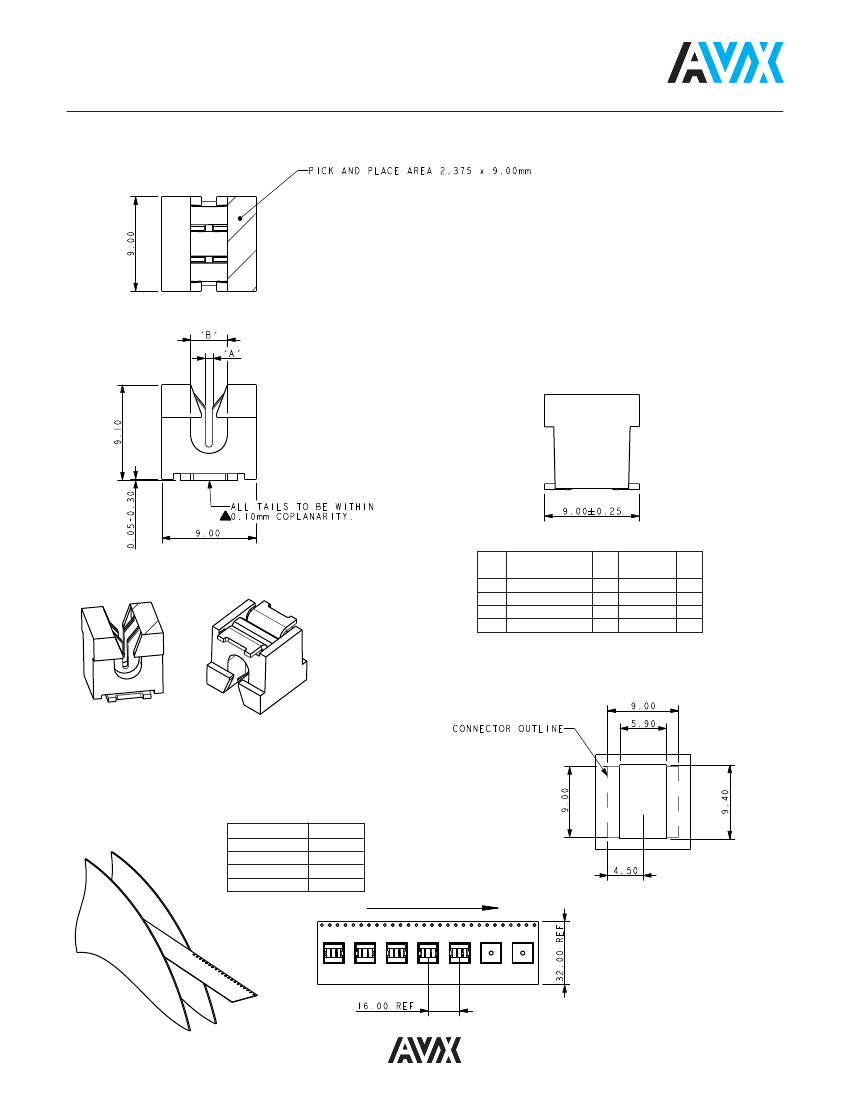

14-20 AWG 1 WAY IDC CONNECTOR
NOTES:
1. CONNECTOR FOR IDC WIRE TO BOARD CONNECTION.
2. CONTACT MATERIAL: PHOSPHORE BRONZE.
INSULATION MATERIAL: HIGH TEMPERATURE NYLON 46.
COLOR REFER TO PAGE 61.
3. CONNECTOR DESIGNED TO ACCEPT BETWEEN 14 AND 20 GAUGE
STRANDED WIRE.
4. ALL DIMENSIONS FOR REFERENCE UNLESS OTHERWISE STATED.
5. FOR FULL PRODUCT SPECIFICATION REFER TO ELCO SPEC 201-01-109.
6. FOR PCB SPACE RESTRICTED BY ASSEMBLY TOOLING REFER TO PAGE 65.
Code
001
012
022
033
Accepted
Wire Gauge
14 Gauge Stranded
16 Gauge Stranded
18 Gauge Stranded
20 Gauge Stranded
A
1.10
0.82
0.72
0.60
Wire
Insulation
Ø 4.25 max
Ø 3.50 max
Ø 3.50 max
Ø 2.75 max
B
4.25
3.50
3.50
2.75
SMT PCB LAYOUT
PURE TIN PADS
PACKING DETAILS
REEL QTY
LEADER
TRAILER
REEL/BOX
PACK QTY
400
500MM
400MM
4
1600
62
SSL - Discrete Wire IDC
Series 9177

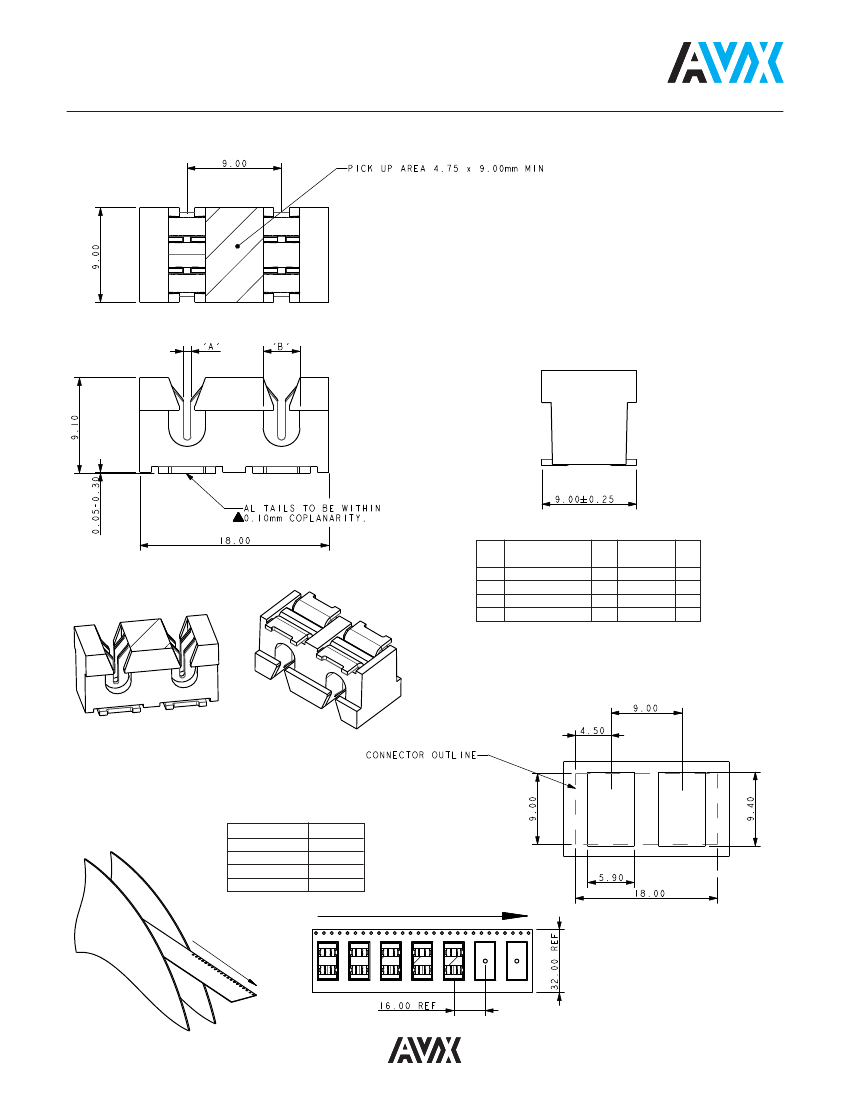

14-20 AWG 2 WAY IDC CONNECTOR
NOTES:
1. CONNECTOR FOR IDC WIRE TO BOARD CONNECTION.
2. CONTACT MATERIAL: PHOSPHORE BRONZE.
INSULATION MATERIAL: HIGH TEMPERATURE NYLON 46.
COLOR REFER TO PAGE 61.
3. CONNECTOR DESIGNED TO ACCEPT BETWEEN 14 AND 20 GAUGE
STRANDED WIRE.
4. ALL DIMENSIONS FOR REFERENCE UNLESS OTHERWISE STATED.
5. FOR FULL PRODUCT SPECIFICATION REFER TO ELCO SPEC 201-01-109.
6. FOR PCB SPACE RESTRICTED BY ASSEMBLY TOOLING REFER TO PAGE 65.
Code
001
012
022
033
Accepted
Wire Gauge
14 Gauge Stranded
16 Gauge Stranded
18 Gauge Stranded
20 Gauge Stranded
A
1.10
0.82
0.72
0.60
Wire
Insulation
Ø 4.25 max
Ø 3.50 max
Ø 3.50 max
Ø 2.75 max
B
4.25
3.50
3.50
2.75
SMT PCB LAYOUT
PURE TIN PADS
PACKING DETAILS
REEL QTY
LEADER
TRAILER
REEL/BOX
PACK QTY
400
500MM
400MM
4
1600
63
SSL - Discrete Wire IDC
Series 9177

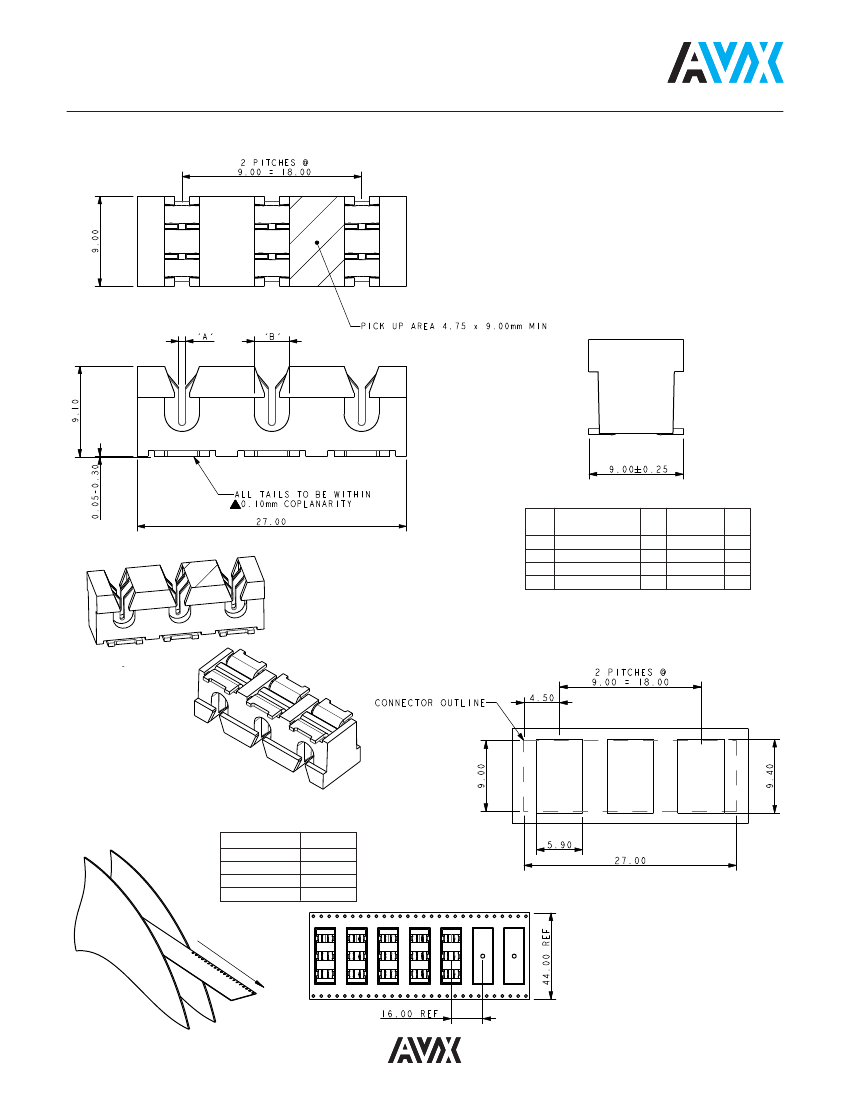

14-20 AWG 3 WAY IDC CONNECTOR
NOTES:
1. CONNECTOR FOR IDC WIRE TO BOARD CONNECTION.
2. CONTACT MATERIAL: PHOSPHORE BRONZE.
INSULATION MATERIAL: HIGH TEMPERATURE NYLON 46.
COLOR REFER TO PAGE 61.
3. CONNECTOR DESIGNED TO ACCEPT BETWEEN 14 AND 20 GAUGE
STRANDED WIRE.
4. ALL DIMENSIONS FOR REFERENCE UNLESS OTHERWISE STATED.
5. FOR FULL PRODUCT SPECIFICATION REFER TO ELCO SPEC 201-01-109.
6. FOR PCB SPACE RESTRICTED BY ASSEMBLY TOOLING REFER TO PAGE 65.
Code
001
012
022
033
Accepted
Wire Gauge
14 Gauge Stranded
16 Gauge Stranded
18 Gauge Stranded
20 Gauge Stranded
A
1.10
0.82
0.72
0.60
Wire
Insulation
Ø 4.25 max
Ø 3.50 max
Ø 3.50 max
Ø 2.75 max
B
4.25
3.50
3.50
2.75
SMT PCB LAYOUT
PURE TIN PADS
PACKING DETAILS
REEL QTY
LEADER
TRAILER
REEL/BOX
PACK QTY
400
500MM
400MM
4
1600
64
SSL - Discrete Wire IDC
Series 9177

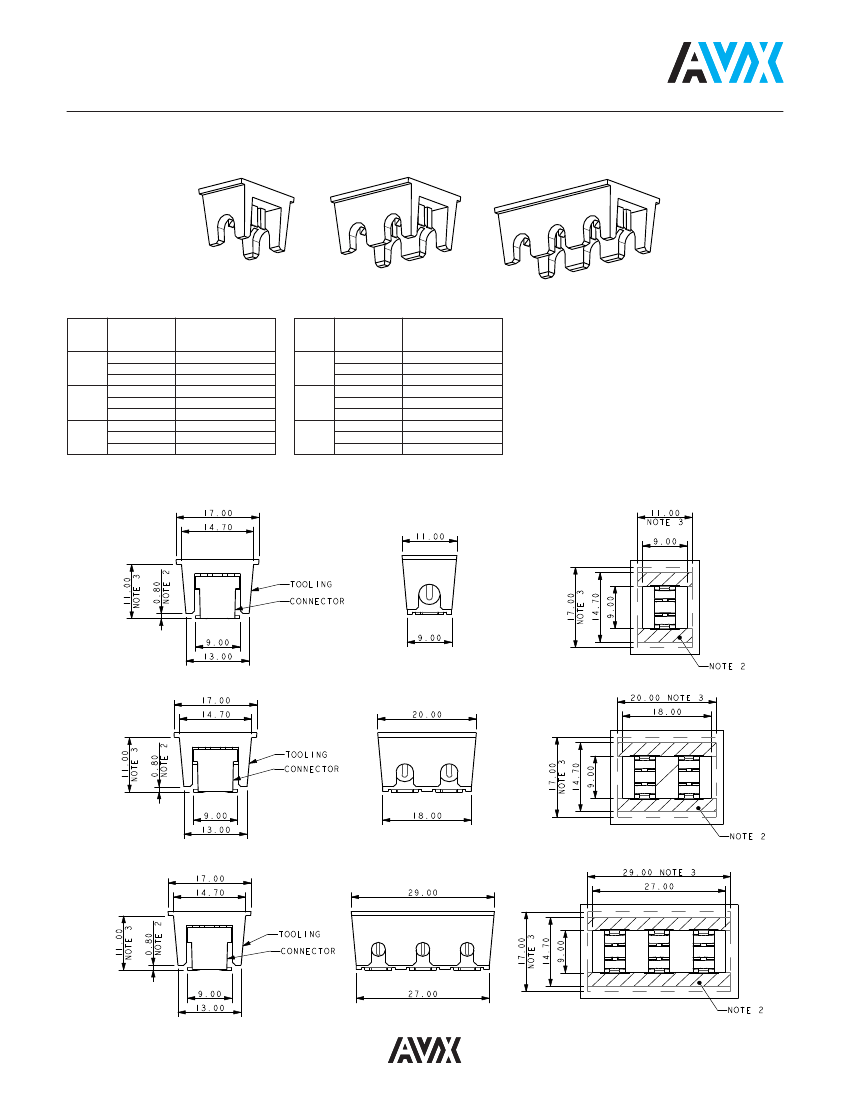

INSERTION TOOLING – REQUIRES HAND PRESS WITH FLAT ROCK PLATES
1 WAY
2 WAY
3 WAY
HIGH PRODUCTION
Max
No.
Insulation Dia
of Ways
(AWG)
4.25 (14)
1
3.50 (16-18)
2.75 (20)
4.25 (14)
2
3.50 (16-18)
2.75 (20)
4.25 (14)
3
3.50 (16-18)
2.75 (20)
Tool
Part Number
06
06
06
06
06
06
06
06
06
9177
9177
9177
9177
9177
9177
9177
9177
9177
7017
7017
7017
7017
7017
7017
7017
7017
7017
01
02
03
01
02
03
01
02
03
001
001
001
002
002
002
003
003
003
MEDIUM PRODUCTION
Plastic
Max
No.
Insulation Dia
of Ways
(AWG)
4.25 (14)
1
3.50 (16-18)
2.75 (20)
4.25 (14)
2
3.50 (16-18)
2.75 (20)
4.25 (14)
3
3.50 (16-18)
2.75 (20)
Tool
Part Number
06
06
06
06
06
06
06
06
06
9177
9177
9177
9177
9177
9177
9177
9177
9177
7016
7016
7016
7016
7016
7016
7016
7016
7016
01
02
03
01
02
03
01
02
03
001
001
001
002
002
002
003
003
003
The assembly tooling restricts the available
space/component heights on the PCB.
For details see below.
NOTES:
1. ALL DIMENSIONS FOR REFERENCE DIMENSIONS.
2. MAXIMUM COMPONENT HEIGHT 0.80MM IN THIS AREA.
3. MAXIMUM COMPONENT HEIGHT 11.00 MM IN THIS AREA.
4. THE SAME RESTRICTIONS APPLY TO ALL WIRE
INSULATION DIAMETERS.
INSERTION TOOLING – PCB RESTRICTED AREAS FOR ASSEMBLY TOOLING
1 WAY
2 WAY
3 WAY
65
