DAC-HK12BMC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> DAC-HK12BMC

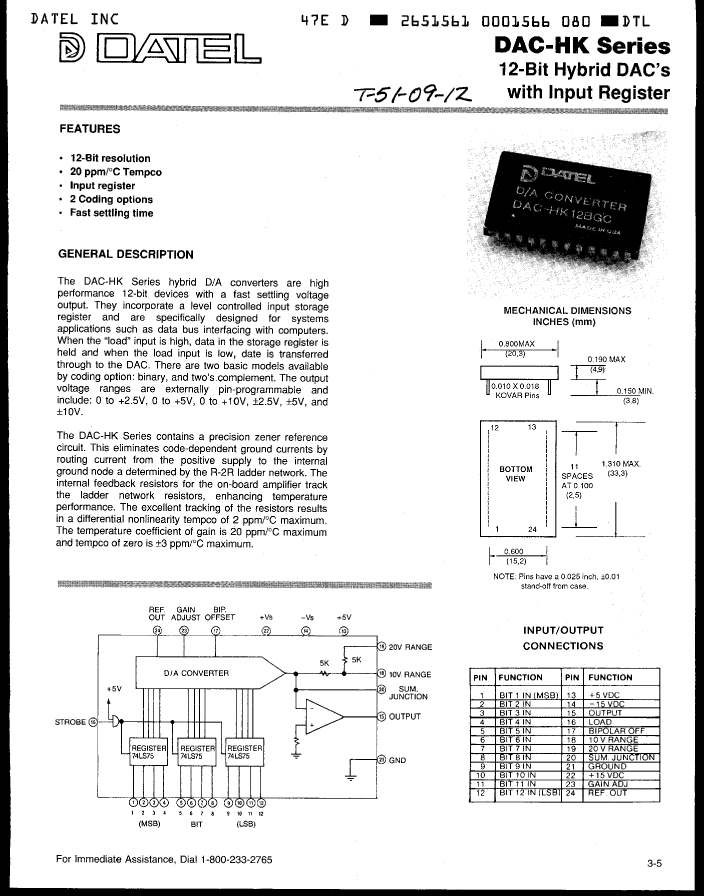

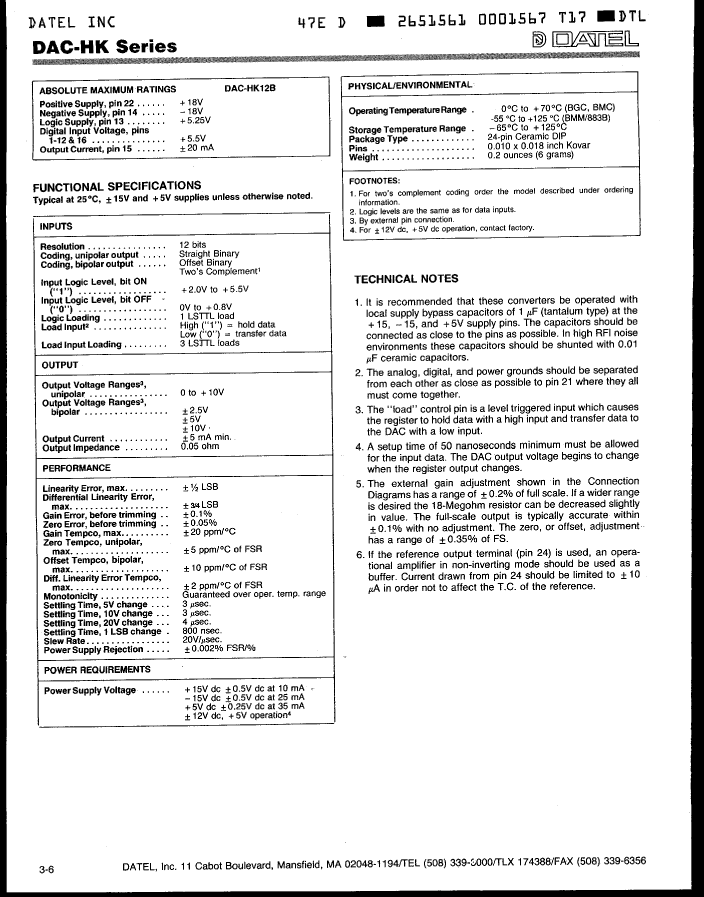

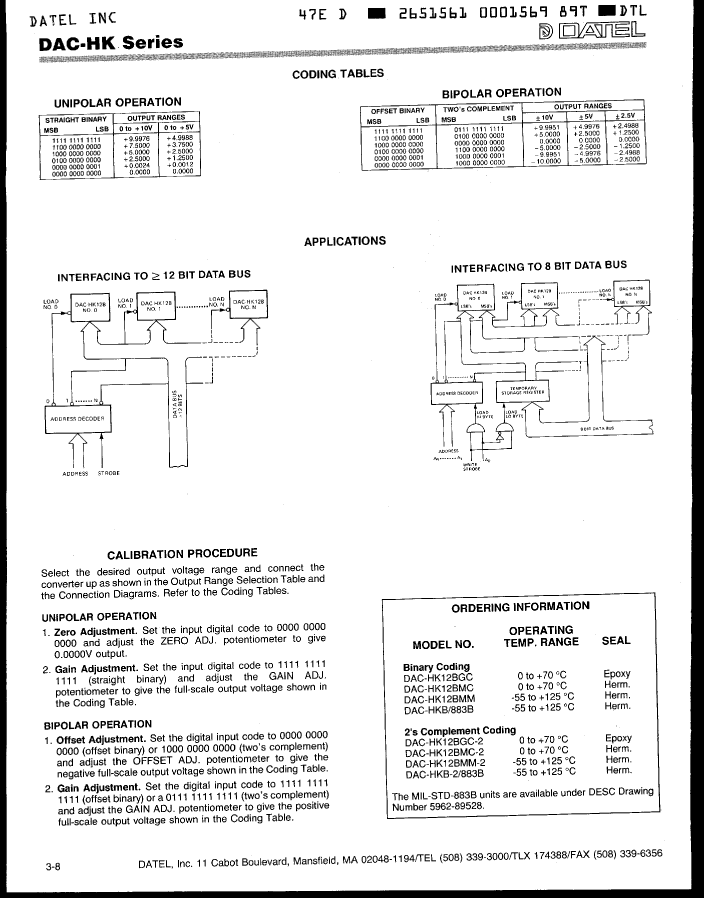

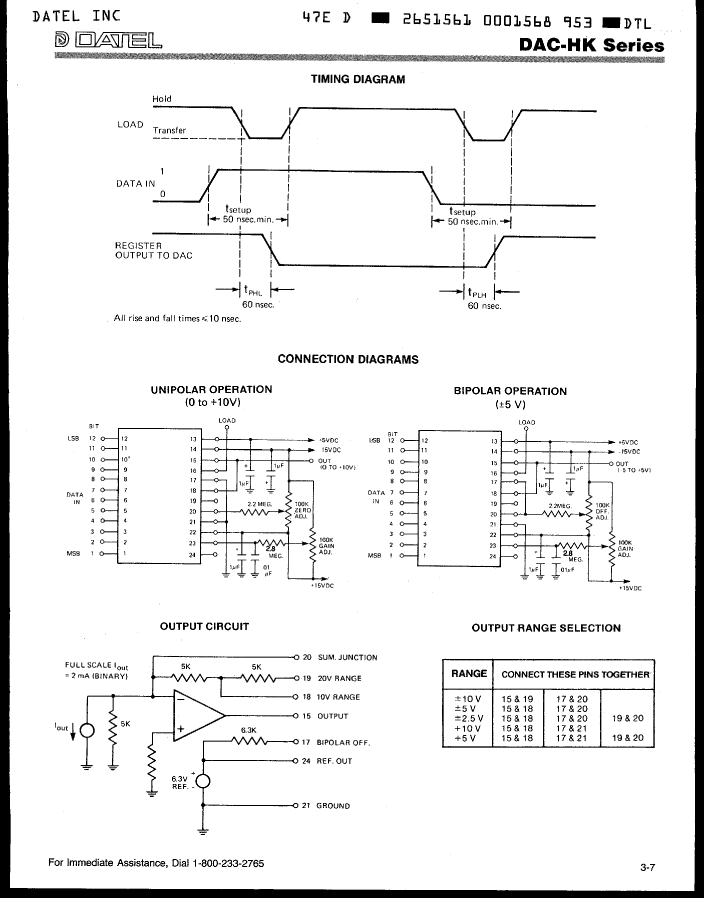

DAC-HK12BMC: DescriptionD/A Converter, 1 Func, Parallel, Word Input Loading, 4us Settling Time, CDIP24, DDIP-24; CategoryAnalog mixed-signal IC converter; File Size313KB，4 Pages; ManufacturerDATEL Inc.; Environmental Compliance

Download Datasheet Parametric Compare View All

DAC-HK12BMC Overview

D/A Converter, 1 Func, Parallel, Word Input Loading, 4us Settling Time, CDIP24, DDIP-24

DAC-HK12BMC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	DATEL Inc.
Parts packaging code	DIP
package instruction	DIP, DIP24,.6
Contacts	24
Reach Compliance Code	unknown
Is Samacsys	N
Maximum analog output voltage	10 V
Minimum analog output voltage	-10 V
Converter type	D/A CONVERTER
Enter bit code	BINARY, OFFSET BINARY
Input format	PARALLEL, WORD
JESD-30 code	R-CDIP-T24
JESD-609 code	e4
Maximum linear error (EL)	0.0122%
Humidity sensitivity level	1
Nominal negative supply voltage	-15 V
Number of digits	12
Number of functions	1
Number of terminals	24
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5,+-15 V
Certification status	Not Qualified
Maximum seat height	5.969 mm
Maximum stabilization time	4 µs
Nominal settling time (tstl)	4 µs
Nominal supply voltage	15 V
surface mount	NO
technology	HYBRID
Temperature level	COMMERCIAL
Terminal surface	GOLD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm
Base Number Matches	1

Preview

Download Datasheet

View All

DAC-HK12BMC Related Products

	DAC-HK12BMC	DAC-HKB/883B	DAC-HK12BMM
Description	D/A Converter, 1 Func, Parallel, Word Input Loading, 4us Settling Time, CDIP24, DDIP-24	D/A Converter, 1 Func, Parallel, Word Input Loading, 0.8us Settling Time, CDIP24, HERMETIC SEALED, DIP-24	D/A Converter, 1 Func, Parallel, Word Input Loading, 4us Settling Time, CDIP24, DDIP-24
Is it Rohs certified?	conform to	incompatible	incompatible
Maker	DATEL Inc.	DATEL Inc.	DATEL Inc.
Parts packaging code	DIP	DIP	DIP
package instruction	DIP, DIP24,.6	DIP,	DIP, DIP24,.6
Contacts	24	24	24
Reach Compliance Code	unknown	unknown	unknown
Is Samacsys	N	N	N
Maximum analog output voltage	10 V	10 V	10 V
Minimum analog output voltage	-10 V	-10 V	-10 V
Converter type	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER
Enter bit code	BINARY, OFFSET BINARY	BINARY, OFFSET BINARY, 2'S COMPLEMENT BINARY	BINARY, OFFSET BINARY
Input format	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD
JESD-30 code	R-CDIP-T24	R-GDIP-P24	R-CDIP-T24
Maximum linear error (EL)	0.0122%	0.012%	0.0122%
Nominal negative supply voltage	-15 V	-15 V	-15 V
Number of digits	12	12	12
Number of functions	1	1	1
Number of terminals	24	24	24
Maximum operating temperature	70 °C	125 °C	125 °C
Minimum operating temperature	-	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.969 mm	4.9 mm	5.969 mm
Maximum stabilization time	4 µs	4 µs	4 µs
Nominal settling time (tstl)	4 µs	0.8 µs	4 µs
Nominal supply voltage	15 V	15 V	15 V
surface mount	NO	NO	NO
Temperature level	COMMERCIAL	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	PIN/PEG	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	15.24 mm	15.24 mm	15.24 mm
Base Number Matches	1	1	1
Is it lead-free?	Lead free	-	Contains lead
JESD-609 code	e4	-	e0
Encapsulate equivalent code	DIP24,.6	-	DIP24,.6
power supply	5,+-15 V	-	5,+-15 V
technology	HYBRID	-	HYBRID
Terminal surface	GOLD	-	Tin/Lead (Sn/Pb)
ECCN code	-	3A001.A.2.C	3A001.A.2.C
