VXC4-1FW-32-26M0000000 datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> VXC4-1FW-32-26M0000000

VXC4-1FW-32-26M0000000: DescriptionParallel - Fundamental Quartz Crystal, 26MHz Nom,; CategoryPassive components Crystal/resonator; File Size651KB，4 Pages; ManufacturerVectron International, Inc.; Websitehttp://www.vectron.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

VXC4-1FW-32-26M0000000 Overview

Parallel - Fundamental Quartz Crystal, 26MHz Nom,

VXC4-1FW-32-26M0000000 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Vectron International, Inc.
Reach Compliance Code	compliant
Is Samacsys	N
Ageing	5 PPM/ FIRST YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	10 µW
frequency stability	0.0025%
frequency tolerance	10 ppm
JESD-609 code	e4
load capacitance	32 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	26 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
physical size	7.0mm x 5.0mm x 1.1mm
Series resistance	30 Ω
surface mount	YES
Terminal surface	Gold (Au) - with Nickel (Ni) barrier
Base Number Matches	1

Preview

Download Datasheet

View All

VXC4

7.0x5.0x1.1mm Crystal

Standard Crystal Datasheet

Helping Customers Innovate, Improve & Grow

Table 1. Electrical Performance

Parameter

Nominal Frequency

Mode

Operating Temperature Range

Stability Over T

OP1

Frequency Tolerance

Load Capacitance

Shunt Capacitance

Drive Level

STAB

TOL

AGE

500

Description

STO

ESR

Applications

-40

Equivalent Series Resistance

Crystal Frequency

8.000MHz-10.000MHz

10.001MHz-14.000MHz

Features

14.001MHz-20.000MHz

20.001MHz-40.000MHz

40.000MHz-100.000MHz, 3rd Overtone

Ohm

±10

100

±5

Symbol

NOM

Min.

8.000

Typ

Max

100.000

Units

MHz

°C

ppm

MOhm

°C

Fundamental or 3rd Overtone

0/70, -10/70, -20/70, -40/85

±100

VT-804

Aging / 1st year (at 25 °C)

Insulation Resistance

Storage Temperature

Notes:

1. Referenced to the Frequency at 25 °C.

2. Frequency measured at 25 °C ± 3 °C.

Product is compliant to RoHS directive and fully compatible with lead free assembly.

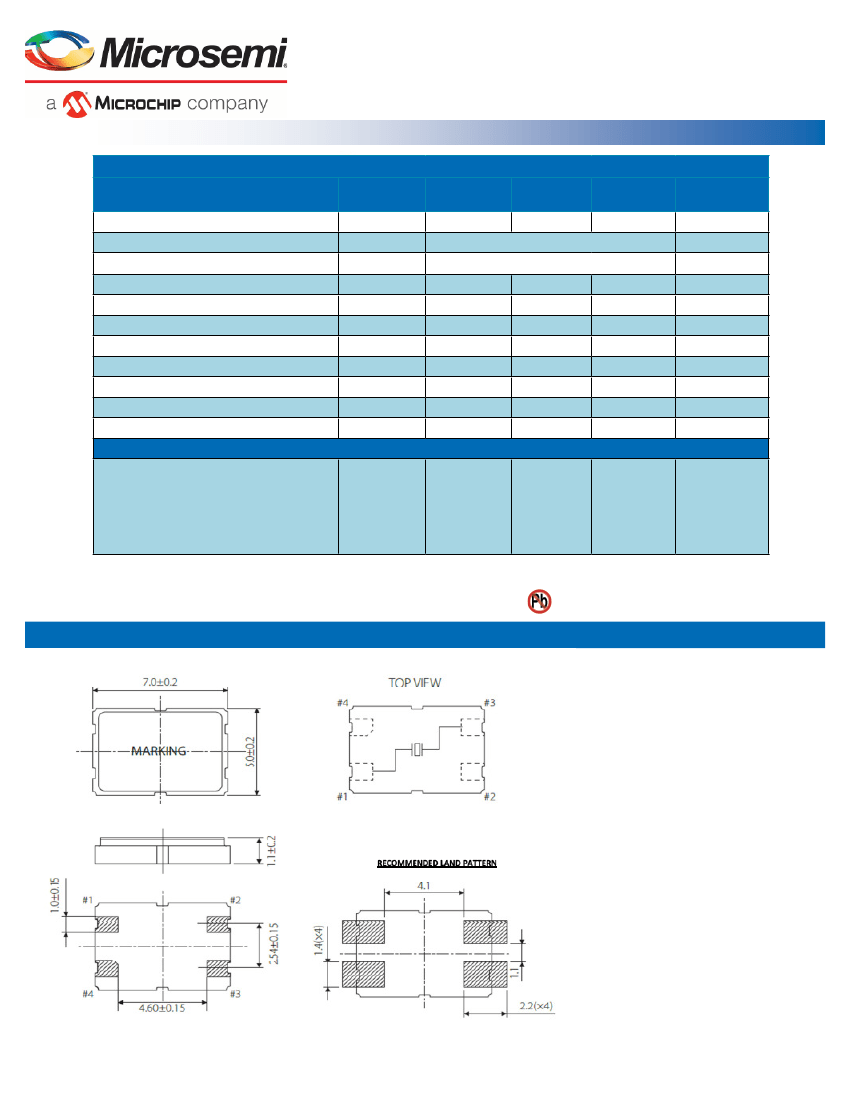

Package Drawing

All Dimensions in mm

Part Marking:

VXC4-MST

xxM xx YMS

MST=Mode,Stability,Temp code

xxMxx = frequency

Y = last digit of the year

M = Month Code

A=January

B=February

C=March

D=April

E=May

F=June

G=July

H=August

I=September

J=October

K=November

L=December

S = Manufacuting Location

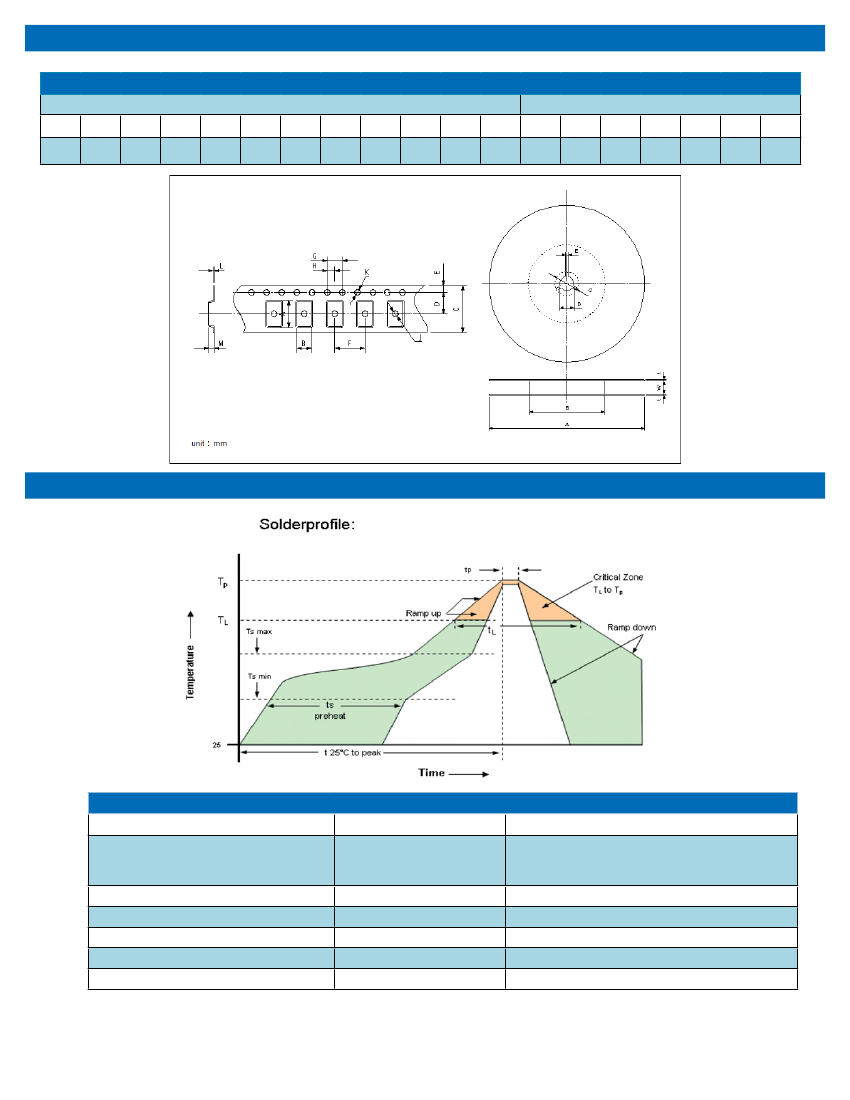

Page1

VXC4-1FW-32-26M0000000 Related Products

	VXC4-1FW-32-26M0000000	VXC4-1FW-32-20M0000000_SNPBDIP	VXC4-1FW-32-26M0000000_SNPBDIP	VXC4-1SW-32-8M0000000	VXC4-1ST-06-8M0000000
Description	Parallel - Fundamental Quartz Crystal, 26MHz Nom,	Parallel - Fundamental Quartz Crystal, 20MHz Nom,	Parallel - Fundamental Quartz Crystal, 26MHz Nom,	Parallel - Fundamental Quartz Crystal, 8MHz Nom,	Parallel - Fundamental Quartz Crystal, 8MHz Nom,
Is it Rohs certified?	conform to	incompatible	incompatible	conform to	conform to
Reach Compliance Code	compliant	compli	compli	compliant	compliant
Ageing	5 PPM/ FIRST YEAR	5 PPM/ FIRST YEAR	5 PPM/ FIRST YEAR	5 PPM/ FIRST YEAR	5 PPM/ FIRST YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL
Drive level	10 µW	10 µW	10 µW	10 µW	10 µW
frequency stability	0.0025%	0.0025%	0.0025%	0.01%	0.01%
frequency tolerance	10 ppm	10 ppm	10 ppm	10 ppm	10 ppm
JESD-609 code	e4	e0	e0	e4	e4
load capacitance	32 pF	32 pF	32 pF	32 pF	6 pF
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Nominal operating frequency	26 MHz	20 MHz	26 MHz	8 MHz	8 MHz
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-10 °C	-10 °C	-10 °C	-10 °C	-
physical size	7.0mm x 5.0mm x 1.1mm	7.0mm x 5.0mm x 1.1mm	7.0mm x 5.0mm x 1.1mm	7.0mm x 5.0mm x 1.1mm	7.0mm x 5.0mm x 1.1mm
Series resistance	30 Ω	40 Ω	30 Ω	60 Ω	60 Ω
surface mount	YES	YES	YES	YES	YES
Terminal surface	Gold (Au) - with Nickel (Ni) barrier	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier
Maker	Vectron International, Inc.	-	-	Vectron International, Inc.	Vectron International, Inc.
Base Number Matches	1	1	1	-	-
