FR12-0006 Overview

880MHz - 915MHz RF/MICROWAVE ISOLATOR

FR12-0006 Parametric

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
Is Samacsys	N
Maximum input power (CW)	48.13 dBm
Maximum insertion loss	0.35 dB
Maximum operating frequency	915 MHz
Minimum operating frequency	880 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
RF/Microwave Device Types	ISOLATOR
Maximum voltage standing wave ratio	1.22
Base Number Matches	1

Preview

Download Datasheet

View All

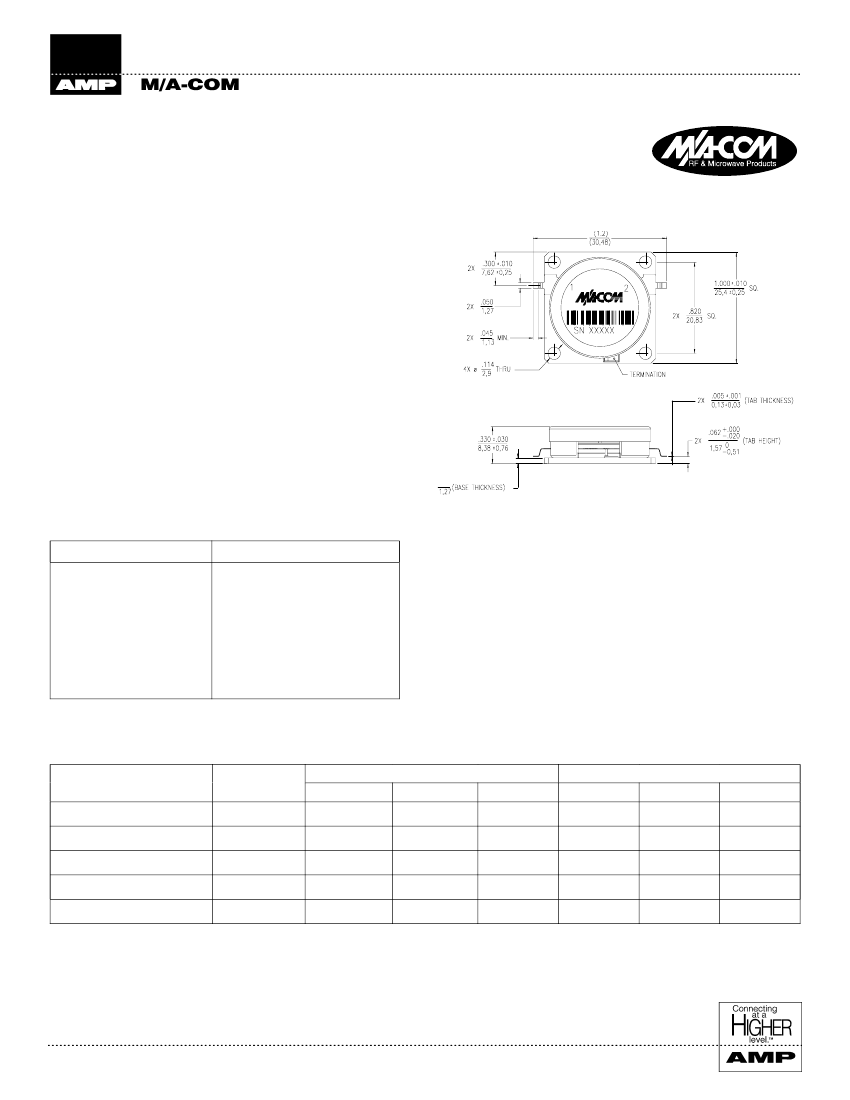

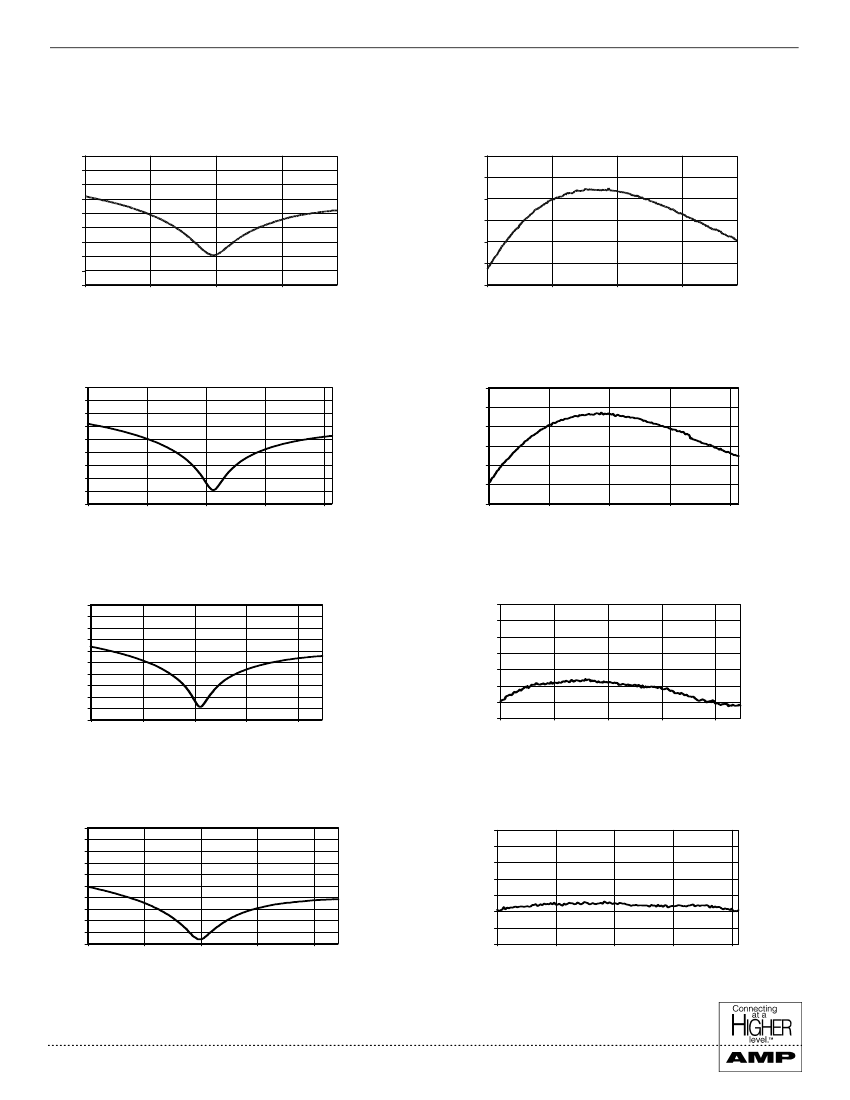

Single Junction Drop-In Isolator

FR12-Series

Single Junction Drop-In Isolator

Features

•

24 dB Isolation Typical, 0.25 dB Insertion Loss Typical

Custom Products Available with Alternate Configurations

such as Couplers, Attenuators, Higher Power Terminations,

Reverse Circulation and Termination on Ports 1 or 2

Available as Custom Product Without Flange for Surface

Mount Applications (Solder Reflow)

Designed for Wireless Telecommunications Systems:

AMPS, N-AMPS, D-AMPS

FR12

Description

M/A-COM’s drop-in circulators and isolators, designed for

cellular applications, feature high performance at low cost. These

designs offer the best isolation per insertion loss ratio in the

industry and are currently produced in the tens of thousands of

pieces per year. These units can be ordered so as to be compatible

with solder reflow manufacturing techniques. Both circulators and

isolators are in stock at all authorized M/A-COM distributors.

0.5

Part Number

FR12-0001

FR12-0002

FR12-0003

FR12-0004

FR12-0005

FR12-0006

FR12-0007

FR12-0008

Frequency Range (MHz)

869 – 894

925 – 960

1805 – 1880

1930 – 1990

824 – 849

880 – 915

1710 – 1785

1850 – 1910

Electrical Specifications

Parameter

Isolation

Insertion Loss

Forward Power

Reflected Power

VSWR

Units

Watts

—

Min.

—

-10 to +60° C

Typ.

0.25

—

Max.

—

0.3

1.20

Min.

—

-30 to +85° C

Typ.

0.30

—

Max.

—

0.35

1.22

V2.00

M/A-COM Division of AMP Incorporated n North America: Tel. (800) 366-2266, Fax (800) 618-8883 n Asia/Pacific: Tel.+85 2 2111 8088, Fax +85 2 2111 8087

n Europe: Tel. +44 (1344) 869 595, Fax+44 (1344) 300 020

www.macom.com

AMP and Connecting at a Higher Level are trademarks.

Specifications subject to change without notice.

FR12-0006 Related Products

	FR12-0006	FR12-0001	FR12-0005	FR12-0007	FR12-0008
Description	880MHz - 915MHz RF/MICROWAVE ISOLATOR	869MHz - 894MHz RF/MICROWAVE ISOLATOR	824MHz - 849MHz RF/MICROWAVE ISOLATOR	1710MHz - 1785MHz RF/MICROWAVE ISOLATOR	1850MHz - 1910MHz RF/MICROWAVE ISOLATOR
Maker	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Is Samacsys	N	N	N	N	N
Maximum input power (CW)	48.13 dBm	53.98 dBm	48.13 dBm	48.13 dBm	48.13 dBm
Maximum insertion loss	0.35 dB	0.35 dB	0.35 dB	0.35 dB	0.35 dB
Maximum operating frequency	915 MHz	894 MHz	849 MHz	1785 MHz	1910 MHz
Minimum operating frequency	880 MHz	869 MHz	824 MHz	1710 MHz	1850 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C
RF/Microwave Device Types	ISOLATOR	ISOLATOR	ISOLATOR	ISOLATOR	ISOLATOR
Maximum voltage standing wave ratio	1.22	1.22	1.22	1.22	1.22
Base Number Matches	1	1	1	1	1
