HLMP-4700-C0002 datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> HLMP-4700-C0002

HLMP-4700-C0002: DescriptionT-1 3/4 SINGLE COLOR LED, HIGH EFFICIENCY RED, 5mm, ROHS COMPLIANT, PLASTIC PACKAGE-2; CategoryLED optoelectronic/LED photoelectric; File Size222KB，10 Pages; ManufacturerAVAGO; Websitehttp://www.avagotech.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

HLMP-4700-C0002 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	HLMP-4700-C0002	-	-	View	Buy Now

HLMP-4700-C0002 Overview

T-1 3/4 SINGLE COLOR LED, HIGH EFFICIENCY RED, 5mm, ROHS COMPLIANT, PLASTIC PACKAGE-2

HLMP-4700-C0002 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	AVAGO
package instruction	ROHS COMPLIANT, PLASTIC PACKAGE-2
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	13 weeks
Samacsys Confidence	4
Samacsys Status	Released
Samacsys PartID	981369
Samacsys Pin Count	2
Samacsys Part Category	LED
Samacsys Package Category	Other
Samacsys Footprint Name	HLMP-4700-C0002-2
Samacsys Released Date	2019-10-11 14:45:41
Is Samacsys	N
Other features	CMOS COMPATIBLE
color	HIGH EFFICIENCY RED
color@wavelength	Orange-Red
Configuration	SINGLE
Maximum forward current	0.007 A
Maximum forward voltage	2 V
JESD-609 code	e3
Lens type	TINTED DIFFUSED
Nominal luminous intensity	2.3 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	8.81 mm
method of packing	TAPE AND REEL
peak wavelength	635 nm
Maximum reverse voltage	5 V
shape	ROUND
size	5 mm
surface mount	NO
T code	T-1 3/4
Terminal surface	Tin (Sn)
Terminal pitch	2.54 mm
perspective	50 deg
Base Number Matches	1

Preview

Download Datasheet

View All

HLMP-4700, HLMP-4719, HLMP-4740

HLMP-1700, HLMP-1719, HLMP-1790

T-1

(5 mm), T-1 (3 mm), Low Current LED Lamps

Data Sheet

Description

These tinted diffused LED lamps are designed and opti-

mized specifically for low DC current operation. Luminous

intensity and forward voltage are tested at 2 mA to assure

consistent brightness at TTL output current levels.

Features

•

Low power

•

High efficiency

•

CMOS-MOS compatible

•

TTL compatible

•

Wide viewing angle

•

Choice of package styles

•

Choice of colors

Applications

•

Low power DC circuits

•

Telecommunications indicators

•

Portable equipment

•

Keyboard indicators

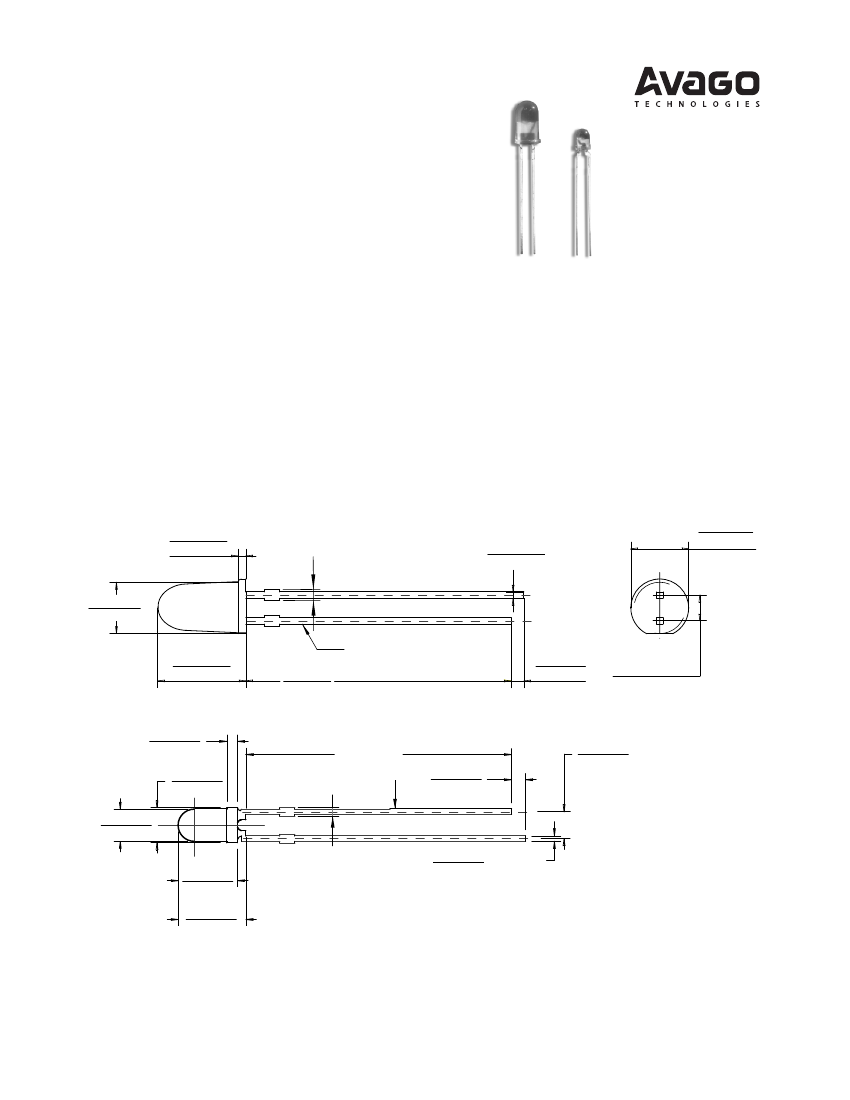

Package Dimensions

0.89 (0.035)

0.64 (0.025)

0.65 (0.026) MAX.

SQUARE TYP.

0.55 (0.022)

0.40 (0.016)

6.10 (0.240)

5.59 (0.220)

5.08 (0.200)

4.57 (0.180)

9.19 (0.362)

8.43 (0.332)

CATHODE

25.40 (1.00)

MIN.

1.27(0.050)

NOM.

2.54 (0.100) NOM.

A - HLMP-4700, -4719, -4740

1.14 (.045)

0.51 (.020)

3.43 (.135)

2.92 (.115)

∅

3.17 (.125)

2.67 (.105)

4.70 (.185)

4.19 (.165)

6.35 (.250)

5.58 (.220)

(0.022) 0.55 SQUARE TYP.

(0.016) 0.40

24.1 (.95) MIN.

CATHODE

0.65 (0.026) MAX.

2.79 (.110)

2.29 (.090)

1.52 (.060)

1.02 (.040)

B - HLMP-1700, -1719, -1790

Notes:

1. All dimensions are in mm (inches).

2. An epoxy meniscus may extend about 1 mm (0.040") down the leads.

3. For PCB hole recommendations, see the Precautions section.

HLMP-4700-C0002 Related Products

	HLMP-4700-C0002	HLMP-4740-A00B1	HLMP-1700-B0002	HLMP-1719-A0002	HLMP-1719-A00A1	HLMP-1790-A00A1	HLMP-4719-A0002	HLMP-4740-A0002
Description	T-1 3/4 SINGLE COLOR LED, HIGH EFFICIENCY RED, 5mm, ROHS COMPLIANT, PLASTIC PACKAGE-2	T-1 3/4 SINGLE COLOR LED, GREEN, 5mm, ROHS COMPLIANT, PLASTIC PACKAGE-2	T-1 SINGLE COLOR LED, HIGH EFFICIENCY RED, 3mm, ROHS COMPLIANT, PLASTIC PACKAGE-2	T-1 SINGLE COLOR LED, YELLOW, 3mm, ROHS COMPLIANT, PLASTIC PACKAGE-2	T-1 SINGLE COLOR LED, YELLOW, 3mm, ROHS COMPLIANT, PLASTIC PACKAGE-2	T-1 SINGLE COLOR LED, GREEN, 3mm, ROHS COMPLIANT, PLASTIC PACKAGE-2	T-1 3/4 SINGLE COLOR LED, YELLOW, 5mm, ROHS COMPLIANT, PLASTIC PACKAGE-2	T-1 3/4 SINGLE COLOR LED, GREEN, 5mm, ROHS COMPLIANT, PLASTIC PACKAGE-2
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT, PLASTIC PACKAGE-2	ROHS COMPLIANT, PLASTIC PACKAGE-2	ROHS COMPLIANT, PLASTIC PACKAGE-2	ROHS COMPLIANT, PLASTIC PACKAGE-2	ROHS COMPLIANT, PLASTIC PACKAGE-2	ROHS COMPLIANT, PLASTIC PACKAGE-2	ROHS COMPLIANT, PLASTIC PACKAGE-2	ROHS COMPLIANT, PLASTIC PACKAGE-2
Reach Compliance Code	compliant	compli	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Factory Lead Time	13 weeks	16 weeks	13 weeks	13 weeks	16 weeks	16 weeks	16 weeks	13 weeks
Other features	CMOS COMPATIBLE	CMOS COMPATIBLE	CMOS COMPATIBLE	CMOS COMPATIBLE	CMOS COMPATIBLE	CMOS COMPATIBLE	CMOS COMPATIBLE	CMOS COMPATIBLE
color	HIGH EFFICIENCY RED	GREEN	HIGH EFFICIENCY RED	YELLOW	YELLOW	GREEN	YELLOW	GREEN
color@wavelength	Orange-Red	Gree	Orange-Red	Yellow	Yellow	Green	Yellow	Green
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.007 A	0.007 A	0.007 A	0.007 A	0.007 A	0.007 A	0.007 A	0.007 A
Maximum forward voltage	2 V	2.2 V	2 V	2.5 V	2.5 V	2.2 V	2.5 V	2.2 V
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3
Lens type	TINTED DIFFUSED	TINTED DIFFUSED	TINTED DIFFUSED	TINTED DIFFUSED	TINTED DIFFUSED	TINTED DIFFUSED	TINTED DIFFUSED	TINTED DIFFUSED
Nominal luminous intensity	2.3 mcd	2.3 mcd	2.1 mcd	2.1 mcd	2.1 mcd	2.3 mcd	2.1 mcd	2.3 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-40 °C	-20 °C	-40 °C	-40 °C	-40 °C	-20 °C	-40 °C	-20 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	8.81 mm	8.81 mm	4.445 mm	4.445 mm	4.445 mm	4.445 mm	8.81 mm	8.81 mm
method of packing	TAPE AND REEL	BULK	TAPE AND REEL	TAPE AND REEL	BULK	BULK	TAPE AND REEL	TAPE AND REEL
peak wavelength	635 nm	565 nm	635 nm	583 nm	583 nm	565 nm	583 nm	565 nm
Maximum reverse voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
size	5 mm	5 mm	3 mm	3 mm	3 mm	3 mm	5 mm	5 mm
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
T code	T-1 3/4	T-1 3/4	T-1	T-1	T-1	T-1	T-1 3/4	T-1 3/4
Terminal surface	Tin (Sn)	Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Tin (Sn)	Tin (Sn)
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
perspective	50 deg	50 deg	50 deg	50 deg	50 deg	50 deg	50 deg	50 deg
Base Number Matches	1	1	1	1	1	1	1	1
Maker	AVAGO	-	AVAGO	AVAGO	AVAGO	AVAGO	AVAGO	AVAGO
Is Samacsys	N	-	N	N	N	N	N	N
