JWS75-24/R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> JWS75-24/R

JWS75-24/R: DescriptionAC-DC Power Factor Correction Module,; CategoryPower/power management The power supply circuit; File Size342KB，5 Pages; ManufacturerTDK-LAMBDA

Download Datasheet Parametric View All

JWS75-24/R Overview

AC-DC Power Factor Correction Module,

JWS75-24/R Parametric

Parameter Name	Attribute value
Maker	TDK-LAMBDA
Reach Compliance Code	compliant
Is Samacsys	N
Analog Integrated Circuits - Other Types	AC-DC POWER FACTOR CORRECTION MODULE
Base Number Matches	1

Preview

Download Datasheet

View All

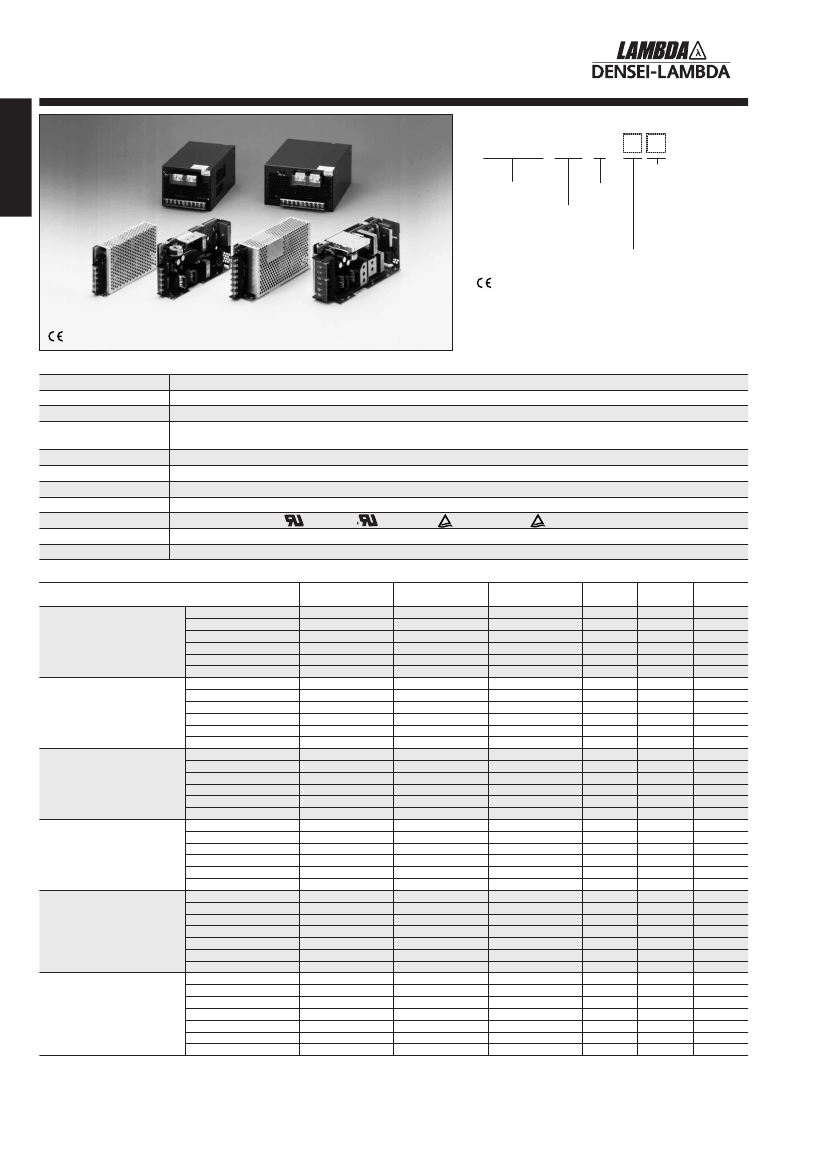

JWS

-SERIES

Unit Type Power Supply

JWS50

JWS300

Single output 50W ~ 600W

Model name

JWS 50-5/

JWS600

Features

JWS75

JWS100

JWS150

Blank: Open frame, Barrier Strip

(JWS300,JWS600 with

cover&Barrier Strip)

Name of series

Nominal output

A: With cover, Barrier Strip

voltage

(JWS50,JWS75,JWS100&

Output power

JWS150 only)

type

B: Open frame, Connector terminal

(JWS50 & JWS75 only)

C: With cover, Connector terminal

(JWS50 & JWS75 only)

R: With remote on/off control

(JWS50 ~ JWS150)

(Low Voltage Directive)

5 year warranty

marking (Low Voltage Directive)

Wide input voltage range: Universal input 85 ~ 265VAC

PFHC (EN61000-3-2)

EMI (EN55011-B, EN55022-B, VCCI-B, FCC-B)

EMC (EN61000-4-2, -3, -4, -5, -6)

5 year warranty

Specifications

1. Input voltage range

2. Power factor

3. Cooling

4. Operating ambient

temperature

5. Withstand voltage

6. EMI

7. EMS

8. PFHC

9. Safety standard

10. Functions

11. Option

85 ~ 265VAC (47 ~ 63Hz), DC120 ~ 330V universal input

0.99 (typ) 100VAC at full load, 0.95 (typ) 200VAC at full load

JWS50 ~ JWS150: Convection cooling / JWS300 & JWS600: Forced air cooling by internal fan

JWS50 ~ JWS150: –10 ~ +60°C (Standard mounting) Output derating: 100% at –10 ~ +50°C, 60% at +60°C

JWS300 ~ JWS600: 100% at –10 ~ +50°C, 60% : +60°C, 55% at +65°C

Input–output: 3kVAC, Input–chassis : 2kVAC, Output–chassis: 500VAC for 1 min.

Conforms to EN55011-B, EN55022-B, VCCI-class 2 and FCC-B

Conforms to EN61000-3-2 class D

Approved by UL1950

, CSA950

, EN60950

and VDE0160

Over voltage protection, Over current protection, Remote sensing (JWS100 ~ JWS600), Remote on/off control (JWS300 ~ 600)

Remote on/off control, Input/output connector (JWS50, 75), Cover, Mounting sheet metal

Nominal

output voltage

3.3V

12V

15V

24V

48V

3.3V

12V

15V

24V

48V

3.3V

12V

15V

24V

48V

3.3V

12V

15V

24V

48V

3.3V

12V

15V

24V

48V

3.3V

12V

15V

24V

48V

Max.

output current

10A

4.3A

3.5A

2.2A

1.1A

15A

6.3A

5.0A

3.2A

1.6A

20A

8.5A

7.0A

4.5A

2.1A

30A

13A

10A

6.5A

3.3A

60A

27A

22A

14A

6.5A

120A

53A

43A

27A

13A

Max.

output power

33W

50W

51.6W

52.5W

52.8W

49.5W

75W

75.6W

75W

76.8W

66W

100W

102W

105W

108W

100.8W

99W

150W

156W

150W

156W

158.4W

120W

198W

300W

324W

330W

336W

312W

240W

396W

600W

636W

645W

648W

624W

Product lineup

Model name

JWS50-3

JWS50-5

JWS50-12

JWS50-15

JWS50-24

JWS50-48

JWS75-3

JWS75-5

JWS75-12

JWS75-15

JWS75-24

JWS75-48

JWS100-3

JWS100-5

JWS100-12

JWS100-15

JWS100-24

JWS100-48

JWS150-3

JWS150-5

JWS150-12

JWS150-15

JWS150-24

JWS150-48

JWS300-2

JWS300-3

JWS300-5

JWS300-12

JWS300-15

JWS300-24

JWS300-48

JWS600-2

JWS600-3

JWS600-5

JWS600-12

JWS600-15

JWS600-24

JWS600-48

CSA

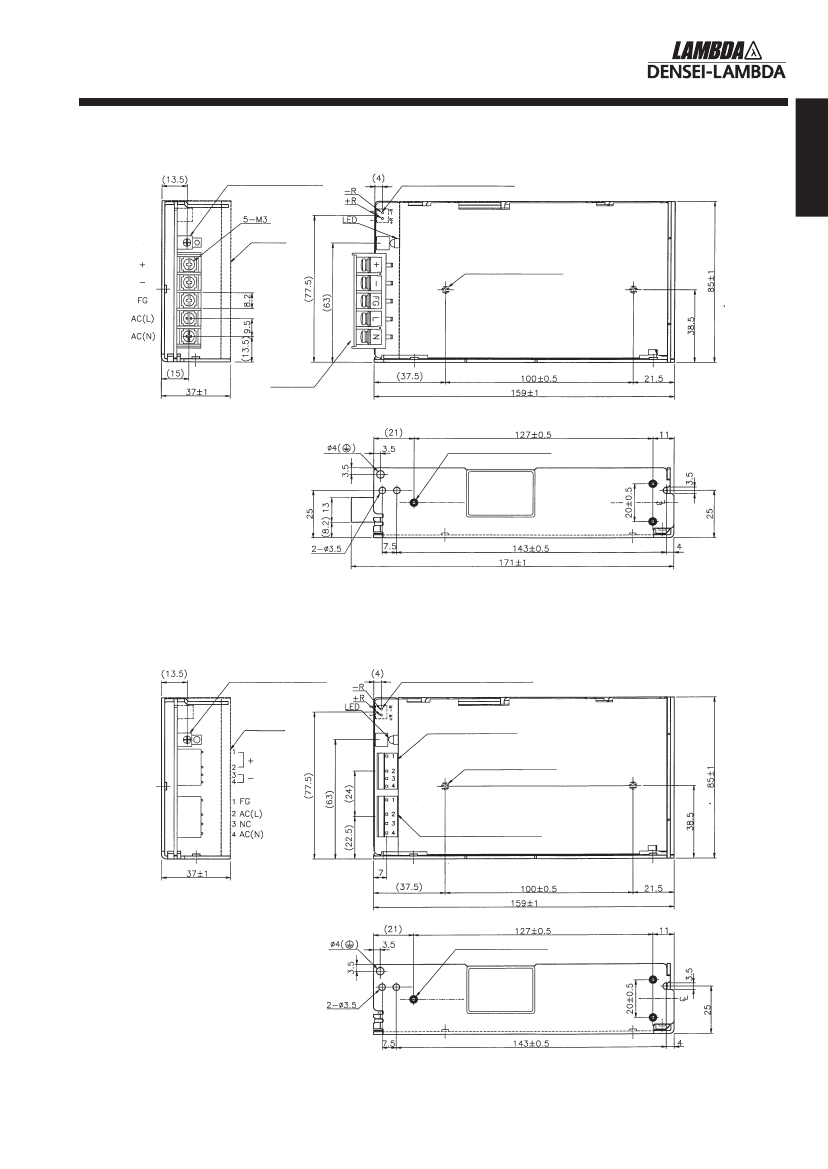

JWS50

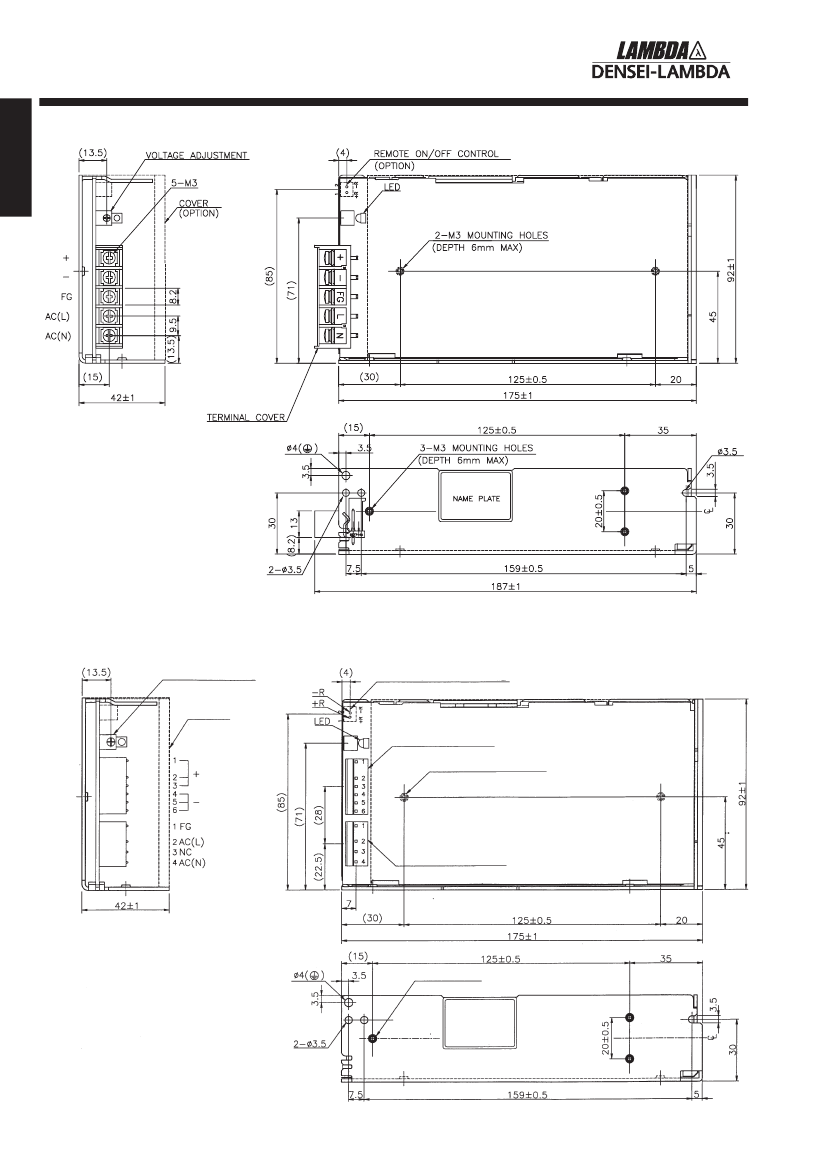

JWS75

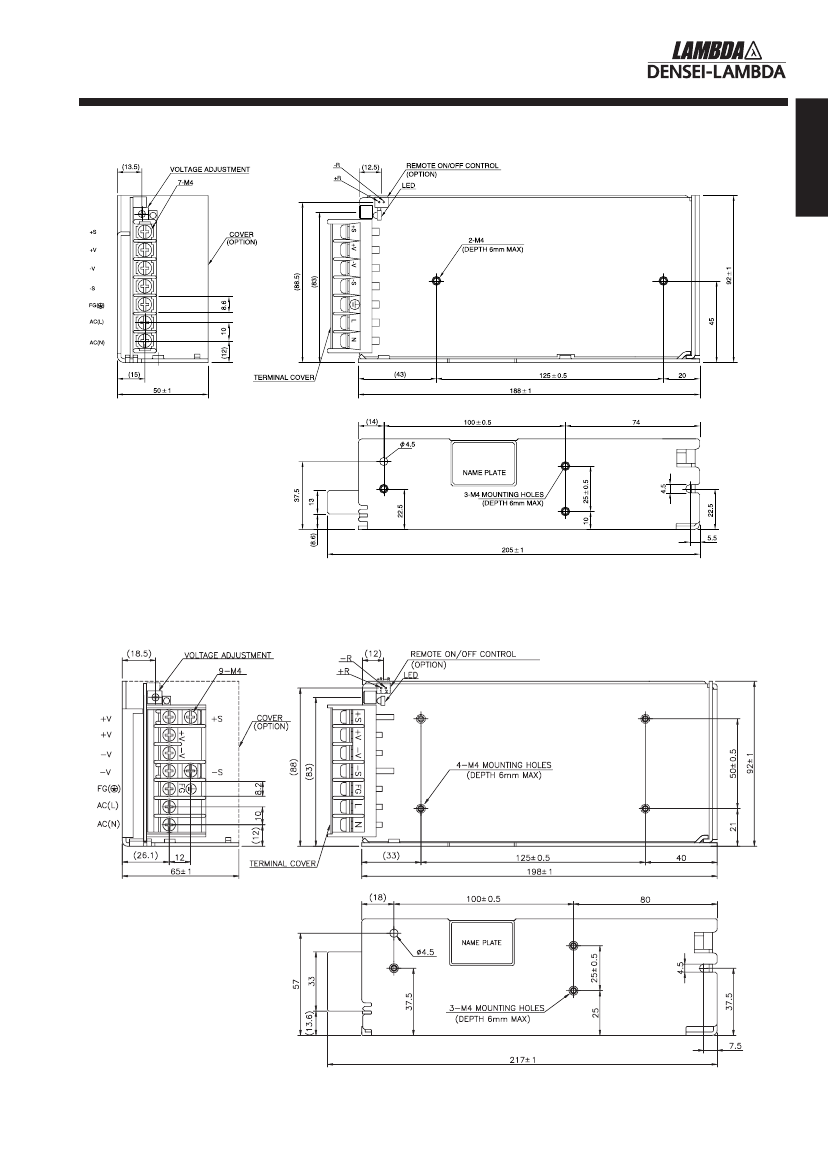

JWS100

JWS150

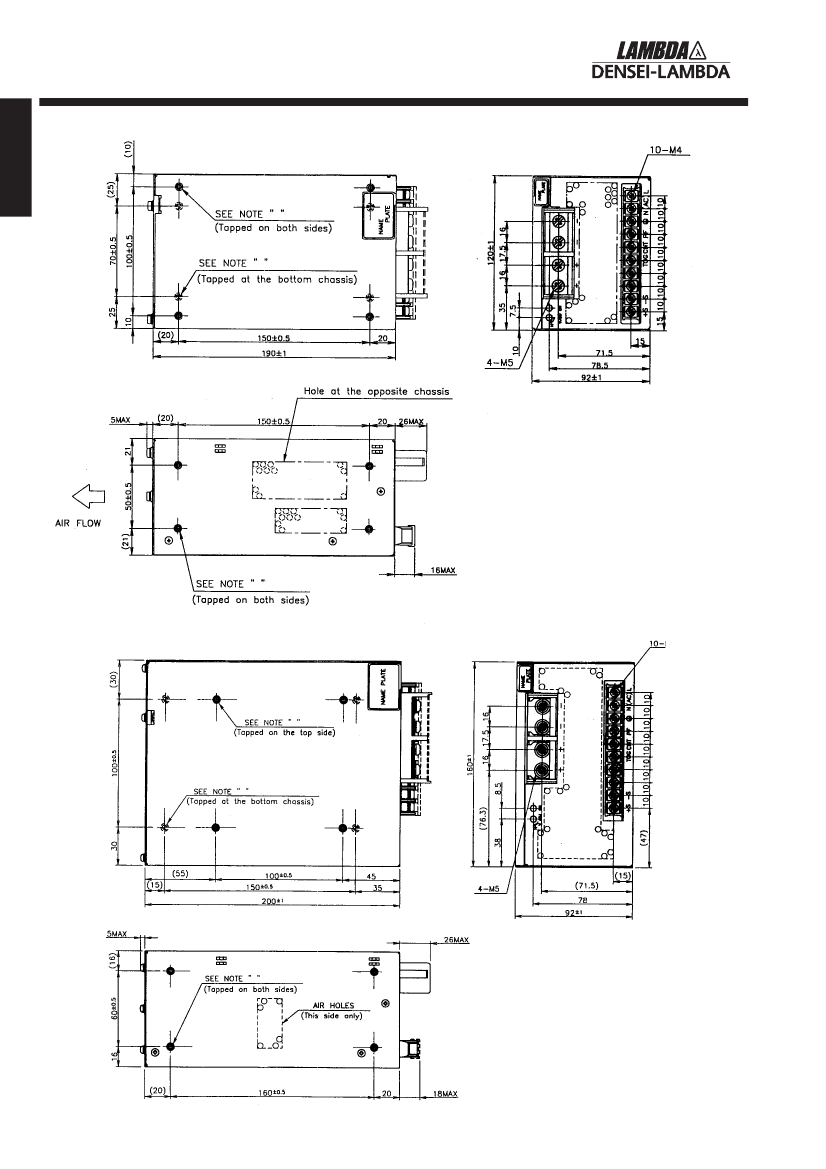

JWS300

JWS600

Request customer specification for further details of specification, outline, characteristics, etc.
