MGA-53543-TR1G: DescriptionWide Band Low Power Amplifier, 50MHz Min, 6000MHz Max, 1 Func, LEAD FREE, PLASTIC, SC-70, SOT-343, 4 PIN; CategoryWireless rf/communication Radio frequency and microwave; File Size153KB，14 Pages; ManufacturerBroadcom; Environmental Compliance

Download Datasheet Parametric Compare View All

MGA-53543-TR1G Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MGA-53543-TR1G	-	-	View	Buy Now

MGA-53543-TR1G Overview

Wide Band Low Power Amplifier, 50MHz Min, 6000MHz Max, 1 Func, LEAD FREE, PLASTIC, SC-70, SOT-343, 4 PIN

MGA-53543-TR1G Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Broadcom
package instruction	SOT-343R
Reach Compliance Code	compliant
ECCN code	5A991.G
Is Samacsys	N
Other features	LOW NOISE
Characteristic impedance	50 Ω
structure	COMPONENT
Gain	14 dB
Maximum input power (CW)	13 dBm
JESD-609 code	e3
Number of functions	1
Maximum operating frequency	6000 MHz
Minimum operating frequency	50 MHz
Package body material	PLASTIC/EPOXY
Encapsulate equivalent code	SOT-343R
power supply	5 V
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum slew rate	70 mA
Terminal surface	Matte Tin (Sn)
Maximum voltage standing wave ratio	2
Base Number Matches	1

Preview

Download Datasheet

View All

MGA-53543

50 MHz to 6 GHz High Linear Amplifier

Data Sheet

Description

Avago Technologies’s MGA-53543 is a high dynamic range

low noise amplifier MMIC housed in a 4-lead SC-70 (SOT-

343) surface mount plastic package.

The combination of high linearity, low noise figure and high

gain makes the MGA-53543 ideal for cellular/PCS/ W-CDMA

base stations, Wireless LAN, WLL and other systems in the

50 MHz to 6 GHz frequency range.

MGA-53543 is especially ideal for Cellular/PCS/ W-CDMA

basestation applications. With high IP3 and low noise

figure, the MGA-53543 may be utilized as a driver ampli-

fier in the transmit chain and as a second stage LNA in

the receive chain.

Features



Lead-free Option Available



Very high linearity at low DC bias power

[1]



Low noise figure



Advanced enhancement mode PHEMT technology



Excellent uniformity in product specifications



Low cost surface mount small plastic package SOT-

343 (4-lead SC-70)



Tape-and-Reel packaging option available

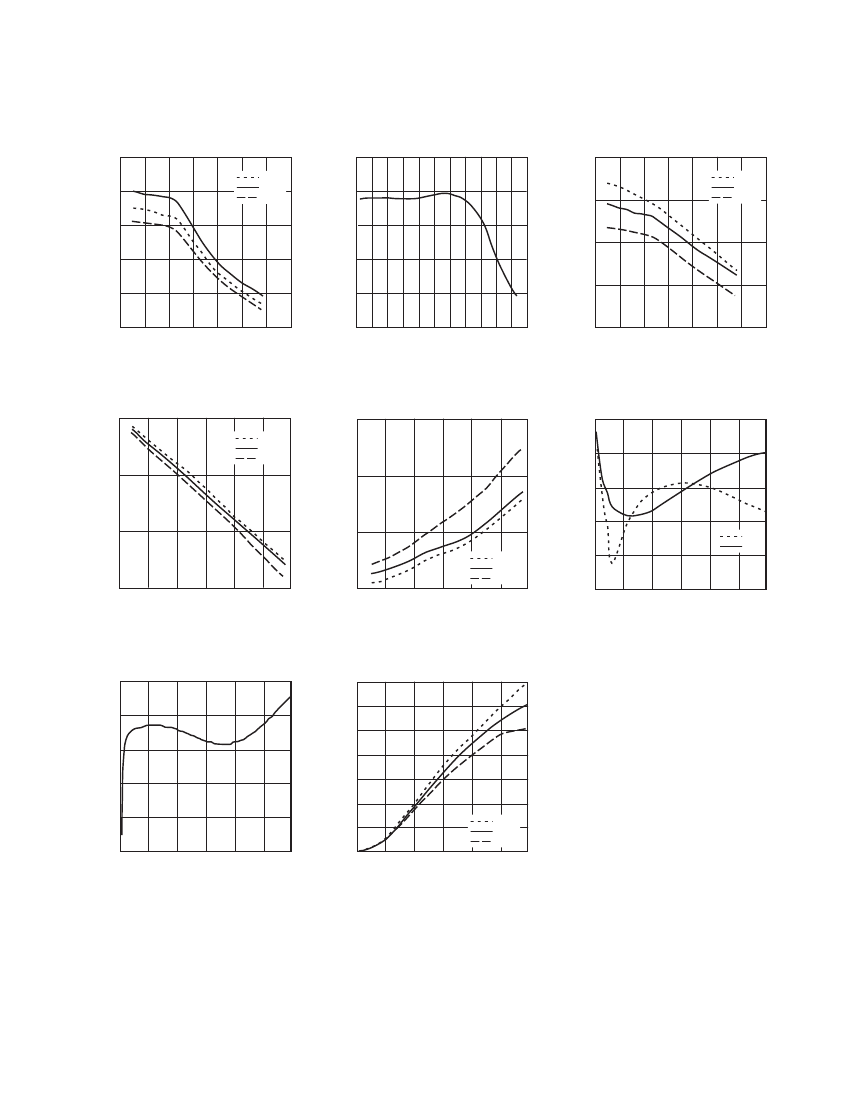

Specifications

1.9 GHz, 5V, 54 mA (typ)



OIP3: 39 dBm



Noise figure: 1.5 dB



Gain: 15.4 dB



P-1dB: 18.6 dBm

Surface Mount Package

SOT-343/4-lead SC70

Applications



Base station radio card



High linearity LNA for base stations, WLL, WLAN, and

other applications in the 50 MHz to 6 GHz range

Note:

1. The MGA-53543 has a superior LFOM of 15 dB. Linearity Figure of

Merit (LFOM) is essentially OIP3 divided by DC bias power. There

are few devices in the market that can match its combination of

high linearity and low noise figure at the low DC bias power of

5V/54 mA.

Pin Connections and Package Marking

INPUT

53x

GND

OUTPUT

& V

Note:

Top View. Package marking provides orientation and identification.

“53” = Device Code

“x” = Date code character identifies month of manufacture.

Simplified Schematic

Attention: Observe precautions for

handling electrostatic sensitive devices.

ESD Machine Model (Class A)

ESD Human Body Model (Class 1A)

Refer to Avago Application Note A004R:

lectrostatic Discharge Damage and Control.

INPUT

bias

OUTPUT, Vd

GND
