RK
1.5 GHz
MICROWAVE RELAY
RK RELAYS
20.2
.795
11.2
.441
9.7
.382

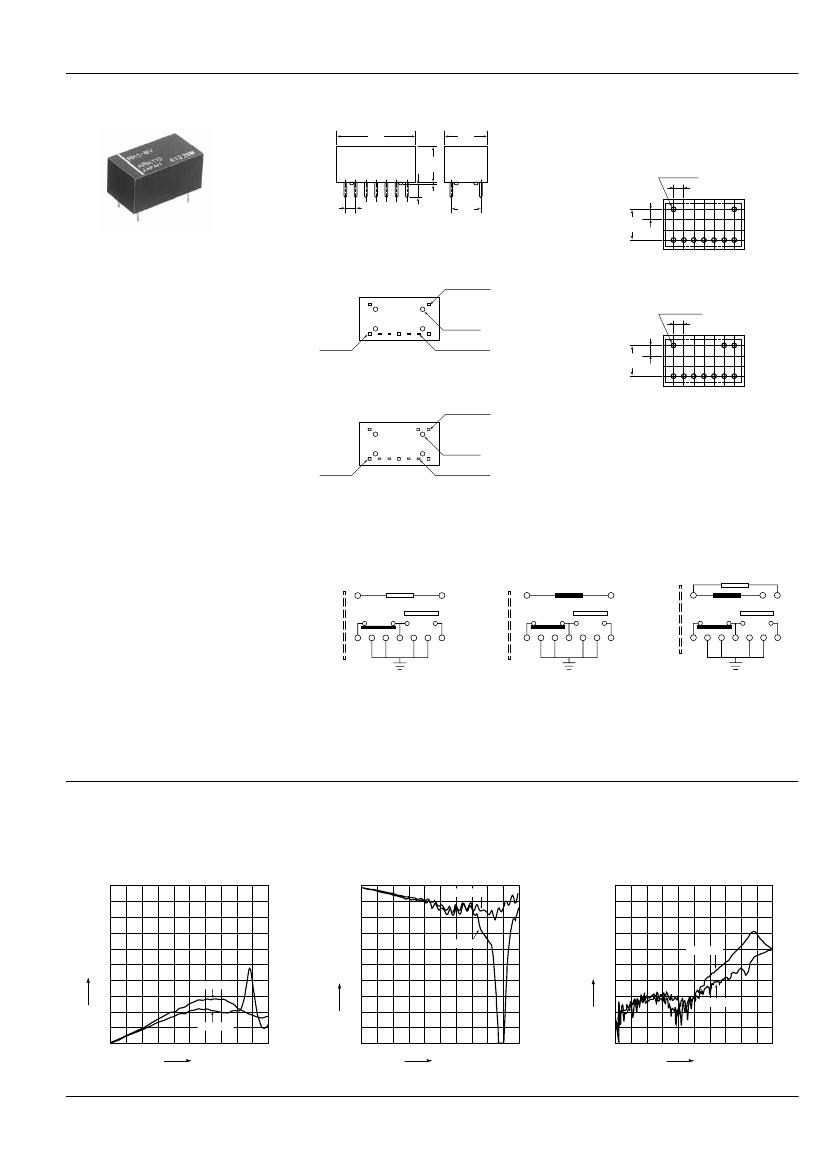

FEATURES
• Excellent high frequency characteristics (Impedance 75Ω)
Isolation: Min. 60dB (at 1.5 GHz)
Insertion loss: Max. 0.2dB (at 900 MHz)
• V.S.W.R.: Max. 1.2 (at 900MHz)
• High sensitivity in small size
Size: 20.2
×
11.2
×
9.7 mm
.795
×
.441
×
.382 inch
Nominal power consumption: 200 mW (single side stable type)
• Sealed construction for automatic cleaning
• Latching types are also available
mm
inch
RoHS Directive compatibility information
http://www.nais-e.com/
SPECIFICATIONS
Contact
Arrangement
Contact material
Initial contact resistance, max.
(By voltage drop 10V DC 10mA)
Max. switching power
Max. switching voltage
Max. switching current
Rating
Nominal switching capacity
V.S.W.R.
High frequency
characteristics
Insertion loss
(Impedance 75Ω)
(Initial)
Isolation
V.S.W.R.
High frequency
characteristics
Insertion loss
(Impedance 50Ω)
(Initial)
Isolation
Expected life
(min. operations)
Mechanical
0.01 A 24 V DC
Electrical
10 W 1.2 GHz
1 Form C
Gold-clad
100 mΩ
10 W
30 V DC
0.5 A
0.01 A 24 V DC 10 W
(at 1.2 GHz,
Impedance 50W)
Max. 1.2
(at 900 MHz)
Max. 0.2 dB
(at 900 MHz)
Min. 60 dB
(at 1.5 GHz)
Max. 1.5
(at 900 MHz)
Max. 0.3 dB
(at 900 MHz)
Min. 60 dB
(at 1.5 GHz)
5×10
6
3×10
5
10
5
Characteristics
Initial insulation resistance*
1
Between open contacts
Initial
Between contact and coil
breakdow
n voltage*
2
Between contact and earth
terminal
Operate time [Set time]*
3
(at nominal voltage)
Release time (without diode)
[Reset time]*
3
(at nominal voltage)*
2
Temperature rise
Functional*
4
Destructive*
5
Functional*
6
Vibration resistance
Destructive
Conditions for operation,
transport and storage*
7
(Not freezing and
condensing
at low temperature)
Unit weight
Remarks
* Specifications will vary with foreign standards certification ratings.
*
1
Measurement at same location as “Initial breakdown voltage” section
*
2
Detection current: 10mA
*
3
Excluding contact bounce time
*
4
Half-wave pulse of sine wave: 11ms, detection time: 10µs
*
5
Half-wave pulse of sine wave: 6ms
*
6
Detection time: 10µs
*
7
Refer to 5. Conditions for operation, transport and storage conditions in NOTES
Min. 100 MΩ at 500 V DC
500 Vrms
1,000 Vrms
500 Vrms
Max. 10 ms (Approx. 6 ms)
[Max. 10 ms [Approx. 5ms]]
Max. 6 ms (Approx. 3 ms)
[Max. 10 ms [Approx. 5ms]]
Max. 60°C
with nominal coil voltage
across coil and at nominal
switching capacity
Min. 196 m/s
2
{20 G}
Min. 980 m/s
2
{100 G}
10 to 55 Hz at double
amplitude of 3 mm
10 to 55 Hz at double
amplitude of 5 mm
–40°C to 70°C
–40°F to 158°F
5 to 85% R.H.
Approx. 4.4 g
.155 oz
Shock resistance
Ambient
temp.
Humidity
Coil (at 25°C,
68°F)
Single side stable
1 coil latching
2 coil latching
Nominal operating power
200 mW
200 mW
400 mW
All Rights Reserved © COPYRIGHT Matsushita Electric Works, Ltd.
RK

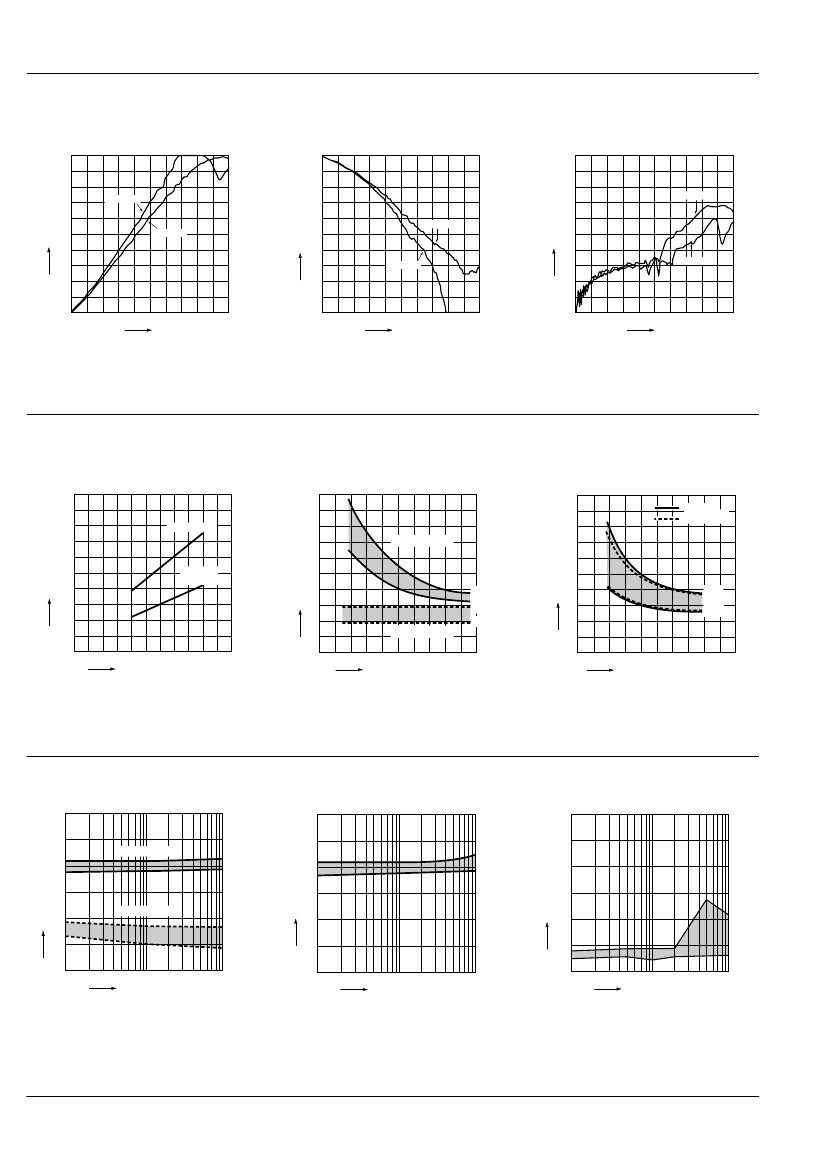

1.-(2) High frequency characteristics (Impedance 50Ω)
Sample: RK1-5V
Measuring method: Measured with HP network analyzer (HP8753C)
• V.S.W.R. characteristics
2.0
• Insertion loss characteristics
0
• Isolation characteristics
0
Insertion loss, dB
1.8
COM-NC
V.S.W.R.
1.6
COM-NO
1.4
0.2
Isolation, dB
20
COM-NO
0.4
COM-NO
40
0.6
COM-NC
60
COM-NC
80
1.2
0.8
1.0
300kHz
1.5GHz
Frequency
3GHz
1.0
300kHz
1.5GHz
Frequency
3GHz
100
300kHz
1.5GHz
Frequency
3GHz
2. Coil temperature rise
Sample: RK1-12V, RK1-L-12V, RK1-L2-12V
No. of samples: n = 6
Carrying current: 10 mA
Ambient temperature: 25°C
77°F
100
Temperature rise,
°C
3.-(1) Operate/Release time
(Single side stable)
Sample: RK1-12V; No. of samples: n = 6
3.-(2) Set/Reset time (Latching)
Sample: RK1-L-12V, RK1-L2-12V
No. of samples: n = 12
10
Operate/Reset time, ms
10
Set time
Reset time
80
Operate time
6
60
RK1-12V,
RK1-L-12V
40
Set/Reset time, ms
RK1-L2-12V
8
8
6
4
Max.
Min.
Max.
Min.
Release time
4
20
2
Max.
Max.
Min.
Min.
2
0
80
100
130
150
Voltage applied to coil, %V
0
80
100
120
150
Voltage applied to coil, %V
0
80
100
130
Voltage applied to the coil (%V)
4.-(1) Mechanical life test (Single side stable)
Sample: RK1-12V; No. of samples: n = 12
12
Pick-up/drop-out voltage, V
10
Pick-up voltage
8
6
4
2
0
Drop-out voltage
Max.
Min.
Max.
Min.
4.-(2) Mechanical life test (Latching)
Sample: RK1-L2-12V
No. of samples: n = 12
12
4.-(3) Mechanical life test
Sample: RK1-12V
No. of samples: n = 20 (20
×
2 contacts)
300
Contact resistance, mΩ
250
200
150
100
50
Min.
0
Max.
Set/Reset voltage, V
10
8
6
4
2
0
Max.
Min.
100
500 1,000
No. of operations,
×10
4
100
500 1,000
No. of operations,
×10
4
50
100
500 1,000
No. of operations,
×10
4
All Rights Reserved © COPYRIGHT Matsushita Electric Works, Ltd.
RK
5. Electrical life test (0.01 A 24 V DC)
Sample: RK1-12V; No. of samples: n = 6
12
Pick-up/drop-out voltage, V
Rate of change, %
10
Pick-up voltage
8
6
4
2
0
Drop-out voltage
Max.
Min.
Max.
Min.
–40 –20
–40 –4
0
40 Pick-up voltage
Quantity
20
Drop-out voltage
20 40 60 80
68 104 140 176
–20 Ambient temperature,
°C
°F
–40
50
40
30
20
10
0
6. Ambient temperature characteristics
Sample: RK1-12V; No. of samples: n = 6
7. Contact resistance distribution (initial)
Sample: RK1-12V
No. of samples: n = 50 (50
×
2 contacts)
10
20
No. of operations,
×10
4
30
10
20
30
40
50
Contact resistance, mΩ
8.-(1) Influence of adjacent mounting
Sample: RK1-12V; No. of sample: n = 10
Rate of change, %
8.-(2) Influence of adjacent mounting
Sample: RK1-12V; No. of samples: n = 10
Rate of change, %
10
Pick-up voltage
0
–10
OFF condition
OFF OFF
10
Pick-up voltage
0
–10
OFF
OFF
OFF condition
Rate of change, %
Rate of change, %
10
Drop-out voltage
0
–10
ON ON
10
Drop-out voltage
0
ON
ON
ON condition
–10
ON condition
5
10
.197
.394
Inter-relay distance, (mm,
inch)
5
10
.197
.394
Inter-relay distance, (mm,
inch)
NOTES
1. Coil operating power
Pure DC current should be applied to the
coil. The wave form should be
rectangular. If it includes ripple, the ripple
factor should be less than 5%.
However, check it with the actual circuit
since the characteristics may be slightly
different. The nominal operating voltage
should be applied to the coil for more
than 20 ms to set/reset the latching type
relay.
2. Coil connection
When connecting coils, refer to the wiring
diagram to prevent mis-operation or
malfunction.
3. External magnetic field
Since RK relays are highly sensitive
polarized relays, their characteristics will
be affected by a strong external magnetic
field. Avoid using the relay under that
condition.
4. Soldering and cleaning
1) Perform manual soldering under the
conditions below.
• Within 10 s at 260°C
500°F
• Within 3 s at 350°C
662°F
Preheat according to the following
conditions.
Temperature
Time
120°C
248°F
or less
Within 2 minute
2) For automatic cleaning, the boiling
method is recommended. Avoid
ultrasonic cleaning which subjects the
relays to high frequency vibrations, which
may cause the contacts to stick. It is
recommended that alcoholic solvents be
used.
5. Conditions for operation, transport
and storage conditions
1) Ambient temperature, humidity, and
atmospheric pressure during usage,
transport, and storage of the relay:
(1) Temperature:
–40 to +70°C
–40 to +158°F
(2) Humidity: 5 to 85% RH
(Avoid freezing and condensation.)
The humidity range varies with the
temperature. Use within the range
indicated in the graph below.
(3) Atmospheric pressure: 86 to 106 kPa
Temperature and humidity range for
usage, transport, and storage:
Humidity, %RH
85
2) Condensation
Condensation forms when there is a
sudden change in temperature under
high temperature and high humidity
conditions. Condensation will cause
deterioration of the relay insulation.
3) Freezing
Condensation or other moisture may
freeze on the relay when the temperature
is lower than 0°C
32°F.
This causes
problems such as sticking of movable
parts or operational time lags.
4) Low temperature, low humidity
environments
The plastic becomes brittle if the relay is
exposed to a low temperature, low
humidity environment for long periods of
time.
6. Latching relay
In order to assure proper operating
regardless of changes in the ambient
usage temperature and usage conditions,
nominal operating voltage should be
applied to the coil for more than 30 ms to
set/reset the latching type relay.
;;;;;;;;;
;;;;;;;;;;
;;;;;;;;;;
;;;;;;;;;;
;;;;;;;;;;
;;;;;;;;;;
;;;;;;;;;;
Tolerance range
(Avoid freezing
when used at
temperatures lower
than 0°C
32°F
5
(Avoid
condensation
when used at
temperatures higher
than 0°C
32°F
–40
–40
0
+32
Temperature,
°C
°F
70
+158
Soldering should be done at 260±5°C
500±5°F
within 6 s.
All Rights Reserved © COPYRIGHT Matsushita Electric Works, Ltd.
