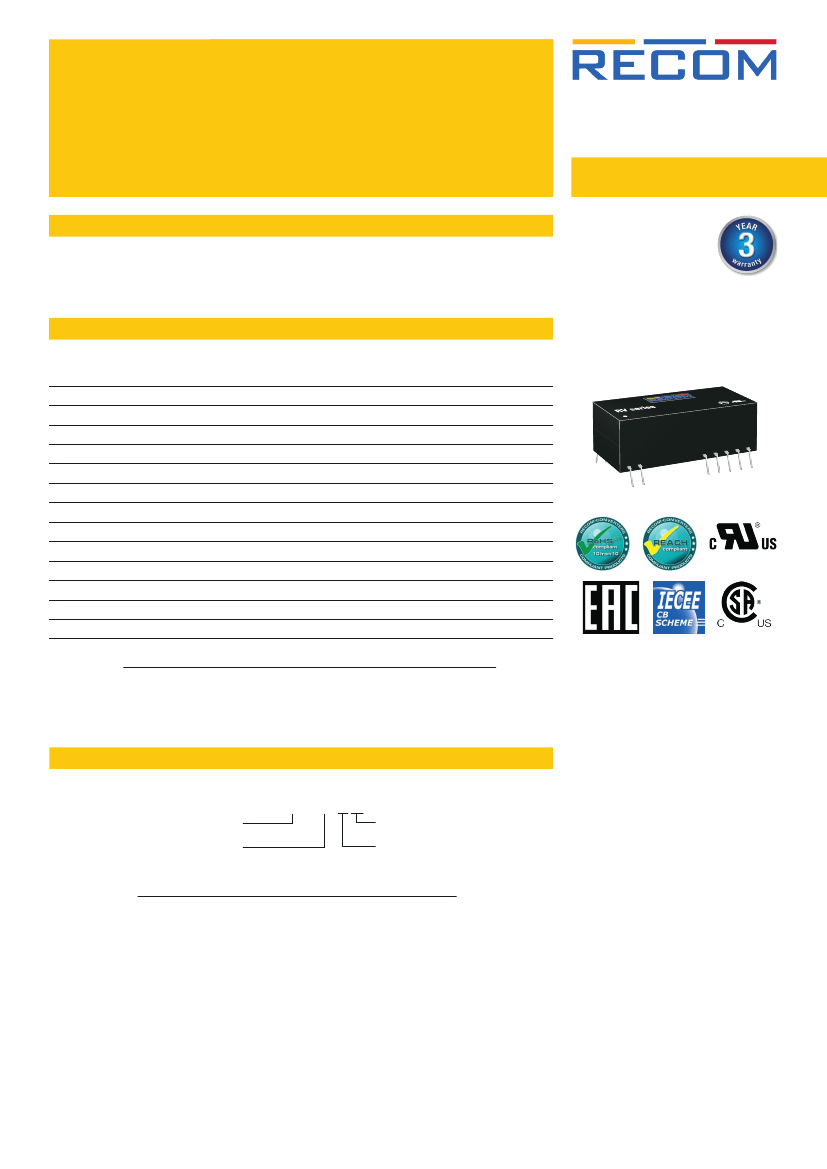

Features
Unregulated
Converters
Description
•
•
•
•
•
•
•
UL/CSA/IEC/EN safety certified and CB report
6kVDC/1s isolation
Optional continuous short circuit protection
Efficiency up to 82%
Space saving package
Very low isolation capacitance
Suitable for IGBT application
DC/DC Converter
RV
Very high isolation in a small size are the main features of this miniature DIP24 converter, ideal
for highly sophisticated industrial, test and measurement and medical designs where board space is
at a premium.
Selection Guide
Part
Number
RV-xx3.3S
(3)
RV-xx05S
(3)
RV-xx09S
RV-xx12S
(3)
(3)
nom. Input
Voltage
[VDC]
3.3, 5, 12, 15, 24
3.3, 5, 12, 15, 24
3.3, 5, 12, 15, 24
3.3, 5, 12, 15, 24
3.3, 5, 12, 15, 24
3.3, 5, 12, 15, 24
3.3, 5, 12, 15, 24
3.3, 5, 12, 15, 24
3.3, 5, 12, 15, 24
3.3, 5, 12, 15, 24
3.3, 5, 12, 15, 24
3.3, 5, 12, 15, 24
5, 12, 24
Output
Voltage
[VDC]
3.3
5
9
12
15
24
±3.3
±5
±9
±12
±15
±24
+15/-9
Output
Current
[mA]
600
400
222
167
132
83
±300
±200
±111
±85
±66
±42
+67/-111
Efficiency
typ.
(1)
[%]
70
70-75
70-75
70-75
75-80
75-80
70
70-75
70-75
70-75
75-80
75-80
70-82
max. Capacitive
Load
(2)
[µF]
3300
1200
1200
680
680
220
±1500
±470
±470
±220
±220
±100
±330
2 Watt
DIP24
miniature
Single and Dual
Output
RV-xx15S
(3)
RV-xx24S
(3)
RV-xx3.3D
(3)
RV-xx05D
(3)
RV-xx09D
(3)
RV-xx12D
RV-xx15D
(3)
(3)
E224736
RV-xx24D
(3)
RV-xx1509D
Notes:
Note1: Efficiency is tested at nominal input and full load at +25°C ambient
Note2: Max Cap Load is tested at nominal input and full resistive load
Model Numbering
UL60950-1 certified
CAN/CSA-C22.2 No. 60950-1-07 certified
IEC/EN60950-1 certified
UL62368-1 certified
CAN/CSA-C22.2 No. 62368-1-14 certified
IEC/EN62368-1 certified
CB report
Input Voltage
Output Voltage
RV-__ __S
“Protection
(3)
”
Single
or
Dual
Notes:
Note3: standard part is without continuous short circuit protection
add suffix „/P“ for continuous short circuit protection
Ordering Examples
RV-053.3S/P = 5V Input, 3.3V Output, Single, short circuit protection
RV-1212D = 12V Input, 12V Output, Dual
www.recom-power.com
REV.: 1/2019
ECO-1
RV
DC/DC Converter
Specifications
(measured @ Ta= 25°C, nom. Vin, full load and after warm-up unless otherwise stated)
BASIC CHARACTERISTICS
Parameter
Input Voltage Range
Minimum Load
Internal Operating Frequency
Output Ripple and Noise
all others
RV-XX1509D
20MHz BW
0%
20kHz
20kHz
50kHz
47kHz
85kHz
200mVp-p
Series
Condition
Min.
Typ.
±10%
Max.

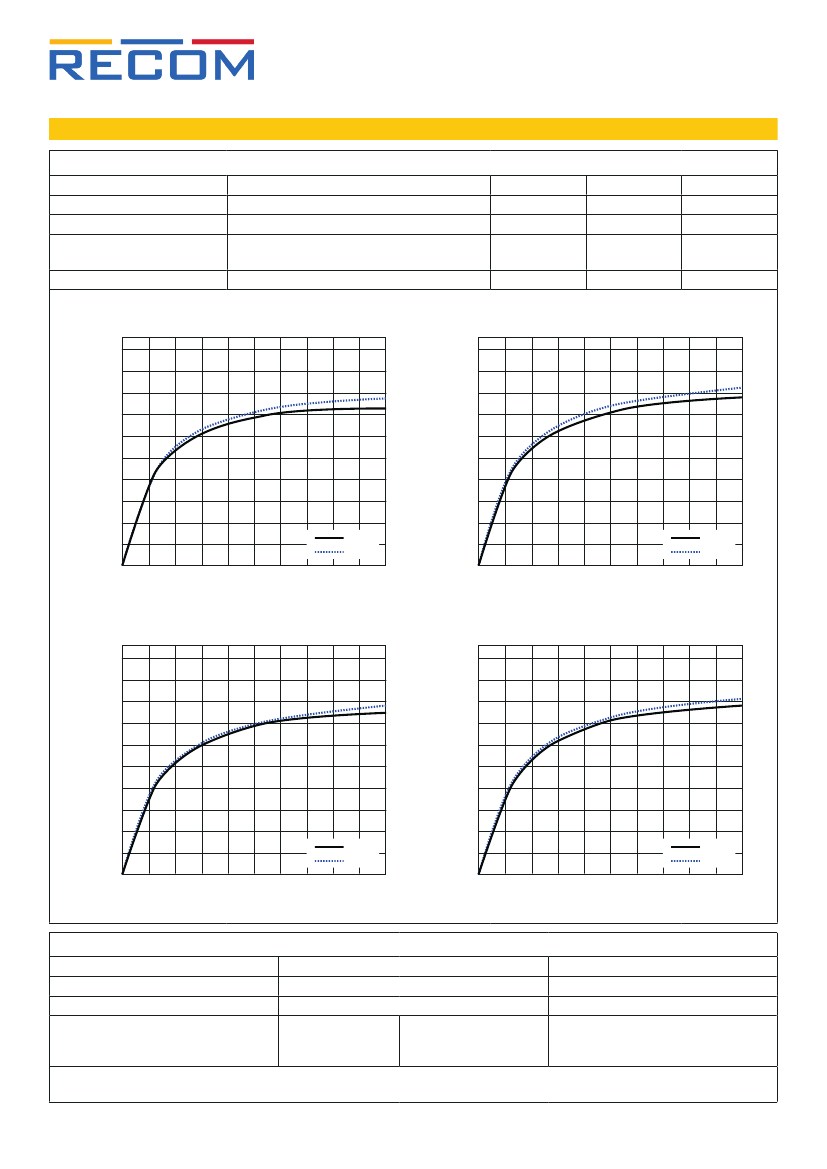

Efficiency vs. Load
RV-xx05S
100
90
80
100
90
80
RV-xx12S
Efficiency [%]
60
50
40
30
20
10
0
0
10
20
30
40
50
60
70
80
0505
1205
90
100
Efficiency [%]
70
70
60
50
40
30
20
10
0
0
10
20
30
40
50
60
70
80
0512
1212
90
100
Output Load [%]
Output Load [%]
RV-xx05D
100
90
80
100
90
80
RV-xx12D
Efficiency [%]
60
50
40
30
20
10
0
0
10
20
30
40
50
60
70
80
0505
1205
90
100
Efficiency [%]
70
70
60
50
40
30
20
10
0
0
10
20
30
40
50
60
70
80
0512
1212
90
100
Output Load [%]
Output Load [%]
REGULATIONS
Parameter
Output Accuracy
Line Regulation
Load Regulation
(4)
Condition
low line to high line
10% to 100% load
3.3Vout
5Vout
9, 12, 15, 24 and +15/-9Vout
Value
±5.0% typ.
±1.2% of 1.0% Vin typ.
20.0% max.
15.0% max.
10.0% max.
continued on next page
www.recom-power.com
REV.: 1/2019
ECO-2
RV
DC/DC Converter
Specifications
(measured @ Ta= 25°C, nom. Vin, full load and after warm-up unless otherwise stated)
Notes:
Note4: Operation below 10% load will not harm the converter, but specifications may not be met
Series
Tolerance Envelope
9, 12, 15, 24 and +15/-9Vout
+10%
Output Voltage [%]
+6%
Vnom
Typica
l
Load L
+5%
ine
-2.5%
-5%
10
50
100
Output Load [%]

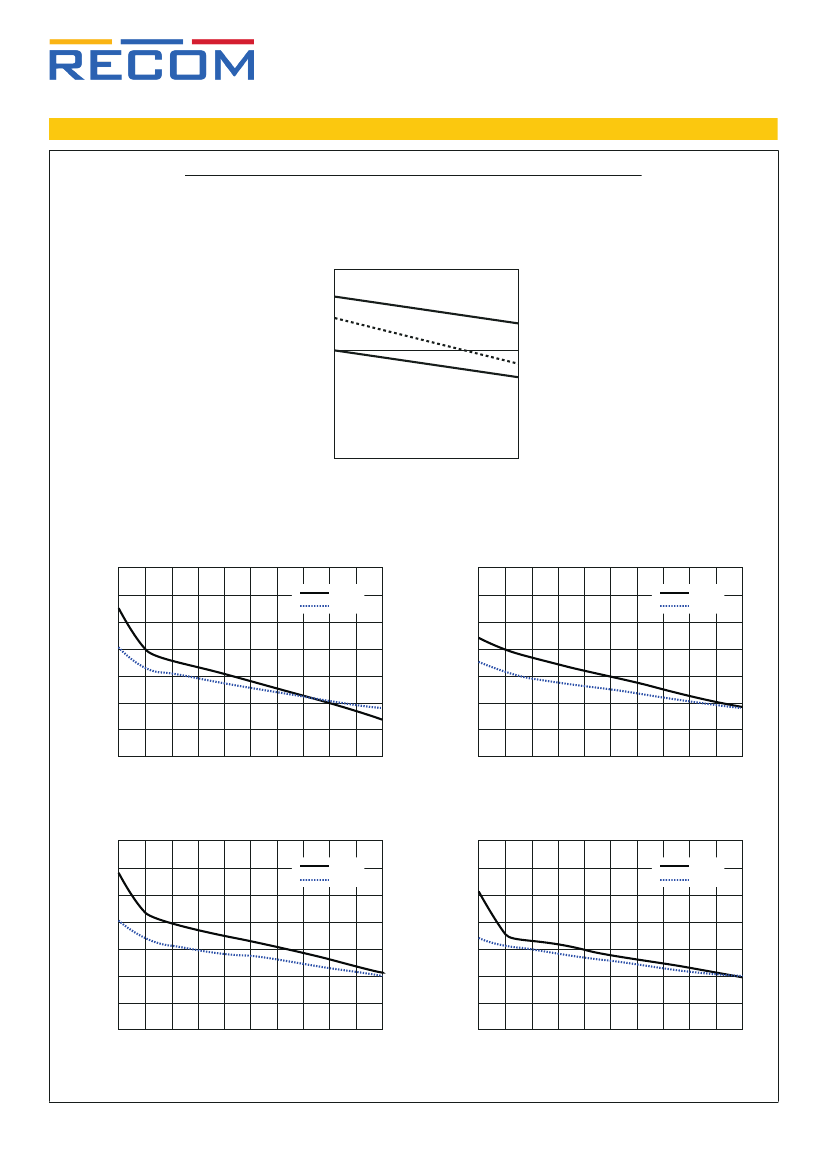

Deviation vs. Load
25
20
15
RV-xx05S
0505
1205
25
20
15
RV-xx12S
0512
1212
Deviation [%]
10
5
0
-5
-10
0
10
20
30
40
50
60
70
80
90
100
Deviation [%]
10
5
0
-5
-10
0
10
20
30
40
50
60
70
80
90
100
Output Load [%]
Output Load [%]
25
20
15
RV-xx05D
0505
1205
25
20
15
RV-xx12D
0512
1212
Deviation [%]
10
5
0
-5
-10
0
10
20
30
40
50
60
70
80
90
100
Deviation [%]
10
5
0
-5
-10
0
10
20
30
40
50
60
70
80
90
100
Output Load [%]
Output Load [%]
www.recom-power.com
REV.: 1/2019
ECO-3
RV
DC/DC Converter
Specifications
(measured @ Ta= 25°C, nom. Vin, full load and after warm-up unless otherwise stated)
PROTECTIONS
Parameter
Short Circuit Protection (SCP)
Isolation Voltage
(5)
Isolation Resistance
Isolation Capacitance
Insulation Grade
I/P to O/P
Series
Type
without suffix
with suffix “/P”
tested for 1 second
rated for 1 minute
Value
1 second
continuous
6kVDC
3kVAC/60Hz
15GΩ min.
2pF min. / 12pF max.
basic (IEC/EN60950-1, IEC/EN62368-1)
functional (IEC/EN60601-1)
Notes:
Note5: For repeat Hi-Pot testing, reduce the time and/or the test voltage
Note6: Refer to local safety regulations if input over-current protection is required. Recommended fuse: slow blow type
ENVIRONMENTAL
Parameter
Operating Temperature Range
Operating Altitude
Operating Humidity
Pollution Degree
MTBF
according to MIL-HDBK-217F, G.B.
+25°C
+85°C
non-condensing
Condition
full load @ free air convection (see graph)
Value
-40°C to +90°C
3000m
95% RH max.
PD2
1154 x 10
3
hours
168 x 10
3
hours
Derating Graph
(@ free air convection)
100
90
80
Output Load [%]
70
60
50
40
30
20
10
0
-40 -30 -20 -10 0 10 20 30 40 50 60 70 80 90 100 110
95
Ambient Temperature [°C]
REV.: 1/2019
www.recom-power.com
ECO-4
RV
DC/DC Converter
Specifications
(measured @ Ta= 25°C, nom. Vin, full load and after warm-up unless otherwise stated)
SAFETY AND CERTIFICATIONS
Certificate Type (Safety)
Information Technology Equipment, General Requirements for Safety
Information Technology Equipment, General Requirements for Safety (LVD)
Audio/Video, information and communication technology equipment -
Part1: Safety requirements
Medical Electrical Equipment Part 1: General Requirements for Basic
Safety and Essential Performance
Audio/Video, information and communication technology equipment -
Part1: Safety requirements
Audio/Video, information and communication technology equipment -
Part1: Safety requirements (CB Scheme)
EAC
RoHS 2
Series
Report / File Number
E224736-A56-UL
LVD1602031
E224736-A56-UL
WD-SE-R-180541-A0
Standard
CAN/CSA-C22.2 No. 60950-1-07, 2nd Edtition, 2014
UL No. 60950-1, 2nd Edition, 2014
IEC60950-1:2005, 2nd Edition + A2:2013
EN60950-1:2006 + A2:2013
CAN/CSA-C22.2 No. 62368-1-14, 2nd Edition
UL62368-1, 2nd Edition, 2014
IEC60601-1:2005 + A1:2012, 3rd Edition
EN60601-1:2006 + A12:2014
EN62368-1:2014 + A11:2017
ATTCB106076
IEC62368-1:2014 2nd Edition
RU-AT.49.09571
TP TC 004/2011
RoHS-2011/65/EU + AM-2015/863
DIMENSION AND PHYSICAL CHARACTERISTICS
Parameter
Material
Dimension (LxWxH)
Weight
Type
case
potting
PCB
Value
non-conductive black plastic, (UL94 V-0)
epoxy, (UL94 V-0)
FR4, (UL94 V-0)
32.35 x 14.7 x 11.1mm
9.0g typ.
Dimension Drawing (mm)
32.35
embossed logo
14.7
Pinning Information
14.4
15.24
4.10
0.5
±0.05
0.25
±0.1
16.95 max.
Recommended Footprint Details
1.00
Ø
+0.15/-0
1 2
8 9 10 11 12
16.10
2.54
24 23
17 16 15 14 13
Pin #
1
2
8, 17
9, 11, 14
10, 15
12, 13
16, 23, 24
Single
+Vin
-Vin
NC
NC
-Vout
+Vout
NC
Dual
+Vin
-Vin
-Vout
NC
Com
+Vout
NC
11.1
0.60
0.40
Bottom View
24 23
2.2
17 16 15 14 13
11x2.54= 27.94
Top View
1 2
2.54
8 9 10 11 12
NC= No Connection
Tolerance: xx.x= ±0.5mm
xx.xx= ±0.25mm
www.recom-power.com
REV.: 1/2019
ECO-5
