VWS100YL-92V

Description
DC-DC Regulated Power Supply Module, 1 Output, 100W, Hybrid
CategoryPower/power management    The power supply circuit
File Size83KB,3 Pages
ManufacturerBel
Websitehttp://www.belfuse.com
Download Datasheet Parametric View All

VWS100YL-92V Overview

DC-DC Regulated Power Supply Module, 1 Output, 100W, Hybrid

VWS100YL-92V Parametric

Parameter NameAttribute value
Brand NamePower-One
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerBel
package instruction,
Reach Compliance Codecompliant
ECCN codeEAR99
Is SamacsysN
Other featuresOPTIONAL BOOSTER MODULE AVAILABLE
Analog Integrated Circuits - Other TypesDC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage36 V
Minimum input voltage18 V
Nominal input voltage24 V
JESD-30 codeR-XDMA-P9
JESD-609 codee0
Maximum load regulation0.5%
Number of functions1
Output times1
Number of terminals9
Maximum operating temperature85 °C
Minimum operating temperature-25 °C
Maximum output voltage52.8 V
Minimum output voltage43.2 V
Nominal output voltage48 V
Package body materialUNSPECIFIED
Package shapeRECTANGULAR
Package formMICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Certification statusNot Qualified
surface mountNO
technologyHYBRID
Temperature levelOTHER
Terminal surfaceTIN LEAD
Terminal formPIN/PEG
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
Maximum total power output100 W
Fine-tuning/adjustable outputYES
Base Number Matches1

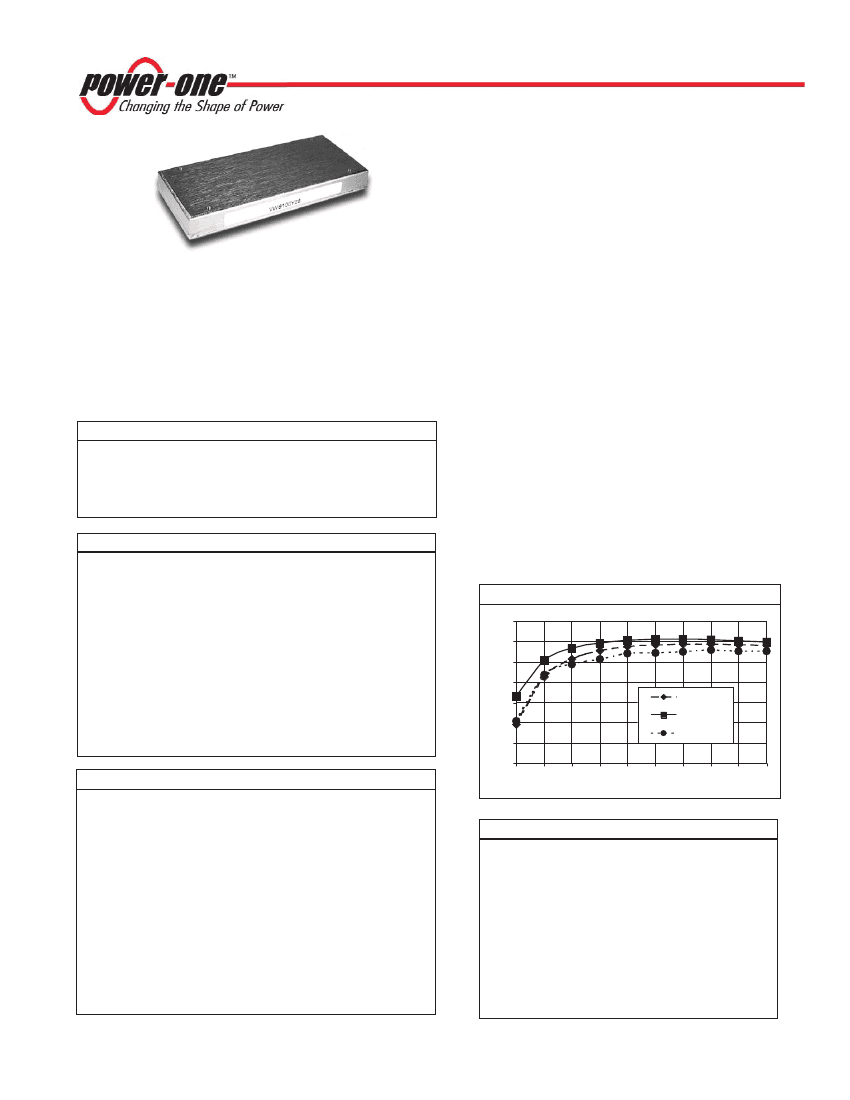

VWS100 DC-DC Series Data Sheet
Single-Output, 100 Watts
Features
• 100W full brick
• Industry-standard footprint
• Fixed frequency
• 85°C case operation
• 6-sided shielding
• Superior transient response
• 1500V isolation
• Optional booster module
Description
VWS DC-DC converters are direct replacement converters for industry-standard full bricks. Featuring a fixed-
frequency design, the VWS offers excellent transient response and predictable EMI performance. The VWS can
be combined with VWB booster modules to provide increased power. VWS converters use 100% surface-mount
construction, along with planar magnetics, and are fully compatible with production board-washing processes.
Technical Specifications
Input
Voltage Range
24 VDC Nominal
48 VDC Nominal
Input Reflected Ripple Current
Undervoltage Lockout - Turn On / Turn Off
Output
Setpoint Accuracy
Line Regulation V
in
Min. - V
in
Max., I
out
Rated
Load Regulation I
out
Min. - I
out
Max., V
in
Nom.
Remote Sense Headroom
Minimum Output Current
Dynamic Regulation, Loadstep
Pk Deviation
Settling Time
Voltage Trim Range
Current Limit Type
Current Limit Threshold Range, % of I
out
Rated
Short Circuit Threshold Range, % of I
out
Rated
OVP Trip Range
OVP/UVP type
±1%
0.2% V
out
0.5% V
out
0.5 VDC
10 % I
out
Rated
25% I
out
8% V
out
500
µs
±10%
Hiccup
110 - 140%
200%
120 - 140% V
out
Nom.
Self-Recovering
18 - 36 VDC
36 - 72 VDC
50 mA Pk-Pk
35 VDC / 32 VDC
Efficiency vs. Load (48V Input)
95
90
85
80
75
70
EFF. (75v)
65
60
VWS100ZH
EFF. (36v)
EFF. (48v)
General
Turn-On Time
Remote Shutdown
Remote Shutdown Reference
Switching Frequency
Isolation, Input - Output
Isolation, Input - Case
Isolation, Output - Case
Temperature Coefficient
Case Temperature
Operating Range
Storage Range
Thermal Shutdown Range
Vibration, 3 Axes, 5 Min Each
MTBF† (Bellcore TR-NWT-000332)
Safety
Weight (approx.)
REV. APR 16, 2004
10 mS
Positive Or Negative Logic
V
in
Negative
300 kHz
1500 VDC
1050 VDC
500 VDC
0.2%/°C
-25 To +85°C
-55 To +115°C
90 To 100°C
5 g, 10 - 55 Hz
2.1 x 10
6
hrs
UL, cUL, TUV
6.0 oz
10
20
30
40
50
60
70
80
90
100
LOAD %
Notes
† MTBF predictions may vary slightly from model to model.
Specifications typically at 25°C, normal line, and full load, unless otherwise
stated.
Soldering Conditions: I/O pins, 260°C, ten seconds; fully compatible with
commercial wave-soldering equipment.
Safety: Agency approvals may vary from model to model. Please consult
factory for specific model information.
Units are water-washable and fully compatible with commercial spray or
immersion post wave-solder washing equipment.
Page 1 of 3
