TG series
Tiny slide switches
Overview and specifications
❑
Sealed
• Single piece case
• Epoxy sealed terminals
❑
Wide variety of contact materials
❑
Same PCB layout as TL, TP and TR tiny series
SPECIFICATIONS
MATERIALS
• Current/voltage rating with resistive load :
- Gold plated contacts : 0,4VA 20V max. AC or DC.
- Silver plated contacts : 0,5A 48V max. AC or DC
• Contact resistance : 20 mΩ max.
• Insulation resistance : 1.000 MΩ min. at 500VDC
• Dielectric strength : 1.000 Vrms 50 Hz min. between terminals and frame
500 Vrms 50 Hz min. between terminals
• Electrical life at full load : 2 position switches : 60.000 cycles
3 position switches : 30.000 cycles
• Travel : 2,60 mm (.102)
• Operating temperature : -30°C to +85°C
• Cleaning : solvents or water + detergent
• Wave soldering : 260°C - 5 sec. max.
• Case : flame retardant
thermoplastic
• Actuator : thermoplastic
• Ground plate and bracket :
brass, tin plated
• Contacts and terminals :
see above
• Rubber seal : silicone, transparent
• Terminal seal : epoxy
TG
E
SERIES
Number of poles
3
Single pole
6
9
Electrical functions
ON
ON
-
OFF
ON
ON
P0
Y0
W0
MW
Terminals
Straight PC
Straight PC, bracket mounting
Right angle, horizontal mounting
Wire-wrap
Contact and terminal
materials
0
1
3
8
Brass, gold plated (std)
Brass, silver plated
Brass, gold plated (1,27 µ gold)
Contact brass, gold plated
+ tin plated terminals
9
Contact brass, gold plated
(1,27 µ gold) + tin plated term.
Actuators
00
10
High (standard)
Flush
00
50
Model
Standard
Washable
Dimensions
: First dimensions are in mm while inches are shown as bracketed numbers.
Packaging unit
: 100 pieces, except for models with right angle terminals (50 pieces)
APEM
www.apem.com
E-5
TG series
Tiny slide switches
Standard or washable
• Straight PC, right angle or wire-wrap terminals
• Single pole
• The silicone rubber seal can be removed after cleaning.
5.55
(.218)
12.60
(.496)
9.60
(.377)
12.60
(.496)
Y0
9.10
(.358)
P0
W0
To complete the following part numbers, refer to "Overview" and replace the • symbol with one of the options proposed
under "Contact and terminal materials".

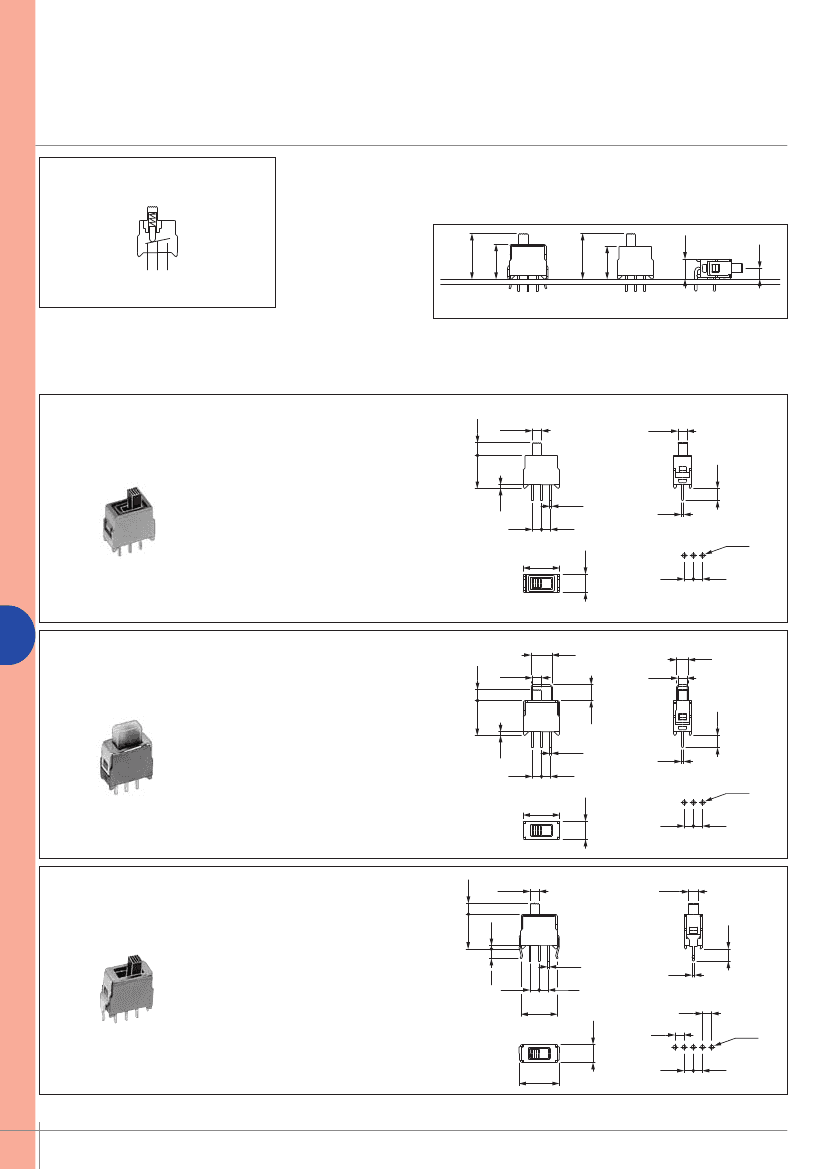

Straight PC terminals - standard model
3.50
(.137)
2.50
(.098)
2.50
(.098)
9.10
(.358)
TG36P0•0000
TG39P0•0000
ON
ON
-
OFF
ON
ON
1.00
(.039)
0.50
(.019)
2.54
(.100)
2.54
(.100)
0.70
(.027)
Ø1.10
(.043 DIA)
2.54
(.100)
2.54
(.100)
E
Straight PC terminals - washable model
3.00
(.118)
2.50
(.098)
5.80
(.228)
2.50
(.098)
5.00
(.196)
10.10
(.397)
3.20
(.125)
9.60
(.378)
4.30
(.169)
TG36P0•0050
TG39P0•0050
ON
ON
-
OFF
ON
ON
1.00
(.039)
0.50
(.019)
2.54
(.100)
2.54
(.100)
0.70
(.027)
Ø1.10
(.043 DIA)
2.54
(.100)
2.54
(.100)
3.00
(.118)

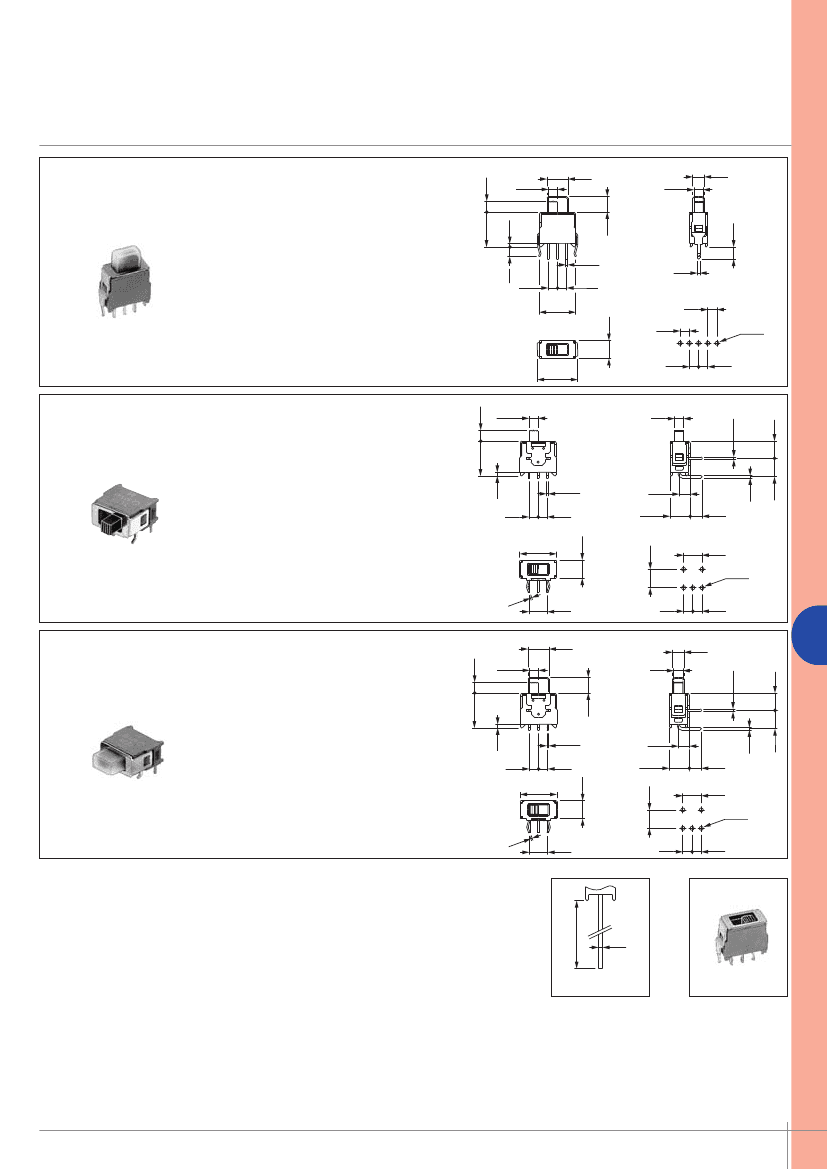

Straight terminals - bracket mounting - standard model
2.50
(.098)
5.00
(.196)
10.10
(.397)
2.50
(.098)
9.60
(.378)
1.00
(.039)
0.50
(.019)
TG36Y0•0000
TG39Y0•0000
2.65
(.104)
ON
ON
-
OFF
ON
ON
2.54
(.100)
10.16
(.400)
2.54
(.100)
0.70
(.027)
2.54
(.100)
5.00
(.196)
2.54
(.100)
Ø1.10
(.043 DIA)
2.54
(.100)
11.10
(.437)
2.54
(.100)
E-6
www.apem.com
3.30
(.129)
3.30
(.129)
3.30
(.129)
APEM
3.05
(.120)
