ZWS5-24 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> ZWS5-24

ZWS5-24: DescriptionAC-DC Regulated Power Supply Module,; CategoryPower/power management The power supply circuit; File Size2MB，19 Pages; ManufacturerTDK-LAMBDA; Environmental Compliance

Download Datasheet Parametric Compare View All

ZWS5-24 Overview

AC-DC Regulated Power Supply Module,

ZWS5-24 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	TDK-LAMBDA
Reach Compliance Code	compliant
Is Samacsys	N
Analog Integrated Circuits - Other Types	AC-DC REGULATED POWER SUPPLY MODULE
Certification	CE, CSA, EN, UL
Efficiency (main output)	70%
high	21 mm
Maximum input voltage	265 V
Minimum input voltage	85 V
length	98 mm
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
Maximum output current	0.22 A
Nominal output voltage	24 V
Protect	OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
width	44.9 mm
Base Number Matches	1

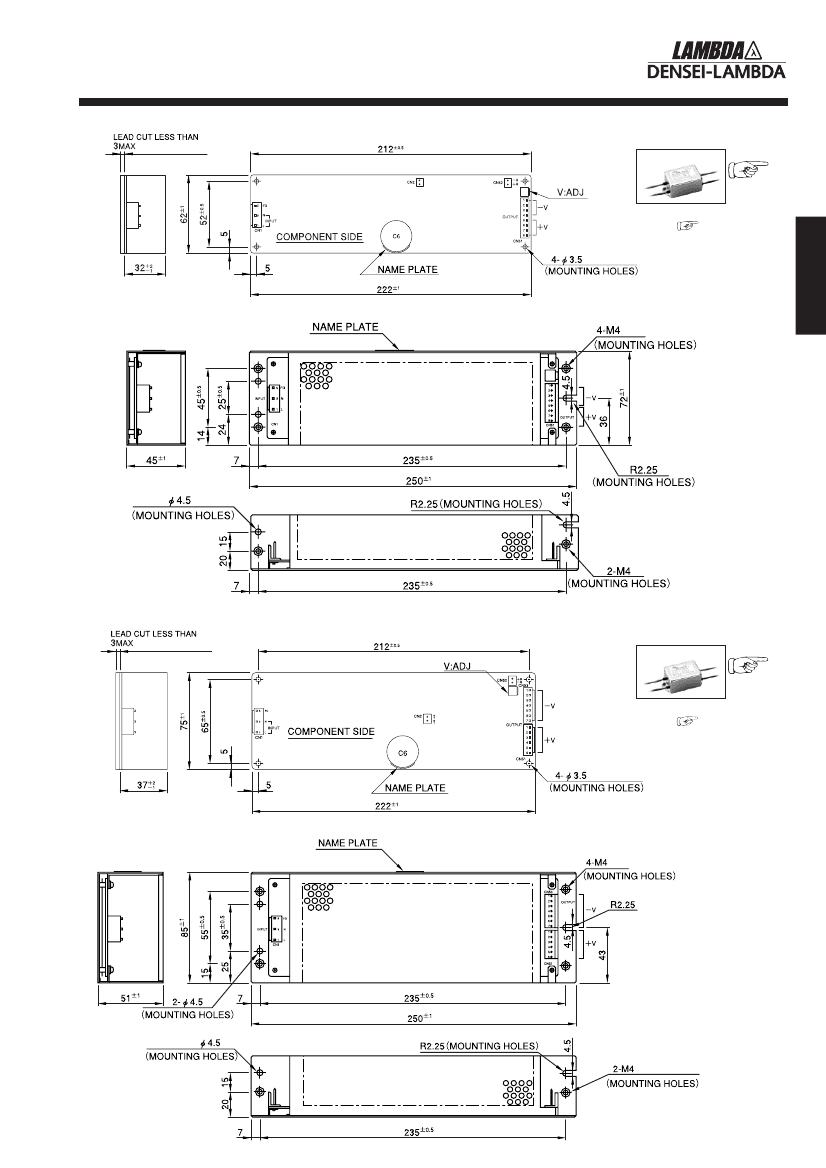

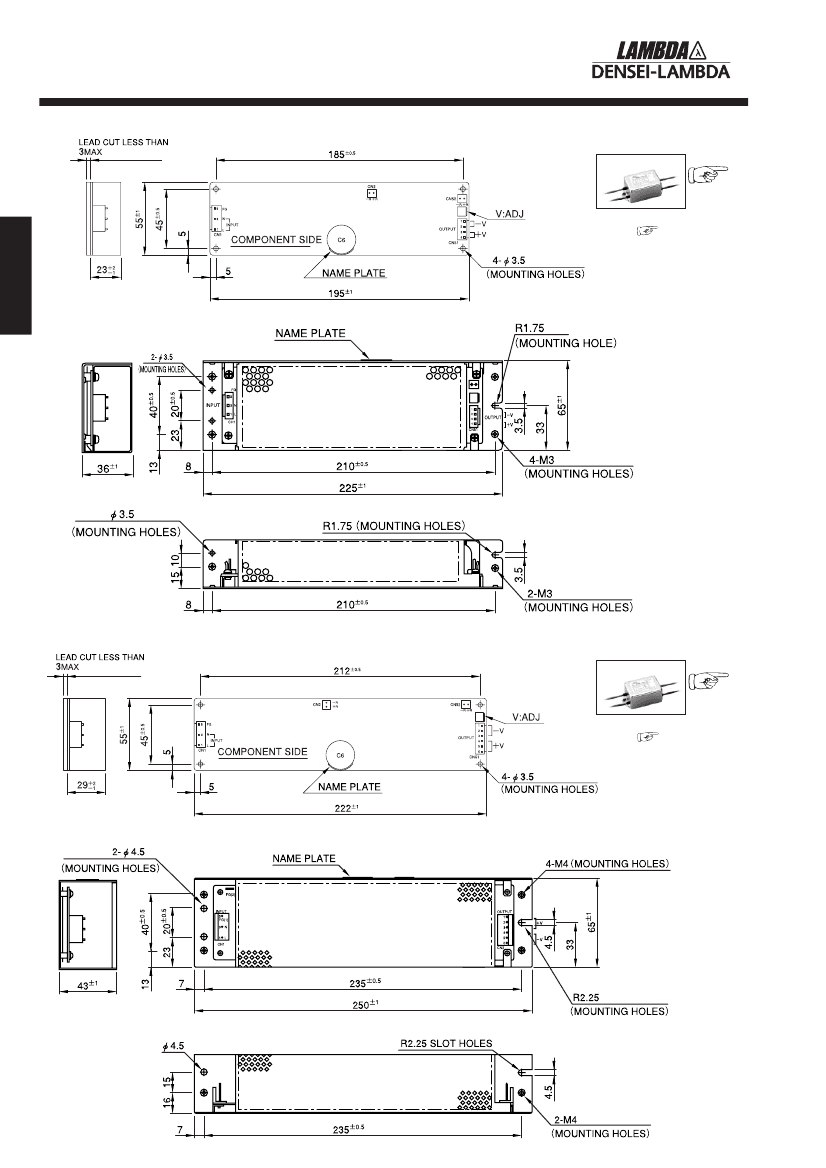

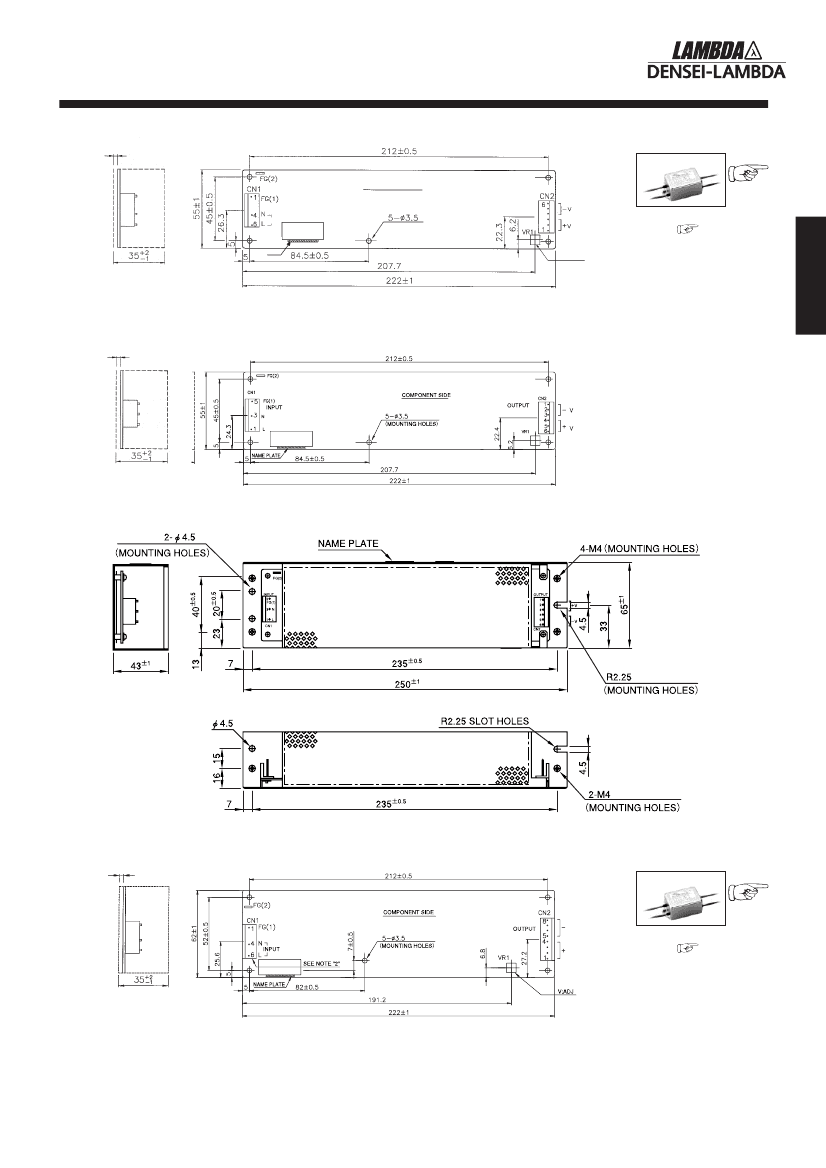

Preview

Download Datasheet

View All

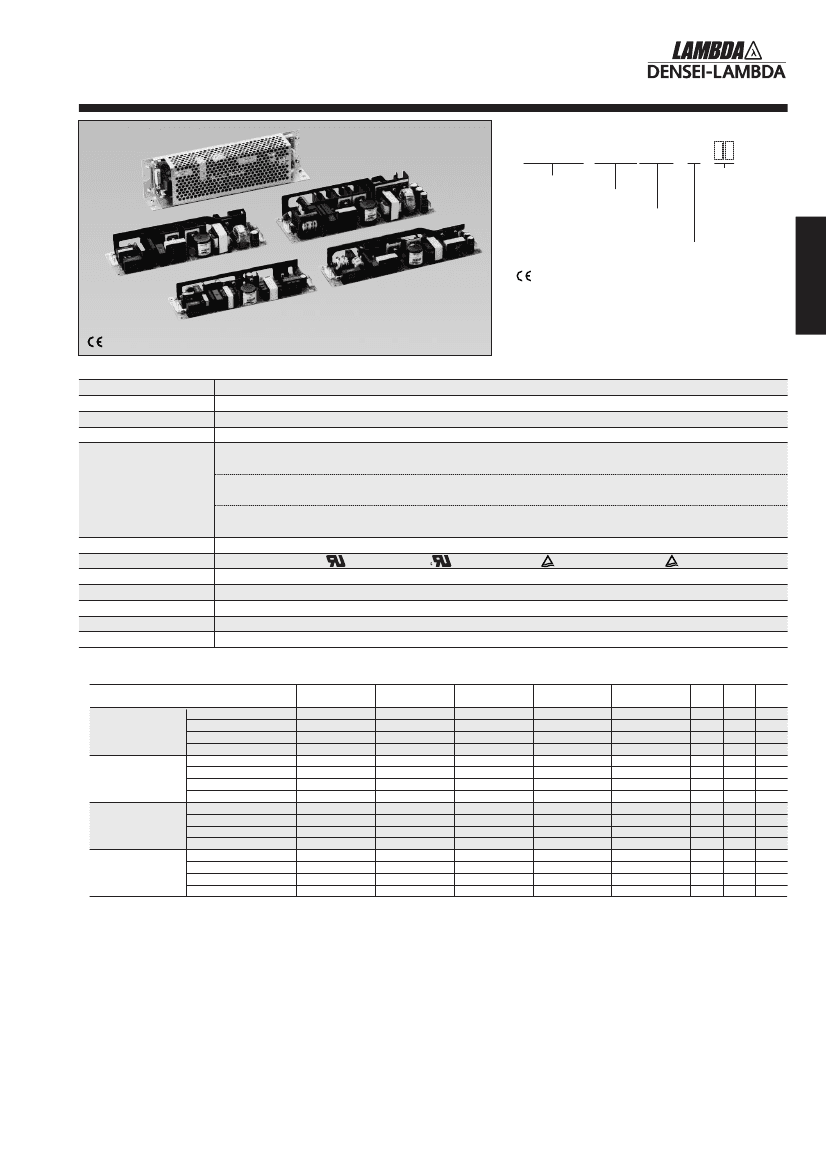

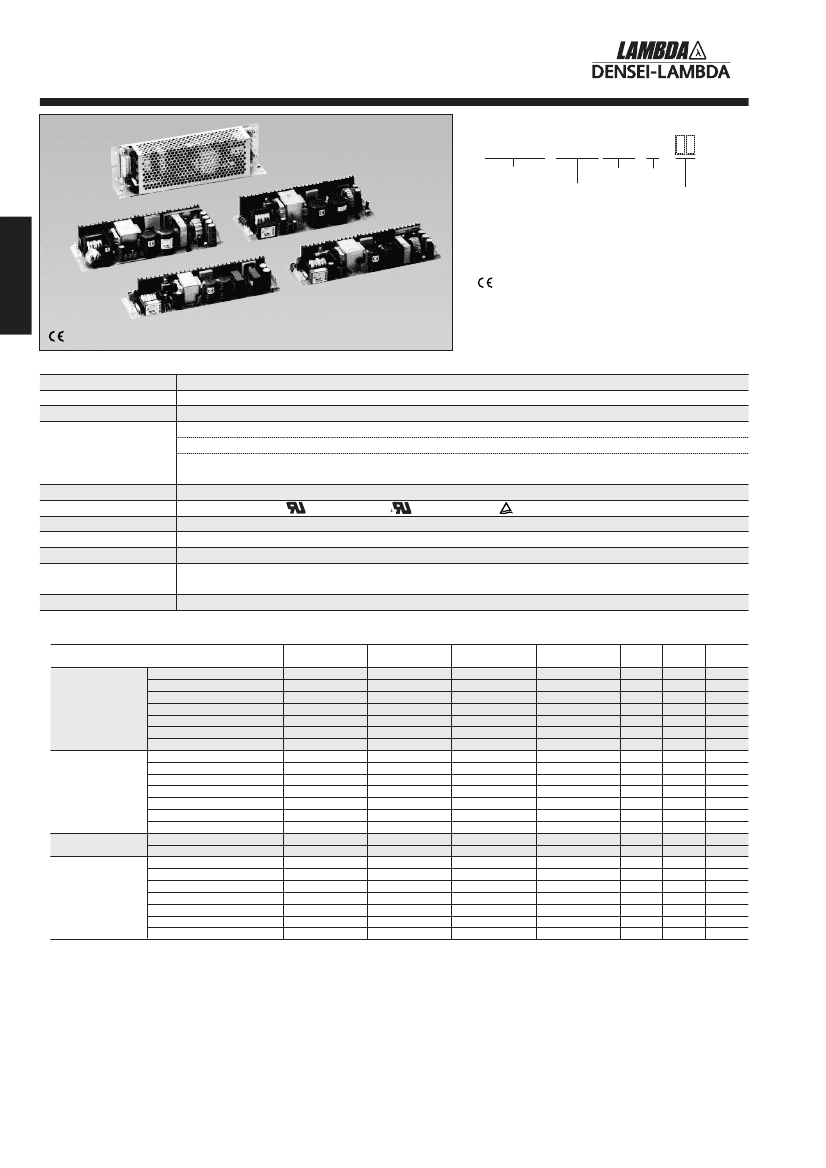

ZWS-AF

-SERIES

Single output 50W ~ 150W

Model name

ZWS150AF

ZWS 100AF-5/

Series Name

Output Power

Option

blank : Molex connector,

PCB type

A : Molex connector,

with-cover type

J : JST connector,

PCB type

JA : JST connector,

with-cover type

ZWS100AF

Active Filter

contained

PC Board Type Power Supply

Output Voltage

Features

ZWS75AF

ZWS50AF

(Low Voltage Directive)

2 year warranty

marking (Low Voltage Directive)

Active Filter contained, PFHC type

Applicable to peak output wattage 120% (12V, 15V, 24V output)

Low leakage current 0.5mA max

Equipped with Remote ON/OFF control

(with-cover type excluded) and output variable voltage

2 year warranty

Specifications

1. Input voltage range

2. Power factor

3. Output Voltage range

4. Cooling

5. Operating ambient

temperature

(Standard mounting)

85~265VAC (47~63Hz) , 120~370VDC universal input

0.99 (typ) 100VAC at full load, 0.95(typ) 200VAC at full load

10%

Convection cooling or Forced air cooling

ZWS50AF,75AF,

Convection cooling -10°C~+50°C:100%,+60°C:70% (with cover:-10°C~+40°C:100%,+50°C:70%)

Forced air cooling -10°C~+60°C:100%,+70°C:70% (with cover:-10°C~+50°C:100%,+60°C:70%)

ZWS100AF

ZWS150AF

6. Withstand voltage

7. Safety standard

8. CE marking

9. EMI

10. Immunity

11. PFHC

12. Functions

Convection cooling -10°C~+50°C:100%,+60°C:60% (with cover:-10°C~+40°C:100%,+50°C:60%)

Forced air cooling -10°C~+60°C:100%,+70°C:70% (with cover:-10°C~+50°C:100%,+60°C:70%)

Convection cooling -10°C~+40°C:100%,+60°C:50% (with cover:-10°C~+30°C:100%,+45°C:50%)

Forced air cooling -10°C~+50°C:100%,+60°C:70% (with cover:-10°C~+40°C:100%,+50°C:70%)

Input-output : 3kVAC (20mA) , Input-FG : 2kVAC (20mA) , Output-FG : 500VAC (100mA) for 1 min

Approved by UL1950

, CSA950(C-UL)

, EN60950(TUV)

and EN50178(TUV)

Conforms to Low Voltage Directive

Meets to EN55011-B,EN55022,FCC-B,VCCI-B

Meets to EN50082-2(EN61000-4-2,-3,-4,-5,-6,-7,-8,-11)

Meets to EN61000-3-2

Over voltage protection,Over current protection,Remote on/off control(for open frame type only)

Product lineup

Model name

ZWS50AF-5

ZWS50AF-12

ZWS50AF-15

ZWS50AF-24

ZWS75AF-5

ZWS75AF-12

ZWS75AF-15

ZWS75AF-24

ZWS100AF-5

ZWS100AF-12

ZWS100AF-15

ZWS100AF-24

ZWS150AF-5

ZWS150AF-12

ZWS150AF-15

ZWS150AF-24

Nominal

output voltage

12V

15V

24V

12V

15V

24V

12V

15V

24V

12V

15V

24V

Max.

output current

10A

4.3A

3.5A

2.1A

15A

6.3A

5.0A

3.2A

20A

8.5A

6.7A

4.3A

30A

12.5A

10A

6.3A

Note 1

ZWS50AF

ZWS75AF

ZWS100AF

ZWS150AF

Max. peak

output current

5.2A

4.2A

2.6A

7.5A

6.0A

3.8A

10A

8.0A

5.0A

15A

12A

7.5A

Max. average

output power

50.0W

51.6W

52.5W

50.4W

75.0W

75.6W

75.0W

76.8W

100.0W

102.0W

100.5W

103.2W

150.0W

151.2W

Max. peak

output power

62.4W

63.0W

62.4W

90.0W

91.8W

120.0W

180.0W

CSA

Note1 : Duration at peak current : 10 seconds max. within Max. average output power.

Based on the data under normal installation and without cover type. Needs output derating

according to installation method or ambient temperature condition.

: Safety standard approved

ZWS5-24 Related Products

	ZWS5-24	ZWS5-15	ZWS30-48	ZWS30-5
Description	AC-DC Regulated Power Supply Module,	AC-DC Regulated Power Supply Module,	AC-DC Regulated Power Supply Module,	AC-DC Regulated Power Supply Module,
Is it Rohs certified?	conform to	conform to	conform to	conform to
Maker	TDK-LAMBDA	TDK-LAMBDA	TDK-LAMBDA	TDK-LAMBDA
Reach Compliance Code	compliant	compliant	compliant	compliant
Is Samacsys	N	N	N	N
Analog Integrated Circuits - Other Types	AC-DC REGULATED POWER SUPPLY MODULE	AC-DC REGULATED POWER SUPPLY MODULE	AC-DC REGULATED POWER SUPPLY MODULE	AC-DC REGULATED POWER SUPPLY MODULE
Certification	CE, CSA, EN, UL	CE, CSA, EN, UL	CE, CSA, EN, UL	CE, CSA, EN, UL
Efficiency (main output)	70%	68%	78%	75%
high	21 mm	21 mm	25.9 mm	25.9 mm
Maximum input voltage	265 V	265 V	265 V	265 V
Minimum input voltage	85 V	85 V	85 V	85 V
length	98 mm	98 mm	133 mm	133 mm
Maximum operating temperature	60 °C	60 °C	60 °C	60 °C
Minimum operating temperature	-10 °C	-10 °C	-10 °C	-10 °C
Maximum output current	0.22 A	0.34 A	0.7 A	6 A
Nominal output voltage	24 V	15 V	48 V	5 V
Protect	OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE	OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE	OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE	OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
width	44.9 mm	44.9 mm	55.1 mm	55.1 mm
Base Number Matches	1	1	1	1
