AC Line EMI Suppression and RC Networks
Actively sampling now. UL production to begin Fall 2012.
F872 Series Metallized Polypropylene Film, Class X1, 480 VAC
Overview
The F872 Series is constructed of metallized polypropylene film
encapsulated with self-extinguishing resin in a box of material
meeting the requirements of UL 94 V–0.
Applications
Typical application include worldwide use as electromagnetic
interference suppressor in all X1 and across-the-line applications.
Not for use in series with the mains.
Benefits
•
•
•
•
•
•
•
•
•
•
Approvals: ENEC, UL, cUL, CQC
Rated voltage: 480 VAC 50/60 Hz
Capacitance range: 0.001 – 5.6 µF
Lead spacing: 10 – 37.5 mm
Capacitance tolerance: ±20%, ±10%, ±5% on request
Climatic category: 40/110/56, IEC 60068–1
Tape and reel in accordance with IEC 60286–2
RoHS Compliant and lead-free terminations
Operating temperature range of -40˚C to +110˚C
100% screening factory test at 3,000 VDC
Part Number System
F
Capacitor Class
F = Film
872
Series
X1, Metallized
Polypropylene
B
Lead Spacing (mm)
A = 10
B = 15
D = 22.5
F = 27.5
R = 37.5
S
Size Code
See Dimension
Table
104
Capacitance Code (pF)
First two digits
represent significant
figures. Third digit
specifies number of
zeros.
M
Capacitance
Tolerance
J = ±5%
K = ±10%
M = ±20%
480
Voltage
(VAC)
480
C
Lead and Packaging Code
See Ordering
Options Table
Ordering Options Table
Lead Spacing
Nominal (mm)
Type of Leads and Packaging
Standard Lead and Packaging Options
Bulk (Bag) – Short Leads
Bulk (Bag) – Long Leads
Tape & Reel (Standard Reel)
Other Lead and Packaging Options
Bulk (Bag) – Max Length Leads
Ammo Pack
Tape & Reel (Large Reel)
20 +5/-0
H
0
= 18.5 +/-0.5
H
0
= 18.5 +/-0.5
ALL0L
R
P
4 +2/-0
17 +0/-1
H
0
= 18.5 +/-0.5
C
A
L
Lead Length
(mm)
Lead and
Packaging
Code
10
One WORLD
One Brand
One Strategy
One Focus
One Team
One KEMET
F3003_F872_X1_480 • 5/10/2012
1
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
Actively sampling now. UL production to begin Fall 2012.
Film Capacitors
AC Line EMI Suppression and RC Networks – F872 Series Metallized Polypropylene Film, Class X1, 480 VAC
Ordering Options Table cont'd
Lead Spacing
Nominal (mm)
Type of Leads and Packaging
Standard Lead and Packaging Options
Bulk (Bag) – Short Leads
Bulk (Bag) – Long Leads
Tape & Reel (Standard Reel)
Pizza Pack
Other Lead and Packaging Options
Bulk (Bag) – Max Length Leads
Ammo Pack
Tape & Reel (Large Reel)
Standard Lead and Packaging Options
Bulk (Tray) – Short Leads
Bulk (Tray) – Long Leads
Pizza Pack
Other Lead and Packaging Options
Tape & Reel (Standard Reel)
Tape & Reel (Large Reel)
Ammo Pack
Standard Lead and Packaging Options
H
0
= 18.5 +/-0.5
H
0
= 18.5 +/-0.5
H
0
= 18.5 +/-0.5
L
P
R
4 +2/-0
17 +0/-1
4 +2/-0
C
A
Z
25 +5/-0
H
0
= 18.5 +/-0.5
H
0
= 18.5 +/-0.5
ALR0L
R
P
4 +2/-0
17 +0/-1
H
0
= 18.5 +/-0.5
4 +2/-0
C
A
L
Z
Lead Length
(mm)
Lead and
Packaging
Code
15
22.5
27.5
Bulk (Tray) – Short Leads
Bulk (Tray) – Long Leads
Pizza Pack
Standard Lead and Packaging Options
4 +2/-0
17 +0/-1
4 +2/-0
C
A
Z
37.5
Bulk (Tray) – Short Leads
Bulk (Tray) – Long Leads
Pizza Pack
4 +2/-0
17 +0/-1
4 +2/-0
C
A
Z
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3003_F872_X1_480 • 5/10/2012
2
Actively sampling now. UL production to begin Fall 2012.
Film Capacitors
AC Line EMI Suppression and RC Networks – F872 Series Metallized Polypropylene Film, Class X1, 480 VAC
Dimensions – Millimeters
L
H
d
p
Size
Code
AG
AK
AP
AO
AL
AE
BB
BC
BE
BG
BI
BK
BO
BP
BT
BS
BY
BZ
BR
DB
DI
DH
DJ
DM
DO
DP
DU
DY
FB
FC
Low Profile
Special Version
B
0.5
LL
Version
p
Nominal
10.0
10.0
10.0
10.0
10.0
10.0
15.0
15.0
15.0
15.0
15.0
15.0
15.0
15.0
15.0
15.0
15.0
15.0
15.0
22.5
22.5
22.5
22.5
22.5
22.5
22.5
22.5
22.5
27.5
27.5
Tolerance
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
Nominal
4.0
5.0
6.0
7.0
9.5
4.0
4.0
5.0
5.5
6.0
6.0
7.5
7.5
8.5
9.0
10.0
11.0
12.0
13.0
6.0
7.0
8.0
8.5
9.0
10.0
11.0
13.0
15.5
9.0
11.0
B
Tolerance
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Nominal
9.0
11.0
12.0
17.0
7.5
8.0
10.0
11.0
12.5
12.0
17.5
13.5
18.5
14.5
12.5
16.0
19.0
20.0
12.0
14.5
16.0
16.0
17.0
18.5
18.5
20.0
22.0
24.5
17.0
20.0
H
Tolerance
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Nominal
13.0
13.0
13.0
13.0
13.0
13.0
18.0
18.0
18.0
18.0
18.0
18.0
18.0
18.0
18.0
18.0
18.0
18.0
18.0
26.0
26.0
26.0
26.0
26.0
26.0
26.0
26.0
26.0
31.5
31.5
L
Tolerance
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Nominal
0.6
0.6
0.6
0.6
0.6
0.6
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
d
Tolerance
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
High Profile
High Profile
Special Version
Low Profile
Note: See Ordering Options Table for lead length (LL) options.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3003_F872_X1_480 • 5/10/2012
3
Actively sampling now. UL production to begin Fall 2012.
Film Capacitors
AC Line EMI Suppression and RC Networks – F872 Series Metallized Polypropylene Film, Class X1, 480 VAC
Dimensions – Millimeters cont'd
L
H
d
p
Size
Code
FI
FN
FO
FR
FS
FY
FH
FQ
FT
RB
RF
RH
RC
RD
RP
RO
RU
RV
RW
B
0.5
LL
Version
p
Nominal
27.5
27.5
27.5
27.5
27.5
27.5
27.5
27.5
27.5
37.5
37.5
37.5
37.5
37.5
37.5
37.5
37.5
37.5
37.5
Tolerance
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
Nominal
13.0
14.0
17.0
17.5
19.0
22.0
21.0
27.5
31.0
11.0
13.0
15.0
16.0
19.0
21.0
24.0
30.0
24.0
24.0
B
Tolerance
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Nominal
25.0
28.0
40.0
28.0
29.0
37.0
12.5
16.0
19.0
22.0
24.0
26.0
28.5
32.0
38.0
44.0
45.0
15.0
19.0
H
Tolerance
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Nominal
31.5
31.5
31.5
31.5
31.5
31.5
31.5
31.5
31.5
41.0
41.0
41.0
41.0
41.0
41.0
41.0
41.0
41.0
41.0
L
Tolerance
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Nominal
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
1
1
1
1
1
1
1
1
1
1
d
Tolerance
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
High Profile
Low Profile
Low Profile
Low Profile
Low Profile
Low Profile
Note: See Ordering Options Table for lead length (LL) options.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3003_F872_X1_480 • 5/10/2012
4
Actively sampling now. UL production to begin Fall 2012.
Film Capacitors
AC Line EMI Suppression and RC Networks – F872 Series Metallized Polypropylene Film, Class X1, 480 VAC
Performance Characteristics
Rated Voltage
Capacitance Range
Capacitance Tolerance
Temperature Range
Climatic Category
Approvals
480 VAC 50/60 Hz
0.001 – 5.6 µF
±20%, ±10%, ±5% on request
-40ºC to +110°C
40/110/56
ENEC, UL, cUL, CQC (pending)
Maximum Values at +23°C
Dissipation Factor
1 kHz
C ≤ 0.1 µF
0.3%
C > 0.1 µF
0.2%
Test Voltage Between Terminals
The 100% screening factory test is carried out at 2,500 VDC. The voltage
level is selected to meet the requirements in applicable equipment
standards. All electrical characteristics are checked after the test. It is not
permitted to repeat this test as there is a risk to damage the capacitor.
KEMET is not liable in such case for any failures.
Minimum Values Between Terminals
C ≤ 0.33 µF
C > 0.33 µF
≥ 30,000 MΩ
≥ 10,000 MΩ • µF
Insulation Resistance
In DC Applications
Recommended voltage ≤ 1,000 VDC

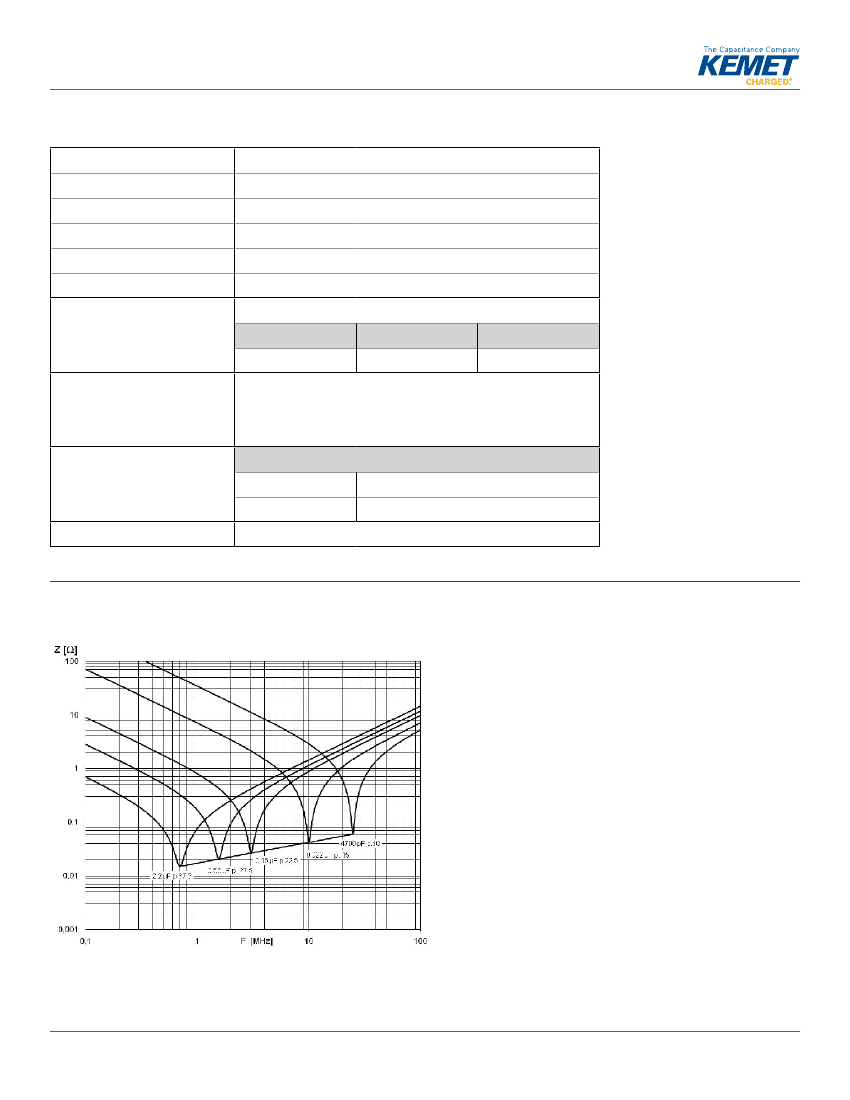

Impedance Graph
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3003_F872_X1_480 • 5/10/2012
5
