11FH-SM1-TB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 11FH-SM1-TB

11FH-SM1-TB: DescriptionCard Edge Connector, 11 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal; CategoryThe connector The connector; File Size110KB，2 Pages; ManufacturerJST

Download Datasheet Parametric View All

11FH-SM1-TB Overview

Card Edge Connector, 11 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal

11FH-SM1-TB Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	unknow
Other features	LOW PROFILE
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	TIN OVER COPPER
Contact completed and terminated	TIN OVER COPPER
Contact point gender	FEMALE
Contact material	COPPER ALLOY
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	11
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

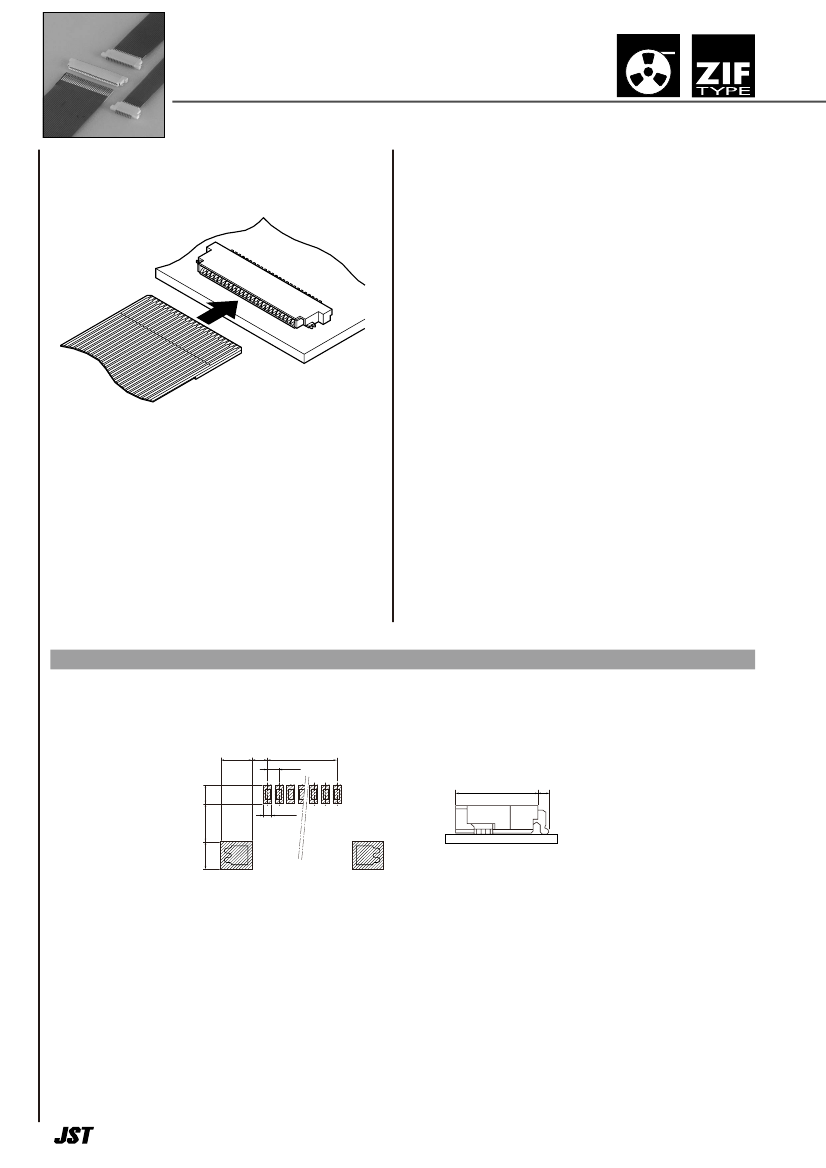

0.5mmピッチ

0.5mm pitch/Connectors for FPC

CONNECTOR

Emboss Tape

NON-

Specifications –––––––––––––––––––

• Current rating: 0.5A AC, DC

• Voltage rating: 50V AC, DC

• Temperature range: -25˚C to +85˚C

(including temperature rise in applying

electrical current)

• Contact resistance: Initial value/40m

Ω

max.

After environmental testing/20m

Ω

max.

(variation from initial value)

• Insulation resistance:

500M

Ω

min.

• Withstanding voltage: 200V AC/minute

• Applicable FPC: Conductor pitch/0.5mm

Conductor width/0.35mm

Mating part thickness/0.3±0.05mm

* Compliant with RoHS.

* Refer to "General Instruction and Notice when using

Terminals and Connectors" at the end of this catalog.

* Contact JST for details.

The large miniaturization at pitch direction

and depth direction and low profile as

1.2mm mounting height are realized. FH

connector is miniaturized and space

saving Non-ZIF type connector for FPC.

• Double-sided contact

• Applicable to standard FPC

Standards ––––––––––––––––––––––

Certified LR20812

Recognized E60389

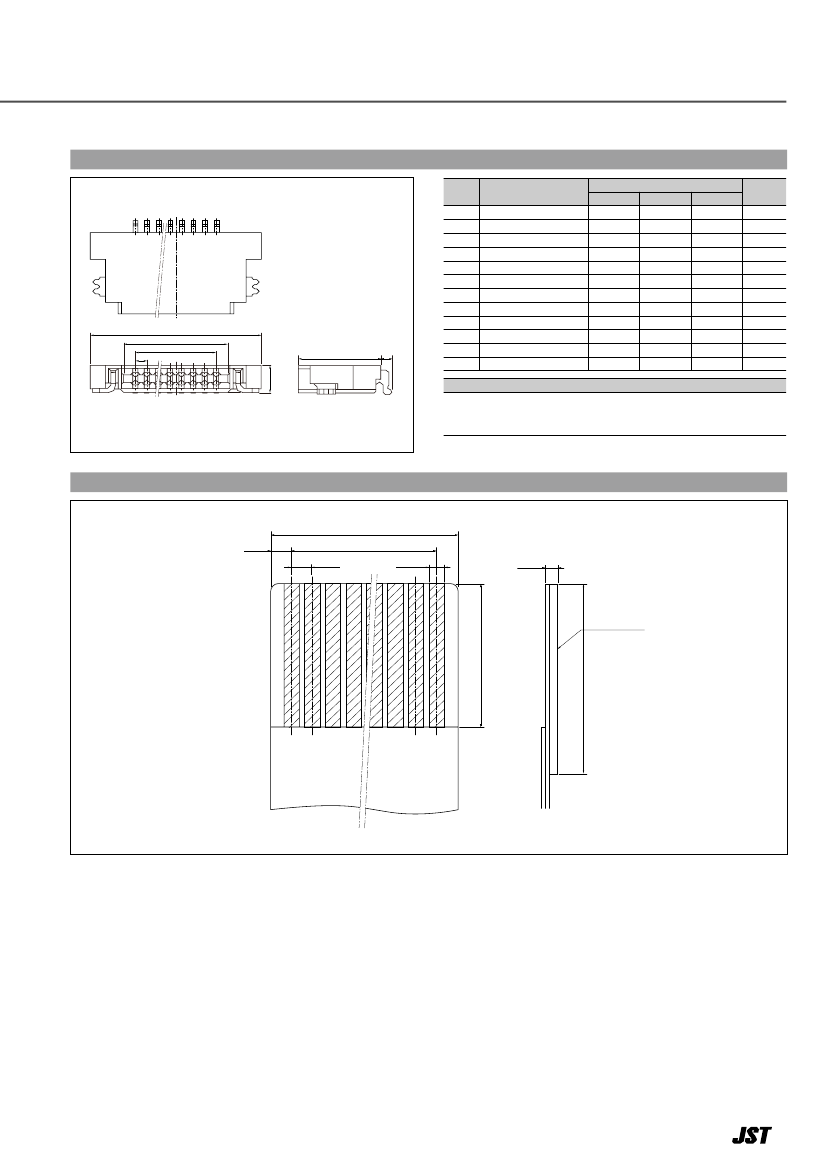

PC board layout (viewed from component side) and Assembly layout

1.35

±0.1

0.65

±0.1

0.5

0.8

±0.1

±0.08

±0.05

3.55

0.35

±0.05

0.5

Note: 1. Tolerances are non-cumulative:

0.08mm for all centers.

2. The dimensions above should serve as a guideline. Contact JST for details.

1.2

±0.1

1.65

±0.1
