09181169622.210 datasheet, PDF

09181169622.210: DescriptionBoard Connector, 16 Contact(s), 2 Row(s), Male, Straight, IDC/Solder Terminal; CategoryThe connector The connector; File Size60KB，1 Pages; ManufacturerHARTING

Download Datasheet Parametric Compare View All

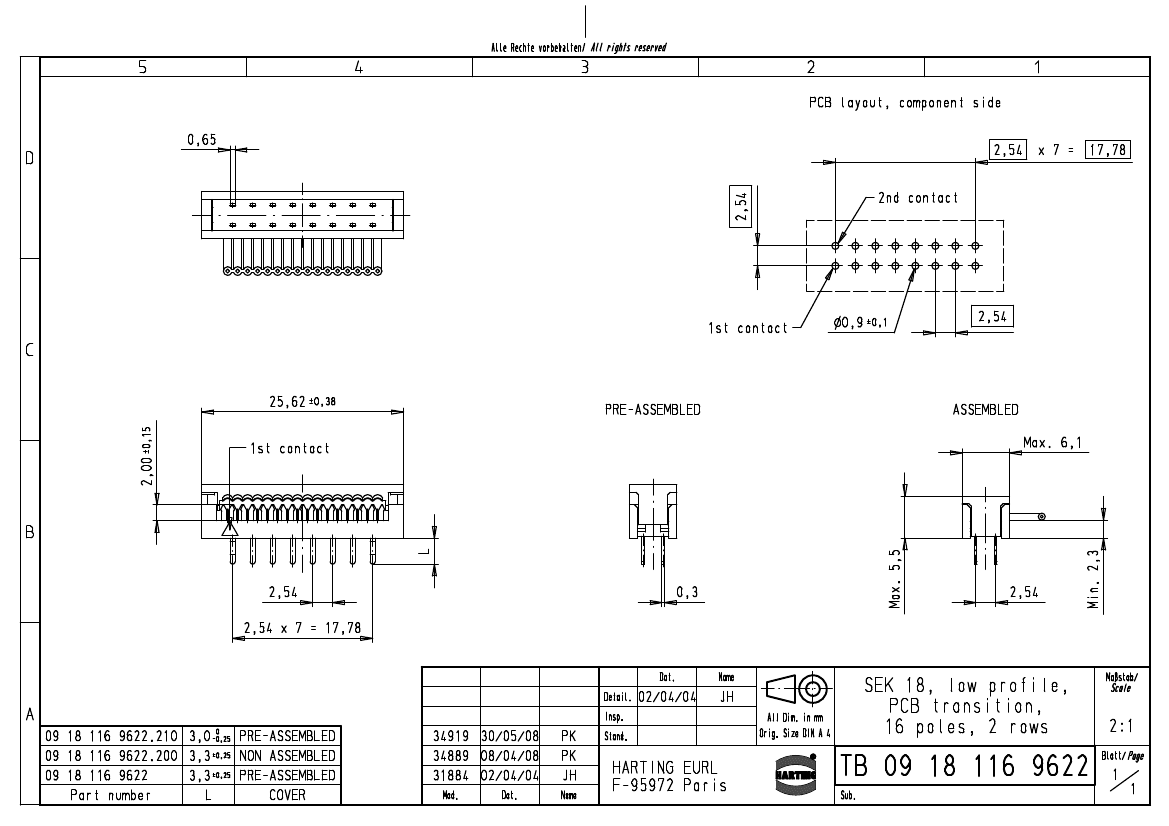

09181169622.210 Overview

Board Connector, 16 Contact(s), 2 Row(s), Male, Straight, IDC/Solder Terminal

Parameter Name	Attribute value
Maker	HARTING
Reach Compliance Code	compliant
Is Samacsys	N
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	09181169622
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD/CABLE
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	IDC/SOLDER
Total number of contacts	16
Base Number Matches	1

	09181169622.210	09181169622.200
Description	Board Connector, 16 Contact(s), 2 Row(s), Male, Straight, IDC/Solder Terminal	Board Connector, 16 Contact(s), 2 Row(s), Male, Straight, IDC/Solder Terminal
Maker	HARTING	HARTING
Reach Compliance Code	compliant	compliant
Is Samacsys	N	N
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
MIL compliance	NO	NO
Manufacturer's serial number	09181169622	09181169622
Mixed contacts	NO	NO
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD/CABLE	BOARD/CABLE
Number of rows loaded	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm
Termination type	IDC/SOLDER	IDC/SOLDER
Total number of contacts	16	16
Base Number Matches	1	1
