0284-0-15-15-16-80-10-0 datasheet, PDF

Datasheet> All Categories > The connector> terminals> 0284-0-15-15-16-80-10-0

0284-0-15-15-16-80-10-0: DescriptionPCB Terminal, ROHS COMPLIANT; CategoryThe connector terminals; File Size157KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

0284-0-15-15-16-80-10-0 Overview

PCB Terminal, ROHS COMPLIANT

0284-0-15-15-16-80-10-0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Manufacturer's serial number	0284
terminal gender	FEMALE
Terminal and terminal strip types	PCB TERMINAL
Base Number Matches	1

Preview

Download Datasheet

View All

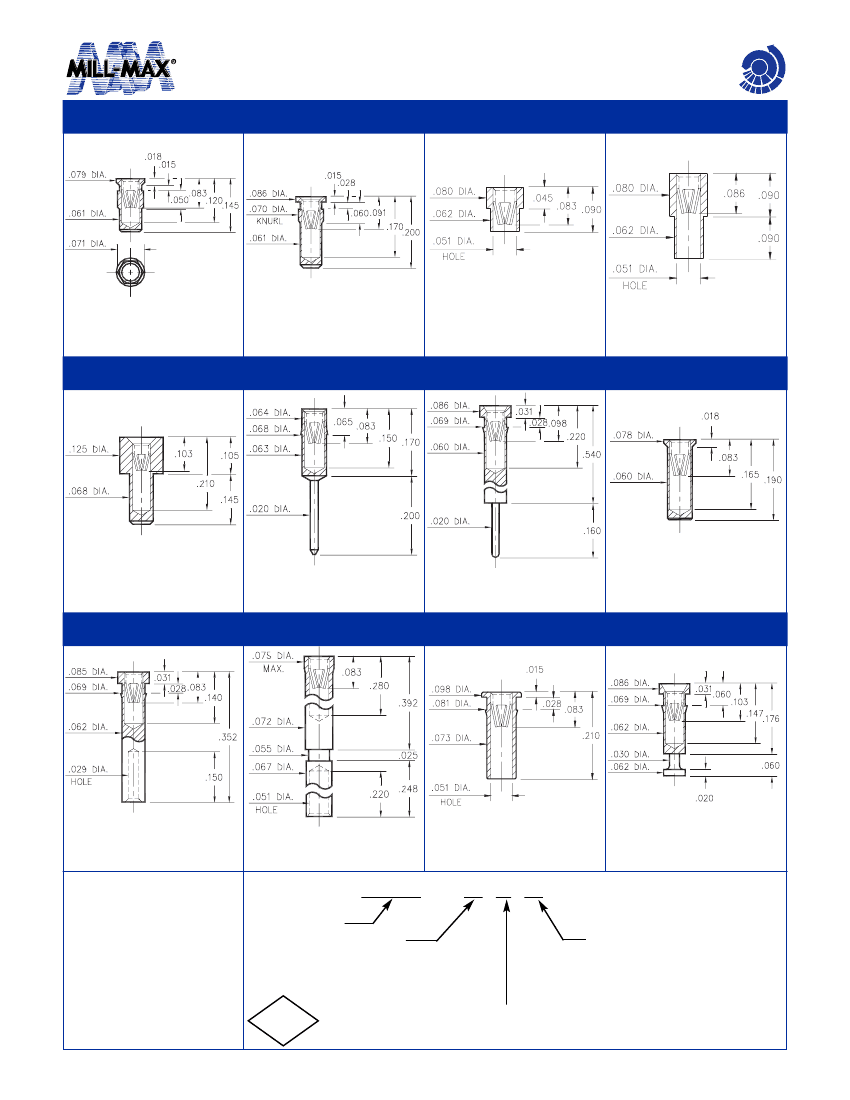

PIN RECEPTACLES

for .022” - .034” diameter pins

and .025” square pins

CHI

PINS

0291

0293

0287

0285

0287-0-15-XX-16-XX-10-0

0291-0-15-XX-16-XX-10-0

Hex press-fit in .067 plated

thru hole

0293-0-15-XX-16-XX-10-0

Press-fit in.067 mounting hole

Solder mount in .065 min. mounting hole

Also available on 8mm wide carrier

tape: 3,250 parts per 13” reel.

Order as: 0287-0-57-XX-16-XX-10-0

0285-0-15-XX-16-XX-10-0

Solder mount in .065 min.

mounting hole

0284

8114

0407

0415

0415-0-15-XX-16-XX-10-0

0284-0-15-XX-16-XX-10-0

Solder mount in .070 min.

mounting hole

8114-0-15-XX-16-XX-04-0

Press-fit from underside of pc board

into .065 mounting hole

0407-0-15-XX-16-XX-04-0

Press-fit in .066 mounting hole

Solder mount in .063 min. mounting hole

Also available on 24mm wide carrier

tape: 1,500 parts per 13” reel.

Order as: 0415-0-57-XX-16-XX-10-0

0303

0306

0273

7520

0303-0-19-XX-16-XX-10-0

Wire Termination

Press-fit in .067 mounting hole

0306-0-19-XX-16-XX-10-0

Wire Termination

#18 gage crimp barrel

0273-0-15-XX-16-XX-10-0

Press-fit in .078 mounting hole

7520-0-15-XX-16-XX-10-0

Press-fit in .066 mounting hole

SPECIFICATIONS

SHELL MATERIAL:

Brass Alloy 360, 1/2 Hard

CONTACT MATERIAL:

Beryllium Copper Alloy 172, HT

DIMENSION IN INCHES

TOLERANCES ON:

LENGTHS:

±.005

DIAMETERS: ±.002

ANGLES:

± 2°

ORDER CODE: XXXX - X - 1X - XX - 16 - XX - XX - 0

BASIC PART #

SPECIFY SHELL FINISH:

200μ” TIN/LEAD OVER NICKEL

200μ” TIN OVER NICKEL

10μ” GOLD OVER NICKEL

RoHS

SPECIFY CONTACT FINISH:

200μ” TIN/LEAD OVER NICKEL

200μ” TIN OVER NICKEL

30μ” GOLD OVER NICKEL

2002/95/EC

CONTACT

#16

CONTACT (DATA ON PAGE 221)

w w w. m i l l - m a x . c o m

146

516-922-6000
