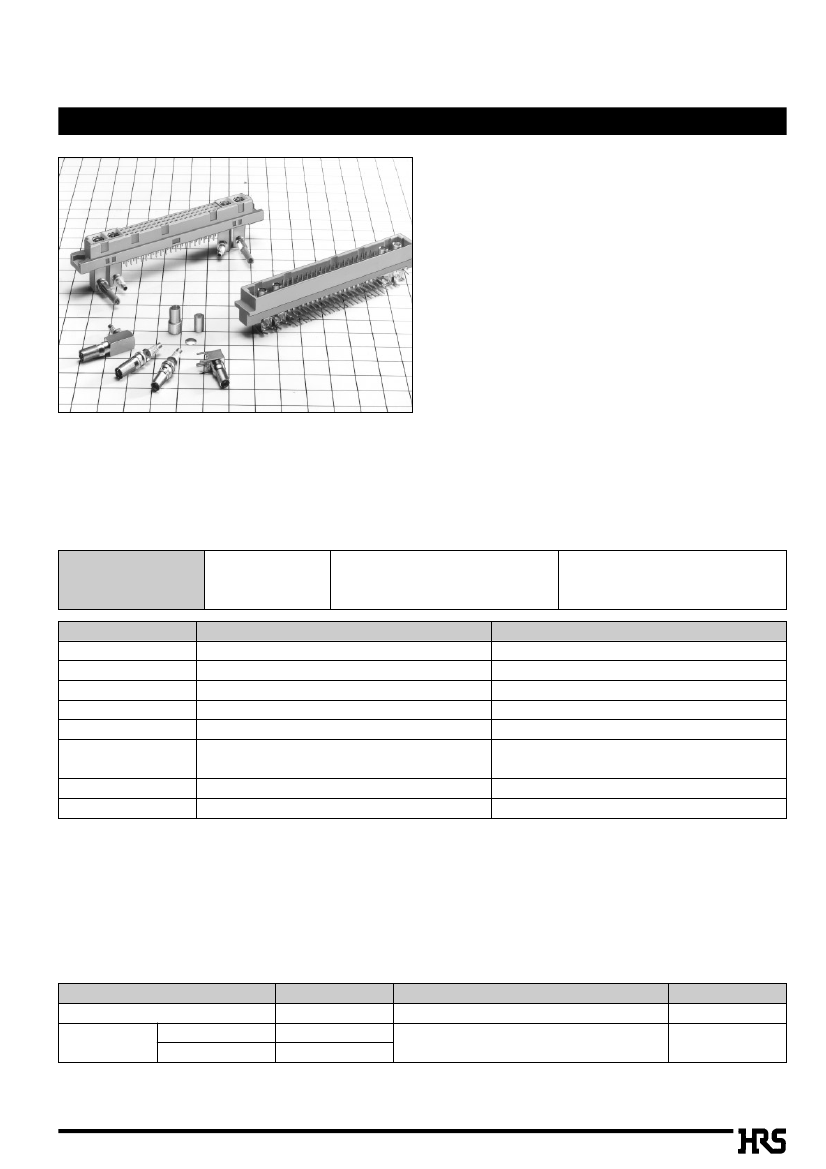

PCN10F Series (Product Compliant with DIN Standard: Coaxial and High Current Contact Composite Type)
sFeatures
1. Compliant with the DIN standard
The coaxial connector complies with DIN41612
standard.
2. Variation in number of contacts
Coaxial and high current contact insertion holes 2, 4,
6, and 8 contacts are available.
3. Reliable contact construction
PCN10F series is constructed with high reliable
double-sided 2 point contacts.
4. Broad applications
The receptacle is provided with solder type and
solderless connection type. The contact type is also
provided with straight, right angle and wrapping types.
The high current contact is provided with 10A and 20A
types.
5. High Conformity
High frequency characteristics are 1 GHz and
V.S.W.R1.2 maximum.
sProduct
Specifications
Rating
Current rating: 2A
Operating Temperature Range:
-30 to
+85ç
(Note 1)
Storage Temperature Range:
-10 to
+60ç
(Note 2)
Operating Humidity Range: 40
to
70%
(Note 2)
Voltage rating: 300V AC Operating Relative Humidity: 40
to
80%
Item
1.Insulation Resistance 10
6
M
ohms
Specification
100V DC
1000V AC/1 minute.
0.1A
Condition
2.Withstanding Voltage
No flashover or insulation breakdown.
3.Contact Resistance
4.Vibration
20m ohms max.
No electrical discontinuity of 10µs or more
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours in each of the 3 directions.
96 hours at temperature of 40ç and humidity of 90% to 95%
(-65ç : 30 minutes¡15 to 35ç: 5 minutes max.¡
125ç : 30 minutes¡15 to 35ç: 5 minutes max.) 5 cycles
500 cycles
5.Humidity(Steady
state)
Insulation resistance 10
6
M
ohms
min.
6.Temperature Cycle
No damage, cracks, or parts looseness.
7.Durability (Mating/un-mating) Contact resistance : 20m
ohms
max.
8.Resistance to Soldering heat
No deformation of components affecting performance. Manual soldering: 300ç for 3 seconds
Note 1: Includes temperature rise caused by current flow.
Note 2: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range and
Humidity range covers non conducting condition of installed connectors in storage, shipment or during transportation.
sApplications
Measurement instrument, control equipment, exchange, etc.
sMaterial
Parts
Insulator
Contact
Pin header
Receptacle
Material
PBT
Brass
Copper alloy
Finish
Gray
Contact area: Gold plated
Remainder: Tin-lead plated
Remarks
UL94V-0
________
A71
sOrdering
Information

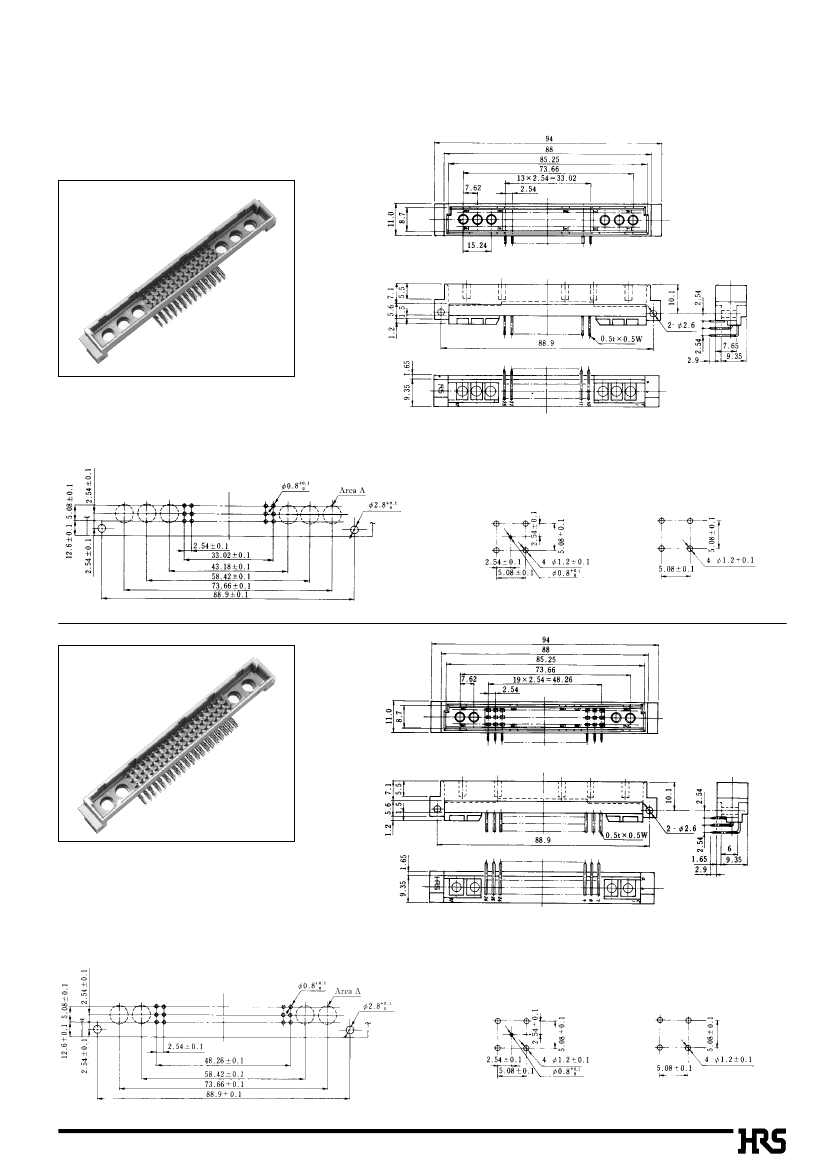

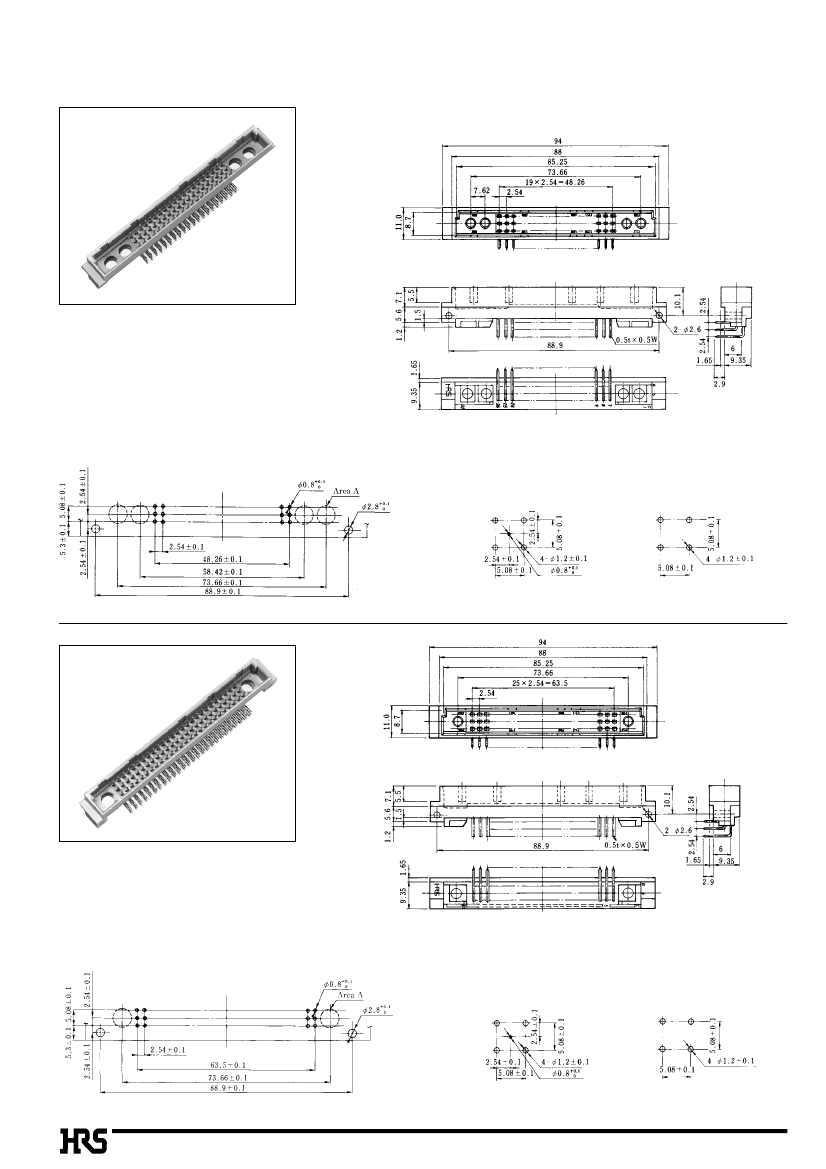

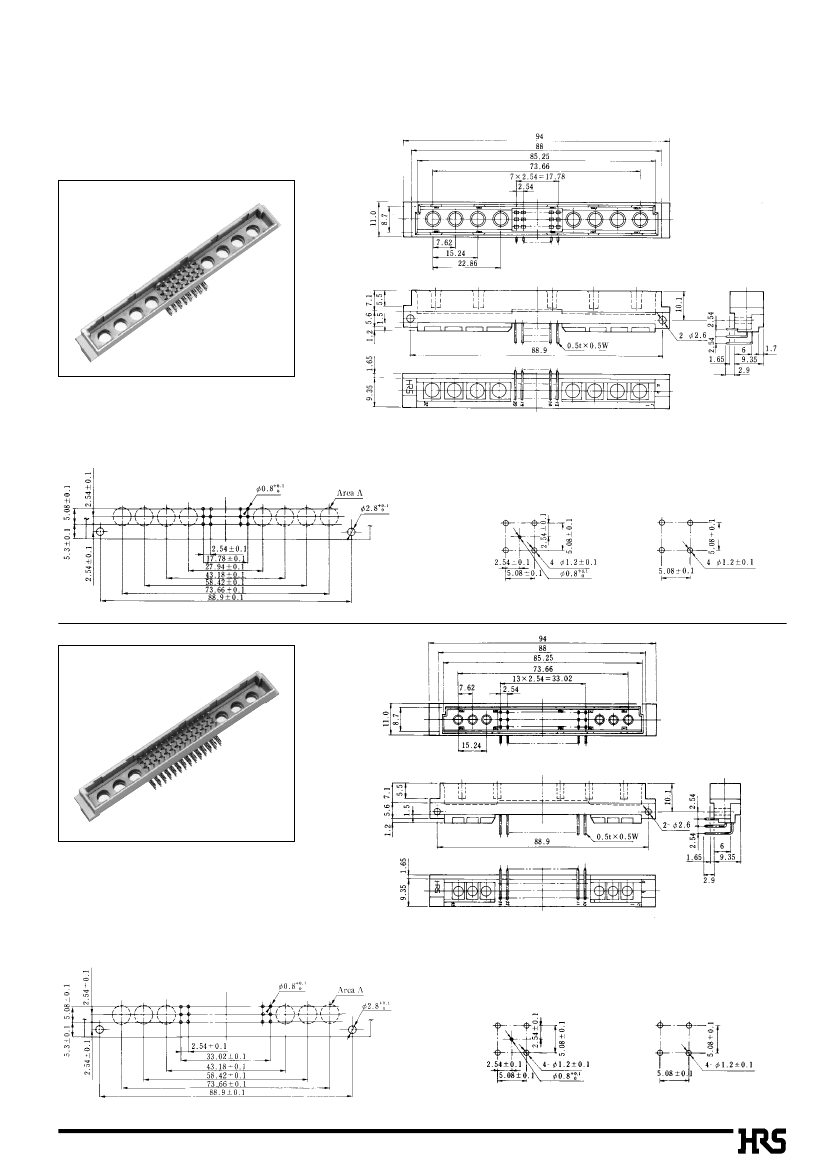

qPlug
PCN10F
q
q
Series name : PCN10F
w
Blank
A –
*
P – 2.54 DS
w
e
r
r
P
t
Contact pitch
y
Contact type
t
y
: Plug
: 2.54mm
: DS : Right angle type
: Board edge on mount type
: Board on mount type
A
e
Number of contacts : 24(8), 42(6), 60(4), 78(2)
Values in parentheses indicates the number of coaxial
connector and high current contact mounting holes.
qReceptacle
PCN 10F A –
*
S – 2.54 DSA
q
q
Series name : PCN
w
Series No.
w
e
r
t
y
u
r
Number of contacts : 24(8), 42(6), 60(4), 78(2)
: 10F (Soldering type)
11F (Solderless connection type)
Values in parentheses indicates the number of coaxial
connector and high current contact mounting holes.
t
S
y
Contact pitch
e
Contact type: Straight
: Receptacle
: 2.54mm
: right angle type
: Wrapping type (0.5tx0.7W)
: Wrapping type (0.5tx0.5W)
Blank
A
A
B
: Coaxial cable connection type
: Coaxial connector through hole type
u
Contact type
PCN10F
DS
WA
WB
PCN11F
: Board on mount type
: Board edge on mount type
DSA : Straight type
Contact type: Right angle
PFB-2 : Short press fit type
WB-2 : Wrapping press fit type
BDIN
Connector Mating Condition
Please be sure to utilize the DIN connector of Hirose within the range as shown below.
