8365-0-15-80-13-01-10-0 datasheet, PDF

Datasheet> All Categories > The connector> terminals> 8365-0-15-80-13-01-10-0

8365-0-15-80-13-01-10-0: DescriptionPCB Terminal; CategoryThe connector terminals; File Size89KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric Compare View All

8365-0-15-80-13-01-10-0 Overview

PCB Terminal

8365-0-15-80-13-01-10-0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Mill-Max
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Manufacturer's serial number	8365
terminal gender	FEMALE
Terminal and terminal strip types	PCB TERMINAL
Base Number Matches	1

Preview

Download Datasheet

View All

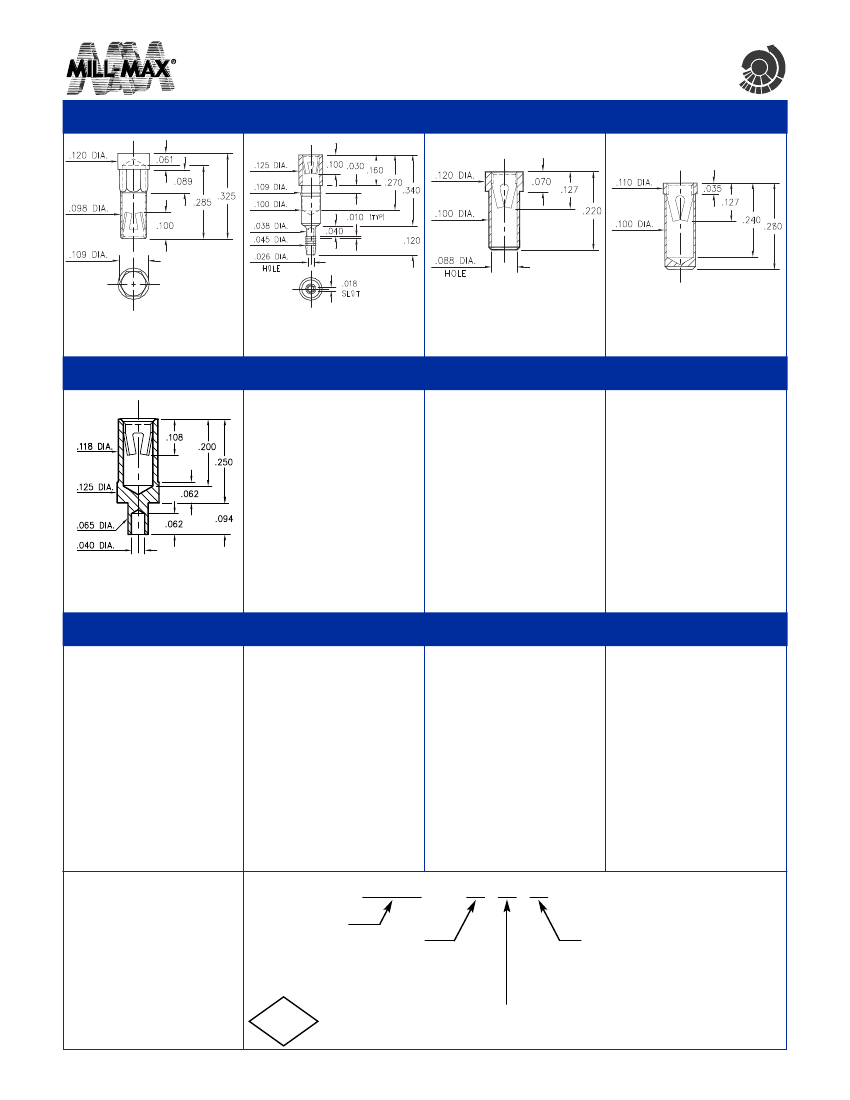

PIN RECEPTACLES

for .048” - .064” diameter pins (#13 contact)

for .045” - .065” diameter pins (#23 contact)

CHI

PINS

8365

8996

9064

9280

9064-0-15-XX-13-XX-10-0

8365-0-15-XX-13-XX-10-0

Hex-pressfit in .106 plated

thru hole.

8996-0-31-XX-13-XX-04-0

Compliant press-fit in .040±.003 plated

hole. For .060→.100 thick board.

Solder mount in .102 min. mounting hole

Also available on 16mm wide carrier

tape: 1,300 parts per 13” reel.

Order as: 9064-0-57-XX-13-XX-10-0

9280-0-15-XX-13-XX-10-0

Solder mount in .102 min.

mounting hole.

4900

4900-0-19-XX-23-XX-10-0

Swage mount in .067 hole

SPECIFICATIONS

SHELL MATERIAL:

Brass Alloy 360, 1/2 Hard

CONTACT MATERIAL:

Beryllium Copper Alloy 172, HT

DIMENSION IN INCHES

TOLERANCES ON:

LENGTHS:

±.005

DIAMETERS: ±.002

ANGLES:

± 2°

ORDER CODE: XXXX - X - XX - XX - XX - XX - XX - 0

BASIC PART #

SPECIFY SHELL FINISH:

200μ” TIN/LEAD OVER NICKEL



200μ” TIN OVER NICKEL (RoHS)



10μ” GOLD OVER NICKEL (RoHS)

2002/95/EC

SPECIFY CONTACT FINISH:

200μ” TIN/LEAD OVER NICKEL



200μ” TIN OVER NICKEL (RoHS)



30μ” GOLD OVER NICKEL (RoHS)

RoHS

SELECT CONTACT

#13 or #23

CONTACT (DATA ON PAGE 226)

w w w. m i l l - m a x . c o m

160



516-922-6000

8365-0-15-80-13-01-10-0 Related Products

	8365-0-15-80-13-01-10-0	8365-0-15-01-13-80-10-0	VJ1210Y332MXEAC68	9280-0-15-80-13-01-10-0	9064-0-15-80-13-01-10-0	PH4M25-231SBBCTB4/7.2/3-U	PH4M25-231SBBOTA4/7.2/3-U	4900-0-19-80-23-01-10-0
Description	PCB Terminal	PCB Terminal	CAPACITOR, CERAMIC, MULTILAYER, 500 V, X7R, 0.0033 uF, SURFACE MOUNT, 1210, CHIP, ROHS COMPLIANT	PCB Terminal	PCB Terminal	Board Connector, 62 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle	Board Connector, 62 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle	PCB Terminal
Is it Rohs certified?	incompatible	incompatible	conform to	incompatible	incompatible	conform to	conform to	incompatible
Reach Compliance Code	compliant	compli	compliant	compliant	compliant	unknown	unknown	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Manufacturer's serial number	8365	8365	VJ	9280	9064	PH4M	PH4M	4900
Is it lead-free?	Contains lead	Contains lead	Lead free	Contains lead	Contains lead	-	-	Contains lead
terminal gender	FEMALE	FEMALE	-	FEMALE	FEMALE	-	-	FEMALE
Terminal and terminal strip types	PCB TERMINAL	PCB TERMINAL	-	PCB TERMINAL	PCB TERMINAL	-	-	PCB TERMINAL
Base Number Matches	1	1	-	1	1	-	-	1
