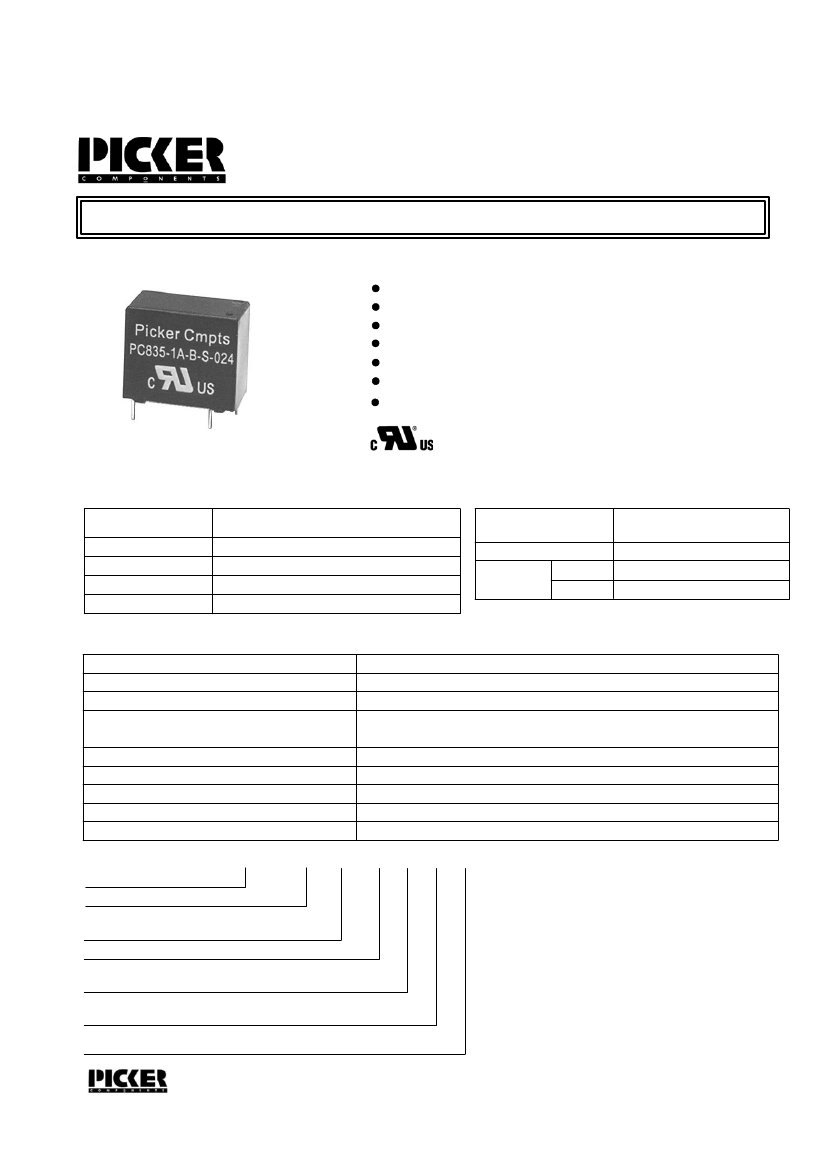

10 Amp Subminature PCB Power Relay
PC835
FEATURES
10 Amp continous contact capacity
1 Form A & 1 form C contact forms
Smallest 10 Amp relay
Class "B" insulation standard
Sensitive version available
3.5 Kv dielectric between coil and contacts
Sealed, immersion cleanable
File # E93379
UL/CSA RATINGS
Load Type
General Use
Resistive
TV
Motor
All Forms
All Contacts
10 Amps @ 125 VAC, 5 Amps @ 250 VAC @ 30 VDC
10 Amps @ 125 VAC, 5 Amps @ 250 VAC @ 30 VDC
5 Amps @ 125 VAC
1/4 HP @ 250 VAC
CONTACT DATA
Material
Initial Contact Resistance
Service Life
Mechanical
Electrical
AgCdO (Silver Cadmium Oxide)
AgSnOInO (Silver Tin Indium Oxide)
100 milliohms max @ 0.1A, 6VDC
1 X 10
7
Operations
1 X 10
5
Operations
Note: Sensitive relay (0.2 W) rated 3 Amps 250 VAC/30 VDC
CHARACTERISTICS
Operate Time
Release Time
Insulation Resistance
Dielectric Strength
Shock Resistance
Vibration Resistance
Power Consumption
Ambient Temperature Range
Weight
10 ms. Max.
4 ms. Max.
100 megohms min, at 500VDC, 50%RH
3500 Vrms, 1 min. between coil and contacts, 1 form A
2800 Vrms, 1 min. between coil and contacts, 1 form C
1000 Vrms, 1 min. between open contacts
10 g, 11ms, functional; 100 g, destructive
DA 1.5 mm, 10 - 55 Hz
.45W or .20W
-40 to 70 C operating for class B, -40 to 130 C storage
6 grams approx.
ORDERING INFORMATION
Example:
Model
Contact Form
1A, 1C
Coil Voltage
Enclosure
S: Sealed; C: Flux Free
Insulation System
Nil: Class B (125 degrees C), F: Class F (155 degrees C)
Coil Sensitivity
Nil: Standard .45 W, H: Sensitive .2 W
3220 Commander Drive, Suite 102, Carrollton, Texas 75006
Sales: Call Toll Free (888)997-3933 Fax (818) 342-5296 email: pickerwest@sbcglobal.net URL: pickercomponents.com
PC835 Rev B 4-5-04
PC835
-1C
-12
S
F
-H
PAGE 1
PC835
COIL DATA
Resistance ohms + 10%
Coil Voltage
3
5
6
9
12
18
24
48
20
56
80
180
320
720
1280
5100
0.45 W
Standard Coil
45
125
180
400
720
1620
2800
Not Available
0.20 W
Sensitive Coil
Must Operate
Voltage Max.
(VDC)
2.25
3.75
4.50
6.75
9.00
13.50
18.00
36.00
PC835
Must Release
Voltage Min.
(VDC)
0.15
0.25
0.30
0.45
0.60
0.90
1.20
2.40
Dimensions in Inches (millimeters)
1 FORM A
Side View
.717
(18.2)
1 FORM C
End View
.402
(10.2)
Side View
.717
(18.2)
End View
.402
(10.2)
.587
(14.9)
.587
(14.9)
.150
(3.8)
.150
(3.8)
Bottom View
PC Board Layout
.50
(12.7)
.30
(7.62)
.60
(15.24)
1 FORM A
Wiring Diagram
.051 Dia. Typ.
(1.3)
Bottom View
PC Board Layout
.50
(12.7)
.30
(7.62)
.60
(15.24)
.159
(4.04)
Wiring Diagram
.051 Dia. Typ.
(1.3)
1 FORM A
1 FORM C
1 FORM C
Notes:
Tolerances + .010 unless otherwise noted
3220 Commander Drive, Suite 102, Carrollton, Texas 75006
Sales: Call Toll Free (888) 997-3933 Fax (818) 342-5296 email: pickerwest@sbcglobal.net URL: pickercomponents.com
PAGE 2
