DRAWING REVISIONS
(RELEASE DATE ON FILE)
REV
A
D
DOCUMENT
INITIAL RELEASE
APP
JDS
APPROVAL
DATE
09/14/09
D
"L"
PAD 19
PAD 20
18.3500
PAD 38
PAD 01
PAD 01
PAD 38
86.3000
LABEL INCLUDES CINCH: PART NUMBER. DESCRIPTION,
DATE CODE, RoHS COMPLIANT AND COUNTRY OF ORIGIN
PAD 20
PAD 19
52.8000
C
C
8.5000
NOTES:
CABLE SPECIFICATIONS:
TWINAX: FULLY SHIELDED DIFFERENTIAL PAIRS; UL STYLE CL2
OR CM. CHARACTERISTIC IMPEDANCE: 100. +/- 10 OHMS.
DC BLOCKING CAPS (0.1uF) ON Rx ONLY.
EEPROM PROGRAMMED per SFF8436
2
I C MODULE SELECT BUFFER INCLUDED.
PLUG MATERIAL:
PADS - GOLD PLATED OVER NICKEL OVER COPPER BASE MATERIAL.
SHELL - ZINC DIE CAST; NICKEL PLATED OVER COPPER PLATING.
LATCH MECHANISM - ZINC DIE CAST; NICKEL PLATED OVER COPPER PLATING.
PAD 38
(TOP)
PAD 01
(BOTTOM)
SCALE 2:1
PAD 19
(BOTTOM)
MECHANICAL PERFORMANCE:
LATCH RENTENTION FORCE - 90 N (20.2 LBS) MIN
DURABILITY - 50 CYCLES
ENVIROMENT:
OPERATING TEMPERATURE RANGE: -20°C to 75°C.
PERFORMANCE:
TM
DIRECT ATTACH CABLE ASSEMBLY MEETS InfiniBand REQUIREMENTS FOR
HIGH SPEED DATA TRANSFERS AND SFF 8436.
DIMENSIONS: MILLIMETERS [INCHES]
UNITS
B
B
PAD 20
(TOP)
ASSEMBLY PART NUMBER
24 GAGE CABLE LENGTH "L"
TOLERANCE
IBTA INTEGRATORS
LIST
DDR, QDR
DDR, QDR
DDR, QDR
DDR, QDR
DDR, QDR
RoHS COMPLIANT
PRO/E
DATE
TITLE
MODELED BY:
JDS
717 04 00 003
A
717 04 00 004
717 04 00 005
717 04 00 006
717 04 00 007
717 04 00 008
717 04 00 009
8
3.0 METERS LONG
4.0 METERS LONG
5.0 METERS LONG
6.0 METERS LONG
7.0 METERS LONG
8.0 METERS LONG
10.0 METERS LONG
7
± 50.0mm OF "L"
± 80.0mm OF "L"
± 80.0mm OF "L"
± 80.0mm OF "L"
± 80.0mm OF "L"
± 80.0mm OF "L"
±120.0mm OF "L"
6
METRIC
DESIGN ENGINEER
UNLESS OTHERWISE SPECIFIED:
ALL DIMENSIONS ARE IN mm
FILLET/RADII
0.50 MAX.
TOLERANCES
.X ± 0.3
.XX ± 0.13
.XXX ± 0.025
ANGULAR ± 0.5 °
1700 FINLEY RD
LOMBARD, IL. 60148
DO NOT SCALE DRAWING
JD SCRUGGS
07/01/09
MATERIAL
MATERIAL SPEC NUMBER

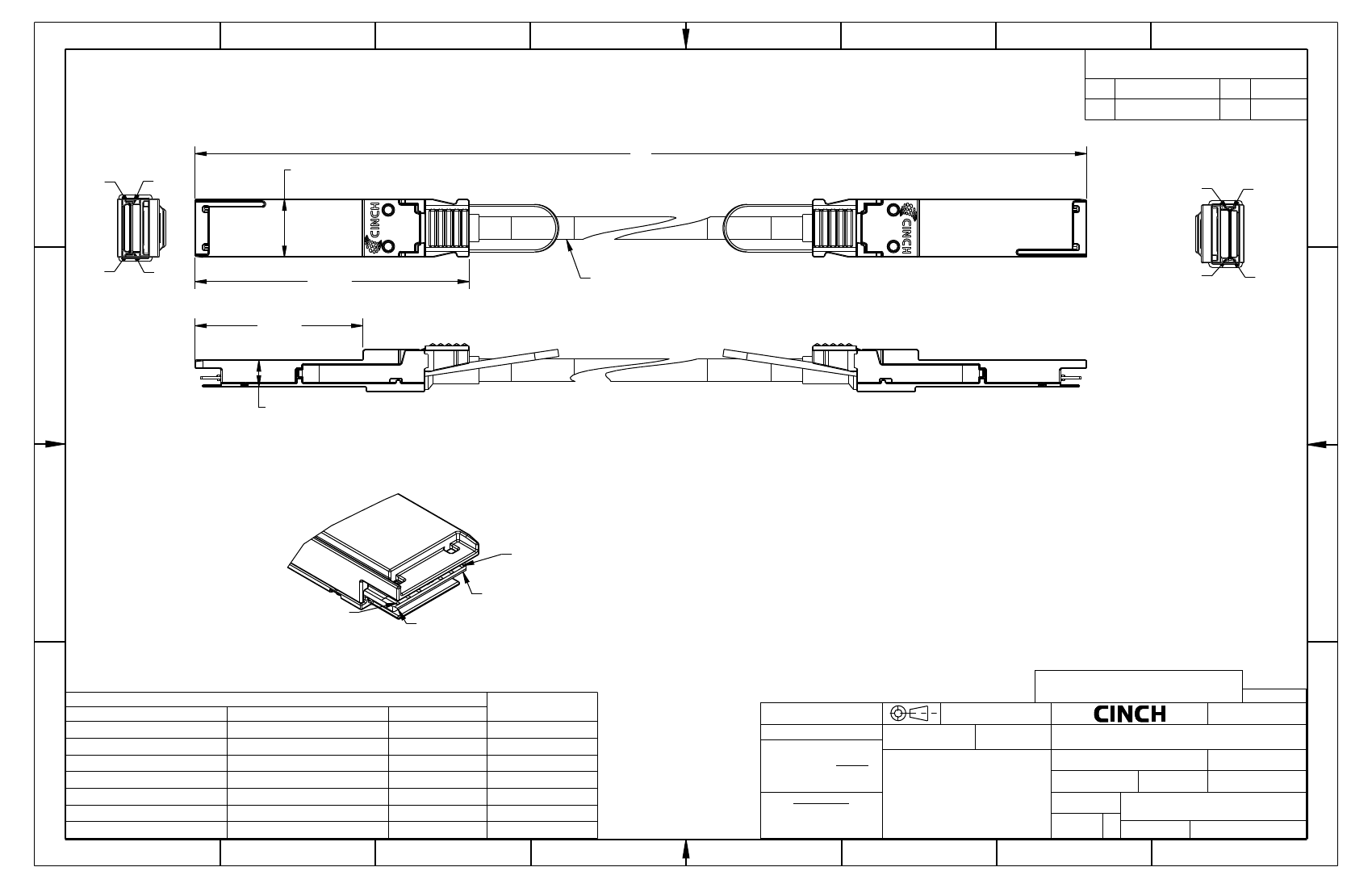

QSFP CABLE ASSEMBLY
24 GAGE PASSIVE PCB
CONTROL SPEC NUMBER
FINISH
PROJECT NUMBER
A
THIS DOCUMENT IS THE PROPERTY OF CINCH.
NEITHER THIS DOCUMENT NOR ANY OF
THE INFORMATION CONTAINED IN IT MAY
BE DUPLICATED OR DISCLOSED WITHOUT
PRIOR WRITTEN CONSENT OF CINCH.
©COPYRIGHT CINCH
CONFIDENTIAL
APPROVALS
ON FILE
CAD FILE NUMBER
DRAWING NUMBER
CAGE IDENT NO. SIZE
71785
3
2
B
SCALE
7170400000S
SHEET 1 OF 1
