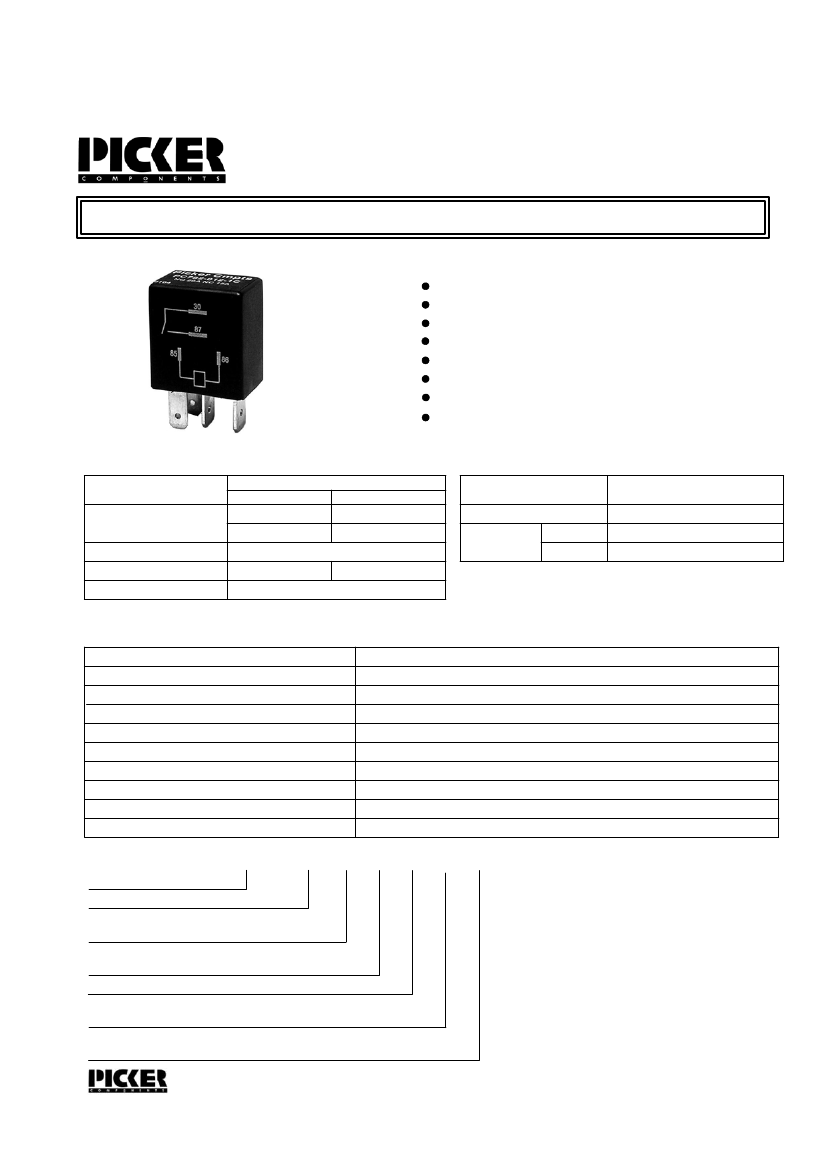

Micro Automotive Plug In / PCB Power Relay
PC782
FEATURES
Micro size plug-in design
1 A, 1 B and 1 C contact forms available
Contact switching capacity up to 90 Amps
30 Amps continuous carrying capacity
Up to 125 degrees C operating temperature
PC Board version available
Sockets available from Picker Components
Internal Diode or Resistor available
CONTACT RATINGS
Contact Form
Max Switching Current
Max. Switching Voltage
Max. Continuous Current
Minimum Load
1 Form A, 1 Form B or 1 Form C
Normally Open
Normally Closed
Make 90 Amps
Break 30 Amps
Make 20 Amps
Break 15 Amps
CONTACT DATA
Material
Initial Contact Resistance
Service Life
Mechanical
Electrical
AgNiO 15 (Silver Nickel Oxide 15%)
AgSnOInO (Silver Tin Oxide Indium Oxide)
100 milliohms max @ 0.1A, 6VDC
1 X 10 Operations
2 X 10
5
Operations
7
Current Dependent, see curve page 2
30 Amps
0.1 A @ 12 VDC
20 Amps
CHARACTERISTICS
Operate Time
Release Time
Insulation Resistance
Dielectric Strength
Shock Resistance
Vibration Resistance
Drop Resistance
Power Consumption
Ambient Temperature Range
Weight
9 ms. typical
7 ms. typical
100 megohms min, at 500VDC, 50%RH
500 Vrms, 1 min. between coil and contacts
20 g, 11ms, functional; 200 g, destructive
DA 1.27 mm, 10 - 40 Hz; 40-70 Hz: 5 g; DA 0.5mm, 70-100 Hz; 100-500 Hz: 10 g.
1 Meter height drop on concrete
1.6 W approx.
-40 to 125 degrees C operating, -40 to 155 storage
Plug-In: 14 grams; PCB: 12 grams approx.
ORDERING INFORMATION
Example:
Model
Contact Form
1A, 1B or 1C
Mounting Version
Nil: Plug-IN; P: PCB
Coil Voltage
Enclosure
C: Dust Cover, S: Sealed Case
Parallel Component
Nil: None; D: Diode; R: Resistor
3220 Commander Drive, Suite 102, Carrollton, Texas 75006
Sales: Call Toll Free (888)997-3933 Fax (818) 342-5296 email: pickerwest@sbcglobal.net URL: pickercomponents.com
PC782 Rev B 4-13-04
PC782
-1C
-P
-12
S
-R
PAGE 1
PC782
COIL DATA
Resistance ohms + 10%
Coil Voltage
6
12
24
1 Form A & B
32
123
483
1 Form C
25
97
384
Nominal Operate
Voltage Max.
1 Form A, B & C
3.6
7.2
14.3
Allowable Voltage Max.
1 Form A & B
10.4
20.4
40.4
1 Form C
9.2
18.1
36.0
PC782
Nominal Release
Voltage Min.
A, C, U, W
0.6
1.2
2.4
Dimensions in Inches (millimeters)
Plug-In Type
.032 Typ.
(0.8)
.610
(15.5)
.250
(6.3)
Terms. 30 & 87
.098
(2.5)
Terms. 30 & 87
PCB Type
1.02
(26.0)
30
.453
(11.5)
.224
(5.7)
.098
(2.5)
30
.315
(8.0)
.275
(7.0)
.453
(11.5)
.315
(8.0)
.236
(6.0)
.906
(23.0)
87
85 87a 86
87
85 87a 86
.472
(12.0)
.189
(4.8)
Terms. 85, 86 & 87a
.177
(4.5)
.177
(4.5)
.087
(2.2)
Terms. 85, 86 & 87a
.177
(4.5)
.177
(4.5)
Bottom View
PC Board Layout
87a
30
87
85
(+)
86
(-)
Wiring Diagram
Notes:
Contact Form C shown
On Contact Forms A & B Unused Pins are Omitted
Tolerances + .010 unless otherwise noted
Maximum make current refers to inrush of a lamp load
Make current of 120 Amps permissable with AgSnOInO contacts
In 85 degree C ambient reduce maximum coil voltage to 72%
3220 Commander Drive, Suite 102, Carrollton, Texas 75006
Sales: Call Toll Free (888) 997-3933 Fax (818) 342-5296 email: pickerwest@sbcglobal.net URL: pickercomponents.com
PAGE 2
