PC4592A-12CG: DescriptionDPDT Miniature PCB Power Relay; File Size169KB，2 Pages; ManufacturerPicker Components; Websitehttp://www.pickercomponents.com/

Download Datasheet Compare View All

PC4592A-12CG Overview

DPDT Miniature PCB Power Relay

Preview

Download Datasheet

View All

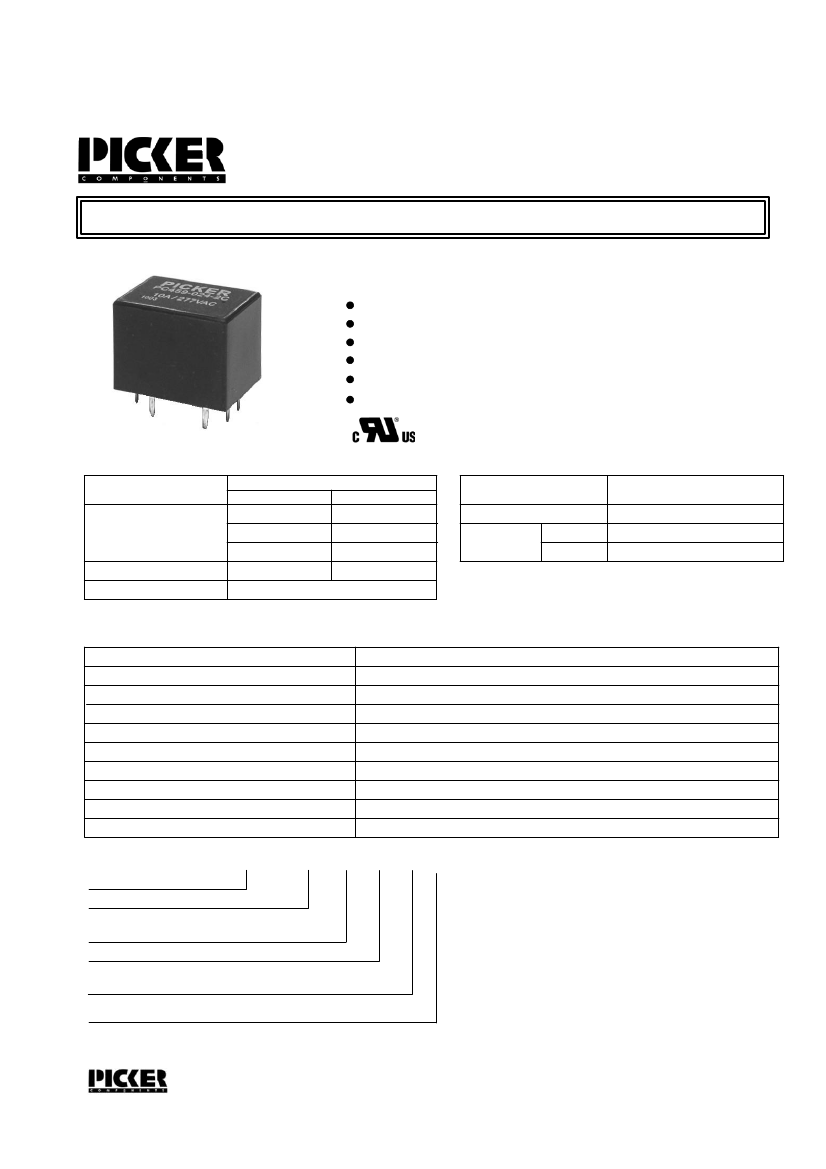

DPDT Miniature PCB Power Relay

PC459

FEATURES

Lowest cost DPDT relay

2A, 2B and 2C contact forms available

5 and 8 amp versions available

Sealed, immersion cleanable

Class B(125 degrees C) insulation standard

Class F(155 degrees C) insulation available

File # E86876

CONTACT RATINGS

Contact Form

All Contact Forms

.5 Watt Coil

.6 Watt Coil

3 amps @ 277 VAC

Max Switching Current

5 amps @ 125 VAC

3 amps @ 30VDC

Max. Switching Voltage

Minimum Load

30 VDC

5 amps @ 277 VAC

8 amps @ 125 VAC

5 amps @ 30VDC

30 VDC

CONTACT DATA

Material

Initial Contact Resistance

Service Life

Mechanical

Electrical

AgCdO (silver cadmium oxide)

AgSnO (silver tin oxide)

100 milliohms max @ 0.1A, 6VDC

1 X 10 Operations

1 X 10

Operations

0.05 Amps @ 5 VDC (gold clad)

CHARACTERISTICS

Operate Time

Release Time

Insulation Resistance

Dielectric Strength

Shock Resistance

Vibration Resistance

Drop Resistance

Power Consumption

Ambient Temperature Range

Weight

5 ms. typical

4 ms. typical

100 megohms min, at 500VDC, 50%RH

1000 Vrms, 1 min. between coil and contacts

30 g, 6 ms, functional; 100 g, destructive

6g, 10 - 500 Hz

1 Meter height drop on concrete

0.5 W or .6 W

-40 to 105 degrees C operating, -40 to 125 storage

12 grams approx.

ORDERING INFORMATION

Example:

Model

Contact Form

2A, 2B, or 2C

Coil Voltage

Enclosure

S: Sealed, C: Dust Cover

Options

G: Gold Clad

PC459

-2C

-12

3220 Commander Drive, Suite 102, Carrollton, Texas 75006

Sales: Call Toll Free (888)997-3933 Fax (818) 342-5296 email: pickerwest@sbcglobal.net URL: pickercomponents.com

PC459 Rev C 4-5-04

PAGE 1
