0147-0-15-80-30-02-04-0 datasheet, PDF

Datasheet> All Categories > The connector> terminals> 0147-0-15-80-30-02-04-0

0147-0-15-80-30-02-04-0: DescriptionPCB Terminal; CategoryThe connector terminals; File Size106KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

0147-0-15-80-30-02-04-0 Overview

PCB Terminal

0147-0-15-80-30-02-04-0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Mill-Max
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Manufacturer's serial number	0147-0
terminal gender	FEMALE
Terminal and terminal strip types	PCB TERMINAL
Base Number Matches	1

Preview

Download Datasheet

View All

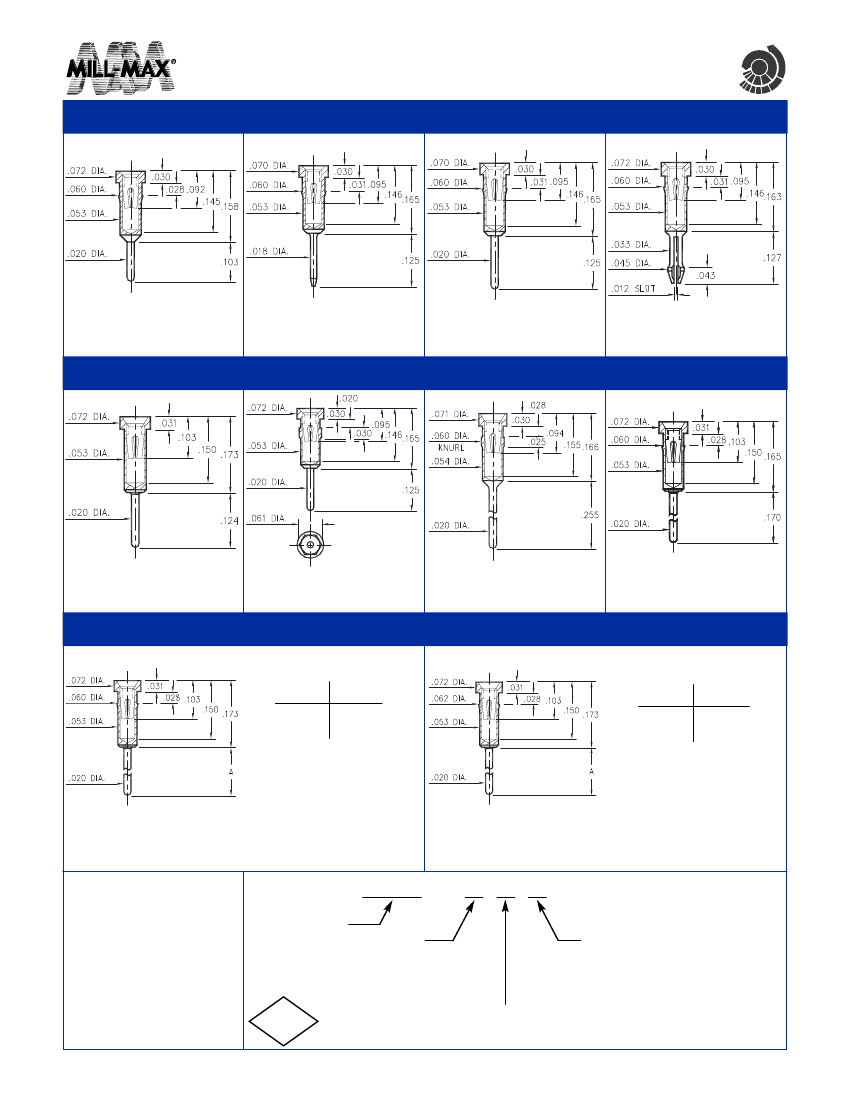

PIN RECEPTACLES

for .015” - .025” diameter pins

CHI

PINS

4011

1801

1001

0156

4011-0-15-XX-30-XX-04-0

Press-fit in .057 mounting hole

1801-0-15-XX-30-XX-04-0

Press-fit in .057 mounting hole

Shell is Ph. Br. Alloy 544 (B2)

1001-0-15-XX-3X-XX-04-0

Press-fit in .057 mounting hole

0156-0-18-XX-30-XX-04-0

Self-retention socket pin .038-.043

hole prior to soldering

0255

1109

3013

0134

0255-0-15-XX-30-XX-04-0

Solder mount in .022 min.

mounting hole

1109-0-15-XX-30-XX-04-0

Hex press-fit in .057

plated thru hole

3013-0-15-XX-32-XX-04-0

Press-fit in .057 mounting hole

0134-0-15-XX-3X-XX-04-0

Press-fit in .057 mounting hole

0132/0135

Basic Part

Number

Length

0133/0147

Basic Part

Number

Length

0132-0

0135-0

.273

.183

0133-0

0147-0

.382

.563

013X-0-15-XX-30-XX-04-0

Press-fit in .057 mounting hole

01XX-0-15-XX-30-XX-04-0

Press-fit in .059 mounting hole

SPECIFICATIONS

SHELL MATERIAL:

Brass Alloy 360, 1/2 Hard

CONTACT MATERIAL:

Beryllium Copper Alloy 172, HT

DIMENSION IN INCHES

TOLERANCES ON:

LENGTHS:

±.005

DIAMETERS: ±.002

ANGLES:

± 2°

ORDER CODE: XXXX - X - 1X - XX - XX - XX - 04 - 0

BASIC PART #

SPECIFY SHELL FINISH:

200μ” TIN/LEAD OVER NICKEL



200μ” TIN OVER NICKEL (RoHS)



10μ” GOLD OVER NICKEL (RoHS)

2002/95/EC

SPECIFY CONTACT FINISH:

100μ” TIN/LEAD OVER NICKEL



100μ” TIN OVER NICKEL (RoHS)



30μ” GOLD OVER NICKEL (RoHS)

RoHS

SELECT CONTACT

#30 or #32

CONTACT (DATA ON PAGE 219)

w w w. m i l l - m a x . c o m

136



516-922-6000
