0339-0-15-01-15-14-10-0: DescriptionPCB Terminal; CategoryThe connector terminals; File Size71KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric Compare View All

0339-0-15-01-15-14-10-0 Overview

PCB Terminal

0339-0-15-01-15-14-10-0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Mill-Max
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Manufacturer's serial number	0339
terminal gender	FEMALE
Terminal and terminal strip types	PCB TERMINAL
Base Number Matches	1

Preview

Download Datasheet

View All

PR

E

CI

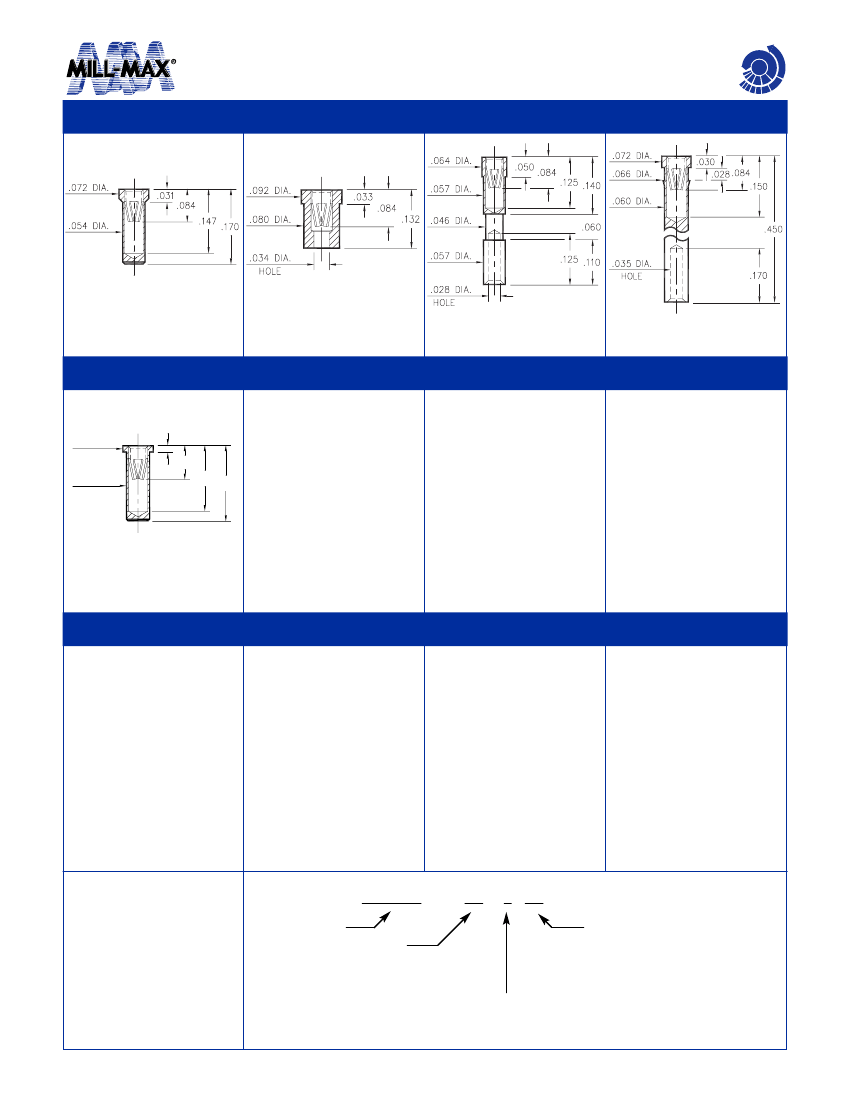

PIN RECEPTACLES

for .020” - .032” diameter pins

M

ON

S

I

CHI

A

PINS

NE

D

0338

0378

6002

7009

0338-0-15-XX-15-XX-10-0

Solder mount in .057 min.

mounting hole

0378-0-15-XX-15-XX-10-0

Solder mount in .082 min.

mounting hole

6002-0-19-XX-15-XX-10-0

Solder mount in .059 min.

mounting hole

7009-0-19-XX-15-XX-10-0

Press-fit in .063 mounting hole

0339

0339-0-15-XX-15-XX-10-0

Solder mount in .057 min.

mounting hole

SPECIFICATIONS

SHELL MATERIAL:

Brass Alloy 360, 1/2 Hard

CONTACT MATERIAL:

Beryllium Copper Alloy 172, HT

DIMENSION IN INCHES

TOLERANCES ON:

LENGTHS:

±.005

DIAMETERS: ±.002

ANGLES:

± 2°

ORDER CODE: XXXX - X - 1X - XX - 15 - XX - 10 - 0

BASIC PART #

SPECIFY SHELL FINISH:

01

200µ"

TIN/LEAD OVER

NICKEL

15

10µ"

GOLD OVER

NICKEL

CONTACT

#15

CONTACT (DATA ON PAGE 209)

SPECIFY CONTACT FINISH:

01

200µ"

TIN/LEAD OVER

NICKEL

14

10µ"

GOLD OVER

NICKEL

27

30µ"

GOLD OVER

NICKEL

w w w. m i l l - m a x . c o m

141

516-922-6000
