01-651-102-76 Overview

Single Color LED, Red, T-4, 10mm,

01-651-102-76 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Marl International
Reach Compliance Code	compliant
Is Samacsys	N
color	RED
Configuration	SINGLE
JESD-609 code	e4
Installation features	PANEL MOUNT
Number of functions	1
Number of terminals	2
Optoelectronic device types	SINGLE COLOR LED
total height	12 mm
method of packing	BULK
shape	ROUND
size	10 mm
surface mount	NO
T code	T-4
Terminal surface	Silver (Ag)
Base Number Matches	1

Preview

Download Datasheet

View All

PROFESSIONAL LED INDICATORS Ø12.7mm Mounting

FEATURES

Black anodised aluminium housing

651 SERIES

PACK QUANTITY = 10 PIECES

Excellent wide viewing angle characteristics

Sealed to IP67

Suitable for high vibration applications

Internal reverse protection diode fitted as standard in all

voltage models

SPECIFICATION

Ordering Information & Typical T

echnical Characteristics (T

a = 25°C)

Mean Time Between Failure = 100,000 Hours.

PART NUMBER

COLOUR

Luminous intensity figures refer to the unmodified discrete LED.

VOLTAGE

CURRENT

LUMINOUS

WAVE

OPERATING

STORAGE

LENS

DC (Vdc)

Vopr

DC (mA)

lopr

INTENSITY

lv@20mA (mcd)

LENGTH

λp

(nm)

TEMP

opr

TEMP

stg

STANDARD INTENSITY

01-651-105-21

01-651-114-21

Red

Green

Colour Diffused

100

627

565

-40 ~ +85^

-40 ~ +85

Yes

HIGH INTENSITY

01-651-102-21

UNITS

Red

Colour Diffused

Vdc

450

mcd

660

-40 ~ +85^

°C

-40 ~ +85

°C

Yes

Other voltages AC/DC available. Please contact our Technical Sales.

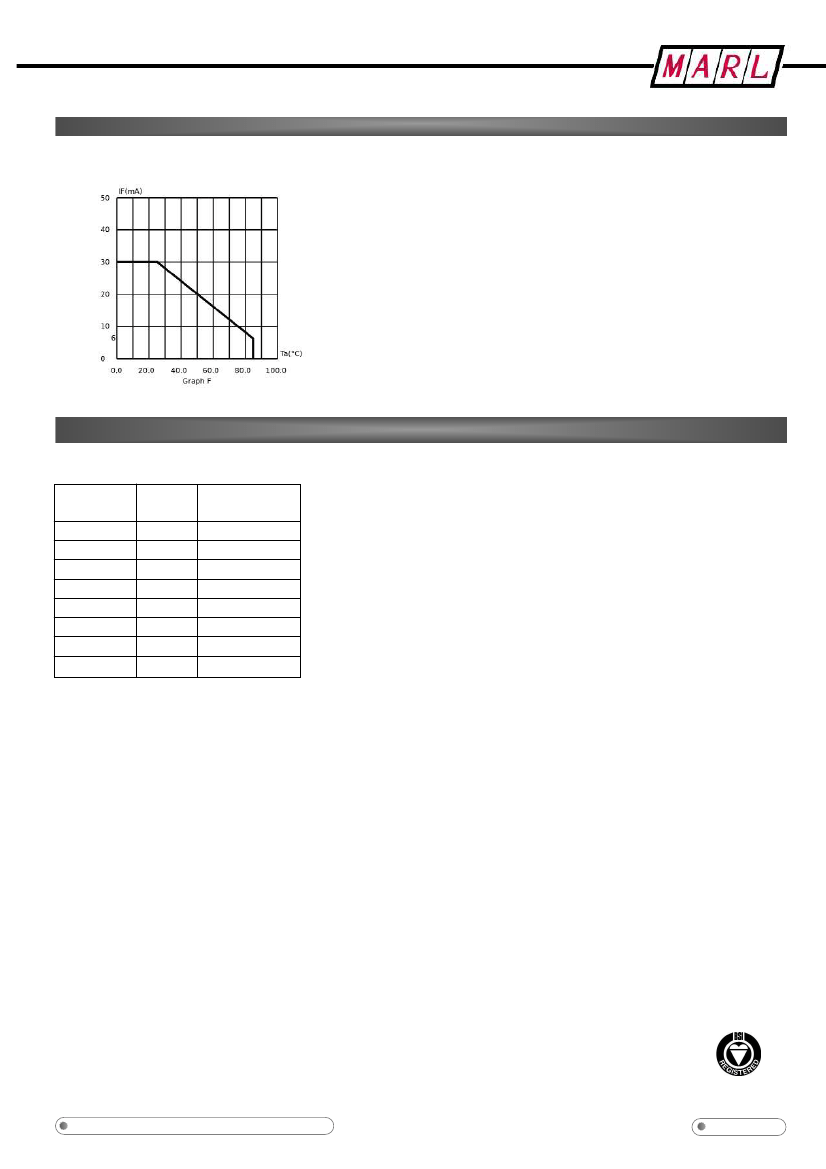

^ = Products must be derated according to the derating information - Refer to the diagram on page 3.

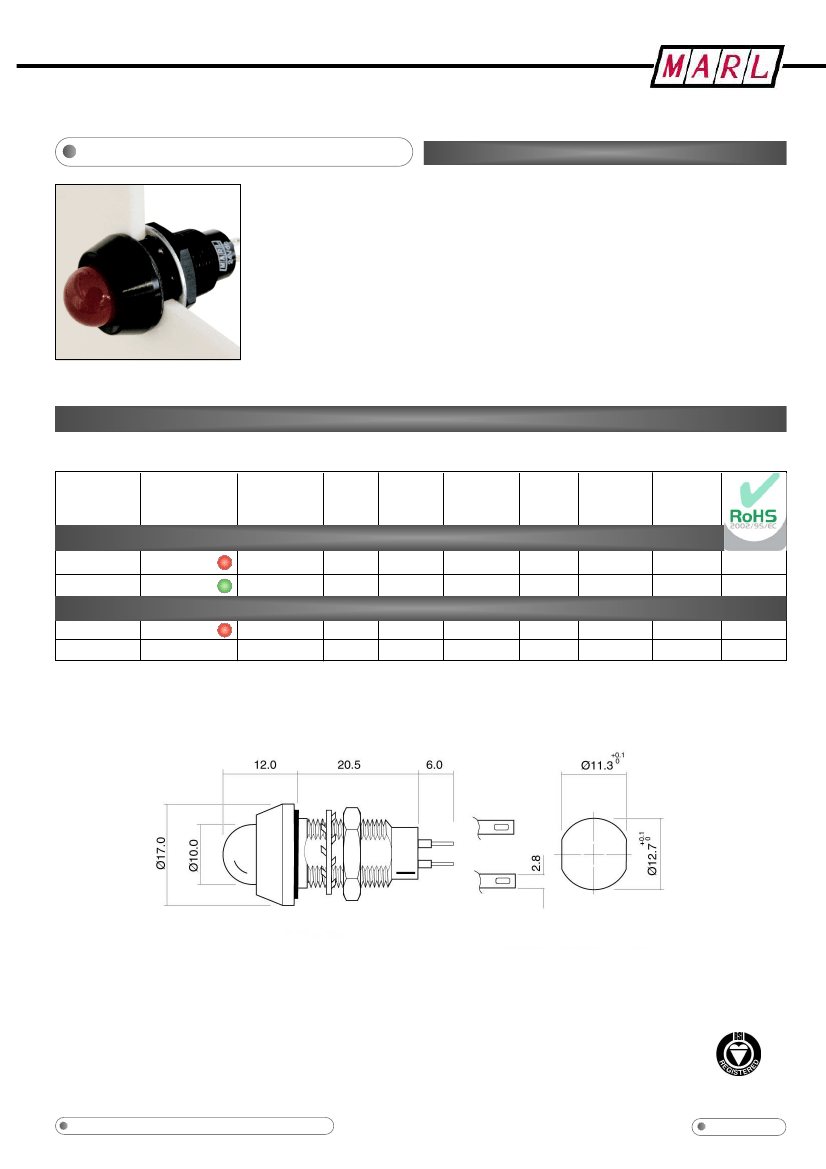

Dimensions in mm (Typical)

Not to scale

Anode termination indicated by red sleeve

Mounting hole to be cleaned and burr free

for products or service.

relating to either products or service.

The information contained in this datasheet does not constitute part of any order or contract and should not be regarded as a representation

We reserve the right to alter without notice the specification or any conditions of supply

Approved Manufacturer

BS EN ISO 9001:2000

Issue 2

Page 1 of 3

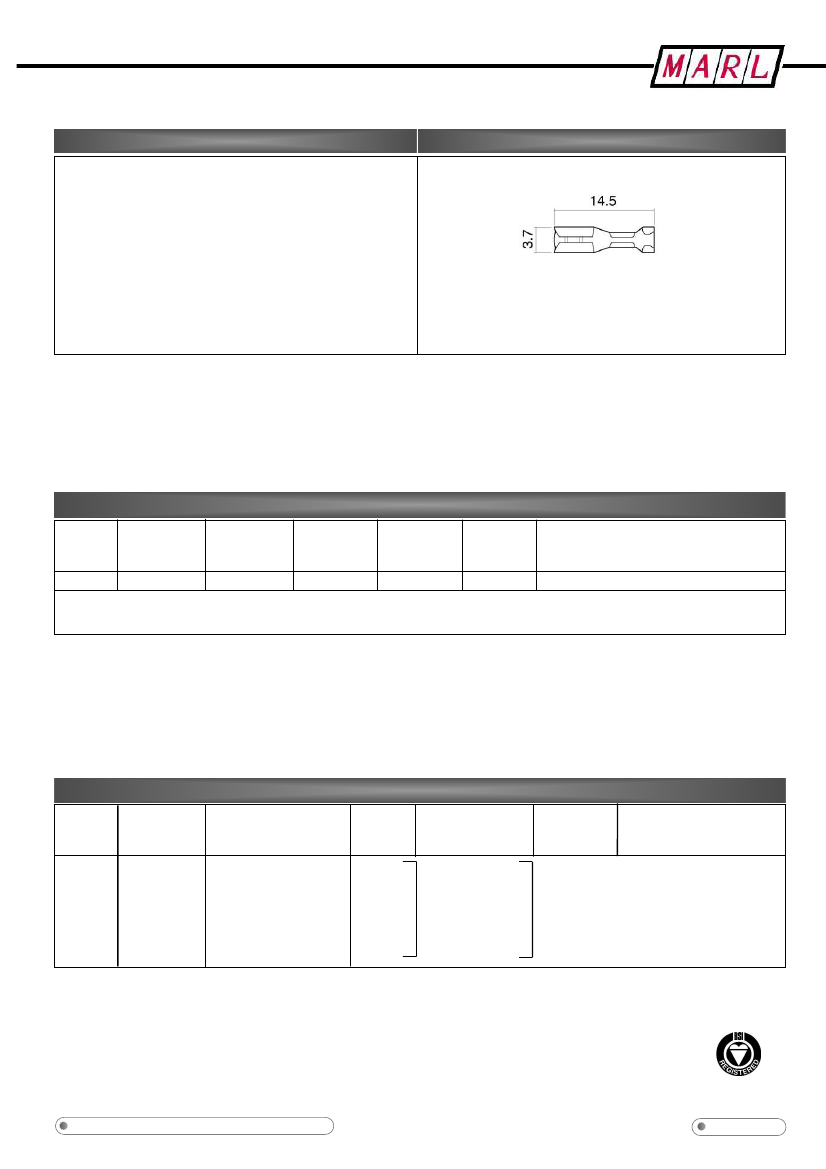

01-651-102-76 Related Products

	01-651-102-76	WCCC2073160AB	WCCC2073160AC	WCLB00850500B	01-651-114-76	WCLB0493880AB	WCLB05436100D
Description	Single Color LED, Red, T-4, 10mm,	RES NET,THIN FILM,316 OHMS,200WV,.1% +/-TOL,-10,10PPM TC,1010 CASE	RES NET,THIN FILM,316 OHMS,200WV,.25% +/-TOL,-10,10PPM TC,1010 CASE	RES NET,THIN FILM,5.05K OHMS,100WV,.1% +/-TOL,-100,100PPM TC,0906 CASE	Single Color LED, Red, T-4, 10mm,	RES NET,THIN FILM,388 OHMS,100WV,.1% +/-TOL,-50,50PPM TC,0906 CASE	RES NET,THIN FILM,3.61K OHMS,100WV,-25,25PPM TC,0906 CASE
Reach Compliance Code	compliant	unknown	unknown	unknown	compliant	unknown	unknown
Number of terminals	2	6	6	9	2	9	9
method of packing	BULK	Tray	Tray	Tray	BULK	Tray	Tray
Is it lead-free?	Lead free	-	-	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	-	-	conform to	conform to	conform to	conform to
Objectid	-	1170248471	1170248472	1178244491	-	1178254739	1178257028
package instruction	-	SMT, 1010	SMT, 1010	SMT, 0906	-	SMT, 0906	SMT, 0906
ECCN code	-	EAR99	EAR99	EAR99	-	EAR99	EAR99
structure	-	Chip	Chip	Chip	-	Chip	Chip
Manufacturer's serial number	-	CCC	CCC	CLB	-	CLB	CLB
Network Type	-	Center Tap	Center Tap	Center Tap	-	Center Tap	Center Tap
Maximum operating temperature	-	125 °C	125 °C	125 °C	-	125 °C	125 °C
Minimum operating temperature	-	-55 °C	-55 °C	-55 °C	-	-55 °C	-55 °C
Package height	-	0.25 mm	0.25 mm	0.254 mm	-	0.254 mm	0.254 mm
Package length	-	2.5 mm	2.5 mm	2.26 mm	-	2.26 mm	2.26 mm
Package form	-	SMT	SMT	SMT	-	SMT	SMT
Package width	-	2.5 mm	2.5 mm	1.5 mm	-	1.5 mm	1.5 mm
Rated power dissipation(P)	-	0.4 W	0.4 W	0.05 W	-	0.05 W	0.05 W
resistance	-	316 Ω	316 Ω	5050 Ω	-	388 Ω	3610 Ω
Resistor type	-	ARRAY/NETWORK RESISTOR	ARRAY/NETWORK RESISTOR	ARRAY/NETWORK RESISTOR	-	ARRAY/NETWORK RESISTOR	ARRAY/NETWORK RESISTOR
series	-	CCC	CCC	CLB	-	CLB	CLB
size code	-	1010	1010	0906	-	0906	0906
Temperature Coefficient	-	10 ppm/°C	10 ppm/°C	100 ppm/°C	-	50 ppm/°C	25 ppm/°C
Tolerance	-	0.1%	0.25%	0.1%	-	0.1%	-
Operating Voltage	-	200 V	200 V	100 V	-	100 V	100 V
