3603-0-07-21-00-00-03-0 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> terminals> 3603-0-07-21-00-00-03-0

Preview

3603-0-07-21-00-00-03-0: DescriptionPCB Terminal, ROHS COMPLIANT; CategoryThe connector terminals; File Size296KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric Compare View All

3603-0-07-21-00-00-03-0 Overview

PCB Terminal, ROHS COMPLIANT

3603-0-07-21-00-00-03-0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Manufacturer's serial number	3603
terminal gender	MALE
Terminal and terminal strip types	PCB TERMINAL
Base Number Matches	1

Preview

Download Datasheet

View All

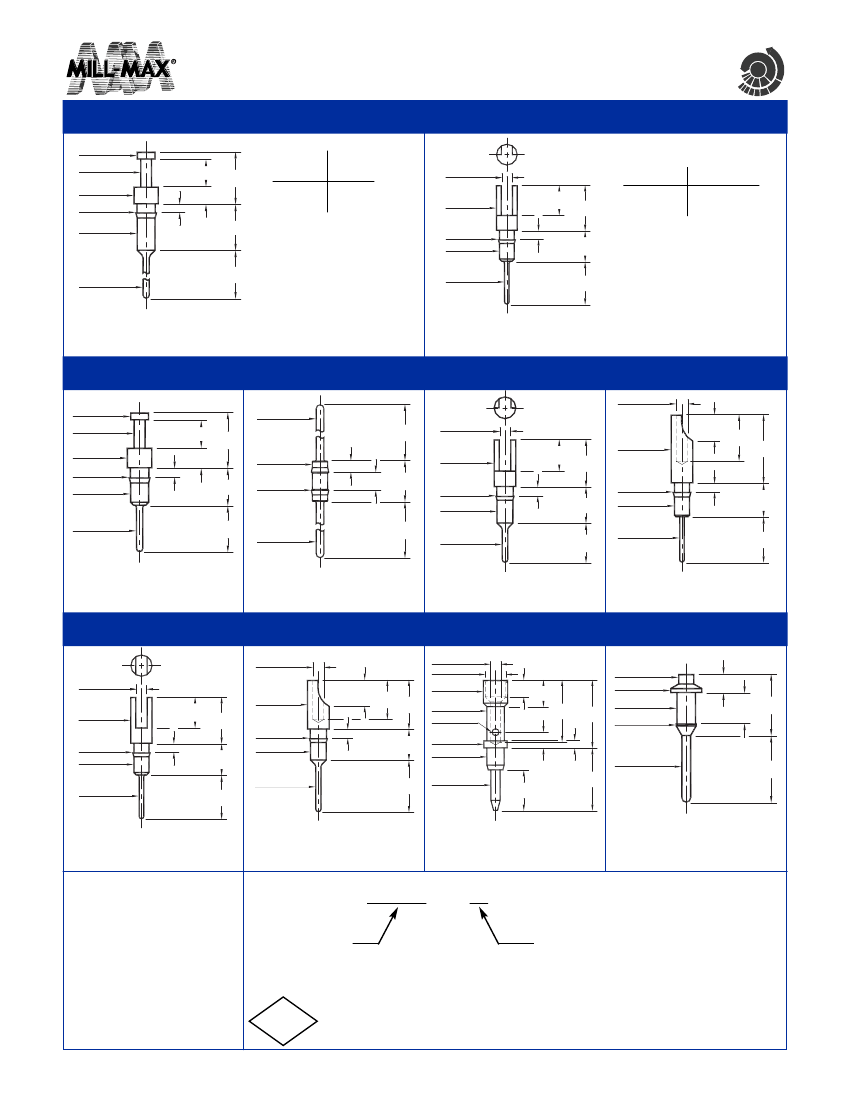

PRINTED CIRCUIT PINS

PR

E

CI

M

ON

S

I

CHI

A

PINS

NE

D

3408

1,35

DIA.

0,99

DIA.

1,83

DIA.

1,55 DIA.

1,35

DIA.

0,71

1,80

1,30

3,61

0270/0282

Basic Part

Number

Pin Length

A

0,89 SLOT

1,83

DIA.

2,54

3408-1

3408-2

3,53

3,07

4,60

3,99

Basic Part

Number

0270-0

0282-0

Material

Ph Br 544 (B2)

Brass 360

1,55

DIA.

1,35

DIA.

0,46

DIA.

0,71

2,62

0,51

DIA.

A

3,96

3408-X-00-XX-00-00-03-0

Press-fit in 1,45 mounting hole

02XX-0-01-XX-00-00-03-0

Press-fit in 1,45 mounting hole

0700

1,35

DIA.

0,81

DIA.

1,83

DIA.

1,52

DIA.

1,35

DIA.

0,71

2,62

2,01

1,47

4,01

8006

0,41

DIA.

10,16

0,81 DIA.

0,91 DIA.

0265

0,89 SLOT

2,54

0275

0,97

DIA.

HOLE

2,18

1,83 DIA.

3,81

5,89

0,61

0,89

2,11

1,83 DIA.

3,99

1,55

DIA.

3,45

1,35 DIA.

0,51 DIA.

3,15

1,52 DIA.

1,35 DIA.

0,71

2,62

0,51

DIA.

3,96

0,41 DIA.

12,19

0,51 DIA.

3,96

0700-0-00-XX-00-00-03-0

Press-fit in 1,45 mounting hole

8006-0-00-XX-00-00-03-0

Press-fit in 0,86 mounting hole

0265-0-01-XX-00-00-03-0

Press-fit in 1,45 mounting hole

0275-0-01-XX-00-00-03-0

Press-fit in 1,45 mounting hole

Pin material is Ph. Br. 544 (B2)

0272

0,89 SLOT

1,83 DIA.

2,54

8000

0,99

DIA.

HOLE

1,83 DIA.

3,99

3603

1,24 DIA.

2,36 DIA.

9976

0,76

DIA.

1,91

2,87

7,16

7,77

2,54

2,67 DIA.

1,52

DIA.

0,94

DIA.

0,99

DIA.

0,89

1,45

2,92

3,2

4,01

1,96 DIA.

0,74 DIA.

HOLE

2,59 DIA.

1,96 DIA.

1,52

1,52 DIA.

1,55

DIA.

1,35 DIA.

0,46

DIA.

0,71

2,62

0,71

1,35 DIA.

2,36

0,79

7,16

0,46

DIA.

0,51

DIA.

3,96

4,22

1,02 DIA.

4,78

3,18

0272-0-01-XX-00-00-03-0

Press-fit in 1,45 mounting hole

8000-0-01-XX-00-00-03-0

Press-fit in 1,45 mounting hole

3603-0-07-XX-00-00-08-0

Annealed

#20 Crimp barrel

9976-0-00-XX-00-00-03-0

Press-fit in 0,97 mounting hole

SPECIFICATIONS

PIN MATERIAL:

Brass Alloy 360, 1/2 Hard

(Except where noted)

DIMENSION IN INCHES

TOLERANCES ON:

LENGTHS:

±0,13

DIAMETERS: ±0,05

ANGLES:

± 2°

ORDER CODE: XXXX - X - 0X - XX - 00 - 00 - XX - 0

BASIC PART #



2002/95/EC

RoHS

SPECIFY PIN FINISH:

01

5,08μm TIN/LEAD OVER NICKEL

80

5,08μm TIN OVER NICKEL

(RoHS)

15

0,25μm GOLD OVER NICKEL

(RoHS)

21

0,51μm GOLD OVER NICKEL

(RoHS)

34

1,27μm GOLD OVER NICKEL

(RoHS)

w w w. m i l l - m a x . c o m

183



516-922-6000

3603-0-07-21-00-00-03-0 Related Products

	3603-0-07-21-00-00-03-0	3603-0-07-15-00-00-03-0	3603-0-07-34-00-00-03-0	3603-0-07-80-00-00-03-0	3603-0-07-01-00-00-03-0
Description	PCB Terminal, ROHS COMPLIANT	PCB Terminal, ROHS COMPLIANT	PCB Terminal, ROHS COMPLIANT	PCB Terminal, ROHS COMPLIANT	PCB Terminal
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Contains lead
Is it Rohs certified?	conform to	conform to	conform to	conform to	incompatible
Reach Compliance Code	compliant	compli	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Manufacturer's serial number	3603	3603	3603	3603	3603
terminal gender	MALE	MALE	MALE	MALE	MALE
Terminal and terminal strip types	PCB TERMINAL	PCB TERMINAL	PCB TERMINAL	PCB TERMINAL	PCB TERMINAL
Base Number Matches	1	1	1	1	1
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	-
