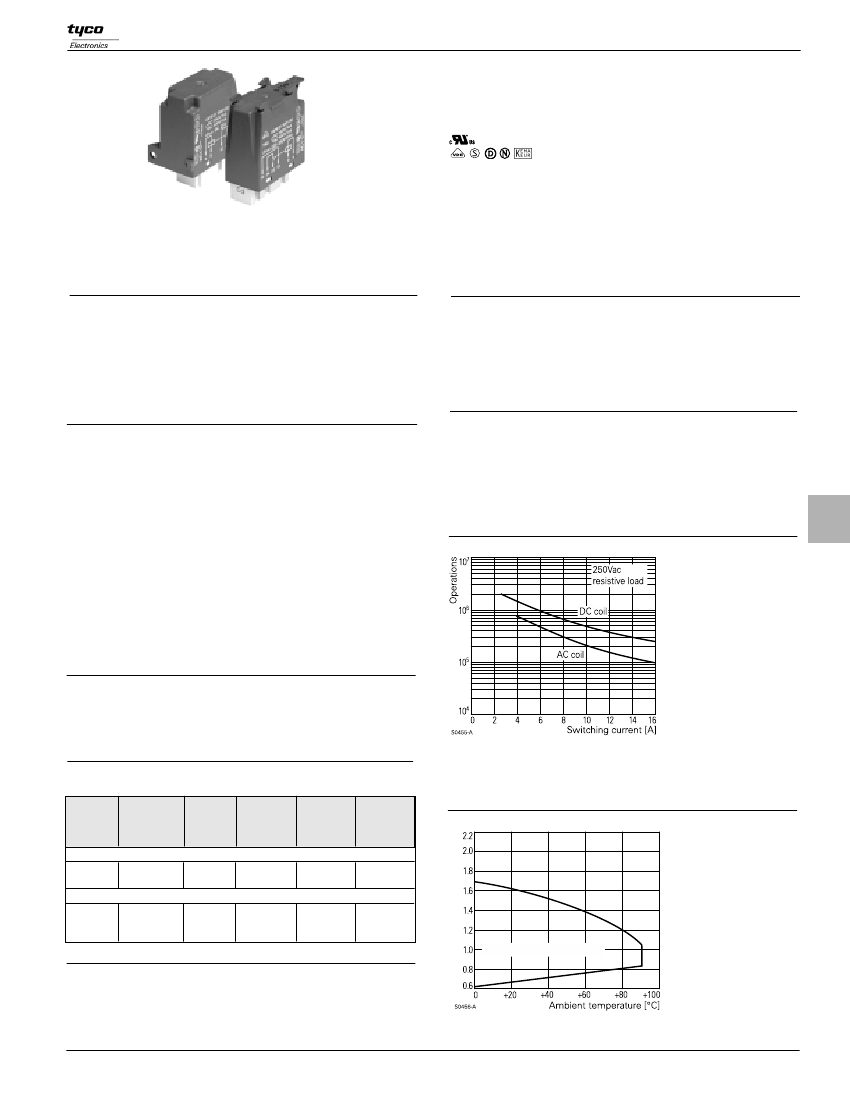

RAST 5 Relay
File E214025
Users should thoroughly review the technical data before selecting a product
part number. It is recommended that users also seek out the pertinent
approvals files of the agencies/laboratories and review them to ensure the
product meets the requirements for a given application.
Features
•
•
•
•
•
•
•
2 Form A (DPST-NO).
16 amp rated current.
Compatible with RAST 5 connector.
Contact gap exceeds 3 mm; 4kV/8mm contact-to-coil spacing.
Designed for European domestic appliances.
Snap-in or screw mounting.
Dust cover.
Environmental Data
Temperature Range:
Operating:
-20°C to +90°C.
Vibration:
(5 to 500 Hz.) 2g.
Shock (destruction):
80g.
Mechanical Data
Contact Data
Arrangements:
2 Form A (DPST-NO).
Material:
Silver-cadmium oxide or silver-nickel.
Expected Mechanical Life:
2 million operations.
Ratings:
Current:
16A.
Voltage:
250VAC.
Power (breaking):
4,000 VA.
Voltage (breaking):
400VAC.
Current (making, max. 4s at 10% duty cycle):
25A.
AC Coil Models
16 amp resistive, 250VAC, 100,000 ops.
12 amp resistive, 250VAC, 100,000 ops.
DC Coil Models
16 amp resistive, 250VAC, 250,000 ops.
12 amp resistive, 250VAC, 250,000 ops.
Termination:
Rast 5.
Enclosure:
Plastic dust cover.
Weight:
3.2 oz. (90 g) approximately.
Contact Life
Initial Dielectric Strength
Between Open Contacts:
2,000Vrms.
Between Coil and Contacts:
4,000Vrms.
Creepage/Clearance:
8/8mm.
Coil Data DC @ 20°C
Nominal Coil Power: AC Coils:
2.0-2.5 VA;
DC Coils:
1.3W.
Nominal
Voltage
VDC
DC
Resistance
in Ohms
±10%
Must
Operate
Voltage
VDC
7
.7
15.5
93.0
187
.0
323.0
Drop-out
Voltage
VDC
0.9
1.8
18.0
36.0
60.0
Maximum
Voltage
VDC
19.5
39.0
132.0
264.0
440.0
Nominal
Coil
Current
(mA)
102.0
51.0
20.0
10.0
6.0
Coil Operating Range
Applied coil voltage (U/Un)
DC Coils
12
118
24
470
AC Coils (50 Hz)
110-120
1,650
220-240
6,600
380-400
20,000
Nominal coil voltage (Un)
Operate Data
Must Operate Voltage:
See Coil Data table.
Operate Time (typical):
15 ms.
Release Time (typical):
15 ms.
Bounce Time (typical):
4 ms.
Switching Rate:
9,000 ops./hr. max. at rated load.
Dimensions are shown for
reference purposes only.
Dimensions are in inches over
(millimeters) unless otherwise
specified.
Specifications and availability
subject to change.
www.tycoelectronics.com
Technical support:
745
Refer to inside back cover.
Catalog 1308242
Issued 3-03
SCHRACK
Ordering Information
Typical Part Number
1. Basic Series:
0419 01= Power relay with RAST 5 connection.
2. Coil Voltage:
31 = 12VDC
29 = 24VDC
14 = 110-120VAC
3. Contact Material:
01 = Silver-cadmium oxide. 03 = Silver-nickel 90/10
4. Mounting:
00 = Snap mounting, 1.0 mm panel
01 = Snap mounting, 1.5 mm panel
02 = Screw mounting
B
0419 01
14
01
00
10 = 220-240VAC
09 = 380-400VAC
Our authorized distributors are more likely to stock the following items for immediate delivery.
None at present.

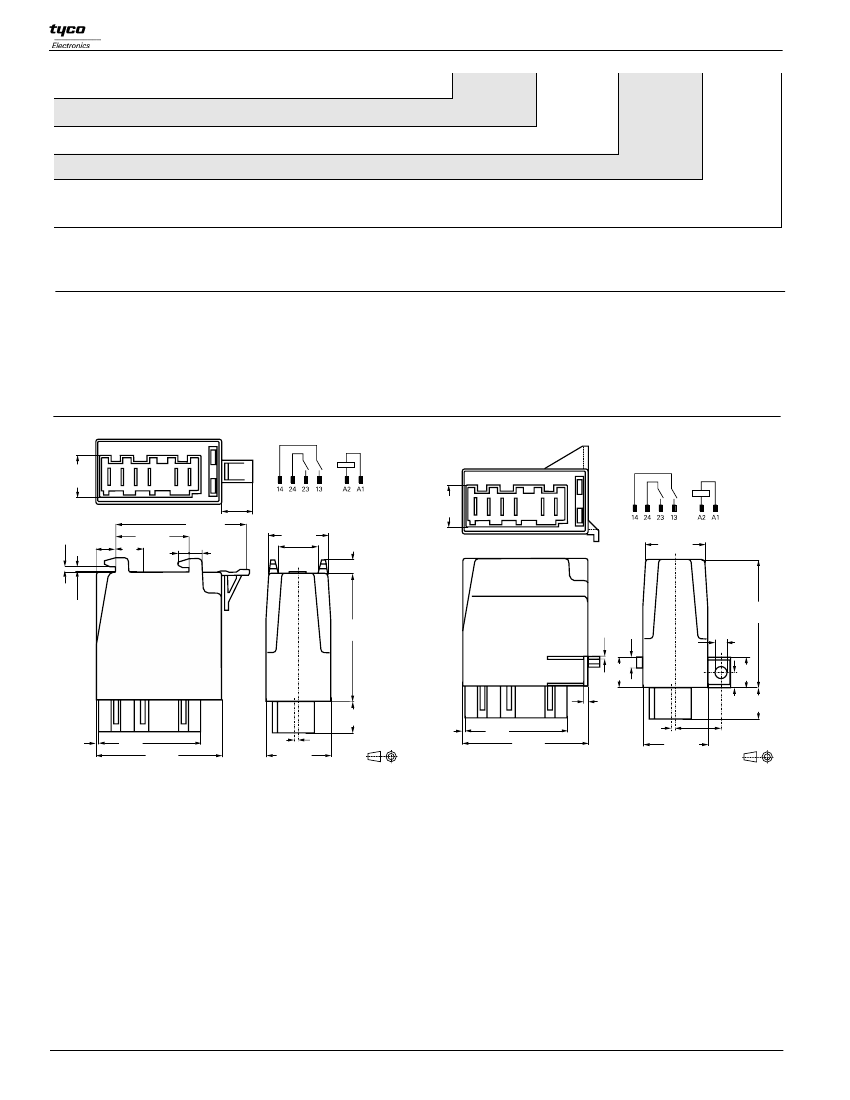

Outline Dimensions and Wiring Diagrams
.602
(15.3)
.405
(10.3)
.047 [.067] .295
(1.2 [1.7]) (7.5)
1.06
±
.004
(27
±
.1
)
.374
.157
(9.5)
(4)
1.90
– .008
(48.2
– .2
)
.197
(5)
.85
– .004
(21.6
– .1
)
.567
+ .004
(14.4
+ .1
)
.602
(15.3)
.177 [.197
(4.5 [5.0])
.85
– .004
(21.6
– .1
)
.030 [.043]
(.75 [1.1])
1.85
(47)
.039
(1)
.157
(4)
.165
±
.004
(4.2
±
.1
)
1.85
(47)
.433
(11)
.079
(2)
.473
(11.5)
.051
(1.3)
1.48
(37.6)
.075
(1.9)
.051
(1.3)
1.48
(37.6)
.075
(1.9)
.984
±
.004
(24
±
.1
)
.433
(11)
.216 .473
(5.5) (11.5)
.650
±
.004
(16.5
±
.1
)
1.85
+ .008
(47
+ .2
)
.984
±
.004
(24
±
.1
)
1.85
+ .008
(47
+ .2
)
Snap Mount Version
Screw Mount Version
