041922131100 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> 041922131100

041922131100: DescriptionPOWER/SIGNAL RELAY, DPST, MOMENTARY, 0.03A (COIL), 24VDC (COIL), 720mW (COIL), 16A (CONTACT), 400VDC (CONTACT), PANEL MOUNT; CategoryMechanical and electronic products relay; File Size197KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

041922131100 Overview

POWER/SIGNAL RELAY, DPST, MOMENTARY, 0.03A (COIL), 24VDC (COIL), 720mW (COIL), 16A (CONTACT), 400VDC (CONTACT), PANEL MOUNT

041922131100 Parametric

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
body width	25 mm
body height	58.8 mm
Body length or diameter	47.6 mm
Maximum coil current (DC)	0.03 A
Coil operating voltage (DC)	15 V
Coil power	720 mW
Coil release voltage (DC)	1.8 V
Coil resistance	800 Ω
Maximum coil voltage (DC)	24 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	16A@250VAC
Maximum contact current (AC)	16 A
Maximum contact current (DC)	16 A
Contact (DC) maximum rated R load	16A@400VDC
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	400 V
Contact/Output Power Type	AC/DC
Electrical life	250000 Cycle(s)
Installation features	PANEL MOUNT
operating hours	23 ms
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
method of packing	BULK
physical size	47.6mm x 25mm x 58.8mm
Guideline	SEMKO; UL; VDE
Relay action	MOMENTARY
Relay function	DPST
Relay type	POWER/SIGNAL RELAY
release time	20 ms
seal	RT1
surface mount	NO
Base Number Matches	1

Preview

Download Datasheet

View All

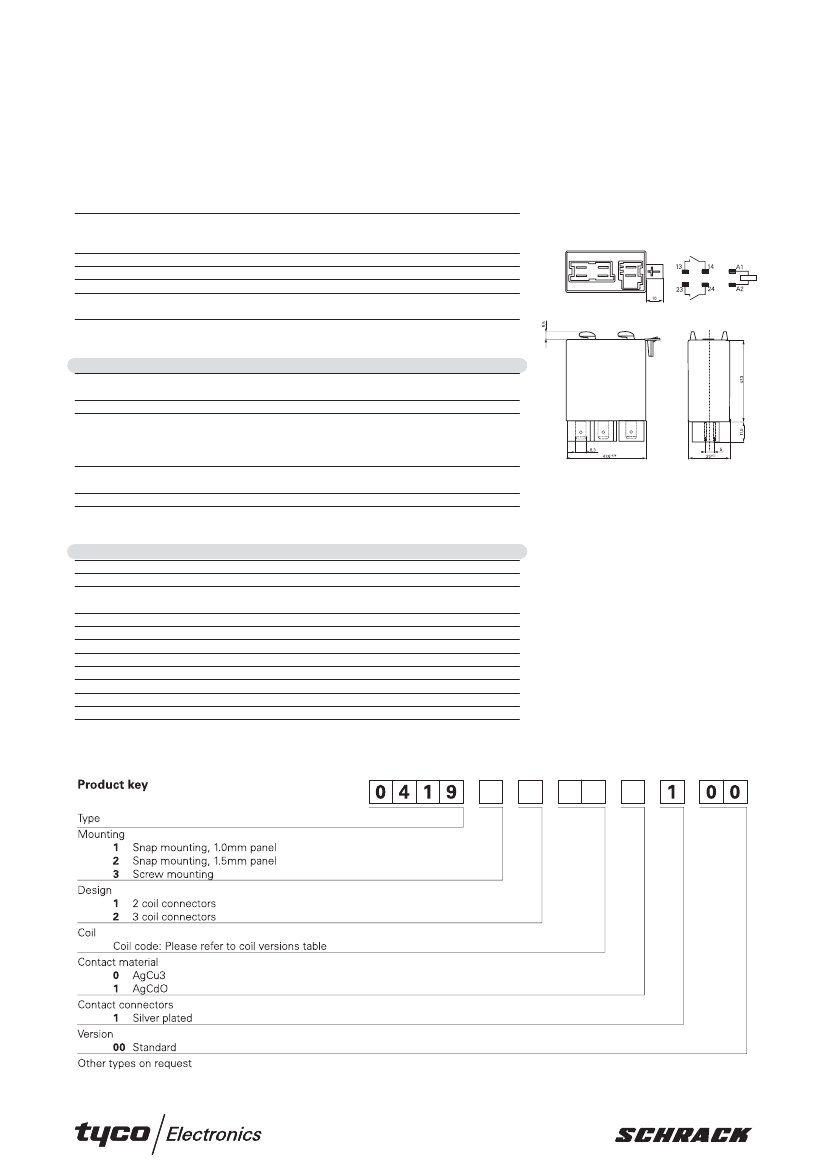

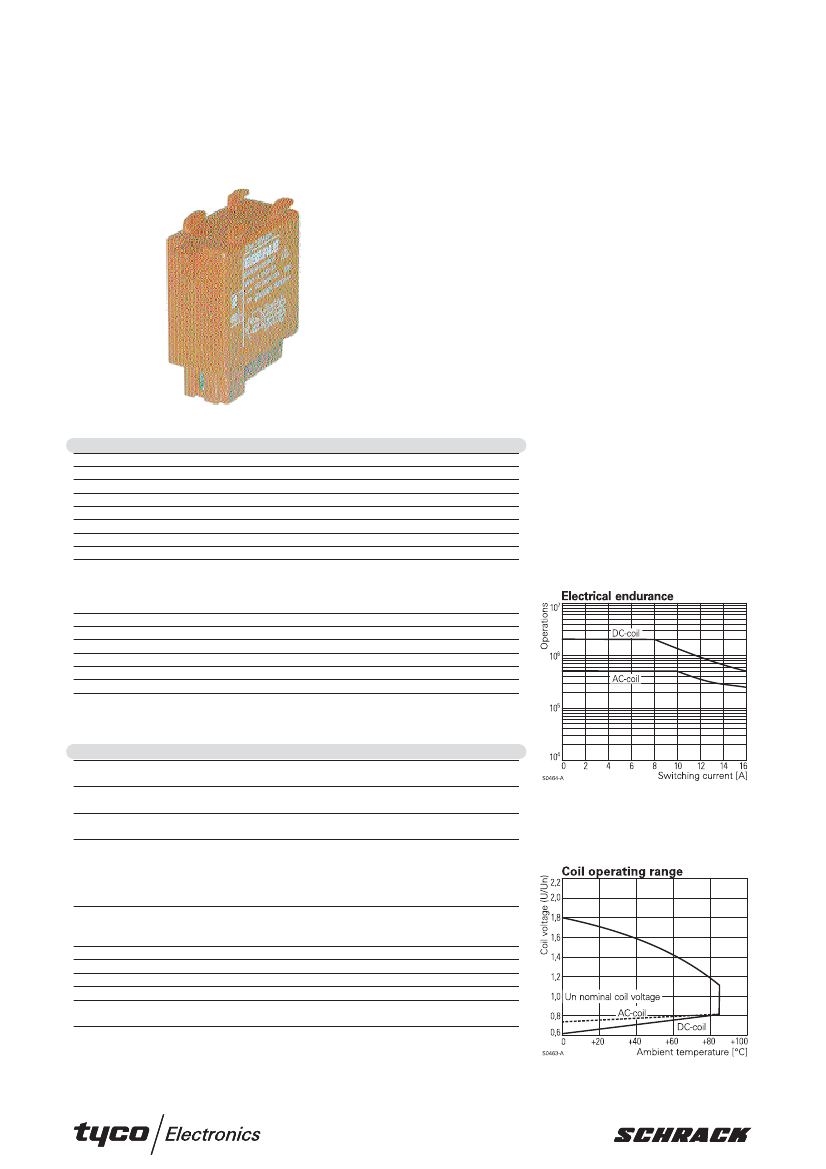

Rast 5 Power Relay 419 11 (EA/..)

2 pole 16 A

Features

•

Safety mains insulation

Fast-on connectors 6.3 x 0.8 mm

Contact gap > 3 mm

4 kV / 8 mm coil-contact

Snap or screw mounting

Applications

Industrial and domestic appliances, heating controls,

absolute safe power supply disconnection

F0259-AC

V SU

Contact data

Configuration

Type of contact

Rated current

Rated voltage / max.breaking voltage AC

Rated voltage / max.breaking voltage DC

Maximum breaking capacity AC

Make current (max. 4 s at duty cycle 10%)

Contact material

2 N/O contacts

bifurcated contacts

16 A

250 Vac / 400 Vac

250 Vdc

4000 VA

25 A

AgCu 3 / AgCdO

Contact ratings

Type

419

DC-versions

419

AC-versions

419

DC-versions

419

DC-versions

Load

16 A,

12 A,

20 A,

250

400

250

Vac,

cosϕ=1

Operations

5x10

2.5x10

6x10

Coil data

Nominal voltage

Nominal coil power

Operate category

DC coil

AC coil

DC coil

AC coil

DC colil

AC-coil

6...60 Vdc

24...400 Vdc

0.72 W

2.2 VA

1/b

2/b

Edition: 11/2003

Coil versions DC-coil

Coil

Nominal

Pull-in

Release

Maximum

Coil

code

voltage

resistance

current

Vdc

3.5

0.4

10.0

50+10%

120.0

6.0

0.7

16.6

150+10%

67.0

7.5

0.9

19.8

200+10%

60.0

15.0

1.8

39.6

800+10%

30.0

All figures are given for coil without preenergization, at ambient temperature +20°C

Other coil voltages on request
