3-146278-5 datasheet, PDF - EEWORLD Datasheet

3-146278-5: Description35 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER; CategoryThe connector The connector; File Size88KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

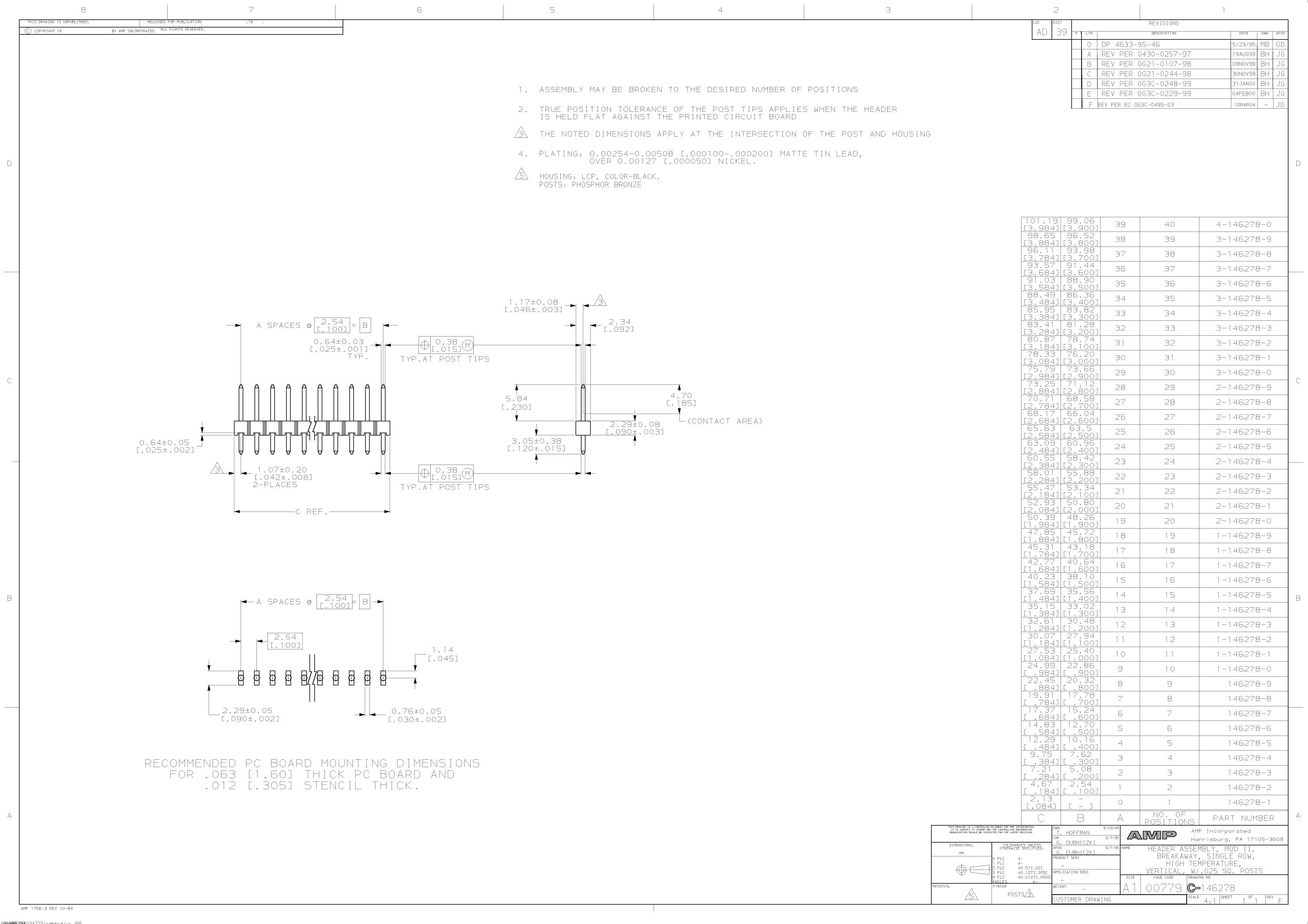

3-146278-5 Overview

35 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	AMPMODU
body width	0.09 inch
subject depth	0.09 inch
body length	3.484 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN LEAD
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrie
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	750VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	146278
Plug contact pitch	0.1 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	100u inch
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.12 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	35
UL Flammability Code	94V-0
Base Number Matches	1
