JQ
CONNECTOR
2.5mm pitch/Board-to-board connectors

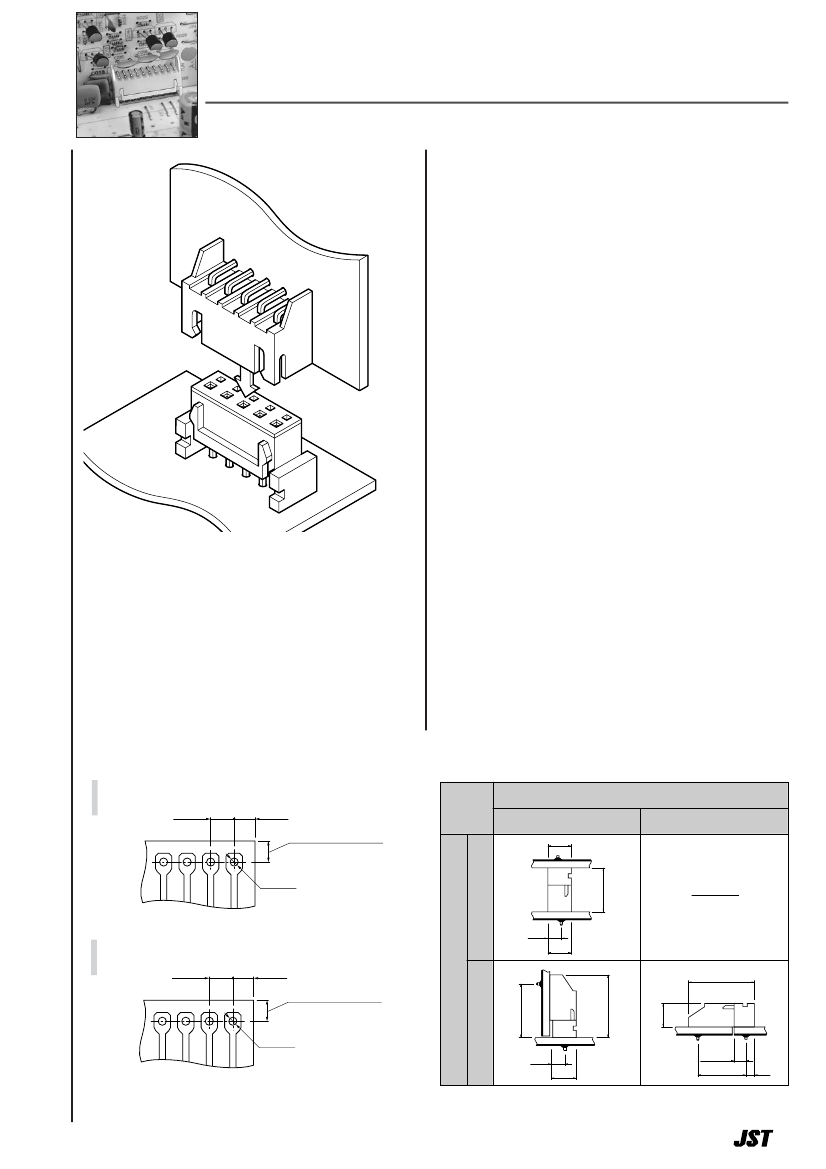

This 2.5mm pitch connector is used
to interconnect printed circuit boards.
It easily resists distortion during mating,
thus ensuring reliable contact, even under
adverse conditions.
• High contact pressure
• Box-shaped shroud
• Secure locking on printed circuit boards
• Vertical, horizontal and parallel mounting
• Interchangeability
Top entry type
2.5
±0.05
2.5
min
Receptacle:
2.6
min
Shrouded header:
3.4
min
Shrouded header
3.4
5.75
Side entry type
2.5
±0.05
2.5
min
Receptacle:
2.6
max
Shrouded header:
7.6
max
11.8
φ0.9
＋0.1
0
Side entry type S( )B-XH-A-1 Top entry type B( )B-XH-A
12.4
16.3
φ0.9
＋0.1
0
6.15
Note: 1. The above figure is the figure viewed from soldering side.
2. Tolerances are non-cumulative:
±
0.05mm for all centers.
3. Hole dimensions differ according to the kind of PC board and piercing method. The dimensions above should serve as a guideline. Contact JST for details.
5
JS
T
Specifications –––––––––––––––––––
• Current rating: 3A AC, DC
• Voltage rating: 250V AC, DC
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/ 10m
Ω
max.
After environmental testing/ 20m
Ω
max.
• Insulation resistance: 1,000M
Ω
min.
• Withstanding voltage: 1,000V AC/minute
• Applicable PC board thickness: 1.6mm
* Compliant with RoHS.
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.
Standards ––––––––––––––––––––––
1
Certified LR20812
2
R50088587
Combi-
nations
0
Recognized E60389
Receptacle
Top entry type
6
Side entry type
16.3
2.9
6.15
2.6 max
10.2
2.2
1
JQ CONNECTOR
Receptacle
Top entry type
B
2.5
2.5
A
Circuits
3
4
5
6
7
8
4.1
1.5
9
10
11
12
13
15
1.6
C
4.8
9.5
Model No.
Top entry type Side entry type
03JQ-BT
03JQ-ST
04JQ-BT
04JQ-ST
05JQ-BT
05JQ-ST
06JQ-BT
06JQ-ST
07JQ-BT
07JQ-ST
08JQ-BT
08JQ-ST
09JQ-BT
09JQ-ST
10JQ-BT
10JQ-ST
11JQ-BT
11JQ-ST
12JQ-BT
12JQ-ST
13JQ-BT
13JQ-ST
15JQ-BT
15JQ-ST
A
Dimensions (mm)
B
C
10.0
12.5
15.0
17.5
20.0
22.5
25.0
27.5
30.0
32.5
35.0
40.0
8.2
10.7
13.2
15.7
18.2
20.7
23.2
25.7
28.2
30.7
33.2
38.2
Q'ty / box
Top entry Side entry
type
type
5.0
7.5
10.0
12.5
15.0
17.5
20.0
22.5
25.0
27.5
30.0
35.0
500
500
500
500
250
200
200
250
250
200
200
100
500
500
500
500
250
250
250
250
250
200
200
100
1
2.7
6
Side entry type
B
2.5
2.5
A
Material and Finish
Contact: Phosphor bronze, tin-plated (reflow treatment)
Housing: PA 66, UL94V-0, natural
RoHS compliance
4.1
1.5
1.6
C
1
2.6 2.2
9.5
Shrouded header
Top entry type
0.64
6
Circuits
3
8
4
7
5
6
7
8
（2.35）
5.75
JST
3.4
2.5
2.45
A
B
9
10
11
12
13
14
Side entry type
0.64
15
Model No.
Top entry type Side entry type
B3B-XH-A
S3B-XH-A-1
B4B-XH-A
S4B-XH-A-1
B5B-XH-A
S5B-XH-A-1
B6B-XH-A
S6B-XH-A-1
B7B-XH-A
S7B-XH-A-1
B8B-XH-A
S8B-XH-A-1
B9B-XH-A
S9B-XH-A-1
B10B-XH-A
S10B-XH-A-1
B11B-XH-A
S11B-XH-A-1
B12B-XH-A
S12B-XH-A-1
B13B-XH-A
S13B-XH-A-1
B14B-XH-A
S14B-XH-A-1
B15B-XH-A
S15B-XH-A-1
Dimensions (mm)
Q'ty / box
A
B
Top entry type
Side entry type
5.0
7.5
10.0
12.5
15.0
17.5
20.0
22.5
25.0
27.5
30.0
32.5
35.0
9.9
12.4
14.9
17.4
19.9
22.4
24.9
27.4
29.9
32.4
34.9
37.4
39.9
1,000
500
500
500
500
500
500
250
250
250
250
250
250
1,000
500
500
500
250
250
250
250
250
200
200
200
200
Material and Finish
8
7
JST
11.5
7.6
Post: Brass, copper-undercoated, tin-plated (reflow treatment)
Wafer: PA 66, UL94V-0, natural (white)
RoHS compliance
This product displays (LF)(SN) on a label.
2.5
2.45
A
B
（6.1）
3.4
2
