Thermoplastic, UL 94 V0 rated (self-extinguishing)
High-strength phosphor bronze with corrosion-resistant plating
0.4 mm stranded tinned copper, PVC insulation, PVC outer grey jacket, 3.9 mm outer Ø
Contact resistance
Maximum change in contact resistance
Life
> 100 MΩ at 100 Vdc
< -70 dB @ 20 kHz
< -50 dB @ 1.544 MHz
< -50 dB @ 0.772 MHz
< -40 dB @ 2.048 MHz
< -50 dB @ 1.024 MHz
< -40 dB at 3.156 MHz
> 200 mΩ including bulk resistance of 1 m
20 mΩ
20 mΩ max. increase in contact resistance after 1500 insertion/withdrawal cycles into
QDF-E magazine
Ordering Information
2-Wire Cords
Test plug - 1 open end - line side QDF-2A1-X (X = metres of cord)
Product Name
QDF-2A1-1
QDF-2A1-2
QDF-2A1-3
QDF-2A1-5
PCN Number
287190-000
062313-000
242672-000
159412-000
Test plug (line side) to bantam plug QDF-2AP-X (X = metres of cord)
Product Name
QDF-2AP-3
PCN Number
443057-000
Test plug - 1 open end - equipment side QDF-2B1-X (X - meters of cord)
Product Name
QDF-2B1-2
QDF-2B1-3
PCN Number
625702-000
437284-000

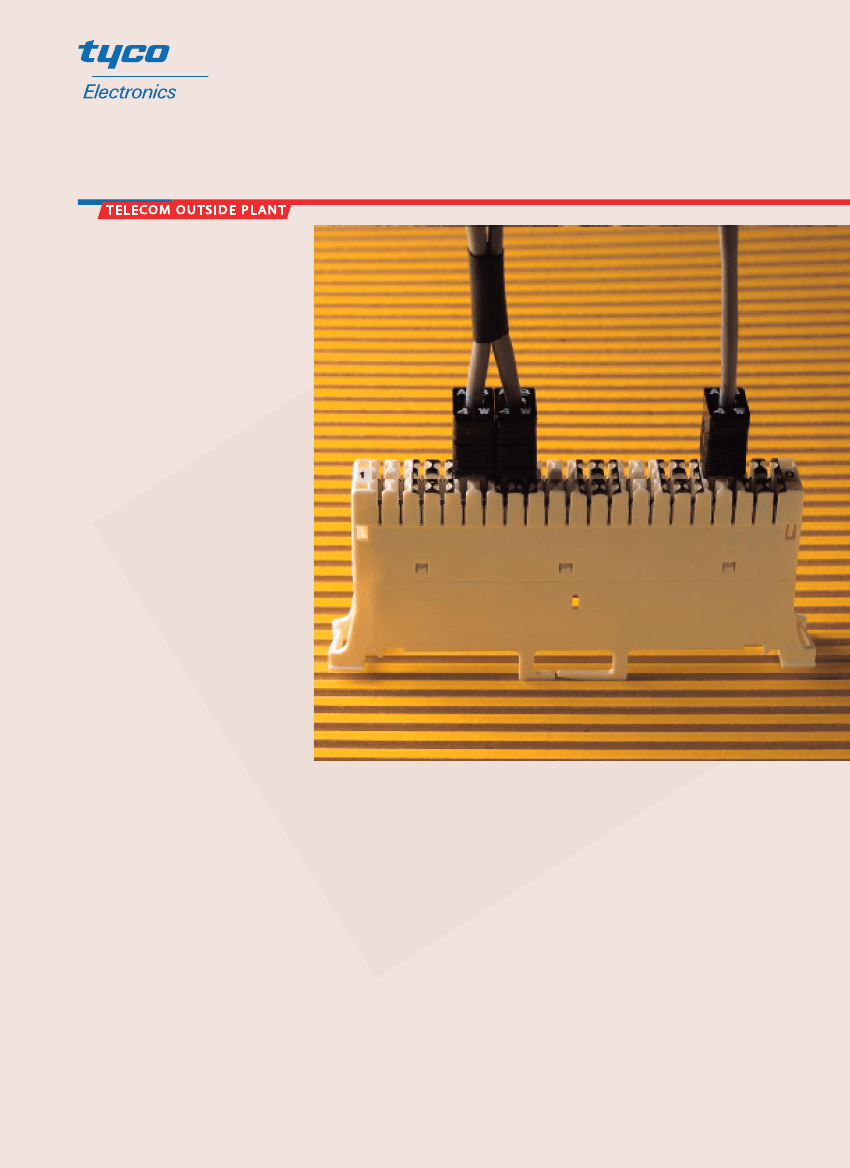

QDF-2 and 4 Wire Patch Cords
Patch cords - line-to-line QDF-2A2-X (X = metres of cord)
Product Name
QDF-2A2-1
QDF-2A2-2
QDF-2A2-3
QDF-2A2-4
QDF-2A2-5
Patch cords - equipment-to-equipment QDF-2B2-X (X = metres of cord)
Product Name
QDF-2B2-2
QDF-2B2-3
PCN Number
933534-000
901948-000
203315-000
047088-000
608748-000
PCN Number
007150-000
435767-000
Monitor plug - 1 open end QDF-2M1-X (X = metres of cord)
Product Name
QDF-2M1-1
PCN Number
488804-000
Monitor plug to bantam plug QDF-2MP-X (X = metres of cord)
Product Name
QDF-2PM-3
PCN Number
363373-000
4-Wire Cords
Test plug - 1 open end QDF-4A1-X (X = metres of cord)
Product Name
QDF-4A1-1
QDF-4A1-2
QDF-4A1-4
QDF-4A1-5
QDF-4A1-10
Patch cords QDF-4A2-X (X = meters of cord)
Product Name
QDF-4A2-1
QDF-4A2-2
QDF-4A2-4
QDF-4A2-5
PCN Number
643484-000
982654-000
708898-000
845916-000
550994-000
PCN Number
422246-000
096664-000
035466-000
426700-000
Patch cord, reversed plugs QDF-4AR2-X (X = meters of cord)
Product Name
QDF-4AR2-3
PCN Number
428199-000
QDF-2 and 4 Wire Patch Cords
2-Pair Cords
Monitor plug - 1 open end QDF-2M1-XD (X =
Product Name
QDF-2M1-2D
PCN Number
278158-000
Patch cords - line side to line side QDF-2A2-XD (X = metres of cord)
Product Name
QDF-2A2-2D
PCN Number
818820-000
Test-plug - 1 open end QDF-4A1-XD (X = metres of cord)
Product Name
QDF-4A1-2D
PCN Number
240896-000
Patch cord QDF-4A2-XD (X = metres of cord)
Product Name
QDF-4A2-2D
PCN Number
529102-000
If you require configurations other than these shown here, please contact your local Tyco Electronics sales engineer.
Tyco and QDF are trademarks.
The information given herein, including drawings, illustrations and schematics which are intended for illustration purposes only, is believed to be reliable. However, Tyco Electronics makes no warranties
as to its accuracy or completeness and disclaims any liability in connection with its use. Tyco Electronics’ obligations shall only be as set forth in Tyco Electronics’ Standard Terms and Conditions of Sale
for this product and in no case will Tyco Electronics be liable for any incidental, indirect or consequential damages arising out of the sale, resale, use or misuse of the product. Users of Tyco Electronics
products should make their own evaluation to determine the suitability of each such product for the specific application.
