MA SERIES
P7BU-XXXXE 1KV ISOLATED 1.25 W UNREGULATED SINGLE OUTPUT DIP8
Available Inputs:
5, 12 and 24 VDC
Available Outputs:
3.3, 5, 7.2, 12, 15 and 18 VDC
Other specifications please enquire.
Electrical Specifications
(Typical at + 25° C, nominal input voltage, rated output current unless otherwise specified)
Input Specifications
Voltage range
Filter
Isolation Specifications
Rated voltage
Leakage current
Resistance
Capacitance
Output Specifications
Voltage accuracy
Ripple and noise (at 20 MHz BW)
Short circuit protection
Line voltage regulation
Load voltage regulation
Temperature coefficient
General Specifications
Efficiency
Switching frequency
Environmental Specifications
Operating temperature (ambient)
Storage temperature
Derating
Humidity
Cooling
Physical Characteristics
Dimensions DIP
Weight
Case material
+/- 10 %
Capacitors
1000 VDC
1 mA
10
9
Ohm
60 pF typ.
+/- 5 %, max.
100 mV p-p, max.
Momentary
+/- 1,2 % / 1,0 % of Vin
+/- 8 %, load = 20 ~ 100 %
+/- 0,02 % / °C
70 % to 80 %
80 KHz, typ.
- 40° C to + 85° C
- 55 °C to + 125 °C
See graph
Up to 90 %, non condensing
Free air convection
12,70 x 10,16 x 6,85 mm
0,50 x 0,40 x 0,27 inches
1,8 g
Non conductive black plastic
Examples of Partnumbers
PART
NO.
INPUT
VOLTAGE
(VDC)
INPUT
CURRENT
NO LOAD
INPUT
CURRENT
FULL
LOAD
OUTPUT
VOLTAGE
(VDC)
OUTPUT
CURRENT
(max. mA)
EFFICIENCY FULL LOAD
(% TYP.)
P7BU-0505E
P7BU-0512E
P7BU-0515E
P7BU-1205E
P7BU-1212E
P7BU-1215E
P7BU-2405E
P7BU-2412E
P7BU-2415E
P7BU-2424E
5
5
5
12
12
12
24
24
24
24
25
25
25
16
16
16
8
8
8
8
320.5
320.5
320.5
133.5
133.5
133.5
66.8
66.8
66.8
69
5
12
15
5
12
15
5
12
15
24
250
104
84
250
104
84
250
104
84
52
78
78
78
78
78
78
78
78
78
78
MA SERIES
P7BU-XXXXE 1KV ISOLATED 1.25 W UNREGULATED SINGLE OUTPUT DIP8

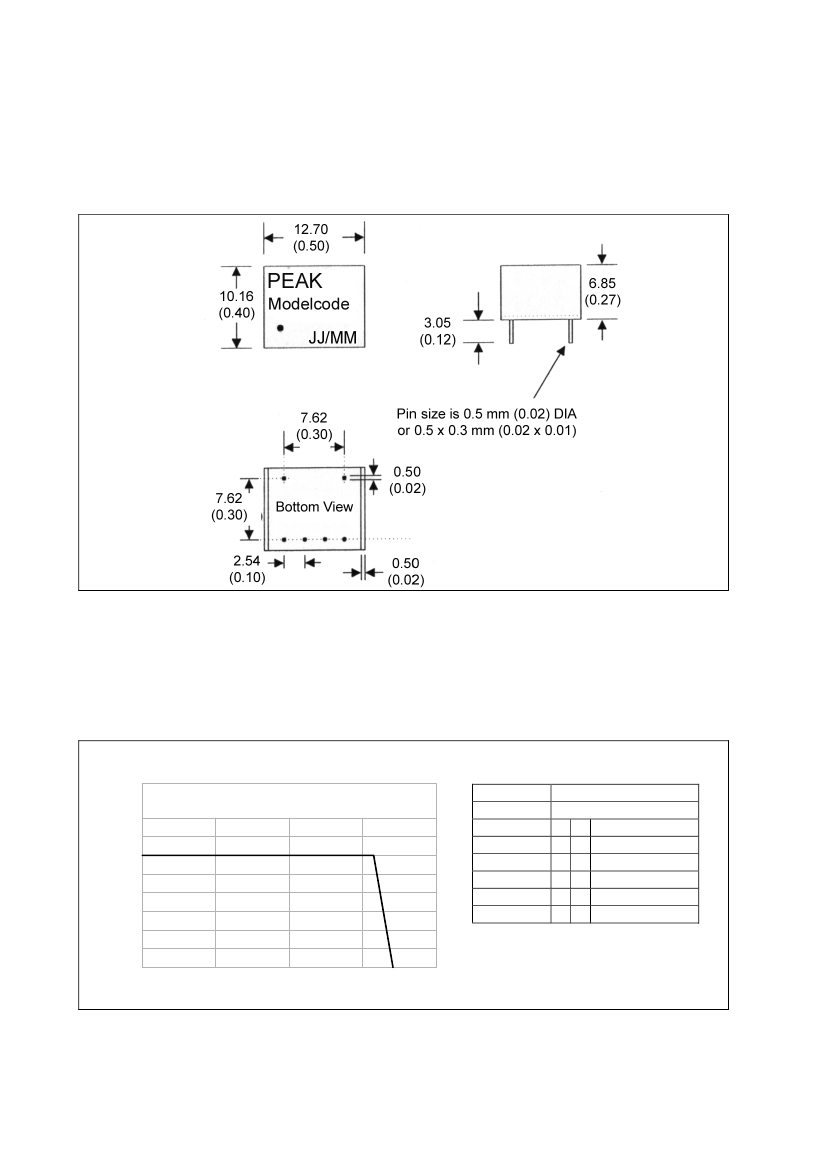

Dimensions
Derating Graph and Pinning
Output
Temperature Derating Graph
Ambient Temperature ° C
85
1.25 W
Pin
#
1
4
5
6
7
8
Connection
Single
- V Input
+ V Input
+ V Output
Omitted
- V Output
Omitted
- 40
0
40
80
100
Specification can be changed without notice.
