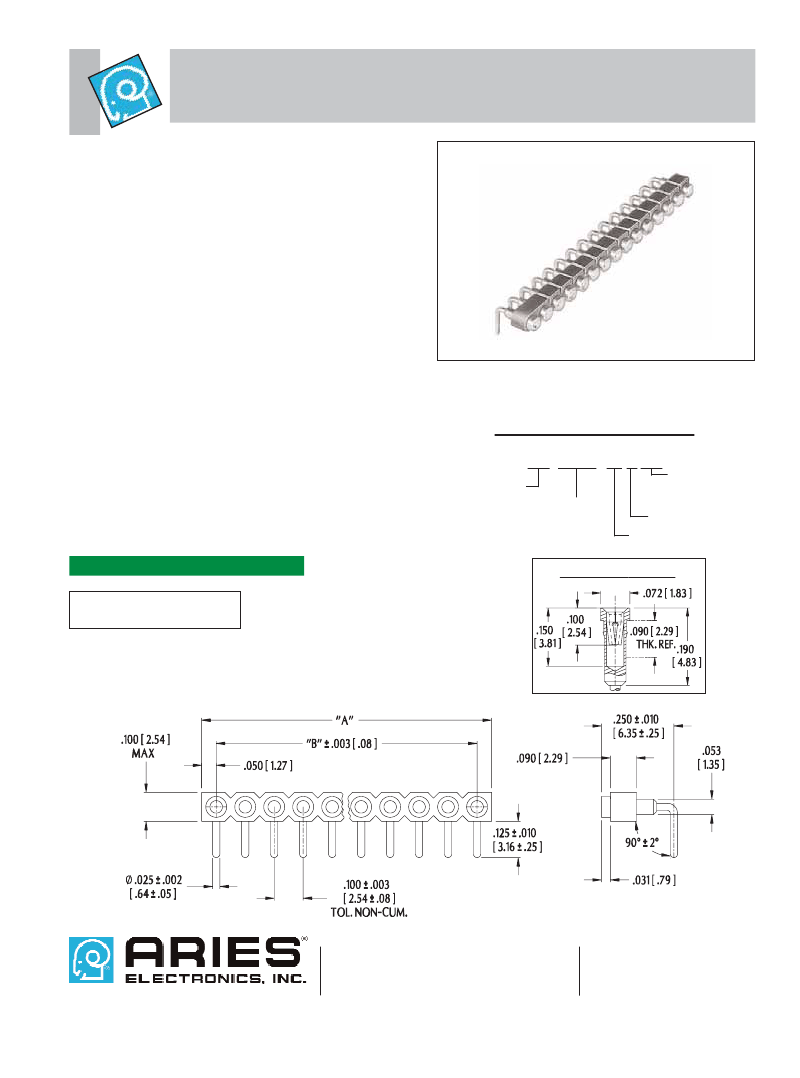

Series 0517
Pin-Line Vertisockets
™
FEATURES:
• For mounting components, jumpers, etc., at right angle
to PC board.
• Available 1 to 25 positions; cuttable to any number
desired.
SPECIFICATIONS:
• Standard body material is red UL 94-HB Glass-filled
Nylon.
• High temp body material is black UL 94V-0 4/6 Nylon.
• Pin body is Brass Alloy 360 1/2 hard per UNS C36000
ASTM-B16-85.
• Pin body plating is 200μ [5.08μm] 93/7 Tin/Lead per
MIL-P-81728 over 100μ [2.54μm] Nickel per QQ-N-290.
• 4-fingered collet contact is Beryllium Copper Alloy per
UNS C17200 ASTM-B194-92.
• Contact plating is 30μ [.76μm] Gold per MIL-G-45204
over 50μ [1.27μm] Nickel per QQ-N-290.
• Contact current rating=3 Amps.
• Operating temperature=221°F [105°C].
• Insertion Force=180 grams/pin; Withdrawal
Force=90 grams/pin; Normal Force=140 grams/pin;
based on a .018 [.46] diameter test lead.
• Accepts leads .015-.025 [.38-.64] in diameter, .110-.150
[2.79-3.81] long.
MOUNTING CONSIDERATIONS:
•Suggested PCB hole size=.035 ± .002 [.89 ± .05] dia.
A
LL DIMENSIONS
:
INCHES
[
MILLIMETERS
]
Note: Aries specializes in custom design and production. In addition to the
standard products shown on this page, special materials, platings, sizes, and
configurations can be furnished, depending on quantities. Aries reserves the
right to change product specifications without notice.
ORDERING INFORMATION
XX-0517-90CXX
No. of pins
(1-25)
Series
Optional suffix:
V0=UL 94V-0
plastic
Collet contacts
Display angle
CONTACT DETAIL
All tolerances ± .005 [.13]
unless otherwise specified
“A”=NO. OF PINS X .100 [2.54]
“B”=(NO. OF PINS - 1) X .100 [2.54]
http://www.arieselec.com • info@arieselec.com
NORTH AMERICA
Frenchtown, NJ USA
TEL:(908) 996-6841
FAX:(908) 996-3891
ABCDEFG
EUROPE
TEL: +44 870 240 0249
FAX: +44 871 919 6033 13009
europe@arieselec.com REV.D
PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED
