.050” (1.27mm) Pitch Board to Board Interconnections
Molded
Adapter & Socket
Adapter & Socket
Peel-A-Way
¤
Adapter & Socket
Adapter & Socket
Features:
• Sockets and adapters are designed in
mating pairs.
• .050” (1.27mm) and .100” (2.54mm)
centers spacing row to row.
• High reliability screw machine terminals
with closed end construction for 100% anti-
wicking of solder.
• For surface mount board to board options
consult factory.

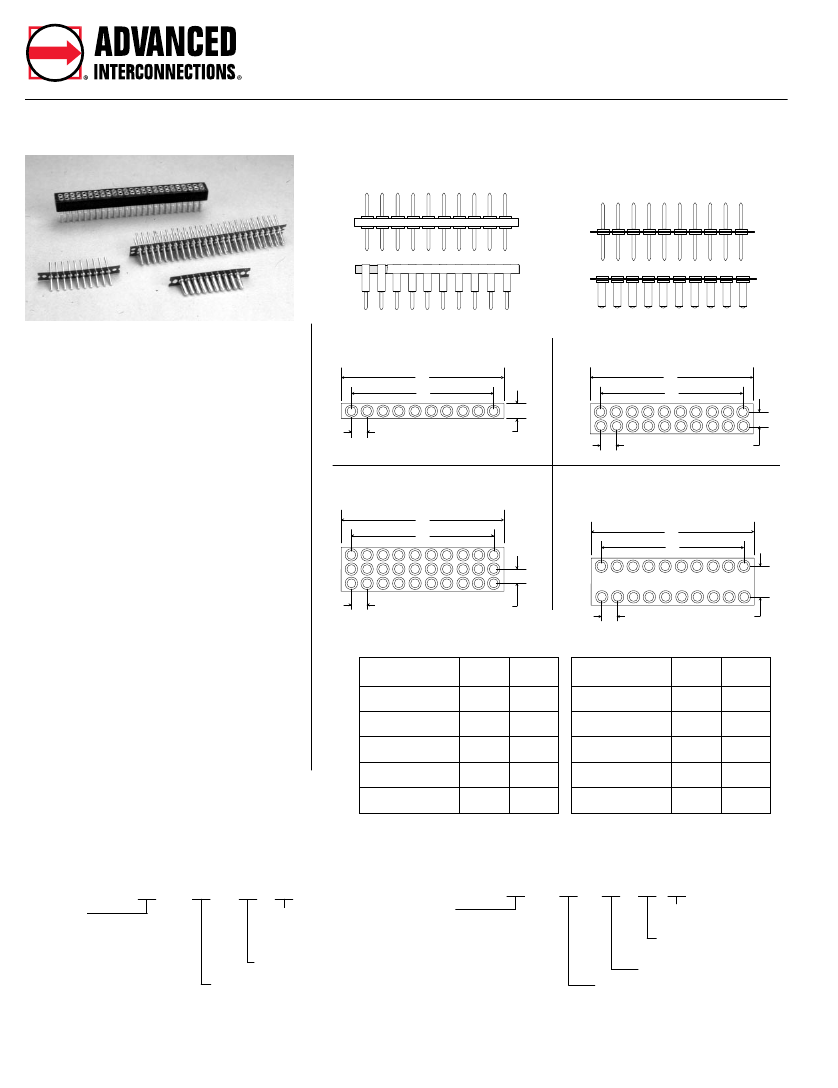

Single Row
SDA, NBA, KBA - Male / SDS, KBS - Female
Dual Row
.050" (1.27mm) Spacing Row to Row
KNA, DDA - Male / DDS, KNS - Female
X
Y
.050 Typ.
(1.27)
.100 Typ.
(2.54)
X
Y
.050 Typ.
(1.27)
.050 Typ.
(1.27)
Triple Row
KTA - Male / KTS - Female
Dual Row
.100" (2.54mm) Spacing Row to Row
DAD, KDA - Male / DD, KDD - Female
P/N Ex. KTS030-227TG
Terminals and Contacts:
Terminal: Brass - Copper Alloy (C36000),
ASTM-B-16
Contact: Beryllium Copper - Copper Alloy
(C17200), ASTM-B-194
X
Y
P/N Ex. KDA020-131T
X
Y
Plating:
Terminal: Gold over Nickel or
Tin-Lead over Nickel
Contact: Gold over Nickel or
Tin-Lead over Nickel
.050 Typ.
(1.27)
.050 Typ.
(1.27)
.050 Typ.
(1.27)
.100 Typ.
(2.54)
Molded
# of Pins
Per Row
10
20
30
40
50
X
.550
(13.97)
1.050
(26.67)
1.550
(39.37)
2.050
(52.07)
2.550
(64.77)
Peel-A-Way
®
Y
.450
(11.43)
.950
(24.13)
1.450
(36.83)
1.950
(49.53)
2.450
(62.23)
# of Pins
Per Row
10
20
30
40
50
X
.650
(16.51)
1.150
(29.21)
1.650
(41.91)
2.150
(54.61)
2.650
(67.31)
Y
.450
(11.43)
.950
(24.13)
1.450
(36.83)
1.950
(49.53)
2.450
(62.23)
Body Material:
Molded -
Glass Filled Thermoplastic
Polyester (P.B.T.), U.L. Rated 94V-O, -60˚C
to 140˚C (-76˚F to 284˚F)
High Temp. Molded -
High temp. glass
filled thermoplastic, U.L. Rated 94V-O,
-60˚C to 260˚C (-76˚F to 500˚F)
Peel-A-Way
®
-
Polyimide Film, Temp. range
-269˚C to 400˚C (-452˚F to 752˚F)
Multiply number of rows times number of pins
per row for total pin count to order.
How To Order - Male
KBA
Body Type
KBA - Single Row Peel-A-Way
®
KNA - Dual Row Peel-A-Way
®
KTA - Triple Row Peel-A-Way
®
*KDA - Dual Row Peel-A-Way
®
(.100/(2.54) Pitch Between Rows)
How To Order - Female
T
KBS
Body Type
SDS/HSDS - Single Row Molded
KBS - Single Row Peel-A-Way
®
DSS/HDSS - Dual Row Molded
KNS - Dual Row Peel-A-Way
®
KTS - Triple Row Peel-A-Way
®
*DD - Dual Row Molded
(.100/(2.54) Pitch Between Rows)
010
-131
010
-227
T
G
Contact Plating
G - Gold T - Tin-Lead
Terminal Plating
G - Gold T - Tin-Lead
Terminal Plating
G - Gold
T - Tin-Lead
Terminal Type
Total Number of Pins
10,20,30,40 & 50 positions
per row standard. For other
lengths consult factory.
*KDD - Dual Row Peel-A-Way
®
(.100/(2.54) Pitch Between Rows)
Terminal Type
Total Number of Pins
10,20,30,40 & 50 positions
per row standard. For other
lengths consult factory.
Peel-A-Way
®
covered by patent rights issued and/or pending.
Page 114
Products shown covered by patents issued and/or pending. Specifications subject to change without notice.
inch/(mm)
Board to Board
Interconnections
5 Energy Way, P.O. Box 1019, West Warwick, RI 02893 USA Tel. 800-424-9850/401-823-5200 • Fax 401-823-8723 • Email info@advintcorp.com • Internet http://www.advintcorp.com
.050” (1.27mm) Pitch Board to Board Interconnections
Male Terminal Information
Surface Mount
Type -525
Peel-A-Way
®
Only
Surface Mount
Type -526
Peel-A-Way
®
Only
.018 Dia.
(.46)
.018 Dia.
(.46)
.129
(3.28)
.110
(2.79)
.040 Dia.
(1.02)
.031
(.79)
.040 Dia.
(1.02)
.050
(1.27)
Thru Hole
Type -131
Peel-A-Way
®
Only
.018 Dia.
(.46)
.037 Dia.
(.94)
.125
(3.18)
Thru Hole
Type -321
Peel-A-Way
®
Only
.018 Dia.
(.46)
.037 Dia.
(.94)
.070
(1.78)
.125
(3.18)
Thru Hole
Type -322
Peel-A-Way
®
Only
.018 Dia.
(.46)
.037 Dia.
(.94)
.085
(2.16)
.125
(3.18)
Thru Hole
Type -233
Molded Only
.041 Dia.
(1.04)
.095
(2.41)
.107
(2.71)
.095
(2.41)
.031
(.79)
.125
(3.18)
.018 Dia.
(.46)
.125
(3.18)
.018 Dia.
(.46)
.125
(3.18)
.018 Dia.
(.46) Typ. 2
.018 Dia.
(.46)
Female Terminal Information
Thru Hole
Type -168
Molded Only
.041 Dia.
(1.04)
Thru Hole
Type -205
Molded Only
.042 Dia.
(1.07)
Thru Hole
Type -347
Molded Only
.042 Dia.
(1.07)
.105
(2.67)
.080
(2.03)
.110
(2.79)
Thru Hole
Type -227
Peel-A-Way
®
Only
BOARD TO BOARD
.042 Dia.
(1.07)
.165
(4.19)
.278
(7.06)
.015
(.38)
.155
(3.94)
.080
(2.03)
.018 Dia.
(2.79)
.015 Dia.
(.38)
.070
(1.78)
.018 Dia.
(.46)
.034 Dia.
(.86)
Quick turn delivery available on standard terminal types.
Additional terminal types available. See terminal section for detailed terminal information.
Peel-A-Way
®
covered by patent rights issued and/or pending.
inch/(mm)
Products shown covered by patents issued and/or pending. Specifications subject to change without notice.
Page 115
Board to Board
Interconnections
5 Energy Way, P.O. Box 1019, West Warwick, RI 02893 USA Tel. 800-424-9850/401-823-5200 • Fax 401-823-8723 • Email info@advintcorp.com • Internet http://www.advintcorp.com
.050” (1.27mm) Pitch Board to Board Interconnections
Thru Hole Male & Female
B
A
C
B
Figure 1

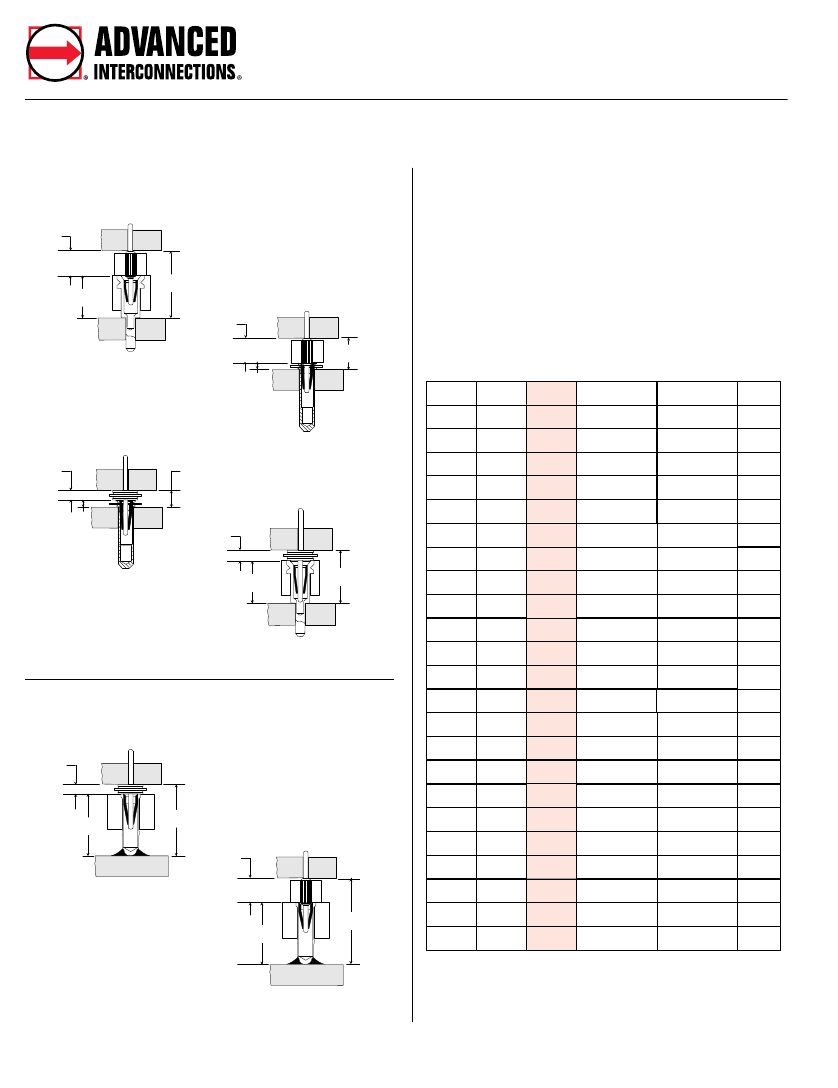

Molded Male & Female
A
Order One Each Male & Female To Get the Required "A" Dim.
C
B
.031
(.79)
.070
(1.78)
.085
(2.16)
.107
(2.71)
.031
(.79)
.031
(.79)
.070
(1.78)
.070
(1.78)
.031
(.79)
.031
(.79)
.085
(2.16)
.085
(2.16)
.107
(2.71)
.107
(2.71)
.070
(1.78)
.070
(1.78)
.085
(2.16)
.085
(2.16)
.071
(2.71)
.031
(.79)
.070
(1.78)
.085
(2.16)
.107
(2.71)
C
.015
(.38)
.015
(.38)
.015
(.38)
.015
(.38)
.112
(2.84)
.118
(3.00)
.112
(2.84)
.118
(3.00)
.161
(4.09)
.165
(4.19)
.112
(2.84)
.118
(3.00)
.112
(2.84)
.118
(3.00)
.161
(4.09)
.165
(4.19)
.165
(4.19)
.161
(4.09)
.165
(4.19)
.278
(7.06)
.278
(7.06)
.278
(7.06)
.278
(7.06)
A
.046
(1.17)
.085
(2.16)
.100
(2.54)
.122
(3.09)
.143
(3.63)
.149
(3.79)
.182
(4.62)
.188
(4.78)
.192
(4.88)
.196
(4.98)
.197
(5.00)
.203
(5.16)
.219
(5.55)
.225
(5.71)
.231
(5.87)
.235
(5.97)
.250
(6.35)
.246
(6.25)
.272
(6.91)
.309
(7.85)
.348
(8.84)
.363
(9.22)
.385
(9.77)
Male Part #
Female Part #
Fig. #
3
3
3
2
4
5
4
5
5
4
4
5
1
6
5
4
4
5
1
4
4
4
1
Figure 2
Molded Male
&
Peel-A-Way
®
Female
KBA020-131G KBS020-227TG
KBA020-321G KBS020-227TG
KBA020-322G KBS020-227TG
NBA020-233G KBS020-227TG
KBA020-131G SDS020-557TG
KBA020-131G SDS020-551TG
KBA020-321G SDS020-557TG
KBA020-321G SDS020-551TG
KBA020-131G SDS020-553TG
KBA020-131G SDS020-168TG
KBA020-322G SDS020-557TG
KBA020-322G SDS020-551TG
SDA020-233G SDS020-557TG
NBA020-233G SDS020-551TG
KBA020-321G SDS020-553TG
KBA020-321G SDS020-168TG
KBA020-322G SDS020-168TG
KBA020-322G SDS020-553TG
NBA020-233G SDS020-168TG
KBA020-131G SDS020-205TG
KBA020-321G SDS020-205TG
KBA020-322G SDS020-205TG
NBA020-233G SDS020-205TG
B
A
C
B
A
Figure 3
Peel-A-Way
®
Male & Female
C
Figure 4
Peel-A-Way
®
Male & Molded Female
Thru Hole Male & Surface Mount Female
B
C
A
B
Figure 5
Peel-A-Way
®
Male & Molded Female
A
C
20 Position Single Row Part Numbers Shown
For Additional Ordering Information See Page 114
Figure 6
Molded Male & Female
If required "A" dimension is not shown, consult factory.
Peel-A-Way
®
covered by patent rights issued and/or pending.
Page 116
Products shown covered by patents issued and/or pending. Specifications subject to change without notice.
inch/(mm)
Board to Board
Interconnections
5 Energy Way, P.O. Box 1019, West Warwick, RI 02893 USA Tel. 800-424-9850/401-823-5200 • Fax 401-823-8723 • Email info@advintcorp.com • Internet http://www.advintcorp.com
.050” (1.27mm) Pitch Board to Board Interconnections
Surface Mount Male & Thru Hole Female
Surface Mount Male & Female
B
B
A
A
C
C
Figure 7
Peel-A-Way
®
Male & Female
Figure 9
B
A
Peel-A-Way
®
Male & Molded Female
C
Figure 8
Peel-A-Way
®
Male & Molded Female
BOARD TO BOARD
Order One Each Male & Female To Get the Required "A" Dim.
B
.031
(.79)
.050
(1.27)
.050
(1.27)
.031
(.79)
.031
(.79)
.050
(1.27)
.050
(1.27)
.031
(.79)
.050
(1.27)
C
.015
(.38)
.015
(.38)
.118
(3.00)
.161
(4.09)
.165
(4.19)
.161
(4.09)
.165
(4.19)
.278
(7.06)
.278
(7.06)
A
.046
(1.17)
.065
(1.65)
.168
(4.27)
.192
(4.88)
.196
(4.98)
.211
(5.36)
.215
(5.46)
.309
(7.85)
.326
(8.33)
Male Part #
Female Part #
Fig. #
7
7
9
9
8
9
8
8
8
KBA020-525G KBS020-227TG
KBA020-526G KBS020-227TG
KBA020-526G SDS020-551TG
KBA020-525G SDS020-553TG
KBA020-525G SDS020-168TG
KBA020-526G SDS020-553TG
KBA020-526G SDS020-168TG
KBA020-525G SDS020-205TG
KBA020-526G SDS020-205TG
20 Position Single Row Part Numbers Shown
For Additional Ordering Information See Page 114
If required "A" dimension is not shown, consult factory.
Peel-A-Way
®
covered by patent rights issued and/or pending.
inch/(mm)
Products shown covered by patents issued and/or pending. Specifications subject to change without notice.
Page 117
