• Multilayer monolithic construction yields high reliability
• Nickel barrier terminations provide excellent solder heat resistance
• Suitable for flow and RoHS reflow soldering
Pb
RoHS
Compliant
• Video equipment, audio equipment
• Automotive electrical equipment
• Communication equipment
• OA equipment and other
2.00 x 1.25 x 0.85m m
| | | | | | | | | | | | |
| |
FEATURES:
APPLICATIONS:
ELECTRICAL SPECIFICATIONS:
PARAMETERS
Operating temperature: -55°C to + 125°C
Storage temperature : -55°C to + 125°C
Part Number
Units
Symbol
ACML-0805-070
ACML-0805-110
ACML-0805-170
ACML-0805-190
ACML-0805-260
ACML-0805-310
ACML-0805-360
ACML-0805-500
ACML-0805-600
ACML-0805-700
ACML-0805-800
ACML-0805-101
ACML-0805-121
ACML-0805-151
ACML-0805-181
ACML-0805-221
ACML-0805-301
ACML-0805-501
ACML-0805-601
ACML-0805-751
ACML-0805-102
ACML-0805-122
ACML-0805-152
ACML-0805-202
Impedance
Ω
± 25%
Z
7
11
17
19
26
31
36
50
60
70
80
100
120
150
180
220
300
500
600
750
1000
1200
1500
2000
Frequency
MHz
F
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
50
50
50
DC
resistance
Ω
max
R
DC
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.08
0.10
0.12
0.15
0.15
0.20
0.20
0.25
0.30
0.35
0.35
0.45
0.50
0.65
0.80
Rated
Current
mA max
I
R
2200
2000
2000
2000
1500
1500
1500
1000
1000
1000
1000
1000
800
800
600
600
500
500
500
300
300
200
200
200
I
R
: Rated current applied when the chip surface temperature rise 20°C
Impedance is measured on 50mV as the frequency in the table by HP4291.
DCR measuring equipment: LCR Meter HP4263A or equivalent
ABRACON IS
ISO9001:2008
ISO 9001 / QS 9000
CE RTIFIED
Revised: 07.14.11
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
0805
PROFILE WIRE WOUND INDUCTOR (CERAMIC BASE)
LOW
Multilayer Ferrite Chip Bead
ACML-0805
OPTIONS AND PART IDENTIFICATION
Pb
RoHS
Compliant
2.00 x 1.25 x 0.85m m
| | | | | | | | | | | | |
| |
ACML-0805
-
Inductance Code
Please refer to the P/N
table
-
T: Tape and Reel
(4kpcs / reel)
Packaging

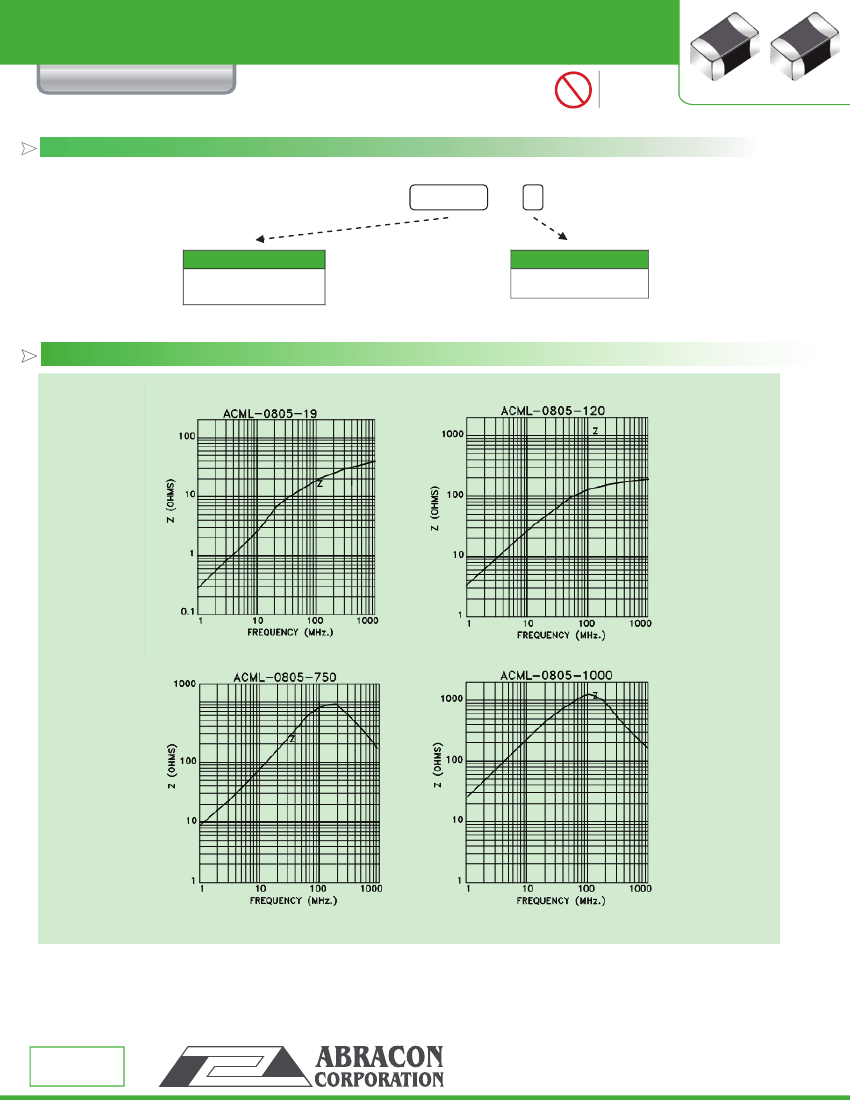

FREQUENCY RESPONSE
0
ABRACON IS
ISO 9001 / QS 9000
ISO9001:2008
CE RTIFIED
Revised: 07.14.11
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
0805
PROFILE WIRE WOUND INDUCTOR (CERAMIC BASE)
LOW
Multilayer Ferrite Chip Bead
ACML-0805
MECHANICAL DIMENSIONS
L
Length (L)
Width (W)
W
Thickness (T)
Termination (BW)
0.079±0.007
(2,00±0,20)
0.049±0.008
(1,25±0,20)
0.033±0.008
(0,85±0,20)
0.020±0.008
(0,50±0,20)
Pb
RoHS
Compliant
2.00 x 1.25 x 0.85m m
| | | | | | | | | | | | |
| |
BW
T
Dimension: inches (mm)

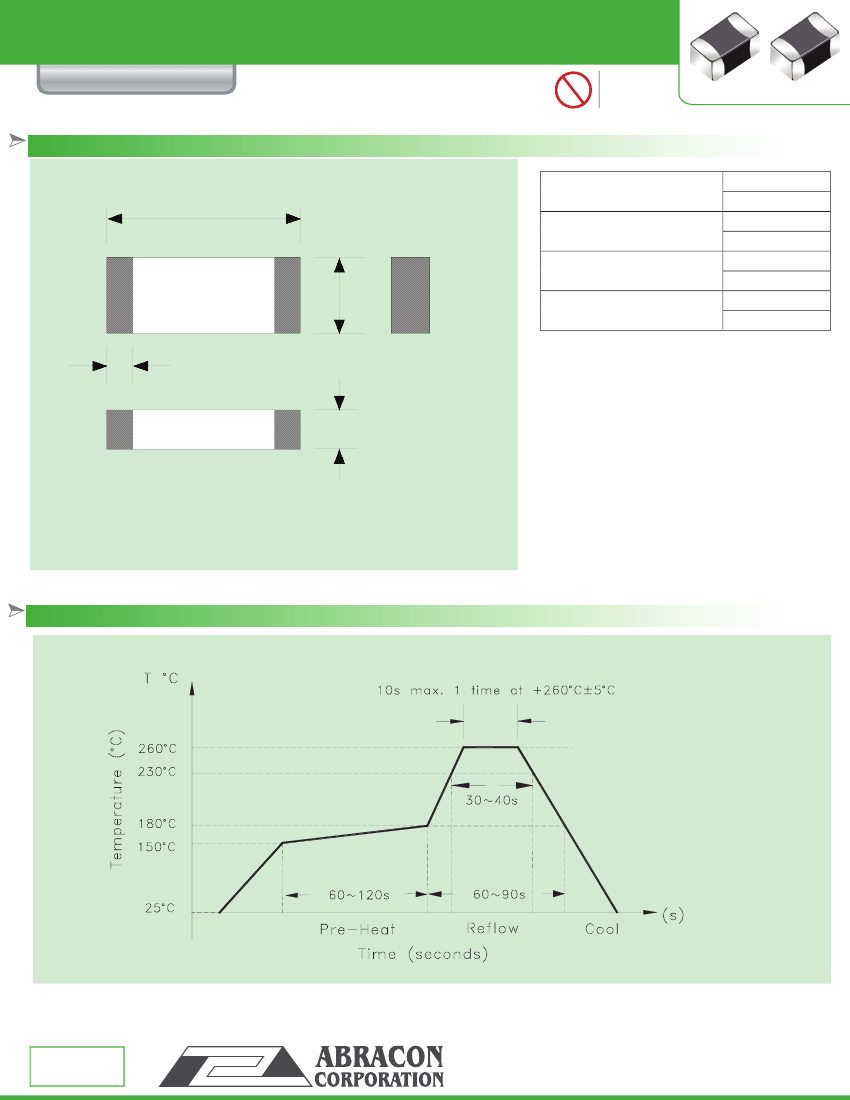

REFLOW PROFILE
ABRACON IS
ISO 9001 / QS 9000
ISO9001:2008
CE RTIFIED
Revised: 07.14.11
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
0805
PROFILE WIRE WOUND INDUCTOR (CERAMIC BASE)
LOW
Multilayer Ferrite Chip Bead
ACML-0805

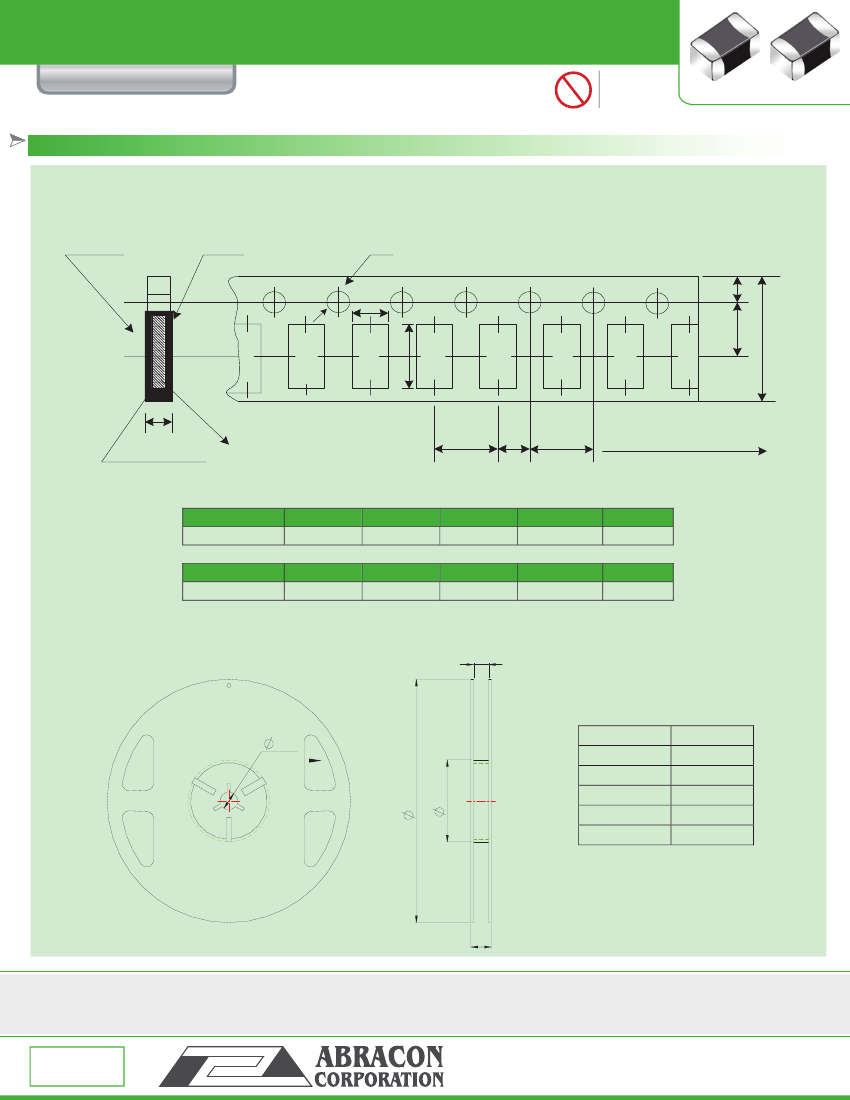

PACKING:
T= tape and reel (4,0 00 pcs per reel)
B o tto m T a p e
To p Ta p e
Pb
RoHS
Compliant
2.00 x 1.25 x 0.85m m
| | | | | | | | | | | | |
| |
ψ
D
0
A
B
E
F
W
T
P a pe r T a p e
P
1
P
2
P
0
ACML-0805
d ire c tio n o f u n re e lin g
ACML-080 5
Code s
Code s
1.5 ±0.1 5
A
2.50 ±0.2
B
8.00 ±0.3
W
P
2
1.75 ±0.1
E
3.5 ±0.1
F
ACML-0805
4.00 ±0.10
P
0
4.00 ±0.10
P
1
2.00±0.05
1.5+0. 1/-0
ΦD
0
1.1±0.03
T
W
C
A
B
Dime nsion
mm
178±2
A
60±2
B
13.0±0.5
C
10.0±1.15
W
12.0±1.0
T
T
ATTENTION:
Abracon Corporation’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated, Automotive Applications.
Abracon’s products are not specifically designed for Military, Aviation, Aerospace, Life-dependant Medical applications or any application requiring high reliability where component
failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme operating environment, written consent and authorization from
Abracon Corporation is required. Please contact Abracon Corporation for more information.
ABRACON IS
ISO 9001 / QS 9000
ISO9001:2008
CE RTIFIED
Revised: 07.14.11
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
