NON-ISOLATED DC/DC CONVERTERS
3.3 Vdc Input
5.0 Vdc / 4 A Output
xRPC-04C50x
•
•
•
Non-Isolated
High Efficiency
Fixed Frequency
RoHS Compliant
•
•
•
Low Cost
Rev.A
High Power Density
Industry Standard Footprint

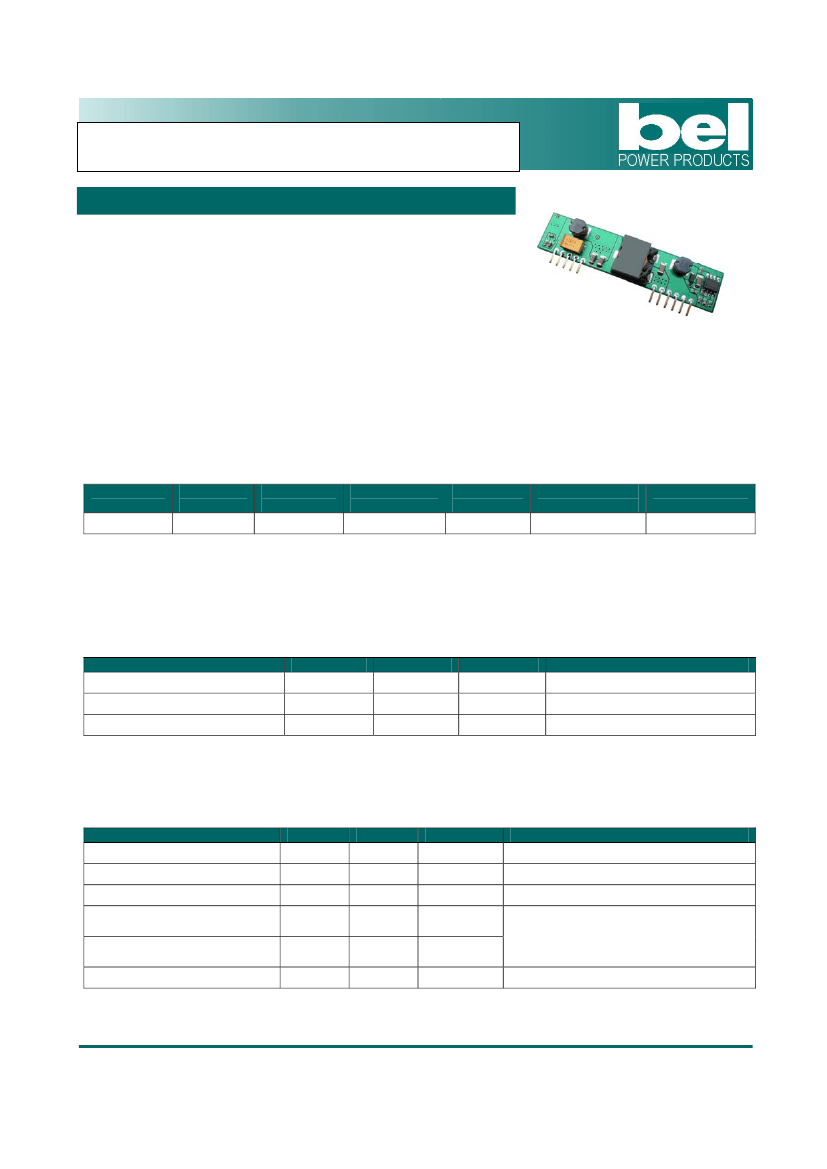

Description
The xRPC-04C50x series are part of low-cost non-isolated boost dc/dc converters that operate from a nominal
3.3 Vdc source. The modules use a SIP package for ease of layout and space savings. The output is closely
regulated and the efficiency for 5.0 Vdc output is typically 92.5% at full load. Standard features include high
efficiency, fixed frequency, industry standard footprint and high power density.
Part Selection
Output
Voltage
5.0 Vdc
Input
Voltage
3.3 Vdc
Max. Output
Current
4A
Max. Output
Power
20 W
Typical
Efficiency
92.5%
Model Number
Without Coating
VRPC-04C50A
Model Number
With Coating
1
VRPC-04C50W
Notes:
1. “W” indicates special coating.
2. Replace the first letter of the model number with "0" for horizontal mount package.
3. Add “G” suffix at the end of the model numbers listed above to indicate “Tray Packaging”.
4. All part numbers above indicate RoHS 6. Change the second letter "R" to "7" for RoHS 5 part numbers.
Absolute Maximum Ratings
Parameter
Input Voltage (continuous)
Ambient Temperature
Storage Temperature
Min
-0.3 V
-40
°C
-40
°C
Typ
-
-
-
Max
5V
85
°C
125
°C
Notes
Note:
Use beyond the maximum ratings may cause a reliability degradation of the dc/dc converter or may
permanently damage the device.
Input Specifications
Parameter
Operating Input Voltage
Input Current (full load)
Input Current (no load)
Input Reflected Ripple Current
(pk-pk)
Input Reflected Ripple Current
(rms)
I t Inrush Current Transient
2
Min
3V
-
-
-
-
-
Typ
-
-
-
120 mA
25 mA
0.01 A s
2
Max
4V
8A
400 mA
200 mA
50 mA
0.02 A s
2
Notes
Tested with a 270 uF/10 V input capacitor
with ESR=0.03 ohm max at 100 kHz &
simulated source impedance of 500 nH, 5
Hz to 20 MHz.
Note:
All specifications are typical at 25
°C
unless otherwise stated.
Bel Fuse Inc.
206 Van Vorst Street, Jersey City, NJ 07302
•
Tel 201-432-0463
•
Fax 201-432-9542
•
www.belfuse.com
NON-ISOLATED DC/DC CONVERTERS
3.3 Vdc Input
5.0 Vdc / 4 A Output
Output Specifications
Parameter
Output Voltage Set Point
Load Regulation
Line Regulation
Regulation Over Temperature
(-40
°C
to 85
°C)
Output Current
Output Ripple and Noise (pk-pk)
Output Ripple and Noise (rms)
Turn on Time
Overshoot at Turn on
Output Capacitance
Transient Response
50% ~ 100% Max Load
Settling Time
100% ~ 50% Max Load
Settling Time
V
O
= 5.0 V
-
-
-
-
100 mV
200 uS
100 mV
200 uS
200 mV
500 uS
200 mV
500 uS
di/dt=0.1 A/uS; Vin=3.3 V;
and with external 220 uF
Tantalum capacitor & 1 uF /
10 V ceramic capacitor at the
output.
Min
4.9 V
-
-
-
0A
-
-
-
-
0 uF
Typ
5.0 V
10 mV
5 mV
15 mV
-
50 mV
15 mV
10 mS
0%
-
Max
5.1 V
25 mV
15 mV
45 mV
4A
100 mV
30 mV
-
3%
1600 uF
Test conditions:
0-20 MHz BW, with external 1 uF
/ 10 V ceramic capacitor at the
output
Notes
Notes:
1. This module has no internal OVP. An external OVP protection is always employed.
2. All specifications are typical at nominal input, full load at 25
°C
unless otherwise stated.
General Specifications
Parameter
Efficiency
Switching Frequency
MTBF
Dimensions
Inches (L
×
W
×
H)
Millimeters (L
×
W
×
H)
Weight
-
Min
89%
200 kHz
Typ
92.5%
250 kHz
8,754,928 hours
2.5 x 0.55 x 0.34
63.50 x 13.98 x 8.64
2.5 x 0.55 x 0.375
63.50 x 13.98 x 9.53
9.2 g
-
Max
-
300 kHz
Calculated Per Bell Core SR-332 (I
O
=
80% load; Vin=3.3 V; T
a
= 25
°C)
VRPC-04C50x
0RPC-04C50x
Notes
Vin=3.3 V, full load
Note:
All specifications are typical at 25
°C
unless otherwise stated.
Bel Fuse Inc.
206 Van Vorst Street, Jersey City, NJ 07302
•
Tel 201-432-0463
•
Fax 201-432-9542
•
www.belfuse.com
NON-ISOLATED DC/DC CONVERTERS
3.3 Vdc Input
5.0 Vdc / 4 A Output

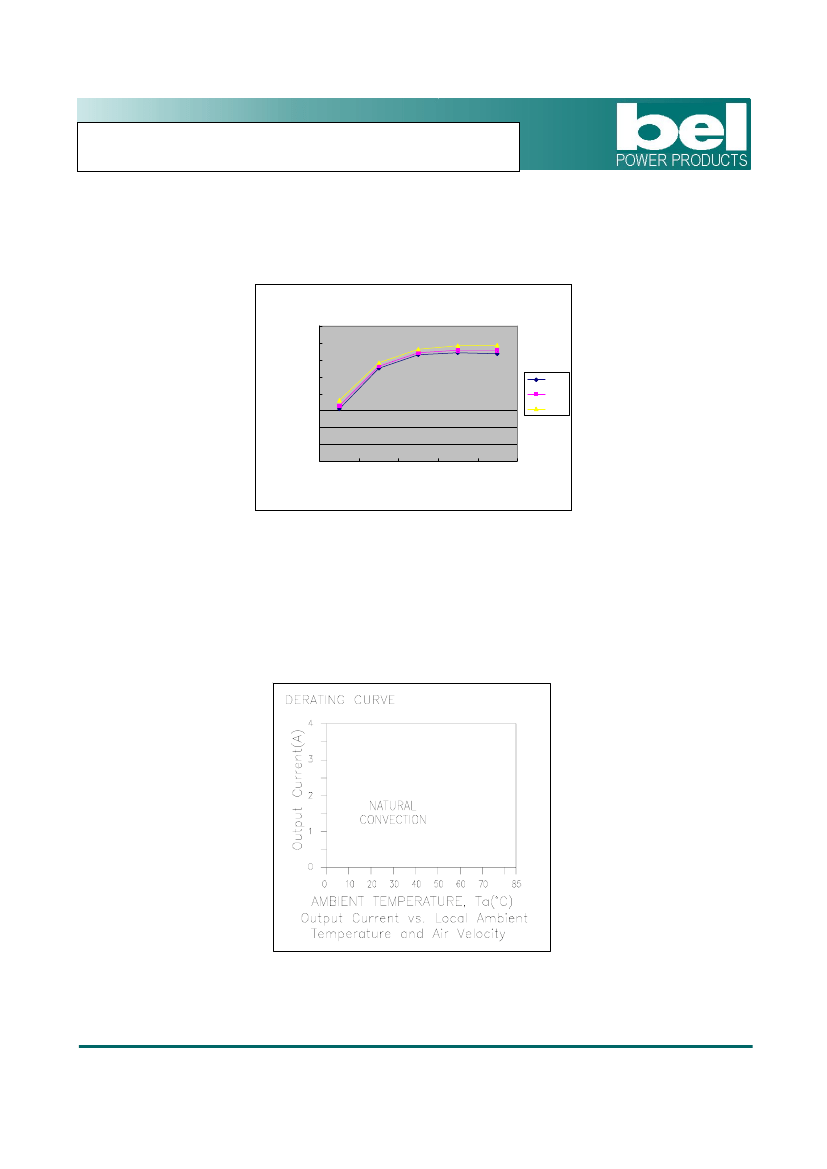

Efficiency Data
5V Module
100.0%
95.0%
90.0%
Efficiency
85.0%
80.0%
75.0%
70.0%
65.0%
60.0%
0.5
1.0
2.0
Output Current
3.0
4.0
3.0V
3.3V
4.0V
Thermal Derating Curve
Bel Fuse Inc.
206 Van Vorst Street, Jersey City, NJ 07302
•
Tel 201-432-0463
•
Fax 201-432-9542
•
www.belfuse.com
NON-ISOLATED DC/DC CONVERTERS
3.3 Vdc Input
5.0 Vdc / 4 A Output

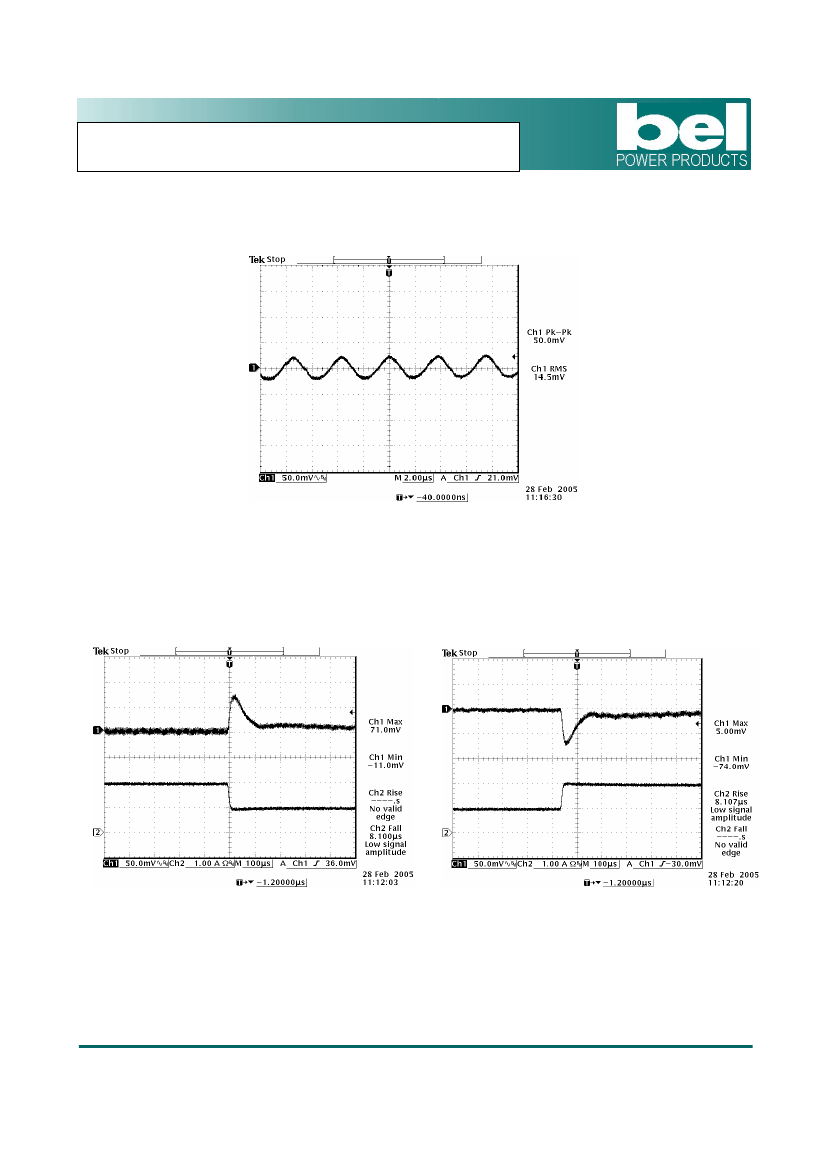

Ripple and Noise Waveform
Note:
Ripple and noise at max load, 3.3 Vdc input, 5 Vdc output, 0-20 MHz BW, with 1 uF/10 V ceramic
capacitor, and Ta=25 deg C
Transient Response Waveforms
25% to 50% load step at 3.3 Vdc input, 5 Vdc output
50% to 25% load step at 3.3 Vdc input, 5 Vdc output
Note:
Transient response at di/dt=0.1 A/uS, with 220 uF/10 V tantalum capacitor at the output,
and Ta=25 deg C.
Bel Fuse Inc.
206 Van Vorst Street, Jersey City, NJ 07302
•
Tel 201-432-0463
•
Fax 201-432-9542
•
www.belfuse.com
NON-ISOLATED DC/DC CONVERTERS
3.3 Vdc Input
5.0 Vdc / 4 A Output

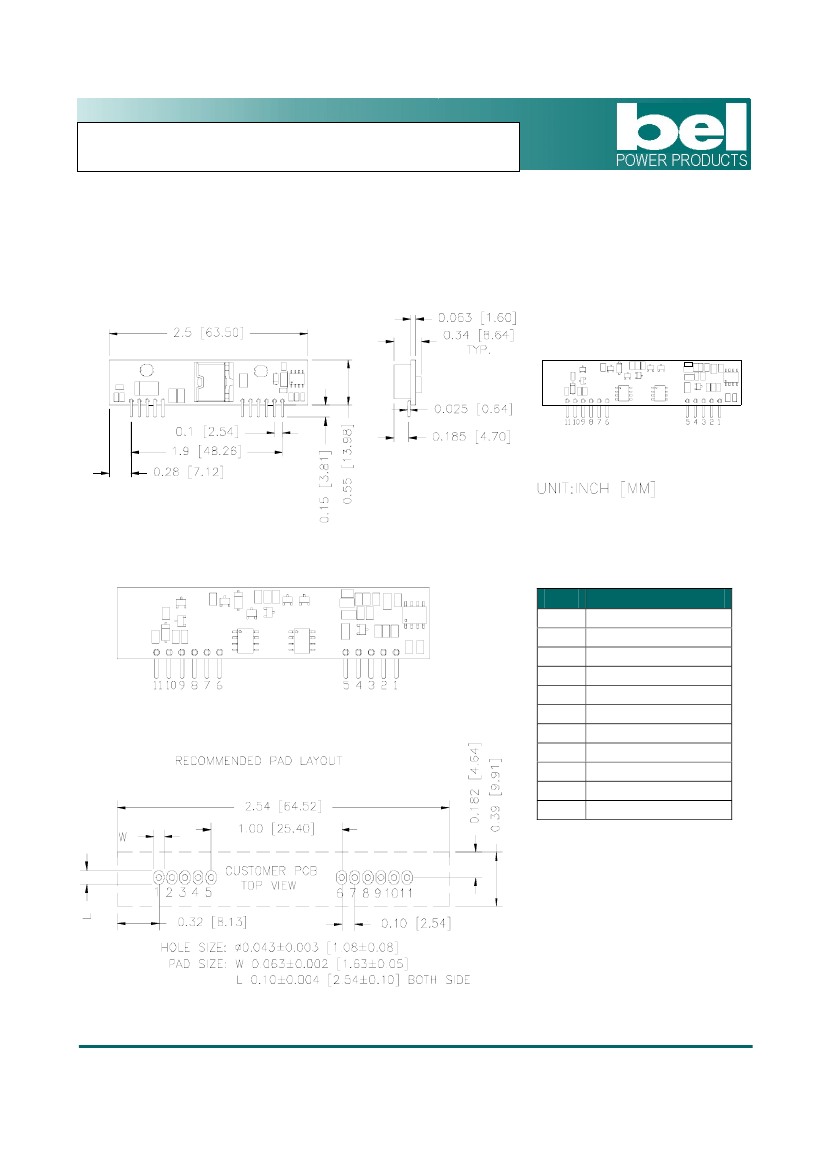

Mechanical Outline
VRPC-04C50x
Pin Connections
Pin
1
2
3
4
5
6
7
8
9
10
11
Function
Vo+
Vo+
Vo+
Vo -
Vo -
Vin -
Vin -
Vin+
Vin+
Vin+
Vin+
Bel Fuse Inc.
206 Van Vorst Street, Jersey City, NJ 07302
•
Tel 201-432-0463
•
Fax 201-432-9542
•
www.belfuse.com
