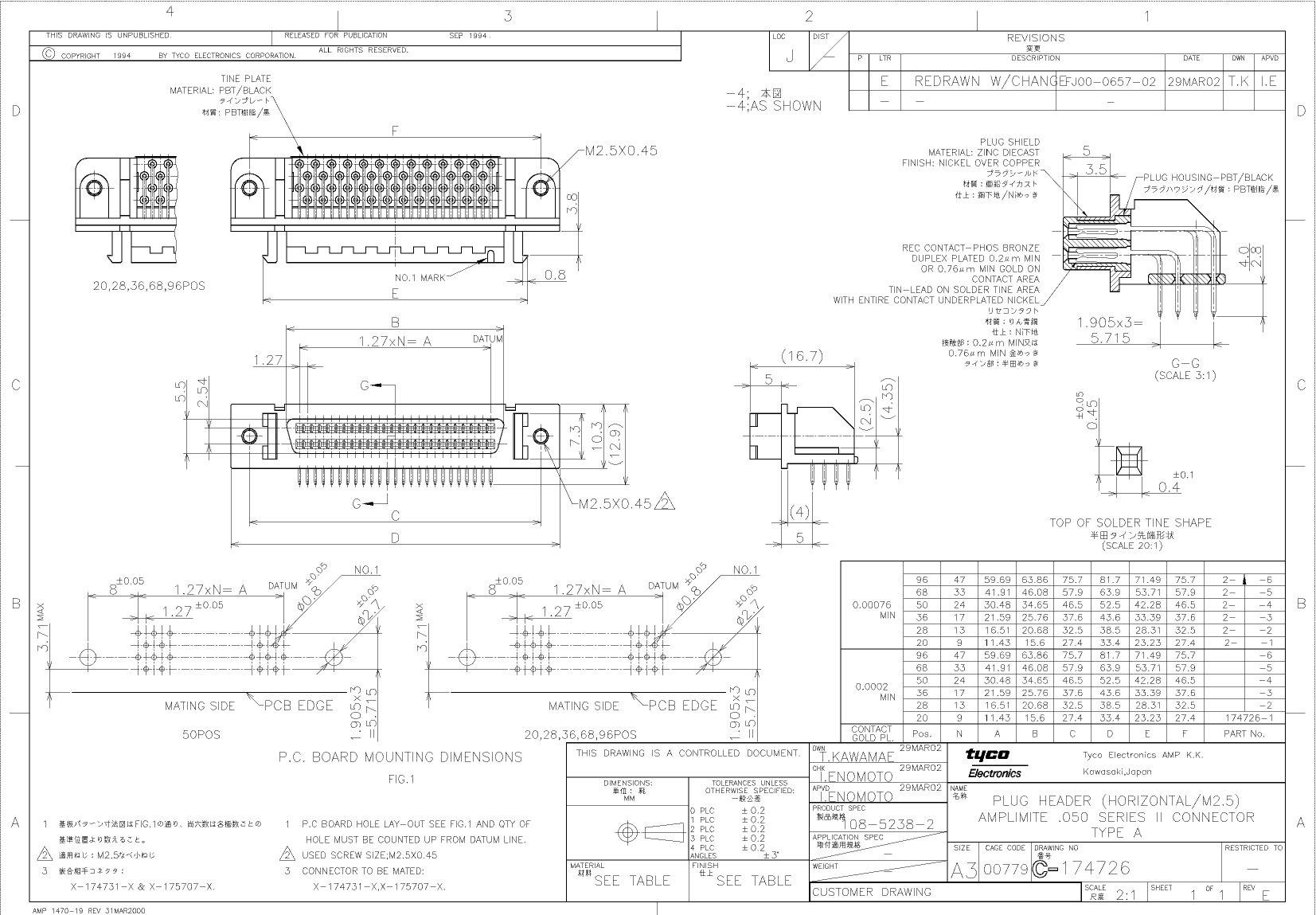

Preview

174726-1: DescriptionCONNECTOR,D-SHELL,PCB MNT,PLUG,20 CONTACTS,SKT,0.05 PITCH,PC TAIL TERMINAL,M2.5; CategoryThe connector The connector; File Size109KB，3 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

174726-1 Overview

CONNECTOR,D-SHELL,PCB MNT,PLUG,20 CONTACTS,SKT,0.05 PITCH,PC TAIL TERMINAL,M2.5

174726-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	300071868
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.406 inch
subject depth	0.461 inch
body length	1.315 inch
Body/casing type	PLUG
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	2 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
maximum insertion force	8.896 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	POLYETHYLENE
Plug contact pitch	0.05 inch
Match contact row spacing	0.1 inch
Installation option 1	M2.5
Installation option 2	THREADED
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	4
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	1.905 mm
Plating thickness	8u inch
Guideline	UL, CSA
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	ZINC ALLOY
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	20
Evacuation force-minimum value	.556 N

Preview

Download Datasheet

View All

174726-1 Related Products

	174726-1	2-174726-6	174726-6	2-174726-1	2-174726-2	174726-2	RN732ATTE4422B05
Description	CONNECTOR,D-SHELL,PCB MNT,PLUG,20 CONTACTS,SKT,0.05 PITCH,PC TAIL TERMINAL,M2.5	96 CONTACT(S), FEMALE, OTHER D TYPE CONNECTOR, SOLDER, PLUG	96 CONTACT(S), FEMALE, OTHER D TYPE CONNECTOR, SOLDER, PLUG	CONNECTOR,D-SHELL,PCB MNT,PLUG,20 CONTACTS,SKT,0.05 PITCH,PC TAIL TERMINAL,M2.5	CONNECTOR,D-SHELL,PCB MNT,PLUG,28 CONTACTS,SKT,0.05 PITCH,PC TAIL TERMINAL,M2.5	CONNECTOR,D-SHELL,PCB MNT,PLUG,28 CONTACTS,SKT,0.05 PITCH,PC TAIL TERMINAL,M2.5	Fixed Resistor, Thin Film, 0.1W, 44200ohm, 100V, 0.1% +/-Tol, 5ppm/Cel, Surface Mount, 0805, CHIP, ROHS COMPLIANT
Reach Compliance Code	compliant	unknown	unknown	unknow	unknow	compliant	compliant
Is it Rohs certified?	incompatible	conform to	conform to	-	-	incompatible	conform to
Objectid	300071868	1504386784	1504386766	-	-	300071869	1675080151
body width	0.406 inch	-	-	0.406 inch	0.406 inch	0.406 inch	-
subject depth	0.461 inch	-	-	0.461 inch	0.461 inch	0.461 inch	-
body length	1.315 inch	-	-	1.315 inch	1.516 inch	1.516 inch	-
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	-
Contact to complete cooperation	AU ON NI	NOT SPECIFIED	NOT SPECIFIED	AU ON NI	AU ON NI	AU ON NI	-
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	-
Contact material	PHOSPHOR BRONZE	NOT SPECIFIED	NOT SPECIFIED	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	-
contact mode	RECTANGULAR	-	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	-
Contact resistance	2 mΩ	-	-	2 mΩ	2 mΩ	2 mΩ	-
Contact style	SQ PIN-SKT	-	-	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	-
Dielectric withstand voltage	1500VAC V	-	-	1500VAC V	1500VAC V	1500VAC V	-
maximum insertion force	8.896 N	-	-	8.896 N	8.896 N	8.896 N	-
Insulation resistance	5000000000 Ω	-	-	5000000000 Ω	5000000000 Ω	5000000000 Ω	-
Insulator color	BLACK	-	-	BLACK	BLACK	BLACK	-
insulator material	POLYETHYLENE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	THERMOPLASTIC	THERMOPLASTIC	POLYETHYLENE	-
Plug contact pitch	0.05 inch	-	-	0.05 inch	0.05 inch	0.05 inch	-
Match contact row spacing	0.1 inch	-	-	0.1 inch	0.1 inch	0.1 inch	-
Installation option 1	M2.5	-	-	M2.5	M2.5	M2.5	-
Installation option 2	THREADED	-	-	THREADED	THREADED	THREADED	-
Installation method	RIGHT ANGLE	-	-	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	-
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	-
PCB row number	4	-	-	4	4	4	-
Number of rows loaded	2	-	-	2	2	2	-
Maximum operating temperature	85 °C	-	-	85 °C	85 °C	85 °C	155 °C
Minimum operating temperature	-65 °C	-	-	-65 °C	-65 °C	-65 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	-	GENERAL PURPOSE	-
PCB contact pattern	STAGGERED	-	-	STAGGERED	STAGGERED	STAGGERED	-
PCB contact row spacing	1.905 mm	-	-	1.905 mm	1.905 mm	1.905 mm	-
Plating thickness	8u inch	-	-	30u inch	30u inch	8u inch	-
Guideline	UL, CSA	-	-	UL, CSA	UL, CSA	UL, CSA	-
reliability	COMMERCIAL	-	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	-
Shell surface	NICKEL	NICKEL	NICKEL	NICKEL OVER COPPER	NICKEL OVER COPPER	NICKEL	-
Shell material	ZINC ALLOY	ZINC ALLOY	ZINC ALLOY	ZINC	ZINC	ZINC ALLOY	-
Terminal pitch	2.54 mm	-	-	2.54 mm	2.54 mm	2.54 mm	-
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	-
Total number of contacts	20	96	96	20	28	28	-
Evacuation force-minimum value	.556 N	-	-	.556 N	.556 N	.556 N	-
