208-3LPN datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> 208-3LPN

208-3LPN: DescriptionDIP Switch,; CategoryMechanical and electronic products switch; File Size1MB，4 Pages; ManufacturerCTS

Download Datasheet Parametric View All

208-3LPN Overview

DIP Switch,

208-3LPN Parametric

Parameter Name	Attribute value
Objectid	145209584746
Reach Compliance Code	unknown
ECCN code	EAR99

208-3LPN Preview

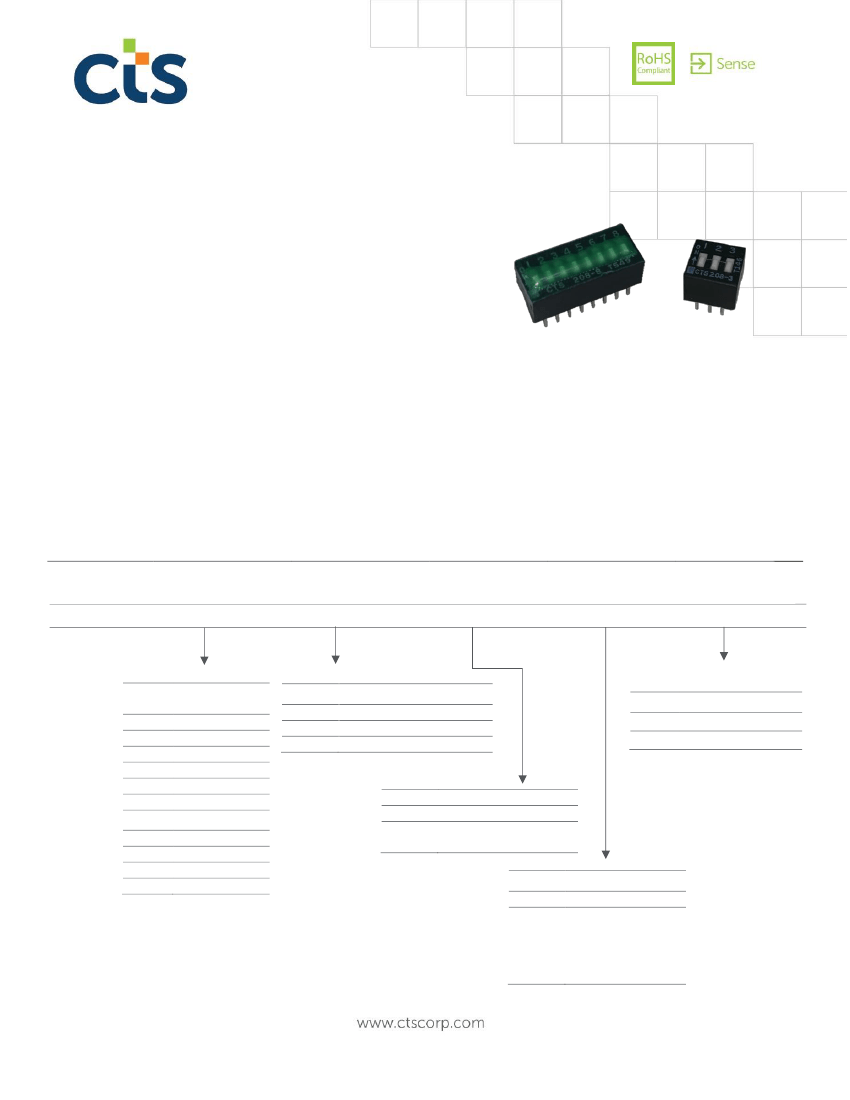

Series 208

Through-Hole DIP Switch



Available with SPST circuit choices



Available with low profile, standard, or extended actuator

heights. Consult the ordering information for options.



Black housing



RoHS compliant



Optional top tape seal for board spray washing

Description

The terminals are molded into the thermoset base and provide an electrostatic discharge shield rating to 22KV

when front row of terminals are connected to ground. Tin plated contact design incorporating a dimple-to-flat

surface wiping interface for contact corrosion resistance, making it the economical choice for suitable

applications.

Ordering Information

Series

208-

Number of

S Switch Positions

Actuator

Height

Bottom

Epoxy Seal

Top Tape

Seal

Actuation

Preset

Code No. of switch

positions

1 position

2 positions

3 positions

4 positions

5 positions

6 positions

7 positions

8 positions

9 positions

10 positions

12 positions

Code

Blank

Spec.

Standard (0.89mm/.035”)

Extended (3.43mm/.135”)

Low profile (Flush)

Code

BLANK

Spec.

Ship at OFF position

Ship at ON position

Code

Blank

Bottom epoxy seal

No epoxy seal

Epoxy seal

(Required for 208-1S)

Code

Blank

Top tape seal

No top tape seal

Top tape seal

(Not available for

extended actuator

or 1-position SPST

DIP switch)

Notes:

1.Contact CTS for other common features not listed.

2020-6-30 Rev. B

Page 1 of 4

equipment. Visit www.ctscorp.com for list of applicable patent(s), more information, or to request a quote.

Series 208

Through-Hole DIP Switch

Electrical Specifications

Parameter

Contact Resistance

Insulation Resistance

Dielectric Strength

Switch Capacitance

Nonswitching Rating

Circuit

SPST

Conditions & Remarks

Initial

At end of life

Between insulated terminals

500 VAC between

adjacent switches

Between adjacent

closed switches

Min

1000

5.0

100

Max

100

500

Unit

milliohms

Megohms

minute

VDC

Position

Mechanical and Environmental

Actuation Life

Soldering

Shock

Vibration

Seal

Marking

Packaging:

Operating Temperature

Range

Storage Temperature

Range

2,000 cycles switching 50mA @ 24VDC

Maximum wave temperature, 260°C for 5 seconds

Per MIL-STD-202F, method 213B, condition A(50G’s)

with no contact inconsistencies greater than 1 microsecond

Per MIL-STD-202F, method 204D, condition B (.06” or 15G’s between 10 HZ to 2K HZ) with

no contact inconsistencies greater than 1 microsecond

Bottom epoxy seal optional

Optional top tape seal for board spray washing

Special side or top marking available-consult CTS

Standard anti-static tube packaging

-55°C to +85°C

2020-6-30 Rev. B

Page 2 of 4

equipment. Visit www.ctscorp.com for list of applicable patent(s), more information, or to request a quote.

Series 208

Through-Hole DIP Switch

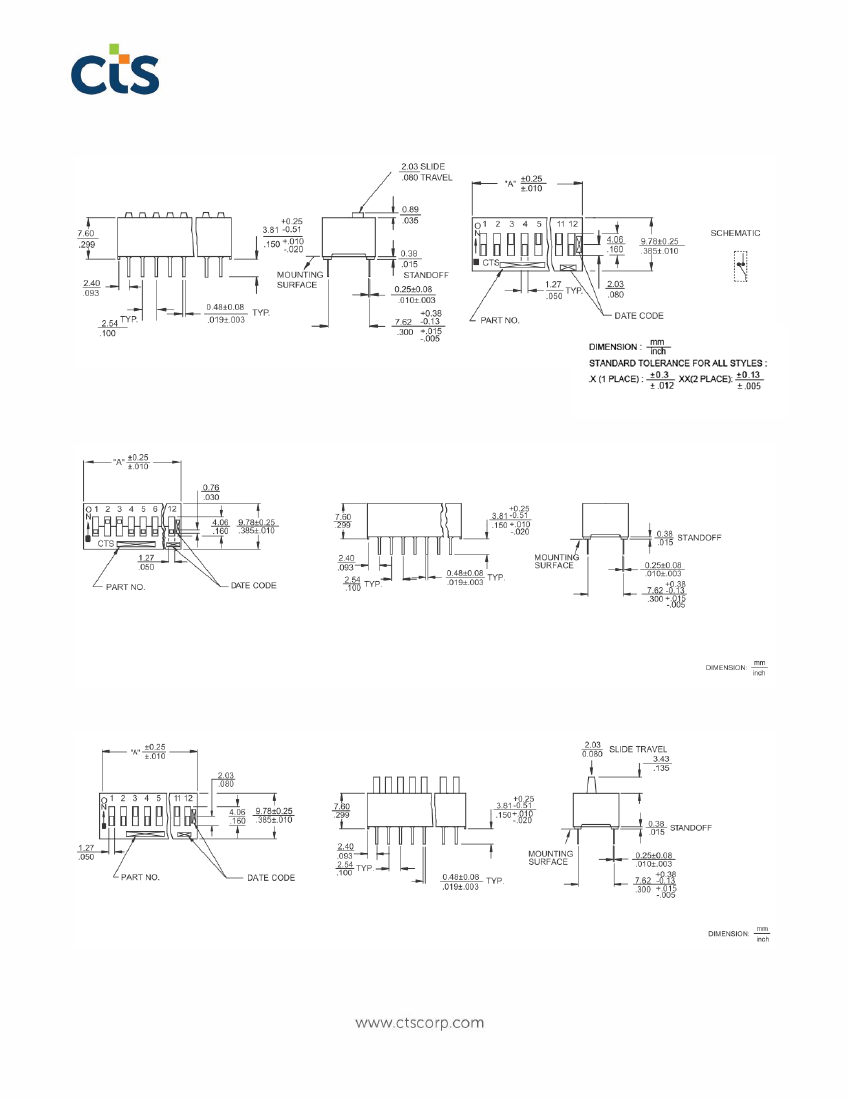

Mechanical Specifications

Figure 1 - SPST

Figure 2 – Low Profile Actuators

Figure 3 – Extended Actuators

2020-6-30 Rev. B

Page 3 of 4

equipment. Visit www.ctscorp.com for list of applicable patent(s), more information, or to request a quote.

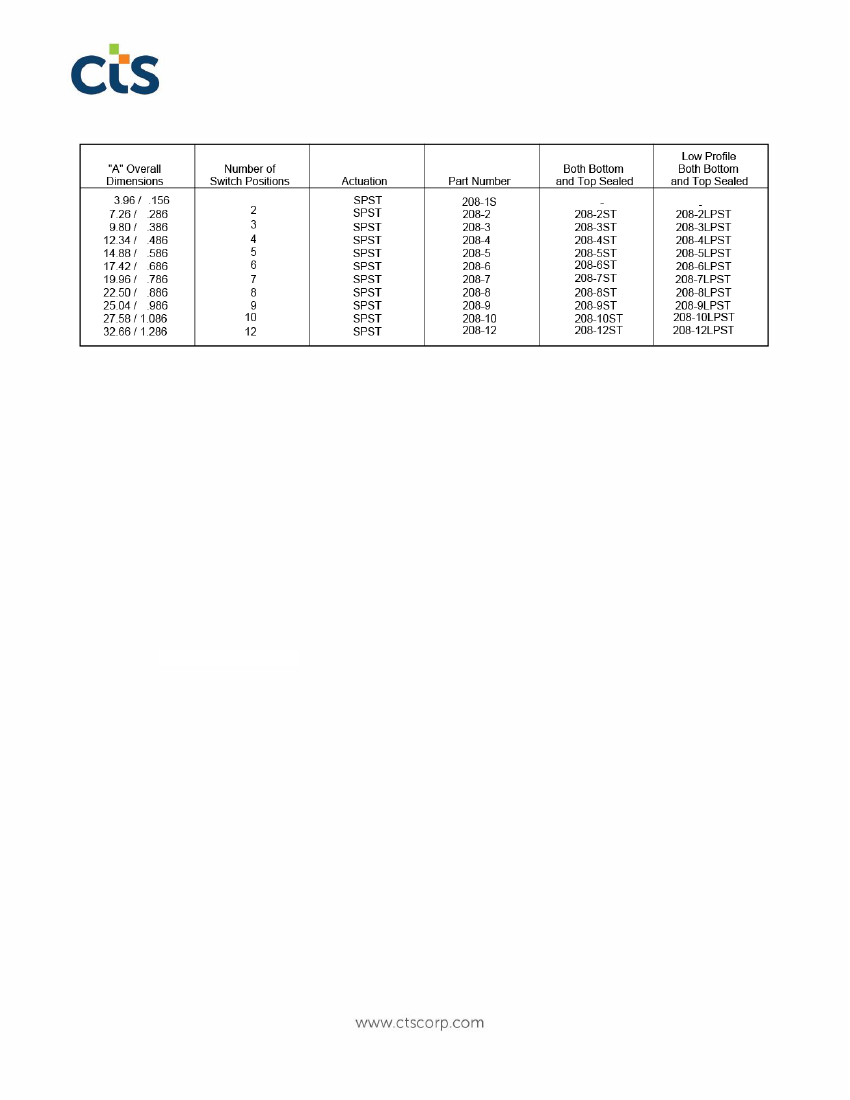

Series 208

Through-Hole DIP Switch

2020-6-30 Rev. B

Page 4 of 4

equipment. Visit www.ctscorp.com for list of applicable patent(s), more information, or to request a quote.

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
